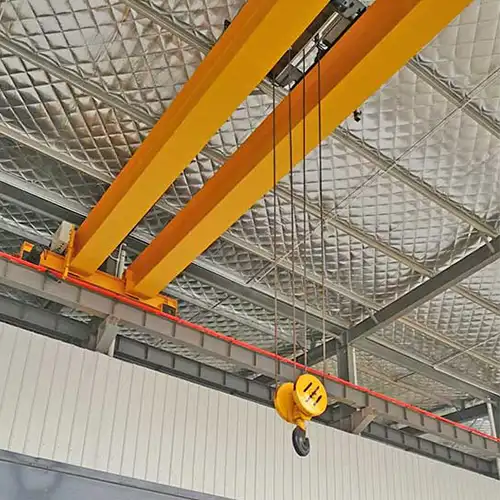

Overview of double girder eot crane

What is a double girder eot crane?With double girder crane design, the overhead travelling cranes adopts two girder beams to make up the crane travelling bridge which are supported by an end truck / end carriages on each side. Frequently, the double girder overhead crane are designed in top running crane configuration in which the hoist trolley or open winch trolley run on a rail or track installed on top of the bridge girders. With a double girder design, overhead cranes help to gain the depth of the cross girder if the hoist is placed between or on top of the cross girders.

Double girder overhead travelling cranes are widely recommended for heavy-duty material handling with heavier lifting capacities and longer spans. Because of this, the crane parts and components of the double girder crane system, including the hoist trolley and open winch trolley, are more complex in design which makes double girder overhead travelling cranes more expensive than a single girder overhead crane.

With double girder design, the overhead bridge cranes can be added with specialized features like crane walkways and maintenance platforms,etc. Due to more materials are adopted for double bridge beams and runway system, the installation of double girder overhead travelling cranes have to take the supporting structure of the building into consideration and if necessary extra tie-backs or supporting columns can be added. Double girder overhead travelling cranes with process crane configurations and specifications will be the best fit material handling solutions for your particular applications.

General parameters & specifications of double girder overhead crane

Double girder bridge cranes are designed for heavy material handling with capacity of more than 20 tons, thus, a double girder overhead bridge cranes also can be referred as a heavy duty overhead crane. With various below the hook devices, the double girder eot cranes are widely used in various industrial applications. Among them, the hook double girder overhead travelling crane is one of the mostly used heavy material handling crane equipment with the lifting capacity from 5 ton to 550 ton, working class up from A4 to A7.

• Crane type: Double girder overhead travelling crane with top running crane designs
• Lifting capacity of double girder overhead crane: 5 ton, 10 ton, 20 ton, 30 ton, 40 ton, 50 ton, up to 100 ton
• Span of double girder overhead crane: 7.5m~35.5m
• Working class of double girder overhead crane: A5,A6

double girder overhead travelling cranes can offer low headroom configurations designed with European standards of FEM, DIN and ISO, for heavy loads handling with features of lower deadweight, larger hook height and longer crane span, which are particularly good solutions for general manufacturing, workshops, warehouse and assembly lines,etc. Process double girder overhead travelling cranes are available. Please contact us to get free consultation, double girder eot crane drawing, and overhead crane brochures, etc.

Top running crane vs. Under hung cranes

Double girder overhead travelling cranes can be designed either in top running crane or under running crane configurations. A top running double girder bridge crane will provide the most overhead room, as well as the greatest hook height. An under running double girder overhead travelling cranes are mounted on a runway structure that has been integrated into the ceiling structure of the building which are an effective solutions for low headroom or tight headroom clearance applications.

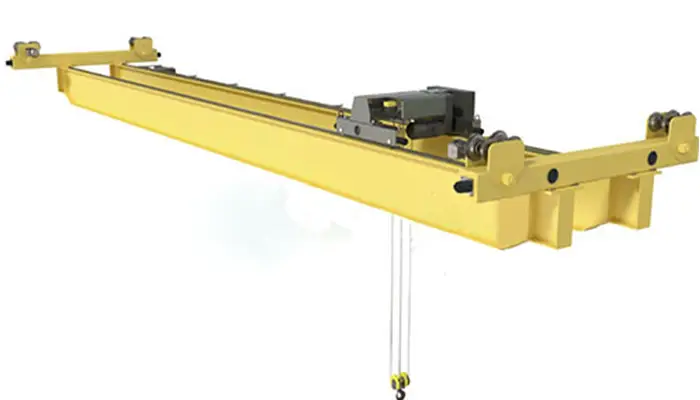

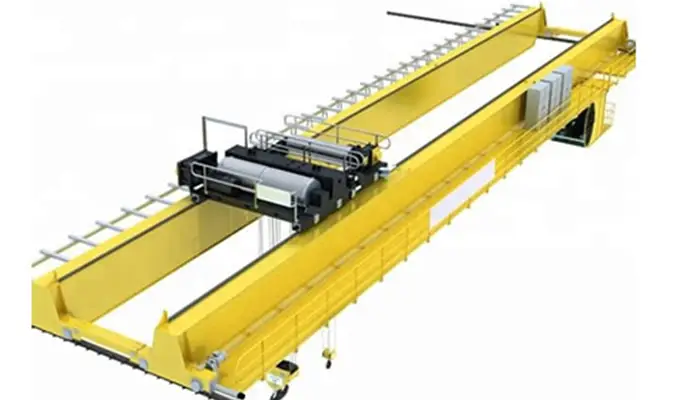

Top running double girder overhead travelling crane

Under running double girder overhead travelling crane

Usually, the double girder underhung bridge cranes are difficult and expensive. For various conditions, the double girder overhead travelling cranes usually are adopted the top running crane designs.

Hoist trolley crane & Open winch cranes

Double girder overhead travelling cranes are the first choice for heavy duty material handling in workshops which needs a very large range of crane spans, hook height and travelling speed range. Generally, the double girder eot cranes are available with multiple hoisting systems including Hoist trolley system & Open winch trolley system, depending on the wight of lifting loads and lifting requirements.

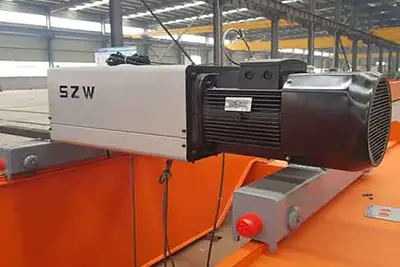

Double girder hoist trolley

Crane hoist trolleys are designed for double girder crane and are widely used for heavy duty lifting operations with higher safety and stability. The hoist trolley are runs on along the top of edge of two girders and the wire rope with hook will descend between the two girders to handle the load, which enables the maximum possible height of lift under the beam girder, however, on the hand more roof space will be required above the crane beams or girder, due to it sits on the top of crane beam girders.

Double girder hoist trolley for double girder overhead travelling crane and gantry cranes

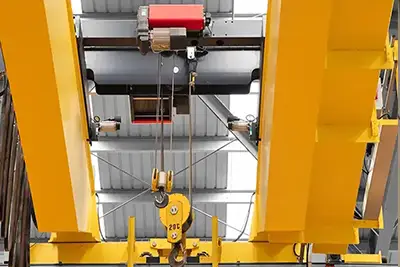

Double girder hoist trolley for double girder overhead travelling cranes and gantry cranes with double hoists for hoisting and lifting .

Electric chain hoist trolley for double girder overhead travelling cranes and gantry cranes

Electric wire rope hosist trolley for double girder overhead travelling cranes and double girder gantry cranes

Chinese style hoist trolley-The Chinese style hoist trolley adopts the CD/MD wire rope electric hoist trolley or electric chain hoist with frame as the lifting mechanism and lifting capacity is from 5 ton 32 ton, and the double girder electric hoist overhead travelling crane is much stronger, safer in use compared with that of single girder overhead electric crane. Notice: The Chinese style hoist trolley also can meet the European crane standards and operation requirements. Contact us to learn more.

European style hoist trolley-European standard FEM/ DIN standard low profile hoist trolley with lifting capacity are up to 80 ton. The European low profile hoists trolleys are used on double girder cranes configurations, such as, types of overhead crane & A frame gantry cranes, etc. With low profile hoist designs & double girder designs, the hoist hook can be placed on and between the two main beams which offers a larger lifting height comparing with the double girder cranes with Chinese traditional designs. With compact structure and low profile design, the European FEM / DIN standard crane hoists can be used in workshops with limited space with reliable and stable performance,which offer you a chance to save investment on workshop construction initially.

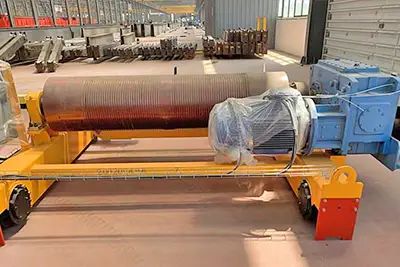

Double girder open winch

Build up open winch and electric winch trolleys are adopted on double girder cranes as the lifting system for handling heavy loads with capacity from 5 ton 500 ton. According to different design style and features, the overhead open winch crane can be grouped in the following types:

Open winch with Chinese traditional design-These types of open winch and electric crane winch trolley are frequently adopted on the Chinese traditional heavy duty double girder cranes with capacity from 5 ton to 500 ton,with the features of safe, flexible, powerful, reliable & stable.

European open winch crane design - European crane winch is a process crane components for heavy duty double girder overhead travelling cranes and overhead gantry cranes. The European winch trolleys are tailored to meet the specific requirements of your application and process cranes. The process winch trolleys are vary versatile and applicable to a variety of industrial applications.

Open winch with European style design

Open winch with European style design

Open winch with Chinese traditional design with CE certificate

Open winch with Chinese traditional design with CE certificate

General configuration of double girder eot cranes

• Box section double beam girders, low deadweight, reducing investment.
• Crane girders can be processed to fit the requirements of building structure and application conditions.
• Best utilization of the available height and space due to compact hoisting trolley design with minimum approach dimensions and large hook path.
• End carriages, welded box-shape structure with torsionally rigid,
• Modular design of end trucks and crane wheel sets. Adjustable wheel group can effectively prevent the gnawing of rails.
• High safety ensured with various safety devices and measures including overload limiter, height limiter, Stroke limiter, photoelectric limiter and other protective measures optional based on application conditions, etc.
• Featured crane black box with recorded analysis functions are optional based on requirements.
• Crane control options: Radio control, control pendant or driver's cab control.
• Optional maintenance platform and accessible crab which is aimed for easier crane maintenance as well as fast and safe access to building interior fittings , i.e, lights, radiators, supply lines, etc.

Offering of double girder overhead travelling cranes

Chinese style hoist trolley double girder overhead travelling crane
Overhead electric winch crane is China traditional heavy duty double girder overhead crane equipped winch trolley,Robust & Sturdy, Affordable industrial overhead winch cranes.

Chinese style open winch double girder overhead travelling crane
5 ton- 63 ton double girder overhead electric crane with rope hoist trolley / chain hoist trolley, competitive hoist trolley crane system, cheaper hoist trolley crane price, good electric overhead crane solution.

European style open winch double girder overhead travelling crane
European standard double girder overhead crane with open winch trolley, a heavy duty winch crane up to 320 ton, wide specifications hook cranes for wide application. Get FEM / DIN open winch travelling bridge crane now!

European style hoist trolley double girder overhead travelling crane
Advanced double girder overhead crane based on European DIN/FEM Standard with 5 ton-80 ton electric wire rope hoist trolley for hoisting industrial materials - European advanced wire rope hoist cranes!

Ladle crane: 5 ton -74 ton steel mill ladle crane & 5 ton up 320 ton ladle crane
Ladle cranes for 5 ton -320 ton ladle or liquid metal lifting, heavy duty ladle crane for steel mill, foundry, furnace, and casting factory. Good priced ladle crane, charging crane, casting crane & foundry crane !

Electromagnetic double girder overhead travelling crane
Electromagnetic overhead cranes with types of electromagnetic chucks & magnetic carrier beams for steel scraps, billet, slab,wire, coil, pipe, plate, etc., handling with efficiency and safety.

Rotary overhead travelling crane with electro- magnet beam spreader
Magnetic crane is a double girder overhead crane with rotary crane design & electromagnet beam spreader, lifting long & larger steels, safe & efficient rotary overhead crane.

Grab crane- overhead travelling crane with crane grab bucket
5 ton 10 ton 16 ton 20 ton grab overhead cranes with orange peeler grabs or clamshell grab buckets for scattered material handling in power station, steel mill, port, cement plant,storage & waste recycling station, etc

Below-the-hook devices & overhead crane attachments

Up to 550 ton double girder overhead travelling cranes of various crane designs are for sale at cost- effective crane price. Types of double girder bridge cranes are available, such as, hook overhead crane, gab bucket overhead crane, electromagnetic overhead crane, lifting clamp overhead crane, and other overhead process cranes, etc.

>> Ladle crane
>> Hook crane
>> Grab Crane

>> Electromagnetic Crane,
>> Electromagnetic beam spreader
>> Tong crane / clamping crane/ gripper crane

Spreader beams

Lifting beam

Ladle hook

Lifting tong

Crane C hook

Crane grab bucket

Crane electromagnetics

Slab lifting devices

Sheet lifter & plate lifter

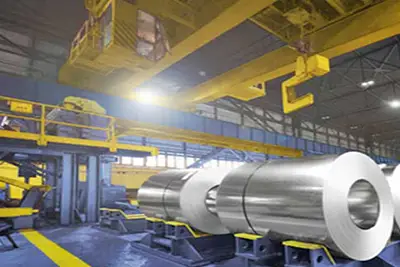

Coil lifter

Advantages of double girder overhead travelling cranes

Various crane configurations & process crane designs, the double girder overhead travelling cranes are with the advantages of high stability and rigidity, cost-effective，high efficient and stable performance, etc.

• Larger hook height – vertical lifting height of hoist hook above the ground.
• No limits to maximum span or capacity
• Ideal for heavy loads lifting and transportation.
• Ideal for frequent handling of heavy loads
• Added features can be added and supported by double girder crane designs such as, walkways and maintenance platforms, driver's cabs, magnetic reels, and lights, etc.

Limitations of double girder overhead travelling cranes

High cost is the major disadvantages of the double girder overhead travelling cranes. Double girder eot cranes are more expensive than single girder crane design due to the added material costs, additional supporting structures,and more complex crane parts and components, etc. Additional costs related to crane shipping and installation comparing with a single girder overhead crane.

Learn more please check the additional reading on single girder vs. double girder overhead travelling cranes or contact us to get free process crane designs and overhead crane drawings and pdf brochures,etc.

Industrial Applications

With process crane designs, double girder overhead crane is an important lifting equipment in modern industry production and transportation to improve efficiency and safety. double girder overhead travelling cranes are widely used in various industrial applications such as in mining, iron and steel production, rail yards, and shipping ports, port and terminal, logistics and other departments and places.

• Automotive Press Shops
• Foundries
• Power Stations and Heavy Maintenance
• Ship Building and Heavy Fabrication Industries

Double girder cranes are featured for heavy duty working application with high performance and safety to ensure efficient productivity. For your heavy duty crane needs, please select us double girder overhead travelling crane solutions to maximize your uptime and reduce downtime. Send us an inquiry on double girder overhead crane today.
