1 ton Low Headroom Electric Chain Hoist 380V
Economical 1 Ton Electric Chain Hoist, Remote Control, 380v50hz3ph

Low headroom electric chain hoist 1 ton for sale Serbia. Economical 1 ton electric chain hoist, remote control, 380v50hz3ph for sale, good price. Check now.

Low headroom electric chain hoist refers to the ultra-low type electric chain hoist, which is mainly used in occasions where the working space is narrow and limited. There are two types of this specification: single chain and double chain. The low clearance electric hoist has a unique and optimal structure in shortening the distance between the body and the beam track.

Application environment of low headroom and low profile electric chain hoist

Low headroom electric chain hoist is suitable for use in workplaces with low factory building height and strict requirements on lifting height, especially suitable for temporary factory buildings or places where effective lifting space needs to be expanded. The low headroom electric chain hoist is composed of 2 sports cars and an electric host.

Overview of 380v low headroom electric chain hoist 1 ton for Serbia

• Crane Type：low headroom electric chain hoist
• Date of Placing Oder：2020.7.2
• Date of Delivery ：2020.7.7
• Way of Transportation： By air
• Way of Payment： TT100%,
• Destination country： Serbia
• Destination port：CFR Belgrade Nikola Tesla Airport
• First Contact：2020.6.23
• Application: Inrion product manufacturing

1 ton low headroome electric chain hoist specifications & general requirements

Customized features of 380V electric chain hoist with low headroom design for sale Serbia

• The control voltage is 36V;
• The total height of the gourd is less than 650MM.
• The main dimensions of the 1 ton low headroom electric chain hoist is as following in the electric hoist drawing:

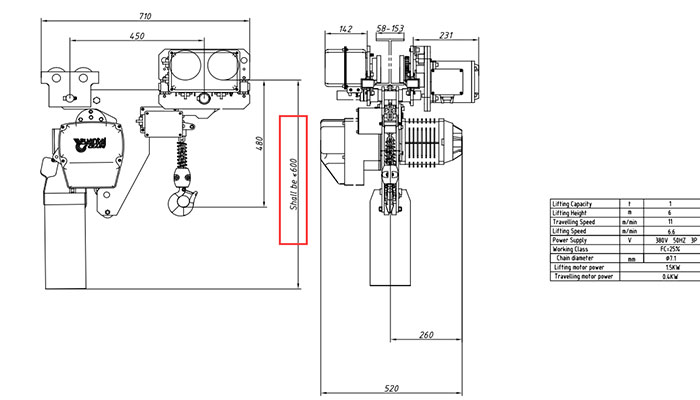

1 ton low headroom electric chain hoist drawing

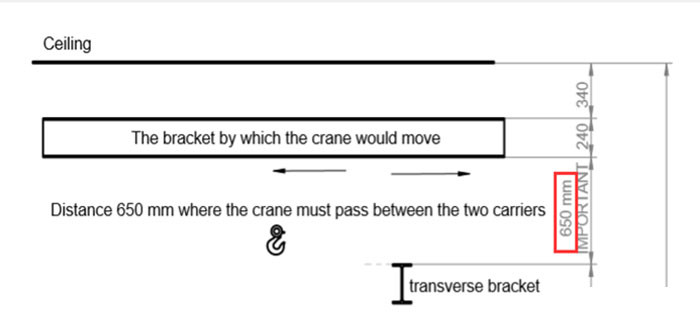

Low headroom electric chain hoist mounted H Beam size

Gallary of 1 ton electric chain hoist for sale Serbia

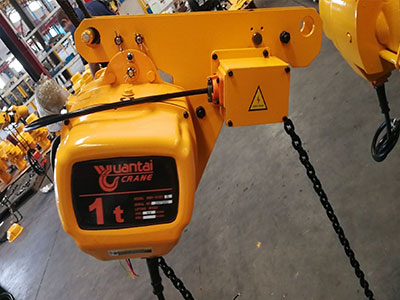

1 ton low headroom electric chain hoist for sale Serbia

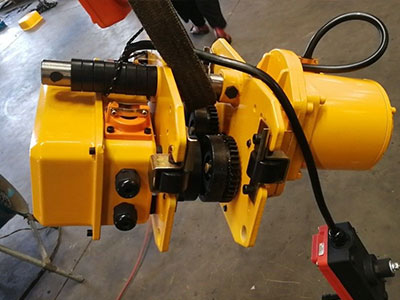

Low headroom hoist travelling trolley for sale Serbia

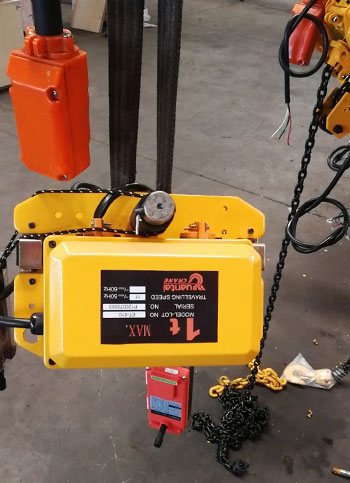

1 ton electric hoist and pendant control for sale Serbia

Related: 1 Ton Electric Chain Hoist for Sale

Electric chain cranes with low clearance are commonly used in manufacturing to lift products. We can provide lifting capacities ranging from 0.5 to 10 tons. The lifting height can be adjusted to meet your specific needs. The voltage can be 220V, 380V, or customized to meet your needs. Hook suspension and motorized options are available. Frequency converter control can also be used if frequency conversion drive is required in a lifting operation to more accurately locate the load.

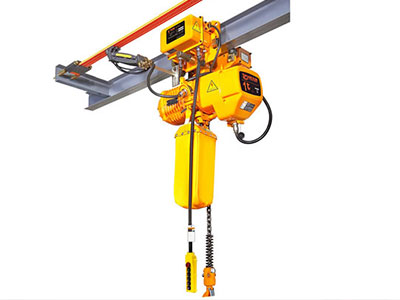

Electric Chain Hoist 1Ton with Motorized Trolley for Sale
1 ton electric chain hoist with motorized trolley is the most popular type electric chain hoist. Stable and efficient operation, accurate positioning, large lifting capacity, and support for curved tracks. These characteristics make it applicable to all non-special working conditions.

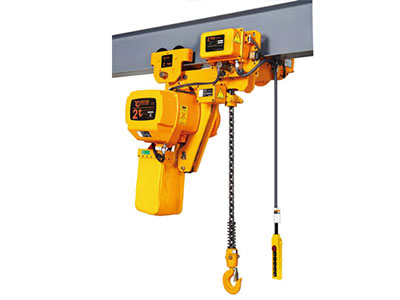

Low Headroom Electric Chain Hoist 1Ton for Sale
1 ton low headroom electric chain hoist is suitable for those working conditions which have the height limit. Under the same conditions, if you want to maximize the lifting height, the low headroom electric chain hoist is your best choice.

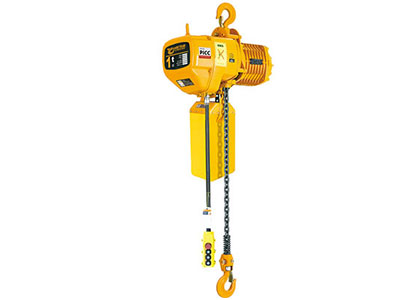

Hook Type Electric Chain Hoist 1Ton for Sale
1 ton hook type electric chain hoist is widely used in workshop, warehouse, logistic and construction industries. It is fixed on somewhere to lift material up and down, as it's a hook on the top of the chain hoist, so it cannot move.

Electric Chain Hoist 1Ton with Manual Trolley for Sale
1 ton electric chain hoist with manual trolley is different with the hook mounted one. It can move along the I-beam or crane girder with the manual trolley. This feature make it is a very cost-effective movable electric hoist.

Main parameters and specifications of electric chain hoist 1 ton

How to Get 1 ton Electric Chain Hoist Price?

We are excited to work with you to find the best solution for your problem, no matter how complex or unique it is. We will work with you from the beginning to the end of your project, and we will continue to support you after it is completed. Please send us a detailed request as follows to get the industrial electric hoist solution that meets your working conditions:

• Lifting capacity: 1 ton
• Lifting height:
• Power supply (e.g., 380V 50Hz 3Phase):
• Detailed working conditions:
• How many hours does your crane need to work per day?
• Other requirements:
