5 Ton Jib Crane for Sale Indonesia, Explosion proof Crane Design

Explosion proof jib crane 5 ton for sale Indonesia.Custom pillar jib crane, 5 ton explosion proof wire rope for  hoist , hazardous application. Check now.

Overview of 5 ton jib crane with explosion proof design

• Crane type: Pillar jib crane with explosion proof design
• Crane capacity: 5 ton
• Crane cantilever: 6 m
• Crane lifting height : 6 m
• Crane power supply: 380V50HZ3P
• Crane project location: Indonesia

An explosion-proof jib crane is a specialized type of crane designed to operate in hazardous environments where there is a risk of explosive gases, vapors, or dust. These cranes are commonly used in industries such as oil and gas, chemical processing, mining, and manufacturing facilities, where the presence of flammable materials can pose a serious safety hazard.

Key features of an explosion-proof jib crane:

• 1. Enclosed Electrical Components: The explosion proof crane is equipped with sealed and enclosed electrical components, preventing sparks or electrical malfunctions from igniting flammable substances.
• 2. Explosion-Proof Motors: The motors used in an explosion-proof jib crane are designed to prevent sparks or electrical arcs, reducing the risk of ignition in potentially explosive atmospheres.
• 3. Explosion-Proof Enclosures: All electrical enclosures are sealed and designed to withstand an internal explosion without allowing it to propagate outside.
• 4. Non-Sparking Materials: The construction of the crane utilizes non-sparking materials, reducing the chance of friction sparks.
• 5. Overload Protection: These cranes typically have overload protection mechanisms to prevent excessive loads that could lead to accidents.
• 6. Certifications: Explosion-proof jib cranes must meet specific safety standards and certifications, such as ATEX, IECEx, or NEC (National Electric Code) requirements.
• 7. Remote Controls: Some models come with remote controls to allow operators to control the crane from a safe distance.
• 8. Proper Ventilation: The crane's housing and design may include ventilation systems to minimize the accumulation of hazardous fumes.

When considering an explosion-proof jib crane, it is crucial to consult with specialists or manufacturers experienced in providing equipment suitable for the specific hazardous environment in which the crane will operate. Safety is of utmost importance in such environments, and using the correct equipment is essential to prevent accidents, protect workers, and comply with relevant safety regulations.

Applications of explosion proof jib cranes

Explosion-proof jib cranes find numerous applications in industries where there is a risk of explosive gases, vapors, or dust. These specialized cranes are designed to operate safely in hazardous environments, ensuring the safety of workers and equipment. Some common applications of explosion-proof jib cranes include:

• 1. Oil and Gas Industry: In refineries, petrochemical plants, and offshore platforms, explosion-proof jib cranes are used for various tasks, such as lifting heavy equipment, transferring materials, and maintaining machinery in hazardous areas.
• 2. Chemical Processing Plants: Chemical plants deal with volatile and flammable substances. Explosion-proof jib cranes are employed for precise and safe lifting of chemicals, reactors, and other equipment within the hazardous zones.
• 3. Pharmaceutical Industry: In pharmaceutical manufacturing facilities, where the production of certain drugs involves hazardous materials, explosion-proof jib cranes are used for controlled lifting, blending, and transferring of materials.
• 4. Mining Operations: In mining environments, where combustible gases and dust are common, explosion-proof jib cranes are utilized to move heavy loads and equipment in underground mines or processing facilities.
• 5. Paint and Coatings Industry: In facilities dealing with flammable paints and coatings, explosion-proof jib cranes help in handling large containers and materials during the production process.
• 6. Aerospace Industry: In aerospace manufacturing and maintenance, explosion-proof jib cranes play a crucial role in lifting and positioning components, engines, and aircraft parts in sensitive areas.
• 7. Waste Treatment Plants: Waste treatment facilities often handle hazardous waste. Explosion-proof jib cranes are used to move waste materials safely and efficiently.
• 8. Grain Handling Facilities: Grain silos and handling facilities can produce combustible dust. Explosion-proof jib cranes aid in loading and unloading grain and prevent the risk of explosions.
• 9. Automotive Industry: In certain areas of automotive manufacturing plants where flammable solvents are used, explosion-proof jib cranes help in handling heavy vehicle parts and components safely.
• 10. Power Generation: In power plants using fossil fuels, explosion-proof jib cranes assist in maintenance, repair, and installation tasks in areas where the risk of ignition is present.
• 11. Shipbuilding and Repair: In shipyards, explosion-proof jib cranes facilitate the assembly, repair, and maintenance of vessels in areas that may contain flammable vapors.
• 12. Printing Industry: In printing facilities dealing with flammable inks and solvents, explosion-proof jib cranes are employed to handle heavy printing rolls and equipment safely.

In each of these applications, explosion-proof jib cranes play a vital role in ensuring the safety of workers and equipment while enabling efficient lifting and material handling operations in potentially hazardous environments.

Case study of  5 Ton Explosion-Proof Jib Crane for sale Indonesia

In the bustling industrial landscape of Indonesia, safety remains a paramount concern in hazardous environments where explosive gases and vapors pose significant risks. In response to this need for enhanced safety measures, a local industrial facility sought to acquire a specialized crane solution. This case study showcases the successful implementation of a 5-ton explosion-proof jib crane, providing safer and more efficient lifting operations within the challenging environment of Indonesia.

Client Background and Challgene

The client, a prominent player in the Indonesian manufacturing sector, operates a facility that handles flammable materials. Due to the presence of hazardous substances, the standard cranes posed a significant safety risk. To mitigate these concerns and improve workplace safety, the client sought a reliable explosion-proof jib crane that could perform lifting tasks while minimizing the potential for accidents or ignition sources.

The main challenge was to procure a crane that could safely and efficiently handle a 5-ton load within a hazardous environment. Additionally, the crane needed to have an explosion-proof design to meet the stringent safety regulations and ensure the safety of workers, equipment, and surrounding assets.

Explosion proof jib crane design

After conducting thorough research and consulting with reputable crane manufacturers, the client partnered with a leading supplier specializing in custom jib cranes with explosion-proof designs. The selected solution was a 5-ton pillar jib crane, meticulously engineered to meet the specific requirements of the Indonesian hazardous application.

Technical Specifications:

• Crane Type: Pillar Jib Crane with Explosion-Proof Design
• Crane Capacity: 5 tons
• Crane Cantilever: 6 meters
• Crane Lifting Height: 6 meters
• Crane Power Supply: 380V, 50HZ, 3-Phase
• Crane Project Location: Indonesia

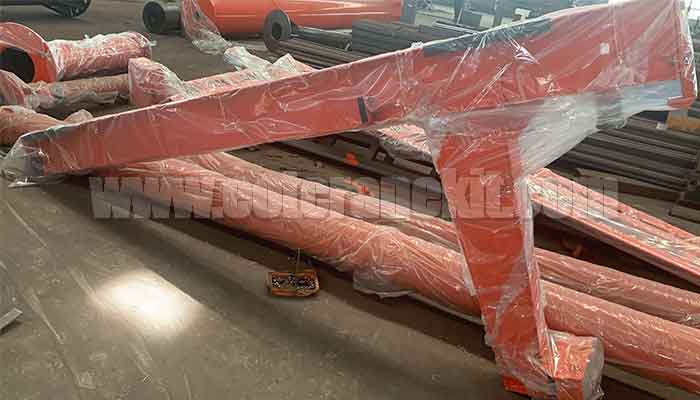

Cantilver and cross beam of 5 ton explosion proof jib crane for sale Indonesia

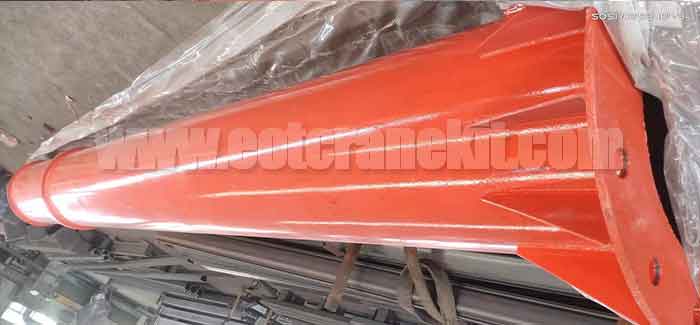

Column of 5 ton pillar jib crane for sale Indonesia

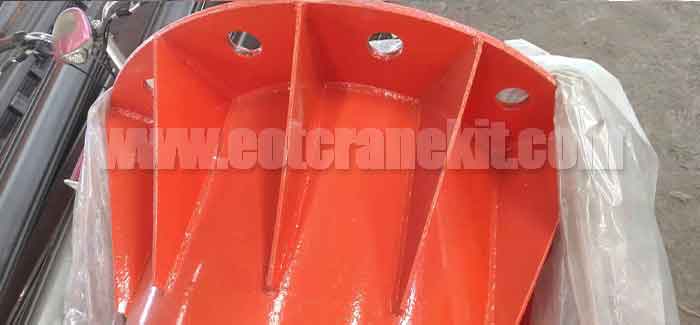

Column plate of the 5 ton explosion proof jib crane for sale

Key Features of the Explosion-Proof Jib Crane:

• 1. Explosion-Proof Components: The crane was equipped with explosion-proof motors, enclosed electrical components, and sealed electrical enclosures, minimizing the risk of sparks or electrical arcs.
• 2. Non-Sparking Materials: The crane's construction utilized non-sparking materials to prevent friction sparks.
• 3. Certifications: The crane was compliant with international safety standards and had relevant certifications, including ATEX and IECEx.
• 4. Overload Protection: To ensure safe operation, the crane was equipped with an overload protection system to prevent overloading accidents.
• 5. Remote Control: A remote control feature allowed operators to handle lifting operations from a safe distance, minimizing exposure to hazardous areas.

Benefits of explosion proof jib crane 5 ton installation :

The successful integration of the 5-ton explosion-proof jib crane yielded numerous benefits for the client and their operations:

• 1. Enhanced Safety: The crane's explosion-proof design provided a safe lifting solution, significantly reducing the risk of accidents and potential ignition sources in the hazardous environment.
• 2. Increased Efficiency: The jib crane's maneuverability and precise lifting capabilities improved operational efficiency, resulting in reduced downtime and increased productivity.
• 3. Compliance with Regulations: The crane's adherence to safety standards and certifications ensured that the facility complied with the stringent safety regulations of hazardous environments.
• 4. Long-Term Reliability: The high-quality construction and robust design of the crane offered long-term reliability, minimizing maintenance requirements and associated costs.

The successful implementation of the 5-ton explosion-proof jib crane transformed the client's lifting operations in Indonesia's hazardous environment. By prioritizing safety, compliance, and efficiency, the client demonstrated its commitment to providing a secure workplace for its workforce and safeguarding valuable assets. As a result, the explosion-proof crane not only met the client's expectations but also paved the way for safer and more productive operations in the future.

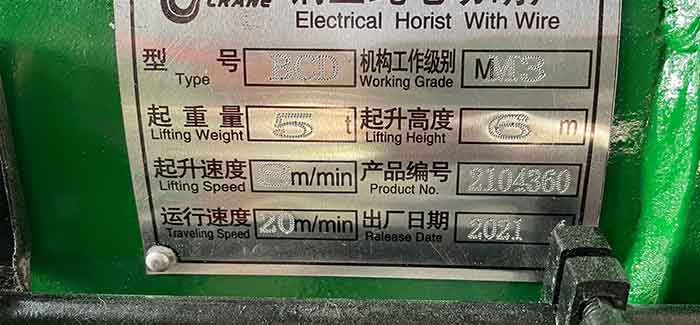

Nameplate of Explosion proof electric hoist with 5 ton and 6 m lifting hegiht for 5 ton explosion proof jib crane

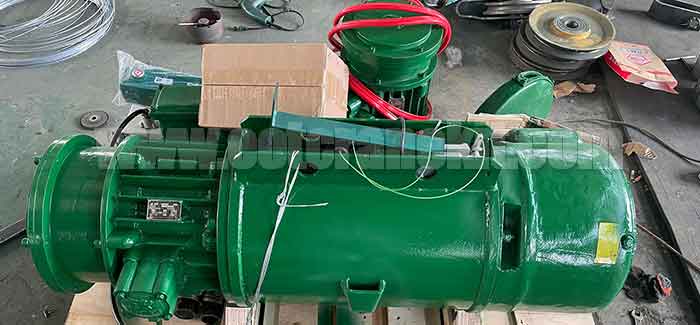

Electric wire rope hoist with explosion proof hoist design 5 ton

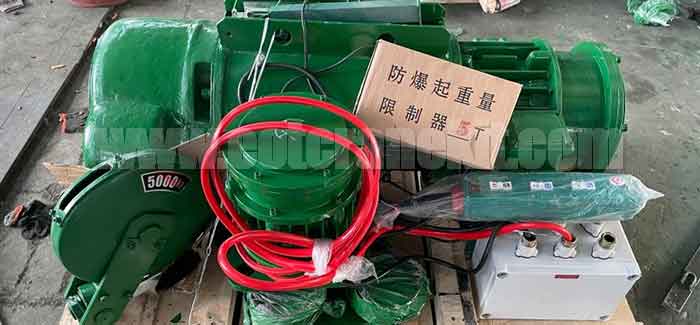

5000kg explosion proof jib crane hoist

A explosion-proof wire rope hoist with a capacity of 10 tons is a specialized lifting equipment designed to operate safely in hazardous environments where there is a risk of explosive gases, vapors, or dust. Below are some of the key features you might find in such a hoist:

• 1. Explosion-Proof Design: The hoist is specifically engineered with an explosion-proof design to prevent sparks, electrical arcs, and other potential ignition sources in hazardous areas.
• 2. Certifications: The hoist is compliant with international safety standards and holds relevant certifications, such as ATEX, IECEx, or other regional explosion-proof certifications, to ensure it meets the strict safety requirements for hazardous environments.
• 3. Load Capacity: The hoist has a lifting capacity of 10 tons, making it suitable for heavy-duty lifting operations.
• 4. Wire Rope: The hoist utilizes a high-strength wire rope capable of handling heavy loads while maintaining durability and safety.
• 5. Explosion-Proof Motor: The hoist is equipped with an explosion-proof motor that is designed to eliminate the risk of electrical sparks or arcs in potentially explosive atmospheres.
• 6. Enclosed Electrical Components: All electrical components in the hoist are enclosed and sealed to prevent the ingress of hazardous substances and protect against electrical malfunctions.
• 7. Non-Sparking Materials: The construction of the hoist uses non-sparking materials, reducing the possibility of friction sparks during operation.
• 8. Overload Protection: The hoist is equipped with an overload protection system to prevent lifting beyond the rated capacity, ensuring safe operation and prolonging the hoist's lifespan.
• 9. Emergency Stop: The hoist is equipped with an emergency stop feature to quickly halt operations in case of emergencies or potential hazards.
• 10. Remote Control: Some models of explosion-proof wire rope hoists come with remote control capabilities, allowing operators to control the hoist from a safe distance.
• 11. Dual Speed Option: Some hoists may offer dual speed operation, providing both normal and slow speed options for precise and controlled lifting.
• 12. Weatherproof Housing: The hoist may have a weatherproof housing that protects it from environmental factors and ensures long-term reliability.
• 13. Limit Switches: The hoist is equipped with limit switches to prevent overtravel of the hook and trolley, enhancing safety during lifting operations.
• 14. Corrosion Resistance: The hoist may have additional corrosion-resistant coatings to withstand harsh environments and extend the hoist's service life.
• 15. Comprehensive Safety Features: Besides explosion-proof design, these hoists may incorporate additional safety features like emergency brakes, phase failure protection, and thermal overload protection.

When considering an explosion-proof wire rope hoist for a hazardous environment, it is essential to consult with experienced suppliers or manufacturers to ensure that the hoist meets the specific requirements of the application and complies with relevant safety regulations. Safety is of utmost importance in such environments, and using the right equipment is critical for preventing accidents and protecting personnel and assets.

Jib crane loading into containers

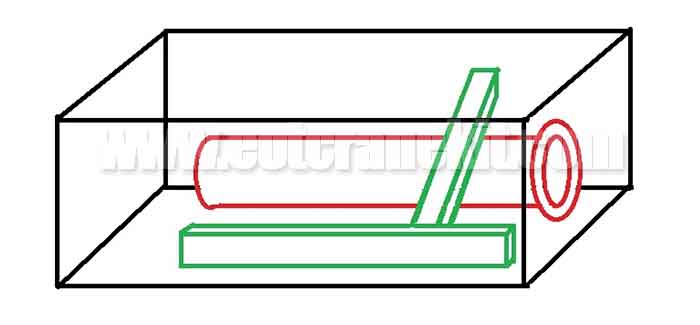

Planing of 5 ton explosion proof jib crane for delivery to Indonesia

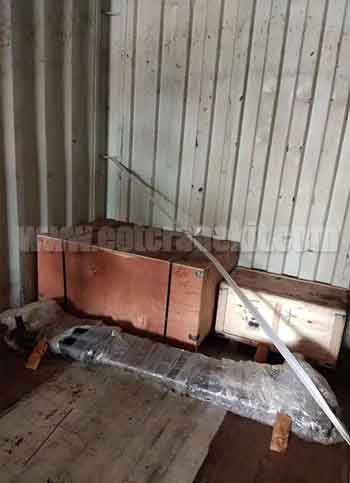

Explosion proof jib crane for delivery by container

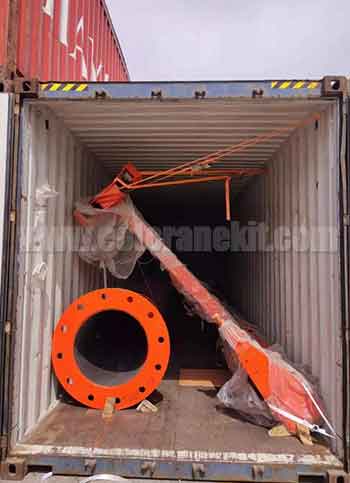

JIb cantilever and column for delivery to Indonesia

Transporting a 5-ton jib crane in a container requires careful planning and preparation to ensure the crane's safe and efficient delivery to its destination. Here are the steps involved in transporting a 5-ton jib crane in a container:

• 1. Choosing the Right Container: Select a suitable container that can accommodate the dimensions and weight of the jib crane. Generally, a 20-foot or 40-foot standard container is used for such purposes. Ensure the container's weight capacity is sufficient to handle the combined weight of the crane and any additional equipment or accessories.
• 2. Dismantling the Jib Crane (if required): Depending on the design and size of the jib crane, it may be necessary to partially dismantle it for transportation. This may involve removing the boom, trolley, and other components to fit them into the container and reduce the overall dimensions and weight.
• 3. Securing the Crane Components: Properly secure all the dismantled components of the jib crane inside the container using appropriate packing materials, straps, and fasteners to prevent movement and damage during transit.
• 4. Protecting Fragile Parts: If the crane has any delicate or sensitive components, such as electrical controls or sensors, make sure to provide adequate cushioning and protection to prevent damage during transportation.
• 5. Lashing and Blocking: Use strong lashing and blocking materials to secure the crane components firmly in place within the container to prevent shifting during transportation.
• 6. Inspection and Documentation: Before sealing the container, conduct a thorough inspection of the crane and container to ensure everything is in place and secure. Complete all necessary shipping documentation, including customs paperwork, shipping labels, and handling instructions.
• 7. Loading the Container: Carefully load the jib crane and its components into the container, ensuring that weight distribution is even and within the container's weight capacity limits.
• 8. Seal and Ship the Container: After the crane and its components are safely loaded, seal the container securely. Arrange for transportation with a reputable shipping or logistics company experienced in handling heavy and oversized cargo. Ensure that the crane's weight and dimensions comply with all local and international transportation regulations.
• 9. Customs and Import/Export Regulations: If the crane is being transported internationally, ensure that all necessary customs and import/export regulations are followed, including obtaining the required permits and documentation.
• 10. Unloading and Installation: Upon arrival at the destination, carefully unload the jib crane from the container using appropriate equipment. Reassemble the crane, if necessary, and install it at the intended location following the manufacturer's instructions and safety guidelines.

Transporting a 5-ton jib crane in a container requires expertise and attention to detail to ensure the crane's safety and integrity throughout the shipping process. It is essential to work with experienced professionals who can handle the logistics and ensure compliance with all relevant regulations to guarantee a smooth and successful transportation process.

Professional Jib Crane Transportation Services: Ensure Safety and Optimize Costs

Why Choose Us?

• 1. Unparalleled Expertise: With years of experience in handling jib crane transportation, we have honed our skills to deliver seamless and secure logistics solutions.
• 2. Safety First: Your jib crane's safety is our utmost priority. Our team meticulously plans and executes each step, ensuring your valuable equipment reaches its destination without a hitch.
• 3. Customized Approach: We understand that every jib crane transportation project is unique. Tailoring our services to your specific requirements, we optimize routes and strategies to minimize costs and delays.
• 4. State-of-the-Art Equipment: Our fleet of modern transport vehicles, combined with advanced handling equipment, ensures smooth and damage-free loading, unloading, and transit.
• 5. Compliance and Documentation: We handle all necessary customs and shipping documentation, ensuring a hassle-free process for our clients, especially for international shipments.
• 6. Competitive Pricing: By streamlining our operations and leveraging industry expertise, we offer competitive pricing without compromising on the quality of service.
• 7. Timely Delivery: We understand the value of time in your business operations. Rest assured, we adhere to strict timelines and deliver your jib crane promptly.
• 8. Excellent Customer Support: Our dedicated customer support team is available around the clock to address any queries or concerns, providing you with a smooth and responsive communication experience.

Take the First Step: Send Us an Inquiry

Experience a reliable and professional jib crane transportation service that saves you time, money, and stress. Get in touch with our team today to discuss your transportation needs and receive a customized solution tailored to your requirements. Let us handle the logistics while you focus on what matters most – your business success!

Transport your 5-ton jib crane with confidence and efficiency. Inquire now to get started!
