Double Hoist Overhead Crane 5 Ton + 5 Ton
Top Runing Crane for Sale Australia Good Price

Double hoist overhead crane 5 ton + 5 ton for sale Australia. Single girder top running overhead crane with 2 low headroom electric chain hoists for sale long loads handling.

Basics of double hoist overhead crane 5 ton + 5 ton for Australia

• Crane Type：Double Hoist Overhead Crane
• Date of Placing Oder：2018.9.29
• Date of Delivery ：2018.10.30
• Way of Transportation： By shipiing, 40 GP + 20 GP
• Way of Payment： TT 50 % +50 %
• Destination country： Australia
• Destination port：FOB, Qingdao
• First Contact：2014.4

Double hoist overhead crane main specifications & general requirements

Customized features of double hoist overhead cranes 5 ton + 5 ton for sale Australia

• Overhead travelling crane is equipped with  ABM motor, double-gear cross limit, equipped with electronic scale, Schneider Electric;




• The top running single girder overhead crane is equipped with 2 sets of low headroom electric chain hoists, two-speed hoisting operation. The two electric chain hoists can be used for loads handling at same time for hoisting up and down at same time. And also they also can be operated independently;
• P30 track is used on the double hoist bridge cranes, with the length of 60m , with 200 pressuring plates, 10 pairs of clamping plates.
• The power line of the double hoist overhead cranes are the seamless busbar, with cross section of 16 mm2, with length of 30m, and 2 collectors.
• Accessories: 3 motor brake pads, 3 contactors, 3 current collectors, 1 limiter
• The 24.6 m long  main beam of the single girder top running overhead crane needs to be cut into two sections to fit into the40-foot container

Customs declaration information registration

• The actual Chinese and English name of the goods: signle girder bridge crane
• Chinese and English name of cargo declaration: single girder bridge crane
• Inland transportation cost from factory to port: USD1500
• Port charges: USD 1000

Gallary of double hoist overhead crane for sale Australia

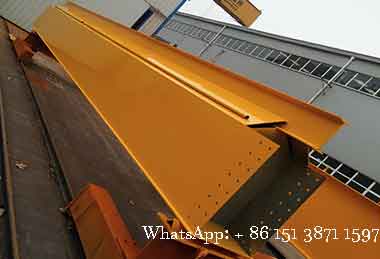

Main girder of double hoist overhead crane 3 ton + 3 ton  for sale Australia

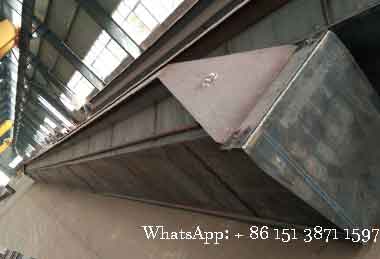

Box girder of single girder top running overhead crane with capacity of 3 ton + 3 ton  for sale Australia

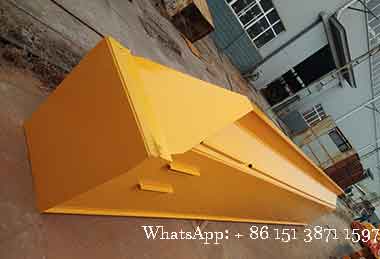

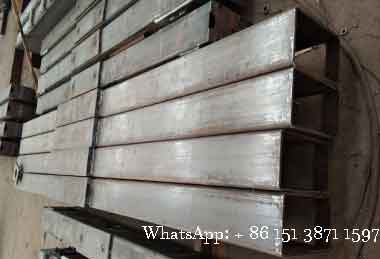

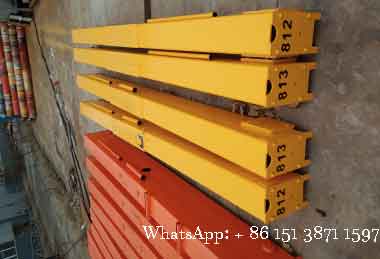

End carriages of 3 ton + 3 ton  single girder overhead travelling crane for sale Australia

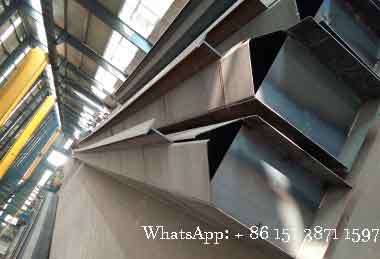

Main girder of single girder overhead crane with 3 ton + 3 ton electric wire rope hoists for sale Australia

Main girder Main girder of single girder overhead crane

End carriages of electric single girder double hoist overhead crane for sale Australia

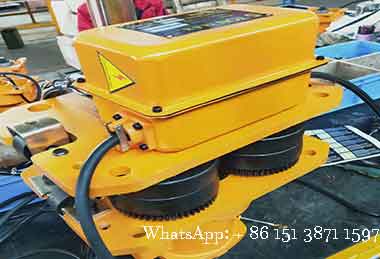

Low headroom electric chain hoist motorized travelling trolley for sale Australia

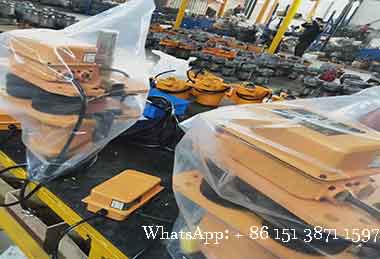

2 sets of electric chain hoist trolley for the 3 ton + 3 ton double hoist overhead cranes

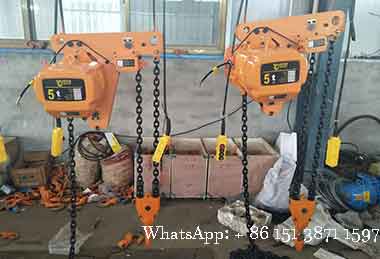

5 ton + 5 ton electric chain hoist for double hoist overhead crane  for sale Australia

Related types of double hoist crane systems

Double hoist overhead crane with single girder overhead crane design is used for light loads, for long and large loads handling such as, pipe, beam, or steel beam, etc.

Double hoist gantry crane with single girder gantry crane design, equipped with two electric hoists for long, large and heavy loads handling indoor use or outdoor applications.

QE Double Trolley Overhead Crane,top running bridge crane usually consists of two trolleys of equal lifting capacity, which can work simultaneously or separately. They are mainly used to lift long and big loads or sets of loads with two long distance lifting points.

Double girder gantry crane with double hoist trolley for outdoor application for large, long or heavy loads handling. And rainproof cover is equipped to ensure your double hoist gantry crane safety.

When the double hoist overhead crane needs to be equipped with two electric hoists, the following items should be considered.

• The capacity of two electric hoists does not exceed the design capacity of the double hoist crane. That is, if you want to hang two 1Ton electric hoists, the lifting capacity of the double hoist crane should be 2ton or greater.
• If the total lifting capacity of the double hoist crane is greater than or equal to 1Ton, the reconstruction must be carried out by an enterprise with the necessary qualifications.
• Anti-collision system. For double hoist overhead cranes, the anti-collision devices are needed to ensure the crane operation safety.
• If the lifting item is long, it can be designed with a single switch that can be used simultaneously or individually.
