Electric Single Girder Overehad Crane
4 Sets of Overhead Cranes for Uzbekistan, Good Buy From China

Electric single girder overhead crane for sale Uzbekistan. 1 sets of FEM standard double trolley single girderoverhead crane with duel hoist trolleys & 3 sets of low headroom overhead cranes, good buy from China. Check Uzebekistan crane specifications.

Basics of single girder overhead crane for Uzbekistan

Crane Type：Electric single girder overhead crane
Date of Placing Oder：2018.2.11
Date of Delivery ：2018.4.12
Way of Transportation： Railway
Way of Payment：TT
Destination country： Uzbekistan
Delivery place：Tashkent
First Contact：2017.8

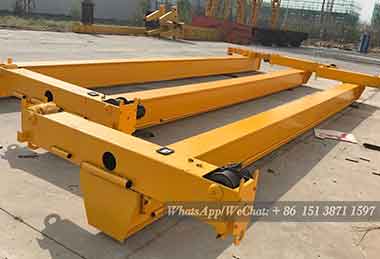

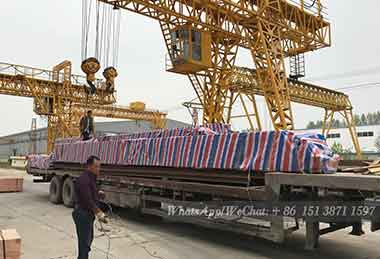

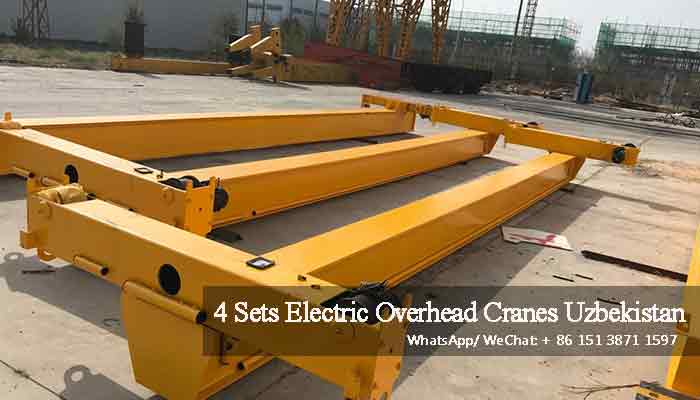

Electric single girder overhead cranes, 4 sets for delivery to Uzbekistan

Single girder overhead crane specifications & general requirements

Crane type	Electric single girder overhead crane with European style	Low Headroom single girder overhead crane	Low Headroom single girder overhead crane	Low Headroom single girder overhead crane
Model	HD	LD	LD	LD
Working Class	A3	A3	A3	A3
Capacity	7.5 ton + 7.5 ton	3 ton	1.5 ton	1.5 ton
Span length (m)/ Effective Arm Length	13.7 M	16. 7 M	10.3m	11m
Lifting Height（M）	5 m	4 m	5.8 m	5.8 m
Crane control	Remote control	Remote control	Remote control	Remote control
Voltage	380v,50hz,3p	380v,50hz,3p	200v,50hz,3p	200v,50hz,3p
Color	Standard	Standard	Standard	Standard
Application	Indoor use	Indoor use	Indoor use	Indoor use
Crane rail	P30	P30	P24	P24
Quantity	1	1	1	1

Customized features of single girder overhead crane for sale Uzbekistan

Part 1

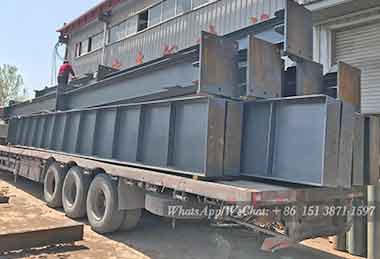

Columns :14 columns, model: H500*365*10*14 height 5.9m, with pictures.

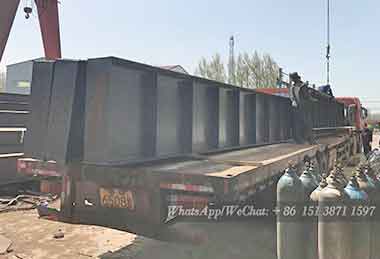

Rail-bearing beam, model: H1000*400*10*16*300*14, two pieces of 7.182m, two pieces of 10m, two pieces of 7.9m, four pieces of 6m, two pieces of 5.532m (running length of each side is 42.25m),
The distance between columns are 10m and 5.35m which is saved for the door position.
Diagonal support between columns , 2t. All steel connection bolts are included.

Part 2

Track P30, with a total length of 84.5m (42.25m on each side), 10 pairs of clamping plates, and 360 pressure plates.
Slide line 16mm², length 43m, 2 collectors.
Rail-bearing beam, model HN346*174*6*9, a total of 112m, 6 m/ pieces, 16 pieces, 4m / pieces, 4 pieces, equipped with connecting bolts.
The crane bearing beam will be used in two working bay, with the running length of 28m. The spacing between columns on each side is 6m, 6m, 6m, 6m & 4m.

Part 3

Crane Track: P24, with running length 28m, for two working bay, with a total length 112m. It will be equipped with 12 pairs of clamping plates, 500 pressure plates.
Slide line: 6mm², length 28*2m (two 28m long slide lines are required for two spans), 2 collectors
The height of the workshop is limited, and the distance from the wheel tread to the top of the main beam is designed to be 600mm.

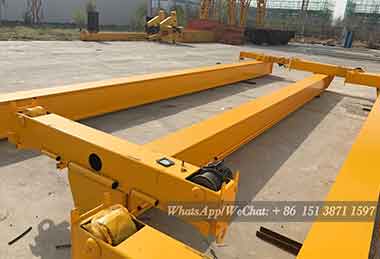

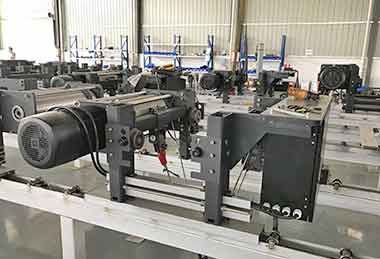

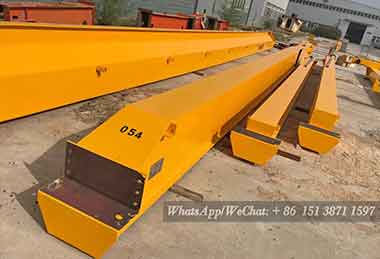

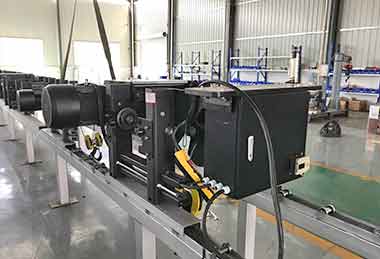

Cut the main beam with a span of 16.7m. The HD single girder overhead crane configuration includes the ABM type electric hoist.
Free installation for 15 days, customers provide visas, air tickets, room and board, etc.
