2 Ton Wall Mounted Jib Crane for Sale Mexico, 2 Ton Wall Jib Crane
Wall mounted jib crane for sale Mexico. 2 ton & 0.5 ton wall mounted crane, pendant control wall mounted jib crane, 440 V/60Hz/3Ph, 4 sets. Check jib specs.
| Jib type | Wall mounted jib crane |
| Crane specifications | 2 ton/0.5 ton - 5m cantilever-4 m lifting height |
| Way of delivery | By shiping, containers |
| Country of destination | Mexico |
Category: Installation Feedback Gallery
Your Trusted Overhead Crane Manufacturer & Supplier
Wall Mounted Jib Crane for Sale Mexico Good Price
2 Ton & 0.5 Ton Wall Mounted Crane, Pendant Control Wall Crane
Wall mounted jib crane for sale Mexico. 2 ton & 0.5 ton wall mounted crane, pendant control wall mounted jib crane, 440 V/60Hz/3Ph, 4 sets. Check jib specs.
Basics of wall mounted jib crane 2 ton & 0.5 ton for Sale Mexico
- Crane Type：Wall mounted jib crane
- Date of Placing Oder： 2021.5.20
- Date of Delivery ： 45 days after payment
- Way of Transportation： 40GP container,By Sea
- Way of Payment：50% TT, and 50 % TT before delivery
- Destination country： Mexico
- Destination port：FOB, Qingdao
- First Contact：2020.8.22
General requirements & main specifications of wall mounted crane
Crane type | Jib crane wall mounted type | |
Model | BX | BX |
Working Class | A5 | A5 |
Capacity | 2 ton | 0.5 ton |
Span length (m)/ Effective Arm Length | 5 M | 5 M |
Lifting Height（M） | 4 m | 4 m |
Crane control | Pendant control | Pendant control |
Voltage | 440v,60hz,3p | 440v,60hz,3p |
Color | Standard | Standard |
Indoor use or outood use | Indoor | Indoor |
Quantity | 2 | 2 |
Customized features of wall mounted jib crane for sale Mexico
- Jib hoisting and running motor is required to be ABM branded.
- 2 ton wall mounted jib crane is required to adopts the Siemens rotary motor , with the power of 0.55kw, and with 90°rotation.
- 0.5 ton wall mounted jib crane is required to be 180 rotation 180°by manual operation.
- Electrical components is required to use the Siemens or Schneider parts.
- Motor protection grade is IP55.
Gallary of wall mounted jib cranes for sale Mexico

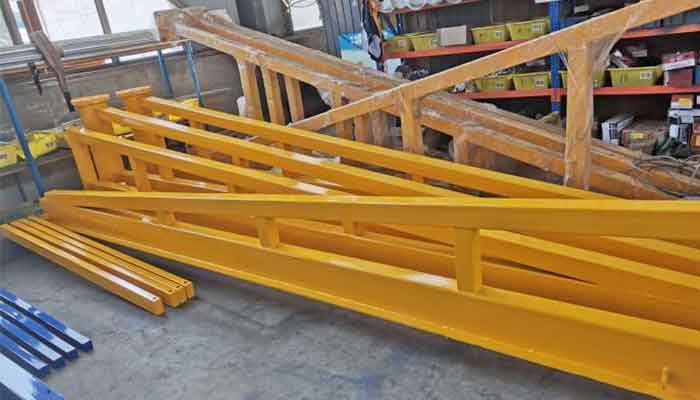

Wall mounted jib crane cantilever for sale Mexico
Fixing plates of jib arm of wall mounted jib cranes
slewing parts of wall mounted jib crane 2 ton and 0.5 ton for sale Mexico
Bolts of 2 ton and 0.5 ton wall mounted jib cranes for sale Mexico
Low headroom wire rope jib hoists for wall mounted crane for sale Mexico
Electric hoist cabins for wall mounted jib cranes 2 ton & 0.5 ton

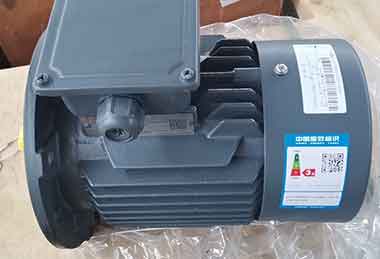

Simens motor for wall jib cranes
Package details of 4 sets of wall mounted jib crane for sale Mexico | ||||||
Number | Item | size（cm） | weight | Qty | Package method | Remark |
1 | Manual arm | 525*76*51 | 600 | 1 | Plywood stack packing | 2 packed in one stack |
2 | Electric arm | 535*99*70 | 750 | 1 | Plywood stack packing | 2 packed in one stack |
3 | Rotation axis | 118*25*34 | 75 | 1 | Plywood box |
|
4 | Motor | 41*41*36 | 25 | 1 | Plywood box |
|
5 | Reducer | 55*31*33 | 27 | 2 | Plywood box |
|
6 | Screw rod and flange | 79*50*46 | 110 | 1 | Plywood box |
|
7 | Flange | 57*33*60 | 50 | 1 | Plywood box |
|
8 | Accessories | 40*30*30 | 20 | 2 | Plywood box |
|
9 | 2tHoist | 150*122*90 | 380 | 2 | Plywood box |
|
10 | 0.5tHoist | 140*107*89 | 380 | 2 | Plywood box |
|
| Total |
| 3224 | 14 |
| |
Your Trusted Overhead Crane Manufacturer & Supplier
Wall Mounted Jib Crane for Sale Mexico Good Price
2 Ton & 0.5 Ton Wall Mounted Crane, Pendant Control Wall Crane
Wall mounted jib crane for sale Mexico. 2 ton & 0.5 ton wall mounted crane, pendant control wall mounted jib crane, 440 V/60Hz/3Ph, 4 sets. Check jib specs.
Basics of wall mounted jib crane 2 ton & 0.5 ton for Sale Mexico
- Crane Type：Wall mounted jib crane
- Date of Placing Oder： 2021.5.20
- Date of Delivery ： 45 days after payment
- Way of Transportation： 40GP container,By Sea
- Way of Payment：50% TT, and 50 % TT before delivery
- Destination country： Mexico
- Destination port：FOB, Qingdao
- First Contact：2020.8.22
General requirements & main specifications of wall mounted crane
Crane type | Wall mounted jib crane | Jib crane wall mounted type |
Model | BX | BX |
Working Class | A5 | A5 |
Capacity | 2 ton | 0.5 ton |
Span length (m)/ Effective Arm Length | 5 M | 5 M |
Lifting Height（M） | 4 m | 4 m |
Crane control | Pendant control | Pendant control |
Voltage | 440v,60hz,3p | 440v,60hz,3p |
Color | Standard | Standard |
Indoor use or outood use | Indoor | Indoor |
Quantity | 2 | 2 |
Customized features of wall mounted jib crane for sale Mexico
- Jib hoisting and running motor is required to be ABM branded.
- 2 ton wall mounted jib crane is required to adopts the Siemens rotary motor , with the power of 0.55kw, and with 90°rotation.
- 0.5 ton wall mounted jib crane is required to be 180 rotation 180°by manual operation.
- Electrical components is required to use the Siemens or Schneider parts.
- Motor protection grade is IP55.
Gallary of wall mounted jib cranes for sale Mexico
Main girder of 20 ton single girder overhead crane for sale Mexico
Jib arm for 180 rotating
1 ton & 0.5 ton slewing jib crane for sale Mexico
1 ton electric hoist for the floor mounted jib cranes
Electric chain fall hoist for sale Mexico
Manual trolley for the electric chain hoist
Geneal specifications of the electric chain jib hoist
Jib hoists packed in wooden boxes for sale Mexico
Package details of 4 sets of wall mounted jib crane for sale Mexico | ||||||
Number | Item | size（cm） | weight | Qty | Package method | Remark |
1 | Manual arm | 525*76*51 | 600 | 1 | Plywood stack packing | 2 packed in one stack |
2 | Electric arm | 535*99*70 | 750 | 1 | Plywood stack packing | 2 packed in one stack |
3 | Rotation axis | 118*25*34 | 75 | 1 | Plywood box |
|
4 | Motor | 41*41*36 | 25 | 1 | Plywood box |
|
5 | Reducer | 55*31*33 | 27 | 2 | Plywood box |
|
6 | Screw rod and flange | 79*50*46 | 110 | 1 | Plywood box |
|
7 | Flange | 57*33*60 | 50 | 1 | Plywood box |
|
8 | Accessories | 40*30*30 | 20 | 2 | Plywood box |
|
9 | 2tHoist | 150*122*90 | 380 | 2 | Plywood box |
|
10 | 0.5tHoist | 140*107*89 | 380 | 2 | Plywood box |
|
| Total |
| 3224 | 14 |
| |
