6.3 Ton + 6.3 Ton Double Hoists Crane for Harvester Manufacturer
Single girder top running overhead crane with 6.3 ton + 6.3 ton electric wire rope hoists for Harvester Manufacturer in Australia. Check crane feedback now.
| Application | Material handling, lifting, positioning, assembly, maintenance, loading/unloading, |
| Certifications | CE / ISO / SGS / Other third-party inspection |
| Customization | Customized material handling cranes solutions available for indoor, outdoor, hazardous, corrosive, cleanroom, and heavy-duty industrial applications. |
Crane Manufacturer: Yuantai Cranes – 30+ Years Professional Crane Manufacturer from China
Category: Installation Feedback Gallery
Tags: overheadcraneforsale,6.3ton,australia
Your Trusted Overhead Travelling Crane Manufacturer & Supplier
6.3 Ton + 6.3 Ton Double Hoists Cranes for Harvester Manufacturer
Double Hoists Work Simultaneously and Separately
Single girder top running overhead crane with 6.3 ton + 6.3 ton electric wire rope hoists for Harvester Manufacturer in Australia. Check single girder electric hoist specification now. .
Overview of double hoists electric cranes
- Crane Type：double electric hoists overhead cranes
- Date of Placing Oder：2020.10.9
- Date of Delivery ： End of October
- Way of Transportation： 2 Containers
- Way of Payment：1000USD prepaied, The rest is paied before delivery
- Destination country： Australia
- Destination port：FOB Qingdao
- First Contact：2018,10.8
- Industry: Automotive & parts

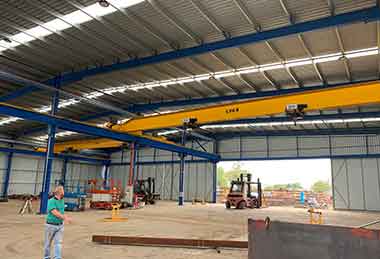

6.3 ton + 6.3 ton single girder top running overhead travelling with double hoists for working simultaneously and separatelyMain specifications & general requirements of double electric hoist overhead cranes
Crane type | Double girder electric hoist crab trolley |
Model | LH |
Working Class | A3 |
Capacity | 10 ton |
Span length (m) | 24.19M |
Lifting Height（M） | 6 m |
Crane control | Remote control |
Voltage | 380v,60hz,3p |
Color | Yellow |
Quantity | 5 |
Features of electric double hoist overhead crane for Australia harvester manufacturer
- The HD single girder top running overhead crane is equipped with European configuration. The double hoists of the overhead crane can lift up and down at the same time, and at the same time the crane hoist can lift up and down separately.
- The 2 sets of single girder electric hoist overhead cranes are provided with P30 track and clamping plates and 8 mm2 sliding line. They will operated in 2 spans, with the travelling length of 62 meters and 44 meters.
- End beam gauge and span ratio is 6:1
- Both crane travelling and electric crane hoist trolleys are all equipped with the cross limit
- The remote control is a Taiwanese brand of Jiekong. Each HD single girder top running electric hoist only uses one remote control to achieve simultaneously and separately lifting up and down.
- All overhead crane and electric hoist trolley must have a ground wire
- Do not use yellow wires in electrical cabinets
- The wiring method adopts delta wiring .
- Do not cut beams, take miscellaneous pieces
- The spray paint should not contain lead , and the spray paint is required to be uniform, especially the welding position
- Free 2 cross limits, 4 rope guides are included.
Production gallary of single girder double hoists eot crane for sale Australia

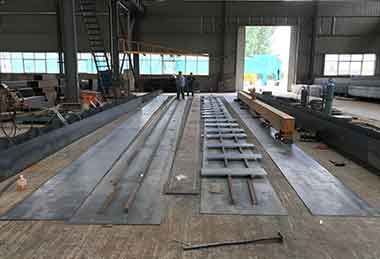

Main girder of the single girder overhead crane is produced with high quality steel material

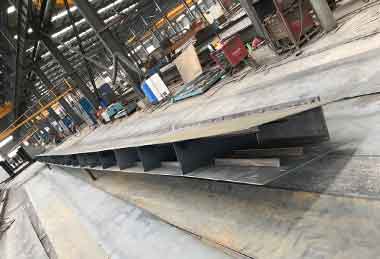

Main girder production and manufacturing for 6.3 ton + 6.3 ton for double electric hoist overhead crane project in Australia

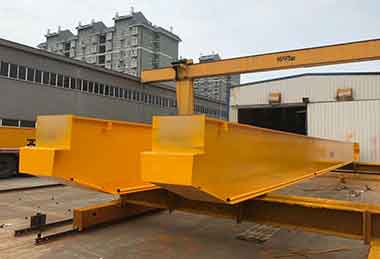

Main girder of the single girder top running overhead travelling finished painting

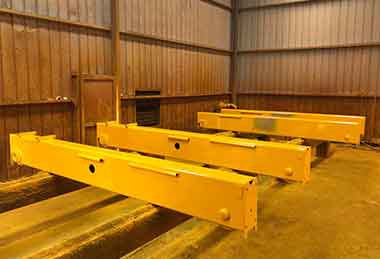

End carriages of double electric hoist single girder overhead crane project 6.3 ton + 6.3 ton

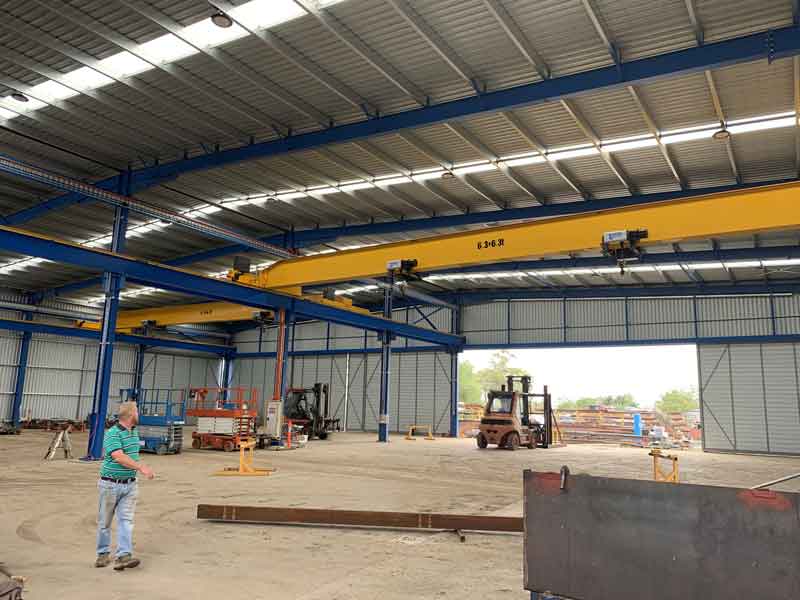

Feedback of single girder double hoists overhead crane feedback picture
