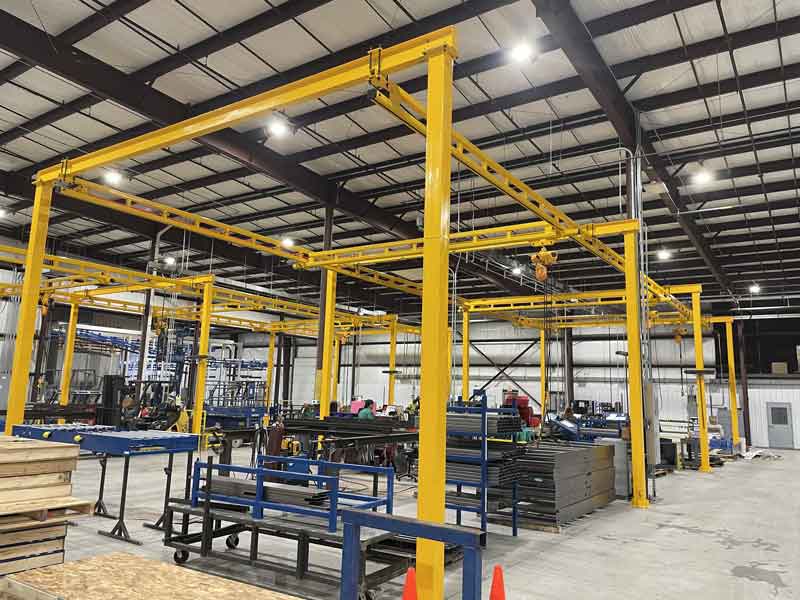

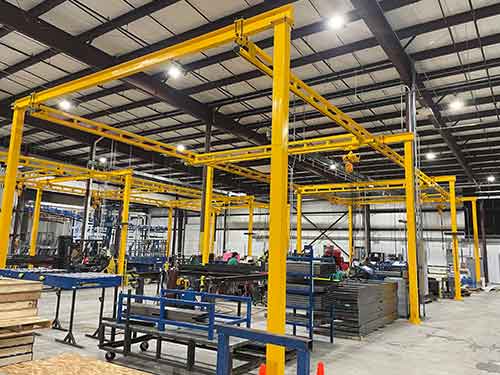

Freestanding Workstation Crane 1 Ton for Sale America,
Enclosed Track Rigid Freestanding Crane System for Efficienct Material Handling

Crane type

Structure

Working duty

Ton（T）

Span(m)

Lifting height（M）

Crane control

Voltage

Color

Applications

Crane Rail

Crane Quantity

Rigid type closed track freestanding KBK

Electric crane travelling, equipped with Electric hoist with manual trolley

M3

1

6.1（3span，horizontal beam is 6.8m)

3.753

Pendant control

480v/60Hz/3p

Yellow

Indoor use

Included

1

Steel Structure

As shown in the drawing "1000KG123", including bolts | 8 columns, column spacing 7620mm, column height 5114mm, running 22.86m
22# I-beam 7.6m, 4 pieces

Rigid type closed track freestanding KBK

Electric crane travelling，equipped with Electric hoist with manual trolley

M3

1

6.1（3span，horizontal beam is 6.8m)

3.753

Pendant control

480v/60Hz/3p

Yellow

Indoor use

Included

1

Steel Structure

As shown in the drawing "1000KG456", including bolts | 8 columns, column spacing 7620mm+10058mm+5182mm, column height 5114mm, running 22.86m 22# I-beam 7.6m, 4

Item


Measurement

Qty

Package

Remark

1 ton freestanding workstation crane

1

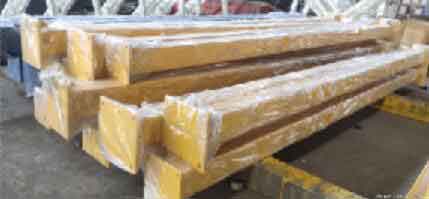

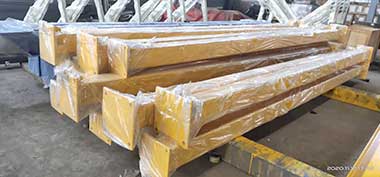

Column

Piece

16

Plastic cover

Size and weight:
511*35*35cm 180kg *16pcs
（8pcs for each work bay）

2

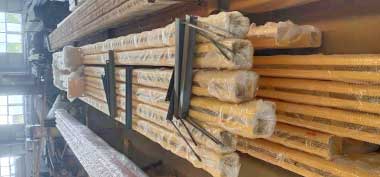

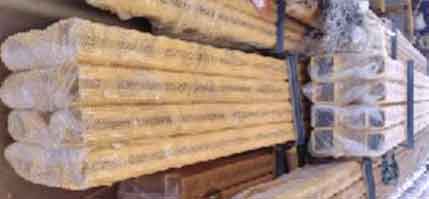

Rails

Piece

5

Plastic cover

5 bundles size and weight:

1. 1000*30*40cm 726kg (2 rails for right work bay)
2. 800*49*40cm 822kg (4 rails for left work bay)
3. 650*57*44cm 940kg (4 rails for right work bay)
4. 690*49*40cm 686kg (2rails for left work bay and 2 main girders)
5. 700*49*40cm 650kg (4 main girders)

3

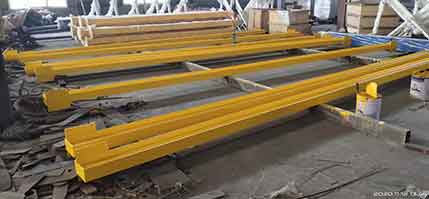

I beam

Piece

8

Plastic cover

794*38*28cm 468kg*4 bundles
（2pcs in each bundle. 4pcs for each work bay）

4

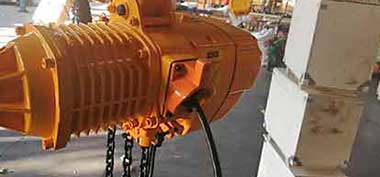

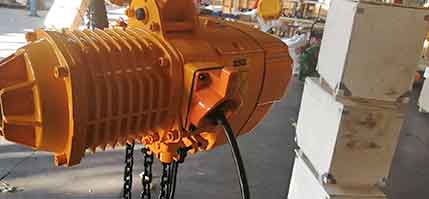

Chain hoist

set

6

Plywood box

56*35*60cm 49/56kg*6sets

5

set

5

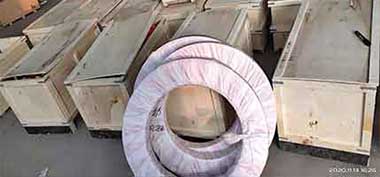

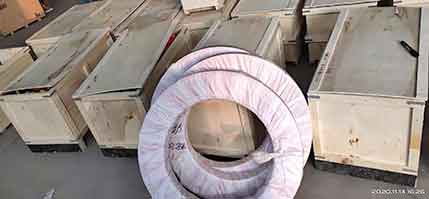

Plywood box

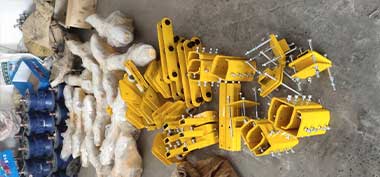

Plywood box number 1 and number 2 are accessories boxes for the crane system in "left work bay", refer to design drawing 1000KG123.
Plywood box number 3 and number 4 are accessories boxes for the crane system in "right work bay", refer to drawing 1000KG456".
Plywood box number 5 are mainly extra spare parts and slide wire system.

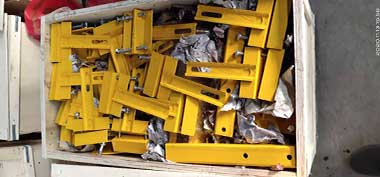

Quantity

Item

Quantity

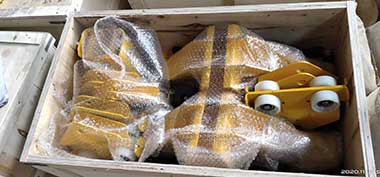

Rail trolley

4pcs

Rail joint

4pcs

Hanging board

16pcs

Bumper block

10pcs

Bolt M460cm

32sets

Hoist trolley

6pcs

Trolley beam

3pcs

End tensioner support including M200 Bolts

2sets

Bolt M16×150

16sets

Bolt M16×50

32 sets

Quantity

Item

Quantity

Rail trolley

2pcs

End cap

10pcs

Square pipe joint

4pcs

Cable clamp

4pcs

Chemical bolt (Anchor bolt)

32sets

Slider

21pcs

Current collect base

3pcs

Flat cable 4×1.5mm²

57meter

Chemical bolt liquid

1pc

End tensioner

2pcs

Seamless slide wire elevator

16pcs

Current collector

3pcs

Bull bar

3pcs

Quantity

Item

Quantity

Rail trolley

4pcs

Bolt M16×150mm

16sets

M420mm screw

32sets

Bolt M16×50

32sets

Trolley beam

2pcs

End tensioner support including M150mm Bolts

2sets

Rail joint

4pcs

Seamless slide wire elevator

16pcs

Hoist trolley

6pcs

Bumper block

10pcs

Quantity

Item

Quantity

Rail trolley

2pcs

Square pipe joint

8pcs

Trolley beam

1pc

Bull bar

3pcs

Hanging board

16pcs

Current collector

3pcs

Chemical bolt

32sets

End tensioner

2pcs

End tensioner support

3pcs

End cap

10pcs

Flat cable 4×1.5mm²

57meter

Cable clamp

4pcs

Slider

21pcs

Chemical bolt liquid

1pcs

Quantity

Item

Quantity

4×10mm²Seamless slide wire 22.87meter

3pcs

Cable trolley

20pcs

Crane wheel

12pcs

Hoist trolley

8pcs

Seamless slide wire elevator

20sets

Seamless slide wire support

20pcs

Item

Quantity

Length /piece(m)

Width /piece(m)

Height /piece(m)

Weight/piece(kgs)

Volume (cbm)

Gross Weight (kgs)

Net Weight (kgs)

Crane Track

1

10

0.3

0.4

726

1.2

726

726

Crane Track

1

8

0.49

0.4

822

1.568

822

822

Crane Track

1

6.5

0.57

0.44

940

1.6302

940

940

Crane Track

1

6.9

0.49

0.4

686

1.3524

686

686

Crane Track

1

7

0.49

0.4

650

1.372

650

650

Columns

16

5.11

0.35

0.35

180

10.0156

2880

2880

H beam

4

7.94

0.38

0.28

468

3.379264

1872

1872

Parks Box

1

0.84

0.48

0.52

201

0.209664

201

160

Parks Box

1

0.84

0.48

0.52

113

0.209664

113

100

Parks Box

1

0.84

0.48

0.52

160

0.209664

160

140

Parks Box

1

0.84

0.48

0.52

144

0.209664

144

120

Parks Box

1

0.8

0.8

0.35

62

0.224

62

56

Electric chain hoists

6

0.56

0.35

0.6

49/56

0.7056

354

294

36 pieces

22.29cbm

9610kgs

9446kgs
