BMH 10 Ton 14m × 6m A3 Single Girder Semi-Gantry Crane Drawing
10 ton single girder semi-gantry crane drawing with 14m span, 6m lifting height, chain hoist, remote control, column-supported runway beam and P22 rail.
Crane Manufacturer: Yuantai Cranes – 30+ Years Professional Crane Manufacturer from China
Category: Semi Gantry Crane Drawing
Tags: semigantrycranedrawing
Overview:
This drawing is for a BMH single girder semi-gantry crane, model BMH 10t-14m-6m A3.
The crane is a single girder semi-gantry crane fitted with a 10 t chain hoist. A semi-gantry crane has one leg running on a ground-level rail and one end supported on an existing building column or runway beam. In this drawing, the crane requires a column-supported runway beam— the upper end of the crane runs on a runway beam that is mounted on building columns. This is different from a crane where the upper end runs on an existing overhead structure. The column-supported runway beam is supplied or specified as part of the crane installation.
The crane uses remote control only — there is no pendant control and no cabin. This is common for light duty cranes in warehouses and workshops where the operator can stand at a safe distance and control the crane with a radio remote. The runway length is 14.5 m, which is a short to medium runway for moving loads between two areas. The lifting height is 6 m, and the span is 14 m, giving good coverage for a small workshop or storage area.
Project & Drawing Overview
- Equipment Type: BMH Single Girder Semi-Gantry Crane with 10 t chain hoist, column-supported runway beam, remote control only
- Product Model: BMH 10t-14m-6m A3
- Drawing Views: Side elevation (showing ground leg and column-supported runway beam) and cross-section view of girder and legs
- Key Components: 1. Single girder bridge, 2. Chain hoist (10 t), 3. Ground leg with travel motor, 4. Column-supported runway beam (by others or supplied as part of installation), 5. Electric system
- Design Notes: Column-supported runway beam required; remote control only; runway length 14.5 m
- Drawing PDF:BMH 10t-14m-6m A3 Single Girder Semi-Gantry Crane Drawing 10 Ton Chain Hoist 14m Span 6m Lifting Height Remote Control Column-Supported Runway Beam Runway 14.5m P22 Rail 3P 440V 60Hz
Main Technical Parameters
| Technical Parameter | Specification |
|---|---|
| Crane Type | BMH Single Girder Semi-Gantry Crane |
| Duty Class | A3 (light duty) |
| Lifting Capacity | 10 t (10,000 kg) |
| Crane Span | 14 m (14,000 ± 8 mm) |
| Lifting Height | 6 m |
| Lifting Speed | 2.7 m/min |
| Trolley Travel Speed | 11 m/min |
| Crane Travel Speed | 20 m/min |
| Lifting Motor Power | 2.7 kW |
| Trolley Travel Motor Power | 0.75 kW |
| Crane Travel Motor Power | 2 × 1.1 kW |
| Hoist Type | Chain hoist, 10 t |
| Rail Type | P22 |
| Max. Wheel Load | 82.9 kN |
| Wheel Diameter | 4 × 270 mm |
| Runway Length | 14.5 m |
| Control Mode | Remote control only |
| Upper Runway Beam | Column-supported runway beam (立柱承轨梁) |
| Power Supply | 3-phase, 440 V, 60 Hz |
| Quantity | 1 unit |
Hoist Mechanism Parameters
| Component / Motor Drive | Technical Specification |
|---|---|
| Hoist Type | Chain hoist, 10 t |
| Lifting Capacity | 10 t |
| Lifting Speed | 2.7 m/min |
| Lifting Motor Type | NA |
| Lifting Motor Power | 2.7 kW |
| Trolley Travel Speed | 11 m/min |
| Trolley Travel Motor Type | NA |
| Trolley Travel Motor Power | 0.75 kW |
| Lifting Height | 6 m |
| Working Duty | A3 |
| Power Supply | 440 V, 60 Hz, 3-phase |
Trolley & Crane Traveling Parameters
| Component / Motor Drive | Technical Specification |
|---|---|
| Trolley Travel Speed | 11 m/min |
| Trolley Travel Motor Power | 0.75 kW |
| Trolley Working Duty | A3 |
| Crane Travel Speed | 20 m/min |
| Crane Travel Motor Type | S2W-150 |
| Crane Travel Motor Power | 2 × 1.1 kW |
| Crane Travel Motor Speed | 1,450 r/min |
| Crane Travel Reducer Type | LDA |
| Crane Travel Reducer Ratio | 58.8 |
| Rail Type | P22 |
| Max. Wheel Load | 82.9 kN |
| Wheel Diameter | 4 × 270 mm |
| Runway Length | 14.5 m |
| Power Supply | 440 V, 60 Hz, 3-phase |
Drawing Views & Structure Details

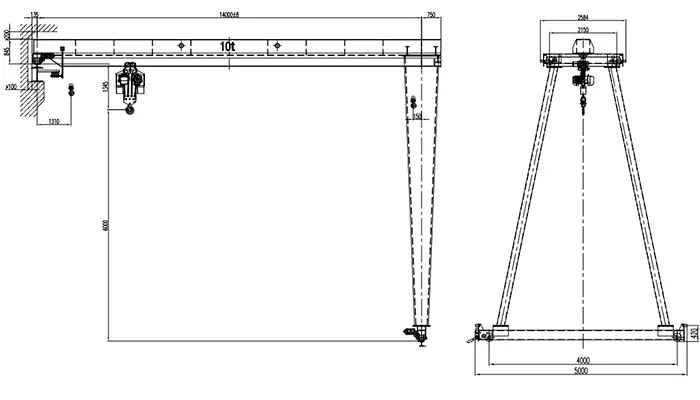

| View / Item | Description |
|---|---|
| Side Elevation (Left) | Shows the single girder bridge with the 10 t chain hoist, the column-supported runway beam on the upper side, and the ground-level leg with the travel drive. Span 14,000 ± 8 mm. Lifting height 6,000 mm (reference). Crane overall width 2,584 mm (reference). Main beam width 2,150 mm (reference). Hook approach to upper side 1,310 mm (reference). Hook approach to lower side 750 mm (reference). Trolley height 1,345 mm (reference). Wheel base 4,000 mm / 5,000 mm (reference). Column-supported runway beam (立柱承轨梁) on the upper side. Runway length 14.5 m. Remote control only. |
| Cross-Section View (Right) | Shows the single girder bridge, the chain hoist on the trolley, and the two legs (one ground leg and one upper runway beam side). Crane overall width 2,584 mm (reference). Main beam width 2,150 mm (reference). Trolley height 1,345 mm (reference). Ground leg with travel drive. Upper side supported on the column-supported runway beam. |
| Structure Type | BMH single girder semi-gantry crane. Single girder bridge structure, 10 t chain hoist on trolley, ground-level leg with long travel motor, column-supported runway beam on the upper side. Built for light duty indoor lifting in warehouses and workshops. |
| Key Components | 1. Single girder bridge, 2. Chain hoist (10 t), 3. Ground leg with travel motor, 4. Column-supported runway beam (立柱承轨梁), 5. Electric system |
| Column-Supported Runway Beam | The upper end of the crane runs on a runway beam that is mounted on building columns. This is different from a crane where the upper end runs on an existing overhead structure. The column-supported runway beam provides a defined and level runway for the crane's upper travel wheels. |
| Control System | Remote control only. No pendant control and no cabin. Operator can work from a safe distance. Suitable for light duty cranes in warehouses and workshops. |
Technical Notes
Notes from the drawing sheet:
- Model code: BMH 10t-14m-6m A3. "BMH" = single girder semi-gantry crane. "10t" = lifting capacity. "14m" = span. "6m" = lifting height. "A3" = duty class (light duty).
- Control mode: Remote control only.
- Hoist type: Chain hoist, 10 t capacity.
- Lifting speed: 2.7 m/min.
- Trolley travel speed: 11 m/min.
- Crane travel speed: 20 m/min.
- Upper runway beam: Column-supported runway beam (立柱承轨梁). The beam is mounted on building columns and provides a defined runway for the crane's upper wheels.
- Ground leg: Ground-level leg with travel drive. Wheel base 4,000 mm / 5,000 mm (reference).
- Rail type: P22.
- Runway length: 14.5 m.
- Max. wheel load: 82.9 kN. Wheel diameter 4 × 270 mm.
- Duty class A3: light duty for indoor warehouse and workshop use.
- Power supply: 3-phase, 440 V, 60 Hz.
- Quantity: 1 unit.
- Drawings and specifications are for reference. For different span, lifting height, speed, motor power, or control configuration, contact us for a free engineering review.
- Do not reproduce, distribute, or manufacture from these drawings without written authorization from Yuantai Crane Machinery. Yuantai is not liable for unauthorized use.
How to Get a Customized Semi-Gantry Crane
This drawing shows a 10 t BMH single girder semi-gantry crane with 14 m span, 6 m lifting height, 10 t chain hoist, remote control only, column-supported runway beam, and 14.5 m runway. The crane is designed for light duty lifting in warehouses and workshops. Yuantai Crane builds to your site dimensions and local requirements.
| Step | What Happens |
|---|---|
| Step 1: Send site data | Send lifting capacity (10 t), span (14 m), lifting height (6 m), runway length (14.5 m), rail type (P22), building column information (for column-supported runway beam), material type, and control requirements (remote control only). |
| Step 2: Free CAD drawing and engineering review | We prepare general arrangement drawings, wheel load checks, and structural layouts at no cost. For semi-gantry cranes with column-supported runway beams, we also verify the column load capacity, the runway beam design, and the ground leg foundation requirements. |
| Step 3: Confirm the technical details | Lock in hoist type (chain hoist, 10 t), lifting speed (2.7 m/min), trolley travel speed (11 m/min), crane travel speed (20 m/min), control mode (remote control only), power supply (3-phase 440 V 60 Hz), duty class (A3), and rail type (P22). |
| Step 4: Manufacturing and delivery | Built to international standards. Factory acceptance test (FAT) before dispatch. |
FAQ (BMH 10t-14m-6m A3 Single Girder Semi-Gantry Crane Drawing)
Common questions about semi-gantry cranes, BMH single girder semi-gantry cranes, chain hoists, 10 t capacity, 14 m span, 6 m lifting height, remote control, column-supported runway beams, runway 14.5 m, and P22 rail.
1. What is a BMH single girder semi-gantry crane?
A BMH single girder semi-gantry crane is a lifting system with one main girder supported on one side by a ground-level leg that runs on a rail, and on the other side by a runway beam supported on building columns. It is different from a full gantry crane (two ground legs) and from an overhead crane (both sides on elevated runway beams). BMH semi-gantry cranes are used in warehouses, workshops, and storage areas where one side of the building already has columns suitable for a runway beam, and the other side needs a ground leg because the building structure cannot carry the full crane load.
2. What is a column-supported runway beam and why does this crane need one?
A column-supported runway beam is a runway beam that is mounted on building columns and provides a defined, level runway for the crane's upper travel wheels. This crane needs one because the upper end of the semi-gantry crane must run on a proper runway beam rather than on an existing overhead structure. The column-supported runway beam ensures the crane travels smoothly and stays aligned with the ground leg. The beam is designed to carry the crane's wheel loads (82.9 kN max) and is installed on the building columns before the crane is mounted.
3. What is a chain hoist and how does it work on this crane?
A chain hoist is a lifting device that uses a chain rather than a wire rope to lift the load. Chain hoists are common on light duty cranes because they are compact, simple, and easy to maintain. On this semi-gantry crane, the chain hoist is mounted on the trolley and handles the 10 t lifting capacity. Lifting speed is 2.7 m/min, which is normal for a light duty chain hoist. The chain hoist is a good match for the A3 duty class, which is intended for light duty indoor use.
4. Why is remote control used on this semi-gantry crane?
This crane uses remote control only — there is no pendant control and no cabin. Remote control is convenient for light duty cranes in warehouses and workshops because the operator can stand at a safe distance, see the load clearly, and control the crane without being tied to a specific position. For a 10 t light duty crane with a 14 m span and 6 m lifting height, remote control is a practical and cost-effective choice. It also avoids the need for a pendant cable or a cabin, which simplifies the crane and reduces maintenance.
5. What does BMH 10t-14m-6m A3 mean?
BMH = single girder semi-gantry crane. "10t" = 10 t lifting capacity. "14m" = 14 m span. "6m" = 6 m lifting height. "A3" = ISO A3 duty class. A3 is a light duty class, suitable for indoor warehouse and workshop use where the crane is used occasionally or at low frequency.
6. What is the P22 rail used for?
P22 rail is a light rail profile used for cranes and light traveling equipment. It is matched to the 82.9 kN maximum wheel load and the light duty A3 operation of this crane. P22 rail is commonly used in workshops and warehouses because it is easy to install, readily available, and provides a durable running surface for the wheels. For a crane with a 14 m span and 10 t capacity, P22 rail is a good match for the wheel loads and travel speeds.
7. What is the runway length of 14.5 m used for?
The 14.5 m runway is the length of the track that the crane travels along. In a warehouse or workshop, this length is chosen to cover the area where loads need to be moved. A 14.5 m runway is a short to medium runway, suitable for moving loads between two work areas or along a single production line. The crane travel speed of 20 m/min means the crane can travel the full runway in about 45 seconds, which is fast enough for most light duty applications.
8. What power supply does this semi-gantry crane need?
This crane runs on 3-phase, 440 V, 60 Hz. This covers the 2.7 kW lifting motor, the 0.75 kW trolley travel motor, the two 1.1 kW long travel motors, and the control system. If your site uses a different voltage or frequency, Yuantai can supply the crane with a custom power supply to match your local grid.
Need a Drawing and Price for Your Semi-Gantry Crane?
Send your site dimensions, capacity, span, lifting height, runway length, rail type, building column information (for column-supported runway beam), material type, and control requirements. If you need a BMH single girder semi-gantry crane, a semi-gantry crane with chain hoist, or a warehouse semi-gantry crane with remote control, Yuantai Crane will send a CAD layout drawing and a price within 24 hours.
