3200kg Floor Mounted Jib Crane & Column Foundation Design
Floor mounted jib crane & column foundation design for sale. 3200kg floor mounted jib crane, 180 degree rotating for conveyors factory Australia.
Floor mounted free standing jib cranes for sale
Floor mounted free standing jib cranes are designed for heavy loads handling with capacity from 0.5 ton -16 ton. Based on different application and requirements, the floor mounted jib crane can be classed into three types Bolt-type base plate mounted foundation, Insert mount foundation or sleeve insert mounted foundation.
- The bolt type base-plate mount foundation was the first and most commonly used jib crane foundation design; the pillar of the jib crane has a base-plate that is securely bolted to the concrete floor.
- For a permanent crane solution, insert mount foundation is with a permanent pillar jib crane foundation with the jib column mounted within the concrete floor.
- The insert sleeve mounted pillar jib crane foundation is designed to build a separate steel sleeve that is permanently installed in the concrete floor, allowing the jib to be slid into or removed from the sleeve quickly and easily.
3200kg freestanding jib crane for conveyor factory Australia
Profile of Australia client
PROK Pty Ltd is a professional conveyor manufacturer that has been in operation since 1880. It is a market leader in the design and manufacture of conveyors for mines, ports, and other large bulk material processing plants. It is the world's largest manufacturer of high-quality conveyors and a market leader in the industry. Australia, Canada, the United States, Chile, Brazil, and other countries have factories.
Inquiry of floor mounted free standing jib cranes

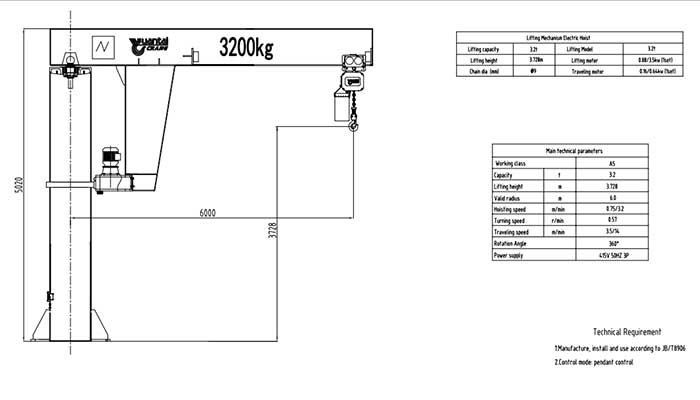

Solutions and crane design drawing
Requirements of floor mounted jib crane inquiry
Based on Australian client’s inquiry, the following requirements must be met.
- (1) European configuration
- (2) The customer may have inquired about the price of Demag, and then send the parameters of Demag to other suppliers for inquiry.
- (3) The project is in a hurry, urgent! It seems that all the projects of the customer are urgent!
Floor mounted Pillar Jib Crane solution provided
- Capacity=3.2 ton
- Valid Working Radius=6mlifting height= 3.728 m
- crane Slewing: Electrically
- Hoist: European type Electric chain hoist
- working Class: A5
- Voltage : 415v 5ohz 3p
- Color: Traffic Yellow
- china Port Charge by LCL container
3200kg floor mounted jib crane and free standing jib crane for Australia

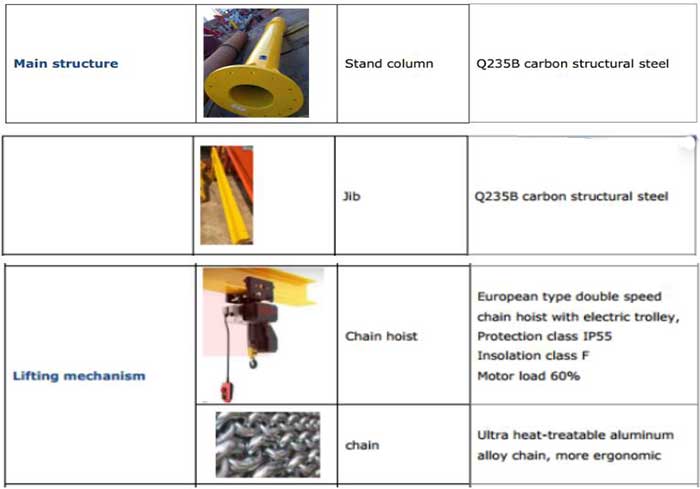

Main configurations of the 3200 ton free standing jib crane

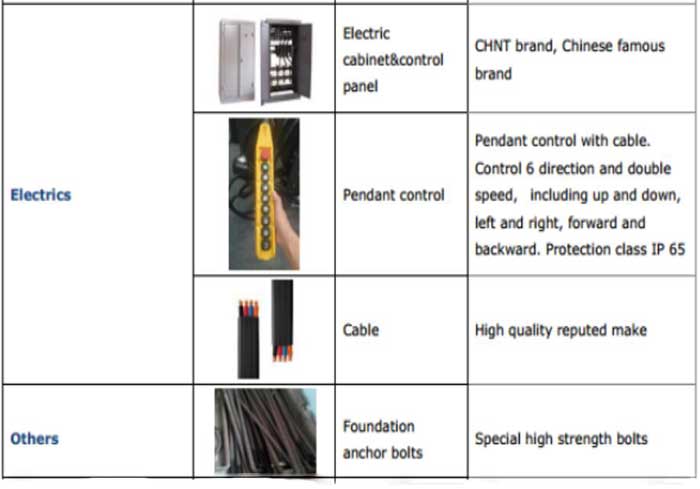

Electircs, pendant control , cables, and foundation ahchor bolts of 3200 ton pillar jib cranes
On foundation designs of 3200kg freestanding jib cranes
Good day Sandy
Hope this email finds you well
We had engineers design the foundation for the 3.2T jib crane and the one requirement is to manufacture a pate tat fits the steel column base of the jib crane.Our supplier that will make the plate would like :" to make sure they put the bolt holes to suit this layout .
The layout is from their provided drawing but it did not really have 100% accurate sizing.So just to make 100% sure"
First two attachments you sent us. Please could you review the 3rd attachment to ensure that it will fit the 32.ton jib crane steel column base( the holes in particular. )

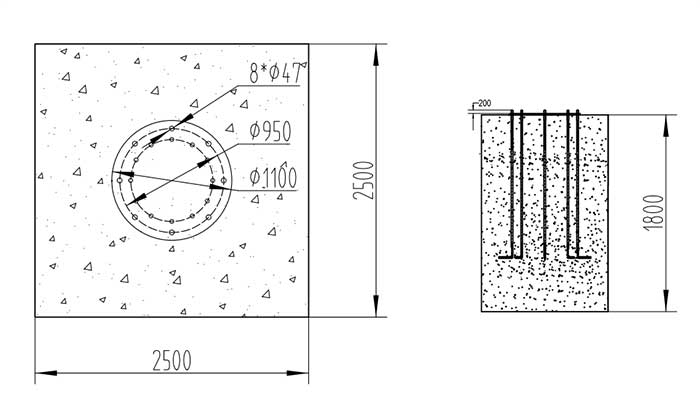

Foundation drawing of floor jib cranes and anchore bolts

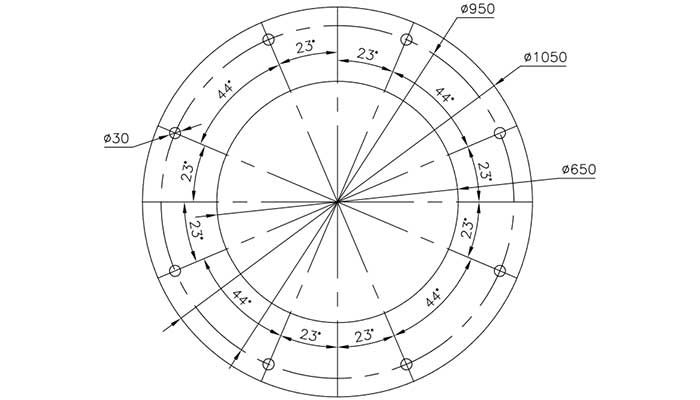

Anchore bolts of floor mounted jib crane foundation drawings
The Australian customer's foundation supplier designed the foundation according to the drawing we sent, but it is necessary to ensure that the column foot plate of the floor mounted jib crane is consistent with the foundation, so that the bolts can accurately connect the column foot plate and the foundation. The column foot plate provided by the customer's supplier Drawings cannot be guaranteed to be 100% accurate, so we check and confirm the foundation drawing of the floor mounted jib crane are 100% fit with the column base plate and bolt holes.
Production of 3200kg floor mounted jib cranes
"Thank you very much for all the information, please find attached the PO for the 3.2T Jib Crane
Please could you assist with the following:
- 1. Send through a timing plan (to include timing on manufacture, FAT and packaging)
- 2. Send through preliminary packing dimensions
- a. Once we finalize the shipping details with our forwarder we will send through the PO for USD (China port charge and transport FOB Shanghai Port)
- lf you have any queries regarding the above, please let me know.
Thank you "
Production of frestanding jib crane 3200kg
After all the details confirmed , the production of 3200kg capacity floor mounted jib crane is arragned. In the following, the production pictures of free standing jib crane is presented for your reference.

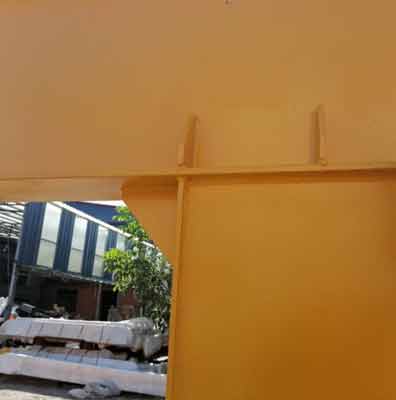

Cantilever and supporting column cross section

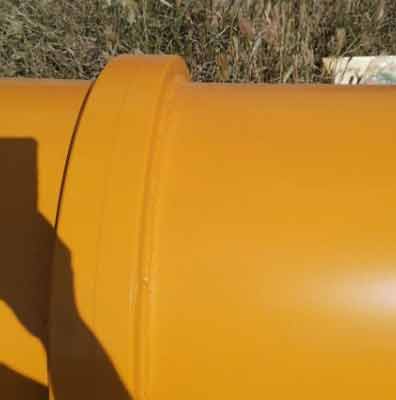

Column of 3200kg pillar jib crane
Foundation bolts of floor mounted jib crane 3200kg

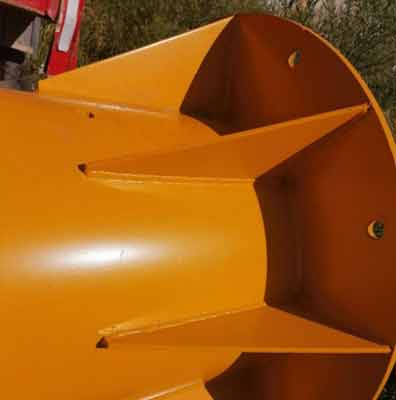

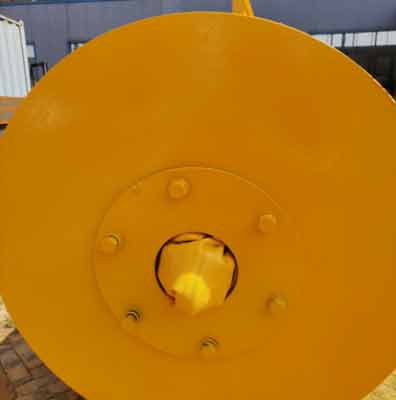

3200kg column jib crane base plate

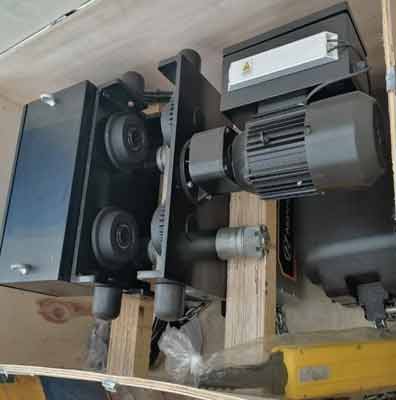

3200kg electric hoist for free standing jib crane

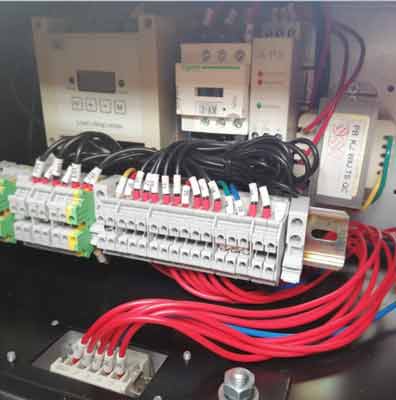

Electrics of floor jib crane 3200kg
