Electric Jib Hoist 5 Ton & I Beam Jib Crane Kit for Sale Peru

5 ton jib crane kit for sale Peru. Customized 5 ton jib hoist, electric chain hoist type, rotating motor & jib crane parts and components for sale Peru.

Basics of 5 ton electric hoist for sale Peru

Overview of 5 ton electric chain hoist for jib crane in Peru

• Crane Type：Electric chain hoist
• Date of Placing Oder：2019.6.6
• Date of Delivery ：2019.6.18
• Way of Transportation： LCL
• Way of Payment：50% prepayment
• Destination country： Peru
• Destination port：CIF, LIMA

Main specifications and lifting requirement of 5 ton jib hoist

Customized design and requirement of 5 ton electric chain hoist for jib crane

• The 5 ton electric chain hoist will worked on a BZ pillar jib crane with i beam cantilever. Since Peru customer can produce the steel structure by himself,therefore, the 5 ton  jib crane kit is required which mainly includes the electric chain hoists, rotating motors, and hoist cables, and related jib parts and components.
• Double-speed is required for jib hoist lifting, frequency conversion operation,
• The track surface width of the trolley should be suitable for 230mm,
• Safety limit for jib hoisting and hoist travelling .
• The jib control is required to be pendant control which can operate the jib hoist to move for all directions.
• It is necessary to provide the actual installation drawing of the rotating motor, with the customer's cantilever drawing and the installation position of the rotating motor attached.

How to deal with your crane and hoist inquiry?

Take the 5 ton electric chain hoist for the particular jib cranes inquiry for example. Usually, it goes throught the following procedures:

Background and inquiry of Peru client

• Backgound -The customer is a very influential local mechanical equipment transmission manufacturer with a professional technical team and the ability to design and produce jib  cranes by itself
• Inquiry on 3 ton jib crane - They have a branch in Lima-Peru.We need to quote a redutory engine for our 3 Ton Jib Crane.

First stage - Technical confirmation

To provide correct solution and specific quotation, the technical requirement of product has to be confirmed clearly with end user and technical support.

Based on Peru client's email, the requirement product is not clear. After further communication, it is 5 ton electric chain hoist for a jib crane is required. And the expression of the Peru client's as following:

"We only need the gear motor with 15 RPM output with variator and the hoist with 5 tonne electric trolley with variator, electric brake, with two chain speeds, To move 180 degrees to work with 220vac. "We need a speed hoist with 5 ton motorized trolley with speed variator and a gear motor for the 2HP turn with 15 RPM output. Actually we only going to make maximum movements of 3 ton.

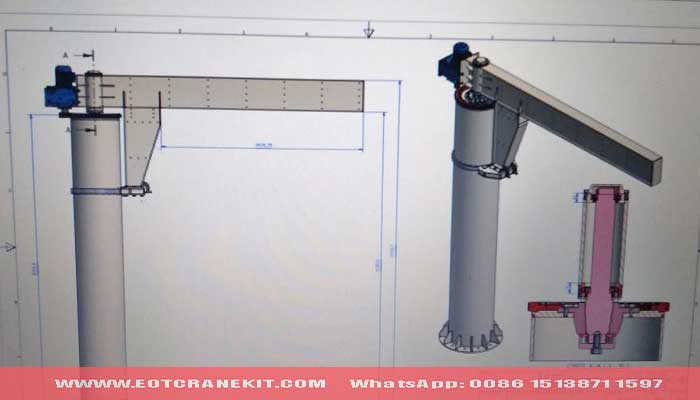

5 ton jib hoist crane steel structure design from Peru client - pillar jib crane column and cantilever

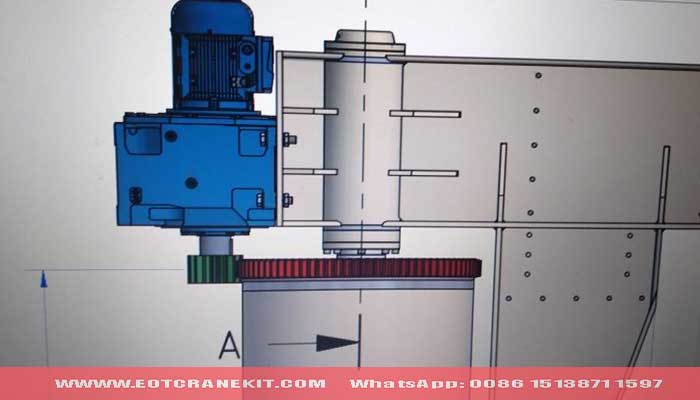

Rotating motor of pillar mounted slewing jib crane design

After communications by emails,  the summarized the main requirements of the Peru clients are as the following:

Two requirements are emphasized:

• Speed requirements.  Frequency conversion is able to be meet client's requirement.
• The rotating motor also wants to add frequency conversion.

As for the two main requirements, the second one is a little bit unusually. Normally for the rotating, one single speed is enough to use during operation.  In order to provide the best fit jib hoist for client's pillar jib crane, further communication is required:

------

Dear Mr. Pablo sanchez,

Good morning.

Pls check the attached quotation for the 5ton electric chain hoist with variator trolley, double lifting speed.

Pity that the gear motor with 15 RPM output cannot make it with variator.

May I know why you want to add variator on the gear motor for rotating?

Is there any special demand for rotating speed?

Normally for the rotating, one single speed is enough to use during operation.

Any questions or ideas pls feel free to let us know, and we'll try to satisfy your demand.

Waiting for your comments.

Best regards,

------

Good Morning.

Please recommend us your reducer model for the Jib crane that you manufacture.

We need you to perform the slowest movements.

We can manufacture the inverter no problem, but we require that the output be at least 15 RPM.

What is the warranty of your products and also shipping costs missing include?

------

Solutions to meet the technical requirements

Based on Peru customer reply that they wanted the rotation speed to be very slow and they could add a frequency converter by themselves, but the output power requirement was large enough.  The suitable rotating motor is selected according to customer requirements and the  quotation was emailed to Peru client.

• Electric trolley type chain hoist - 5 ton -5.1m lifting height, 3 phase 220v 50hz, double lifting speed travelling speed with variator , pendant button control
• Gear motor for rotating - Allowable output shaft torque 2650N.m, trasmission ration 391, output 3.7 RPM, Power 1.5kw.

Feedback of the recommended jib hoist and motor solutions

The customer is very satisfied with the quotation, and confirmed the number of hoist running cables and handle buttons for some required accessories, and updated the quotation.

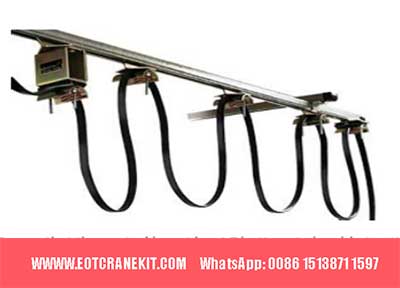

In the quotation falter the electric system type festoon of 4 meters.

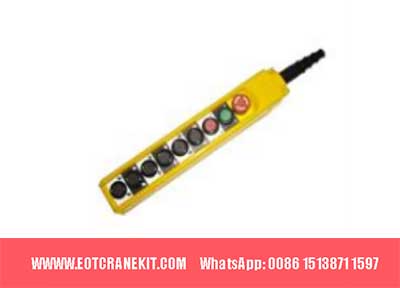

The hoist and crane control has 6 movement button besides emergency stop and start； Up, Down, right travelling, left travelling, right rotating, left rotating.

The second stage- order confirmation

The second phase is to communicate with the purchasing manager and confirm the order.

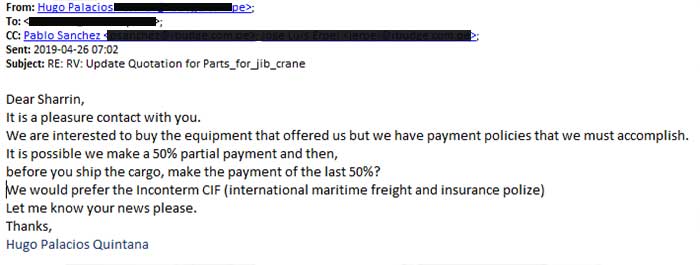

Confirmation of way of payment

Dear Sharrin,
It is a pleasure contact with you.
We are interested to buy the equipment that offered us but we have payment policies that we must accomplish.
It is possible we make a 50% partial payment and then,
before you ship the cargo,make the payment of the last 50%?
We would prefer the Inconterm CIF (international maritime freight and insurance polize)
Let me know your news please.
Thanks,
Hugo Palacios Quintana

Confirmation of techinical requirements of the 5 ton jib hoists for pillar jib cranes

A week later,we received an email from Hugo reconfirming the chain hoist requirement. Due to the client company's system, the procurement of equipment is very rigorous, so many issues have been repeatedly confirmed.

• The Electric Chain Hoist must has his electromagnetic brake.-Yes,it has electromagnetic brake.
• We need to know the minimum velocity and the maximum velocity of Electric Chain Hoist. -The lifting minimum velocity is 0.9m/min, maximum velocity is 2.7m/min; the traveling minimum velocity is 5m/min, maximum velocity is 21m/min.
• We need to know the buttons quantity on hanging control.-The control has 6 movement buttons besides emergency stop buttonand start button: UP, DOWN, right traveling, left traveling, right rotating, left rotating.
• The regulation distance of the trolley considering that our structure is 230mm wide. The standard maxmum wide of hoist trolley is 178mm as it shown in the drawings, we can make it to 230mm to fit your structure which cost extra 40 USD.
• We need to know the power of motor Electric Chain Hoist. -Lifting motor power is 3.0/1.0kw, traveling motor power is 0.75kw.
• We need to know lifting distance. - Lifting height is 5.1m as it shown in the drawings.
• Mechanical device of overload.- Yes,included.
• It has career limiters. - The lifting limiters included, but the traveling limiter not include, if add it need 60 USD.
• Manuals for installation and maintenance define language(Spanish/English). -Yes,the manuals included which in English.

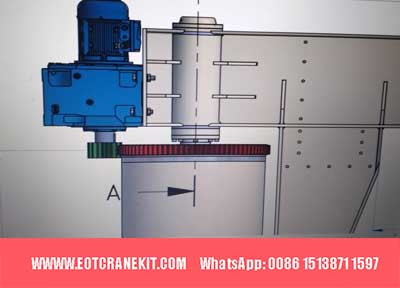

The Peru customer sent the design drawing to reconfirm whether the installation position of the rotating motor was satisfactory and whether the reducer is a three-in-one. They need the actual finished product drawing to pass the management.

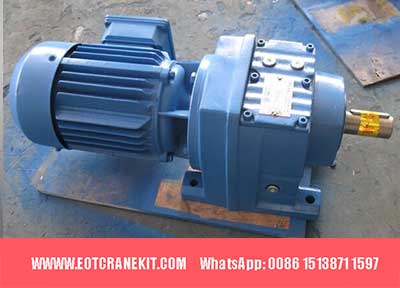

After all was confirmed, we won the order. The above picture is the rotating motor for 5 ton pillar jib crane project in Peru.

5 ton jib crane hoist order confirmed

The management of Peru client approved the jib hoist and rotating motor solution and price , and the PO was confirmed and PI was emailed. And then the advance payment was received on in 6.6.

Third stage- Production & delivery of 5 ton electric hoist with chain falls

5 ton electric chain hoist for pillar jib crane project in Peru

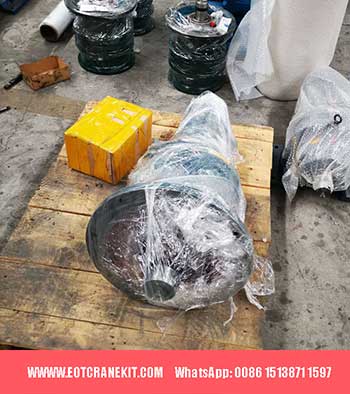

Crane parts and componets of 5 ton jib crane kit for Peru client

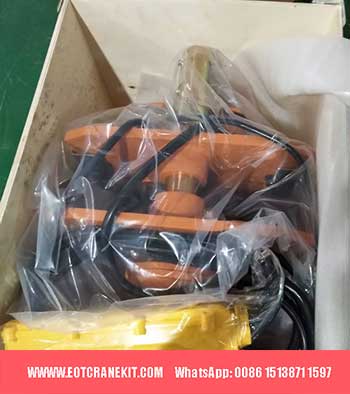

Parts and components delivery to Peru in wooden case

Fourth stage- After-sale services

Complete crane services, including consultation, design, installation, commissioning, inspection, maintenance, refurbishing, and supply of replacement parts, are available to relieve your worries. Turnkey hoist and  crane project services are offered upon request. The most crucial components and crane kits of all types of cranes are provied.  Excellent crane servicing will maximize the return on your investment and guarantee the long-term safety and reliability of your crane. If you have any need of jib crane kit and jib crane system, please feel free to contact us.
