Double Girder Overhead Crane 10 Ton S12.4m H5m 97m Runway

The 97m travel length is designed for long workshop aisles and continuous production lines. It is chosen when:

• Long production line: The workshop aisle is 97m or more, and one crane must serve the full length
• Multiple handling zones: Loading, processing, and unloading stations are spread along the 97m aisle
• No intermediate transfer: Materials can be moved directly from one end of the aisle to the other without transfer
• Cost efficiency: One 97m crane is more economical than two or three shorter cranes along the same aisle

For a 97m runway, the power supply method is critical. For lengths above 100m, a conductor bar may be more economical than a cable reel — tell Yuantai your exact runway length for the best power feeding recommendation.

A single double girder overhead crane with crab wire rope hoist can cover a 97m runway efficiently because:

• VFD long travel: The crane travels at 2-20 m/min along the runway, allowing fast movement between handling zones
• Wide 12.4m span: The crane covers the full width of the workshop aisle, not just a narrow strip
• Trolley travel: The crab wire rope hoist trolley moves along the 12.4m span at 2-20 m/min, giving lateral coverage
• Precise positioning: VFD control ensures smooth acceleration and deceleration at each handling zone
• Single operator: One pendant or remote operator can control the crane along the entire 97m runway

If your workshop has multiple production aisles, multiple cranes may be more efficient than one very long travel crane. Tell Yuantai your workshop layout for the best configuration.

A crab wire rope hoist is the standard hoisting mechanism for a 10t double girder overhead crane because:

• Higher rigidity: The crab frame distributes load evenly across the two girders, resisting bending at 10t capacity
• Higher hook lift: The crab runs on top of the two girders, so the hook can be raised closer to the bridge within the 5m lift height
• Better stability: The crab trolley runs on two rails (1400mm gauge), reducing load swing along the 97m runway
• Higher duty capability: Crab wire rope hoists handle more cycles per hour than single girder hoists at the same capacity
• Easier maintenance: The crab design allows easier inspection and servicing of the hoist, motor, and brake

A single girder overhead crane is not typically used at 10t for continuous workshop duty — the double girder with crab wire rope hoist is the standard configuration.

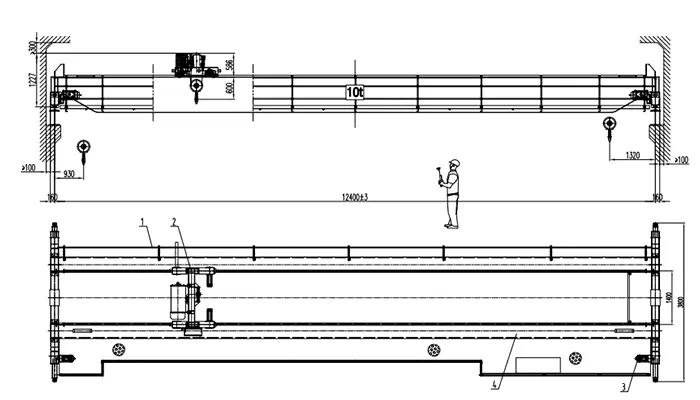

Seven numbers on this double girder overhead crane with crab wire rope hoist drawing must match your workshop, or the crane will not fit or operate correctly:

If any of these seven differ from your workshop, tell Yuantai before ordering — each change affects price and lead time on the double girder overhead crane with crab wire rope hoist.

P30 rail is specified for this double girder overhead crane with crab wire rope hoist because:

• Wheel load: approx. 79.6 kN — the 10t capacity and 12.4m span create significant load moment at the end carriages
• Long 97m runway: The extended travel length requires a heavier rail section for durability and alignment
• Heavier double girder structure: The double girder bridge with crab wire rope hoist is heavier than a single girder crane, increasing the wheel load
• Long service life: P30 rail is standard for 10t+ double girder overhead cranes in continuous workshop use
• Standard availability: P30 is a common rail section, easy to source and replace along the 97m runway

Do not substitute a lighter rail (P22 or P24) without recalculating the wheel load and dynamic forces. The approx. 79.6 kN wheel load requires P30 or heavier.

No — this double girder overhead crane with crab wire rope hoist is configured for indoor workshop use. The long travel overhead crane runs on elevated runway rails supported by the building structure, not on ground rails. Outdoor use would require:

• Different crane type — a gantry crane with ground rails and A-frame legs is more suitable for outdoor use
• Weather protection — outdoor electrical enclosures (IP55+) and anti-corrosion treatment
• Wind load design — anti-wind devices and anchoring for outdoor wind exposure

For outdoor applications, see the MHO 5t-7m A5 Siemens version with anti-wind and anti-toppling design, or the Long Travel Gantry Crane 5 Ton - S20m - H6m - 70m Runway for long outdoor corridors.

To avoid surprises at installation, these items are outside the double girder overhead crane with crab wire rope hoist supply scope unless you specifically add them:

• Runway rail (P30) and rail fasteners for the 97m runway
• Runway beam and building column reinforcement
• Building structural support for the approx. 79.6 kN wheel load along 97m
• Site power supply up to the crane isolator
• Erection crane and site lifting equipment
• Local electrical connection and permits

Because the long travel overhead crane runs on elevated runway rails over a 97m length, the building structure and rail alignment are critical — the runway beam and columns must support the approx. 79.6 kN wheel load, and the rail must be aligned for smooth travel over 97m. Yuantai can provide runway load drawings as an optional item.

Send these eleven items and Yuantai will issue a free custom double girder overhead crane with crab wire rope hoist CAD drawing, 3D model, and proposal within 24 hours:

1. Workshop width and runway rail center-to-center distance (span)
2. Required lifting height (m) — e.g., 5m
3. Required lifting capacity (t) — e.g., 10t
4. Workshop aisle length / crane travel distance — e.g., 97m
5. Required crane travel speed (standard or high speed)
6. Power supply (V / Hz / Ph)
7. Lifts per hour or hours per day (duty)
8. Building column and runway beam capacity
9. Number of handling zones along the 97m aisle
10. Longest load length and weight
11. Control preference: pendant, wireless, cabin, or both

The more complete the list, the faster and more accurate the double girder overhead crane with crab wire rope hoist drawing, 3D model, and quote.

This published double girder overhead crane with crab wire rope hoist drawing and 3D rendering are a free technical reference — you may use them to plan your workshop and check fit. A project-specific double girder overhead crane GA drawing and 3D model are also free for standard configurations. A design fee may apply only for complex workshop conditions, non-standard runway lengths, or specialized customization engineering. The double girder overhead crane with crab wire rope hoist drawing remains the property of Yuantai Cranes: unauthorized copying, use, or manufacturing without written authorization is strictly prohibited.
