Double Girder Overhead Crane 10 Ton S14.5m H9m for Bogie & Wheelset Workshop

This double girder overhead crane is purpose-built for railway bogie and wheelset manufacturing and maintenance workshops because:

• 10t capacity: Bogies and wheelsets are heavy components — the 10t capacity handles complete bogie assemblies and individual wheelsets
• 9m lifting height: Matched to bogie workshop bay heights for lifting components from floor level to maintenance stations
• 14.5m span: Covers the wide bogie workshop bay, reaching across multiple maintenance stations
• High travel speeds: 30 m/min crane travel, 15 m/min trolley travel, and 4 m/min hoisting — matched to the productivity requirements of railway workshops
• Full VFD control: Smooth acceleration and deceleration protect precision wheelset components during handling
• Conductor rail power supply: Reliable power along the full 60m runway for continuous bogie handling

If your workshop handles other heavy components (not railway bogies), the same crane configuration can be adapted — tell Yuantai your specific load type and handling requirements.

The 30 m/min crane travel speed and 15 m/min trolley travel speed on this bogie workshop overhead crane are high-speed configurations designed for railway industry productivity:

• Crane travel: 30 m/min — fast movement along the 60m runway to serve multiple bogie maintenance stations
• Trolley travel: 15 m/min — fast movement across the 14.5m span to position the hoist over specific workstations
• Hoisting: 4 m/min — moderate hoisting speed for precise handling of heavy bogies

Compared with standard overhead cranes:

• Standard overhead crane: 20 m/min crane travel, 10 m/min trolley travel
• This bogie workshop crane: 30 m/min crane travel (+50%), 15 m/min trolley travel (+50%)

The higher speeds reduce handling cycle time in railway workshops where many bogies must be processed per shift. If your workshop has lower throughput requirements, standard speeds may be more economical.

This bogie workshop overhead crane uses a conductor rail power supply along the 60m runway. Compared with cable reel:

For a 60m indoor bogie workshop runway with continuous handling cycles, the conductor rail system is the preferred choice for reliable power delivery and lower long-term maintenance.

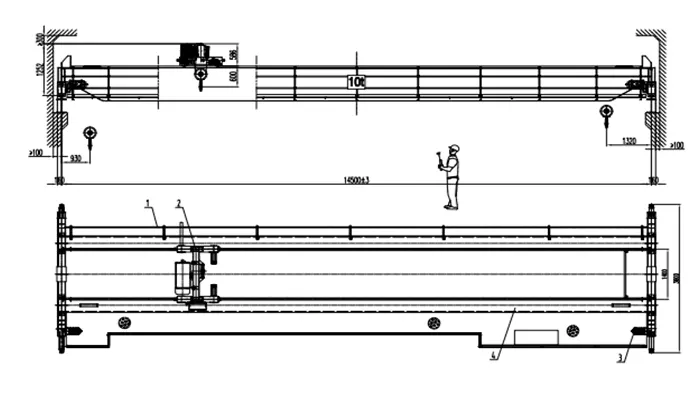

Seven numbers on this bogie & wheelset workshop overhead crane drawing must match your workshop, or the crane will not fit or operate correctly:

If any of these seven differ from your workshop, tell Yuantai before ordering — each change affects price and lead time on the bogie workshop overhead crane.

P30 rail is specified for this bogie & wheelset workshop overhead crane because:

• High wheel load from 10t capacity and 14.5m span: The wider span creates significant load moment at the end carriages, requiring a heavier rail
• High travel speed (30 m/min): Faster travel creates higher dynamic loads on the rail, requiring a heavier section for alignment and durability
• Heavier double girder structure: The double girder bridge with crab wire rope hoist is heavier than a single girder crane
• 60m runway length: Long runways require heavier rail for alignment and long-term stability
• Standard availability: P30 is a common rail section, easy to source and replace along the 60m runway

Do not substitute a lighter rail (P22 or P24) without recalculating the wheel load and dynamic forces. The combination of 10t capacity, 14.5m span, and 30 m/min travel speed requires P30 or heavier.

No — this bogie & wheelset workshop overhead crane is configured for indoor workshop use. The crane runs on elevated runway rails supported by the building structure, not on ground rails. The conductor rail power supply is also designed for indoor installation. Outdoor use would require:

• Different crane type — a gantry crane with ground rails and A-frame legs is more suitable for outdoor use
• Weather protection — outdoor electrical enclosures (IP55+) and anti-corrosion treatment
• Different power supply — cable reel or festoon instead of conductor rail
• Wind load design — anti-wind devices and anchoring for outdoor wind exposure

For outdoor applications, see the MHO gantry crane range or contact Yuantai for a custom outdoor railway crane solution.

To avoid surprises at installation, these items are outside the bogie workshop overhead crane supply scope unless you specifically add them:

• Runway rail foundation and support structure
• Building column reinforcement for the wheel load
• Site power supply up to the crane isolator
• Erection crane and site lifting equipment
• Local electrical connection and permits

The crane is supplied with conductor rail and rail track for the 60m runway. The runway rail foundation is site-side scope and must support the wheel load from the 10t capacity and 30 m/min travel speed. Yuantai can provide foundation load drawings as an optional item.

Send these eleven items and Yuantai will issue a free custom bogie workshop overhead crane CAD drawing, 3D model, and proposal within 24 hours:

1. Workshop width and runway rail center-to-center distance (span)
2. Required lifting height (m) — e.g., 9m
3. Required lifting capacity (t) — e.g., 10t
4. Workshop length / crane travel distance — e.g., 60m
5. Required crane travel speed (standard or high speed)
6. Power supply (V / Hz / Ph)
7. Lifts per hour or hours per day (duty)
8. Building column and runway beam capacity
9. Load type (bogie, wheelset, axle, etc.)
10. Number of maintenance stations along the runway
11. Control preference: pendant, wireless, cabin, or both

The more complete the list, the faster and more accurate the bogie workshop overhead crane drawing, 3D model, and quote.

This published bogie & wheelset workshop overhead crane drawing and 3D rendering are a free technical reference — you may use them to plan your workshop and check fit. A project-specific bogie workshop overhead crane GA drawing and 3D model are also free for standard configurations. A design fee may apply only for complex railway workshop conditions, non-standard spans, or specialized customization engineering. The bogie workshop overhead crane drawing remains the property of Yuantai Cranes: unauthorized copying, use, or manufacturing without written authorization is strictly prohibited.
