5 Ton + 5 Ton Electric Single Girder Overhead Crane Bangladesh
Electric single girder overhead crane 5 ton + 5 ton project for Bangladesh 4 sets & 4 sets single speed electric wire rope hoist, good buy from China.
| Crane for sale | tElectric Single GIrder Overhead Crane |
| Way of delivery | By shipping, 40 GP container |
| Destination country | Bangladesh |
| Delivery port | CFR Mongla |
Category: Custom EOT Crane Manufacturing
Your Trusted Overhead Crane Manufacturer & Supplier
5 Ton +5 Ton Electric Single Girder Overehad Crane
4 Sets of Overhead Cranes for Bangladesh, Good Buy From China
Electric single girder overhead crane 5 ton + 5 ton project for Bangladesh project, 4 sets of single girder eot cranes & 4 sets single speed electric wire rope hoist, good buy from China. Check the 5 ton + 5 ton overhead crane specifications now.
Basics of 5 ton + 5 ton single girder overhead crane for Bangladesh
- Crane Type：Electric single girder overhead crane
- Date of Placing Oder：2018.1.11
- Date of Delivery ：2018.2.5
- Way of Transportation： By shipping, 40GP container
- Way of Payment：100% LC
- Destination country： Bangladesh
- Destination port：CFR Mongla
- First Contact：2016.4
Electric single girder overhead crane with 5 ton + 5 ton electric overhead crane for delivery to Bangladesh
5 ton +5 ton overhead crane main specifications & general requirements
Crane type | Electric single girder overhead crane | Electric single girder overhead crane | Electric wire rope hoist |
Model | LD | LD | CD |
Working Class | A3 | A3 | A3 |
Capacity | 5 ton + 5 ton | 5 ton + 5 ton | 5 ton |
Span length (m)/ Effective Arm Length | 13.7 M | 16. 7 M | |
Lifting Height（M） | 6 m | 6 m | 6 m |
Crane control | Ground control | Ground control | Ground control |
Voltage | 380v,60hz,3p | 380v,60hz,3p | 200v,60hz,3p |
Color | Standard | Standard | Standard |
Quantity | 2 | 2 | 4 |
Customized features of 5 ton + 5 ton single girder overhead crane for sale Bangladesh
- 1. Collector: 10 mm2, 2 sets. 20 mm2, 6 sets.
- 2. Seamless sliding line: 10 mm2, 50 meters*2. 20 mm2, 50 meters. 20 mm2, 100 meters.
- 3. 5 pairs of sliding wire tensioners.
- Technical requirements: LD type the electric hoists of the 5+5 ton single girder overhead cranes can be raised and lowered at the same time, or can be operated independently.
Customs declaration information registration
- The actual English name of the goods: electric single girder overhead crane
- Chinese and English name of cargo declaration:single girder overhead crane
- Inland transportation cost from factory to port: 10,000 RMB
- Sea freight: 5100 USD
- Premium: 0
- Port charges: 17,000 RMB
Gallary of 5 ton + 5 ton single girder overhead crane for sale Bangladesh

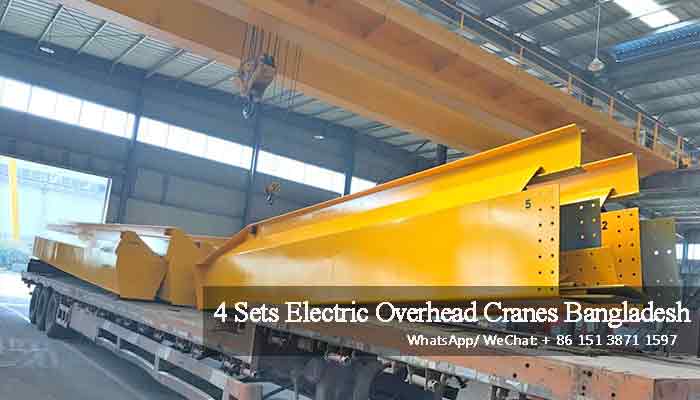

Main girder of 5 ton + 5 ton double hoist single girder overhead crane for sale Bangladesh

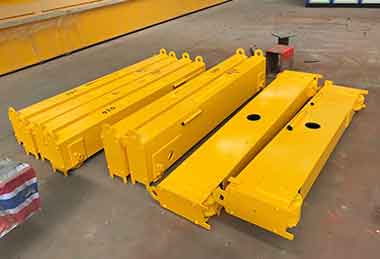

End carriages of 5 ton + 5 ton single girder overhead eot crane for sale Bangladesh

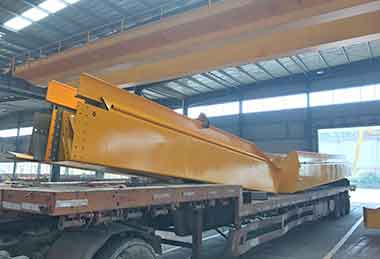

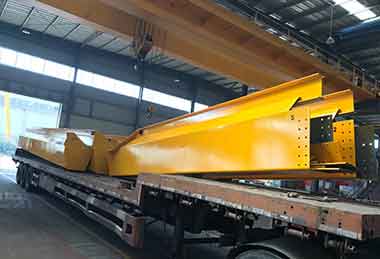

16.7m long main girder of single girder overhead travelling crane for sale is cut into 2 sections for delivery to Bangladesh.
16.7m long main girder of single girder overhead travelling crane for sale is cut into 2 sections for delivery to Bangladesh.
