Scrap Magnetic Overhead Cranes for Sale
Scrap Handling Electric Magnetic Crane 3 Ton, 5 Ton,10 Ton, 50 Ton

Electromagnetic overhead cranes for all types of metal scrap handling in steel mill & scrap yard. High safety & efficiency electromagnet bridge crane for sale. Click!

Scrap magnet overhead crane is an electric overhead crane equipment designed to handling scrap metals in steel mill workshops and scrap yard. They help increase productivity and shorter operating times. These types of electric overhead cranes with circular electromagnets. The crane electromagnets generate a magnetic field beneath the magnet, allowing it to easily pick up even small pieces of metals that a grapple cannot.

Magnetic bridge cranes for scrap are commonly used in steel mills and scrap yards for picking up scrap metals on the ground to the truck, or unloading the truck and transfer the metal scrap to the designated area to streamline your production line and improve production and safety. With additional IP protection, the crane magnets may be preferred for underwater applications.

Scrap magnet overhead crane

Scrap hanlding overhead cranes are essential for increasing productivity, safety, and streamlining workflow. It is designed to work with cast iron ingots, steel balls, scrap metals, and other metal products and materials. The weight of the magnetic chuck is included in the crane's lifting capacity. Our steel magnetic overhead cranes are available in a variety of designs and configurations to meet a wide range of lifting needs. For help choosing the best crane system for your company, you can contact with our crane experts.

Main parameters of Scrap Magnetic Overhead cranes:

• Loading capacity: 5 ton -50 ton
• Crane Span: 10.5-31.5 m
• Lifting height: 6-16m
• Lifting speed: 7.8-15.5m/min
• Hoisting trolley running speed: 31.3-40.1m/min
• Bridge crane running speed: 58.5-70.6m/min
• Work duty of magnetic overhead crane : A5-A7

Applications of scrap magnet overhead cranes

Scrap magnet bridge cranes are ideal for sorting out cast ingot, steel ball, pig iron, machine chips, various types of steel scraps, return scraps, cropping, baling scraps, and so on in junkyards, foundry factories, and iron powder in coal washeries due to their strong and deep magnetic force penetration, ease of operation, and large capacity.

Scrap handling overhead crane

Small metal scrap handling magnetic crane

Outdoor scrap handling crane

Scrap magnetic overhead crane specifications

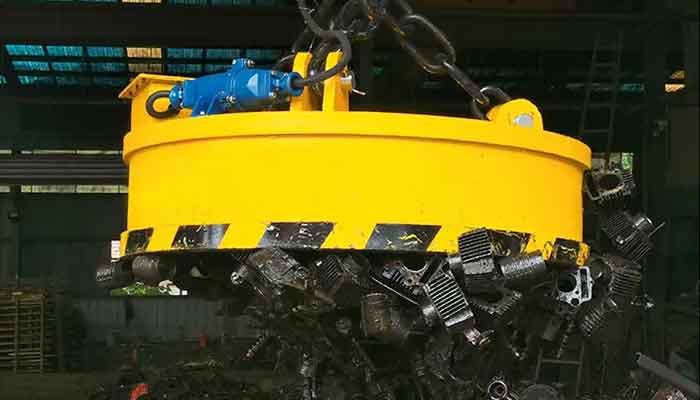

Electromagnets for your scrape crane handling

Electric magnets used in steel scrap handling cranes are also known as magnets, scrap magnets, scrap handling magnets, scrap yard magnets, and junkyard magnets.

Types of electromagnets such as, Round, circular, or rectangular electromagnets, as well as customized electromagnets, are available for all steel scrap processing operations. The steel and iron magnetic overhead cranes can be equipped with scrap magnets of the following types:

• Room Temperature Electric Magnets, High Temperature Electromagnets,High Frequency and strong Magnetism Type, etc.

The body type of the magnet can be chosen from the list below depending on the customer's preferences.

• Scrap magnets with cast bodies are produced with one piece.Because of this, magnets are incredibly impact-resistant.These magnets cost a little more than other magnets.The range of sizes depends on the mold diameters that each manufacturer possesses.
• Scrap magnets with fabricated steel bodies are made by welding bent steel plates together.The magnet is then sealed and resin-coated coil is added.Various diameters are available based on customer need.

Our electric overhead cranes are widely used due to the following features

• Large magnetic field depth.
• Extremely quick activation and deactivation.
• Cast steel shell for maximum robustness and high magnetic permeability.
• Magnetic field intensity regulator depending on the load.
• Customized crane electric magnets are available.

Factors to Customize Scrap Magnet Overhead Crane

It is important to specify the location (steel mill, scrap yard, furnace charging, scrap collection, lifting of cut plates, etc.) where the scrap magnet handling crane will be utilized. Then we can suggest a magnet with a cast body or a steel body made during manufacture.

• Duty cycle: You should specify the duty cycle of the magnetic magnetic crane , The duty cycle might be ranging from 50% to 80%.
• Lifting capacity：The lifting capacity of the scrap overhead crane should include the rated load capacity and the weight of the electric magnet. The higher of the duty cycle, the more winding a magnet has, the heavier and more expensive the magnet is .
• Scrap density: Scrap should be identified by type and density.

The scrap magnetic overhead crane we design for you is one of the steel mill crane series. The custom crane design is the overhead crane designed based on your lifting requirements and application condition . Since the needs and requirements of the different clients vary largely. We always put ourselves in the shoes of our customers. Your personalized electromagnetic scrap handling overhead cranes are available from us. Contact us today to get your custom scrap handling crane design tomorrow.

Comparison of scrap magnetic gantry cranes

Besides magnet scrap handling overhead crane, there are types of of magnetic cranes for your selection, such as magnetic beam overhead crane, and the magnetic gantry cranes ,etc. What is the difference of magnetic overhead crane and gantry crane? They have the same fuctions, but the overhead crane is running on the crane runway supporting by collumns or supporting structures and the gantry crane is supported by its own supporting legs travelling on the rails embeded on the ground. The overhead crane type is usually used for indoor workshops or facilitys, and also can be used in for outdoors. Whereas, the magnetic gantry cranes are typically used for outdoor applications and outdoors occasionly. If you have any need, please feel free to contact us to get your customized magnetic scrap handling crane.

scrap magnet overhead crane - Double girder overhead crane

scrap magnet gantry crane
