What is a double girder goliath crane ? Double girder goliath crane is the most frequently used structure design, with the features of strong bearing capacity, large span, good overall stability, and coming in many varieties, but the self-weight of the double girder goliath crane is larger and their processing cost is higher compared with double girder goliath crane . Double girder goliath cranes can be designed into box girder and truss girder designs, but usually in box shape girder designs.

A double girder goliath crane is mainly composed of the crab travelling, the trolley travelling, electrical, gantry and other components. It can use cable reel power supply, with diesel generator power supply or bare copper slip line power supply.

Overview of Double Girder Goliath Cranes: Crane Specifications, Types & Applications

Double girder goliath crane carrying capacity is strong and the span can be very large. The overall stability is good. Compared with single girder double girder goliath crane, the overall rigidity of the double form is stronger. Because the double girder goliath crane has two girders, the entire structure has stronger stability. In different condition, our technicians design various products that meet the customers' requirements.

Main Crane Specifications of Double Girder Goliath Cranes

Double girder goliath crane s are designed for heavy material handling with capacity of more than 20 tons, thus, a double girder overhead overhead cranes also can be referred as a heavy duty overhead crane. double girder goliath crane s can be designed with various top running crane configurations, including hoist trolley & open winch, equipped with various overhead crane attachments and below the hook lifting devices, such as grabs, tongs, magnets, spreader beams, C hook or other process lifting devices for heavy loads handling, featured as high safety, reliability, and durability, etc.

Double girder goliath crane video

Double girder goliath crane specifications


  • Lifting capacity of double girder goliath crane : 5 ton ~ 350 ton,
  • Span of double girder goliath crane : 7.5m~35m,
  • Lifting height of double girder goliath crane : As your request,
  • Working Class of double girder goliath crane : A5-A8
  • Crane Hoisting System: Double girder hoist trolley or open winch
  • Customized double girder goliath crane can be up to 550 ton.

Various double girder goliath crane designs are available. Contact us to get process double girder goliath crane designs and specific crane specifications and crane dimensions or to download free double girder goliath crane pdf brochure.

Main Types of Double Beam / Double Girder Goliath Cranes

Based on different standards, the double girder goliath cranes can be grouped into different types and in the following, the main types of double girder goliath cranes and their main features are presented for your reference. If you want to know more information and specifications, please feel free to contact us.

Full double girder goliath crane vs. Semi double girder goliath crane

In terms ofstructures of gantry frame,gantry crane can be grouped into full double girder goliath crane and semi double girder goliath cranes, etc.

Full double girder goliath crane are double legged double girder goliath crane, main girder supported on the two legs, which are in the same height, featured as high safety, durability and cost-effective for not supportive columns or building structures are required. double girder goliath crane with full double girder goliath crane designs are usually adopted for heavy duty , large volume, or difficult loads handling and they are applicable to harsh applications with process crane designs.

Semi double girder goliath crane is a variant of regular double girder goliath crane with one end supported on a leg running on the ground rail and the other end travelling overhead on wall mounted track, therefore also called Single Leg double girder goliath cranes. The single leg semi double girder goliath cranes offers a cost-effective solution for factory or applications with narrow, confined spaces or crowded machinery.

semi-gantry cranes

Double girder goliath crane with semi gantry crane design

BMG Semi double girder goliath crane 5t to 32t. Semi double girder goliath crane can be divided into double girder truss type semi double girder goliath crane, and double girder box-type semi double girder goliath crane.

Double girder goliath crane with full gantry crane design

Double girder goliath crane with full gantry crane design

Double girder goliath cranes & double beam double girder goliath cranes overview on double girder goliath crane specifications, double girder goliath crane types, features, crane usages & applications.

Box girder double girder goliath crane vs. Truss girder double girder goliath crane

In terms of crane girder designs of double girder goliath crane, double girder goliath cranecan be grouped into box girder double girder goliath crane, truss double girder goliath crane,etc.

Box girder double girder goliath crane -The box shaped gantry girder is welded with steel plates , with features of high safety, stiffness and other, etc. . Box gantry girder design is usually used for double girder goliath crane with large and super large tonnages.The box gantry girder design also has the draw backs of high production cost, heavy selfweight and poor wind resistance.

Truss double girder goliath crane -The truss gantry girder is welded with angle steel or I-beam, featured aslo manufacturing cost, light self-weight, and good wind resistance. However, due to the large amount of welding points and the inborn defects of the trusses structure,the truss gantry girder has the disadvantages of large deflection, low rigidity, low reliability, and frequent welding spotsdetection. Truss cranes are suitable for application with low requirements on safety and lifting capacity.

According to gantry girder design, double girder goliath crane can be grouped into - box shaped girder design double girder goliath crane and truss girder design double girder goliath crane . At present, box-shaped girder design double girder goliath crane is more frequently used.

double beam box girder goliath crane

Double girder goliath crane with box girder design

European style double girder goliath crane- hoist trolley. 5-32 ton single girder hoist double girder goliath crane for sale. Single girder gantry, box girder / truss girder design, equipped electric wire rope hoists,cost-effective hoist double girder goliath crane.

Double girder gantry crane

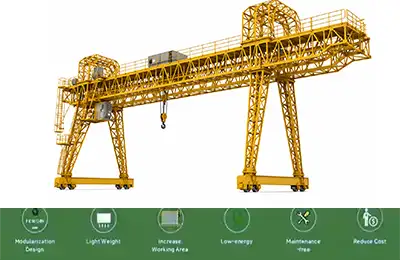

Double girder goliath crane with truss girder design

Double beams truss girder double girder goliath crane.Truss crane for sale. 3 ton - 100 tons anti-windy double girder goliath cranes, with single/ double truss gantry girder design, truss leg & complete truss double girder goliath cranes for you!

A frame double girder goliath crane & U shape leg double girder goliath crane

Based on the different designs of supporting leg, the double girder goliath crane can be grouped with A frame double girder goliath crane, L frame double girder goliath crane, and U frame double girder goliath crane

A-frame cranes usually refers to A frame double girder goliath crane which is a specialvariation of regulardouble girder goliath crane, with A shape like side profile. With various crane specifications and crane configuration, our A frame double girder goliath crane can be used for light, medium and heavy duty material handling, which includes the following of double girder goliath crane:5ton ~50ton light duty & medium duty hoist trolley double girder goliath crane, 5ton ~320ton heavy duty open winch double girder goliath crane, and process designed double girder goliath crane, etc.

U frame leg double girder goliath crane usually refers to the Rail Mounted GantryCrane, shorten as RMG crane which is a type of container cranes for lifting the international ISO standard containers.AdoptingU frame supporting legs , the rail mounted double girder goliath crane has wider clear space than the regular double girder goliath crane, which enables containers move to sides easily. The whole RMG crane with the capacity of 30 ton-50 ton is designed to run quicklyand steadilyon the fixed gantry rails on ground for efficient container handling inoutdoor workplaces, such as, port and dock, etc.

Double girder gantry crane

A frame double girder goliath crane

A frame crane design & manufacture:5 - 50 ton single girder & 5 - 320 ton double girder Fixed A frame double girder goliath cranes & 0.5-10 ton Portable A frame crane for reliable material handling.

Double girder gantry crane

U frame double girder goliath crane

The U-type double girder goliath crane is a type of heavy-duty lifting equipment that differs from A-frame double girder goliath cranes in that it has more space between legs, allowing it to lift and carry large-sized products such as containers.

Lifting & Hoisting Systems Selections of Double Girder Goliath Cranes

Double girder goliath cranes are the first choice for heavy duty material handling in workshops which needs a very large range of crane spans, hook height and travelling speed range. Generally, the double girder eot cranes are available with multiple hoisting systems including Hoist trolley system & Open winch trolley system, depending on the wight of lifting loads and lifting requirements.

Hoist trolley for double girder goliath cranes

Crane hoist trolleys are designed for double girder goliath crane and are widely used for heavy duty lifting operations with higher safety and stability. The hoist trolley are runs on along the top of edge of two girders and the wire rope with hook will descend between the two girders to handle the load, which enables the maximum possible height of lift under the beam girder, however, on the hand more roof space will be required above the crane beams or girder, due to it sits on the top of crane beam girders.

 Hoist Trolley double girder goliath crane

Double girder hoist trolley

Double girder hoist trolley for double girder goliath crane and gantry cranes

 Hoist trolley double girder goliath crane

Double girder hoist trolley

Double girder hoist trolley for double girder goliath cranes and gantry cranes with double hoists for hoisting and lifting .

 Electric chain hoist trolleydouble girder goliath crane

Electric chain hoist trolley

Electric chain hoist trolley for double girder goliath cranes and gantry cranes

Electric wire rope hosist trolley double girder goliath crane

Electric wire rope hosist trolley

Electric wire rope hosist trolley for double girder goliath cranes and double girder goliath cranes

Chinese style hoist trolley -The Chinese style hoist trolley adopts the CD/MD wire rope electric hoist trolley or electric chain hoist with frame as the lifting mechanism and lifting capacity is from 5 ton 32 ton,

European style hoist trolley -European standard FEM/ DIN standard low profile hoist trolley with lifting capacity are up to 80 ton. The European low profile hoists trolleys are used on double girder goliath cranes configurations, such as, types of goliath crane & A frame gantry cranes, etc.

Open winches for double girder goliath cranes

Build up open winch and electric winch trolleys are adopted on double girder goliath cranes as the lifting system for handling heavy loads with capacity from 5 ton 500 ton. According to different design style and features, the overhead open winch crane can be grouped in the following types:

 Open winch with European style design double girder goliath crane

Open winch with European style design

European style open winch for double girder goliath cranes with capacity up to 500 tons.

 Open winch with European style design double girder goliath crane

Open winch with European style design

European style open winch for FEM / DIN standard double girder goliath crane

 Open winch with Chinese traditional design double girder goliath crane

Open winch with Chinese traditional design with CE certificate

Chinese style open winch trolley for double girder goliath cranes system

 Open winch with Chinese traditional design double girder goliath crane

Open winch with Chinese traditional design with CE certificate

Chinese style double girder goliath crane with open winch hoisting system

Open winch with Chinese traditional design -These types of open winch and electric crane winch trolley are frequently adopted on the Chinese traditional heavy duty double girder goliath cranes with capacity from 5 ton to 500 ton,with the features of safe, flexible, powerful, reliable & stable.

European open winch crane design-European crane winch is a custom crane components for heavy duty double girder goliath cranes and overhead gantry cranes. The European winch trolleys are tailored to meet the specific requirements of your application and custom cranes. The process winch trolleys are vary versatile and applicable to a variety of industrial applications.

Applications of double girder goliath crane

Double girder goliath cranes and double beam double girder goliath cranes are widely used in varioua industrial application.

With custom crane designs, double girder goliath crane is an important lifting equipment in modern industry production and transportation to improve efficiency and safety. Double girder goliath cranes are widely used in various industrial applications such as in mining, iron and steel production, rail yards, and shipping ports, port and terminal, logistics, precast yards,ship building, mining maintenance, bridge construction industries and other departments and places.

  • Logistics & Transportation Industry
  • Precast Yards
  • Power Stations and Heavy Maintenance
  • Ship Building and Heavy Fabrication Industries

Double girder goliath cranes are featured for heavy duty working application with high performance and safety to ensure efficient productivity. For your heavy duty crane needs, please select us double girder goliath crane solutions to maximize your uptime and reduce downtime. Send us an inquiry on double girder goliath crane today.

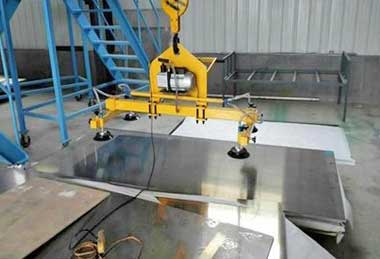

Below-the-hook devices for double girder goliath cranes

With various below the hook devices, the double girder goliath cranes are widely used in various industrial applications. Among them, the hook double girder goliath crane is one of the mostly used heavy material handling crane equipment with the lifting capacity from 5 ton to 550 ton, working class up from A4 to A7.

Up to 550 ton double girder goliath cranes of various crane designs are for sale at cost- effective crane price. Types of double girder goliath cranes are available, such as, hook overhead crane, gab bucket overhead crane, electromagnetic overhead crane, lifting clamp overhead crane, and other overhead custom cranes, etc.

Factors to consider when selecting your crane

How to select a double girder goliath crane?The following factors will help you to define the double girder goliath crane you need.

  • Capacity of double girder goliath crane your need: ___________ (tonnes)
  • Span of double girder goliath crane your need: ___________ (m).The clear distance between your building columns.
  • Height of lift of double girder goliath crane your need: ___________ (m)
  • Hoisting speed of double girder goliath crane your need: ___________ (m/min)
  • Travel speeds of double girder goliath crane your need: ___________ (m/min)
  • Duty of double girder goliath crane your need: ___________

A double girder goliath crane with process crane design are the most cost-effective double girder goliath crane solutions for your particular applications. Free double girder goliath crane consultations, double girder goliath crane design drawings and specific double girder goliath crane price will be provided to honest clients and customers. Contact us today to get your inquiry on double girder goliath cranes.

Your Trusted Double Beam & Double Girder Gantry Crane Manufacturer & Supplier

5 ton -550 Ton Double Girder Goliath Cranes for Sale
Tailored Heavy Duty Goliath Cranes For Your Application

10 Ton-50 Ton Double Girder U frame Goliath Crane & Gantry Crane

10 Ton-50 Ton Double Girder U frame Goliath Crane & Gantry Crane

Double girder goliath crane with U frame leg offers large space to lift 10 -30 ton containers. Rail mounted & rubber tyred u frame goliath crane for sale.

5 Ton to 32 Ton Double Girder Semi Goliath Crane with Box Girder

5 Ton to 32 Ton Double Girder Semi Goliath Crane with Box Girder

Box girder semi goliath crane, single legged semi goliath crane with double girder gantry design for indoor & outdoor use, 5 ton, 10 ton, 15 ton, up 32 ton

3.2Ton -100 Ton Truss Beam Double Girder Gantry Crane Outdoor Use

3.2Ton -100 Ton Truss Beam Double Girder Gantry Crane Outdoor Use

Truss type double girder gantry crane is an outdoor crane with high windy resistance, with hoist trolley / open winch trolley of 3.2 ton, 5 ton,100 ton.

5 Ton - 550 Ton Box Type Double Girder Goliath Crane

5 Ton - 550 Ton Box Type Double Girder Goliath Crane

5 ton -550 ton box type double girder goliath crane for sale. Heavy duty double beam box girder goliath cranes for indoor & outdoor material handling.
