Single Girder Top Running EOT Crane 3 Ton for Thailand
Customized Top Running eot Crane, Pendent Control Crane
Single girder top running eot crane with tailored specifications of 3 ton capacity, 24 m crane span & 4.29 m lifting height. Check 3 ton eot crane project for Thailand now.
Basics of single girder eot crane 3 ton for Thailand
- Crane Type：top running overhead crane, single girder design
- Date of Placing Oder：2017.5.19
- Date of Delivery ：2017.5.25
- Way of Transportation： LCL
- Way of Payment：50% Downpayment
- Destination country： Thailand
- Destination port：FOB, Qingdao
- First Contact：2016.1

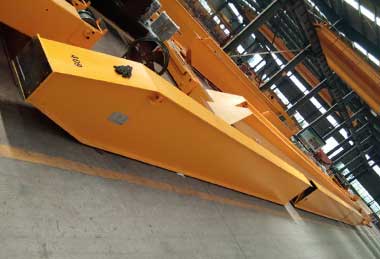

24 m long main girder for 3 ton single girder top running overhead crane 3 ton overhead crane main specifications & general requirements
Crane type | |
Model | HD |
Working Class | A3 |
Capacity | 3 ton |
Span length (m) | 24M |
Lifting Height（M） | 4.29 m |
Crane control | Pendent control |
Voltage | 380v,50hz,3p |
Color | Standard |
Application | Indoor use |
Crane rail | P24 track, 144m |
Quantity | 2 |
Customized features of 3 ton single girder overhead crane for sale Thailand
- The 3 ton overhead crane is equipped with low headroom wire rope hoist.
- The overhead crane and hoist trolley are all frequency conversion.
- P24 track 144m, 20 pairs of clamping plates, 490 pressure plates
- Seamless busbar with cross section of 10mm2, 72m long, equipped with 2 collectors
- Rail bearing beam model: HN396*199*7*11 Length 144m, column spacing 6m
- 26 corbels including fixing bolts, etc.
- The 24 m long main girder is cut into two sections to load into 40GP container
Customs declaration information registration
- The actual Chinese and English name of the goods: single girder eot crane
- Chinese and English name of cargo declaration:single girder eot crane
- Inland transportation cost from factory to port: 10,000 yuan
- Sea freight: 0
- Premium: 0
- Port charges: USD750
Comparison with 3 ton single girder top running overhead crane for sale USA, Chinese type
Crane type | |
Model | LD |
Working Class | A3 |
Capacity | 3 ton |
Span length (m) | 21.539M |
Lifting Height（M） | 6.7 m |
Crane control | Ground control |
Voltage | 460v,60hz,3p |
Color | Standard |
Application | Indoor use |
Crane rail | P24 track, |
Quantity | 2 |
