5 Ton Gantry Crane UAE | Tandem Lifting Case Study

A buyer-focused case study of three 5 ton indoor gantry cranes, including two cranes designed to work together in the same bay for tandem lifting.A practical buyer's case study on specifying, purchasing, and commissioning 5 ton indoor gantry cranes for tandem lifting — managed by Yuantai Business Manager Zack Zhang.

Project at a Glance

The Customer's Lifting Challenge & Yuantai Solution

The Lifting Challenge

The UAE customer needed several 5 ton gantry cranes for an indoor industrial facility. The three cranes did not need identical dimensions because each bay had different space and lifting requirements.

The more demanding application was in one bay where two 5 ton gantry cranes needed to operate together.

The customer needed to:

• Lift loads that could not be conveniently handled by one crane alone
• Support long or oversized loads at two lifting points
• Achieve the required hook height within a limited building height
• Operate two cranes independently when tandem lifting was not required
• Match the crane dimensions to different indoor working bays
• Use the existing 380V / 50Hz / 3-phase power supply

Instead of simply selecting a standard 5 ton crane, the project required the crane configuration to be developed around the building clearance, load dimensions, hook height and lifting method.

The Yuantai Solution

Yuantai supplied three custom 5 ton gantry cranes.

One crane was designed for individual lifting in one bay, while the other two were configured with matching specifications for tandem lifting in the same bay.

Crane Configuration

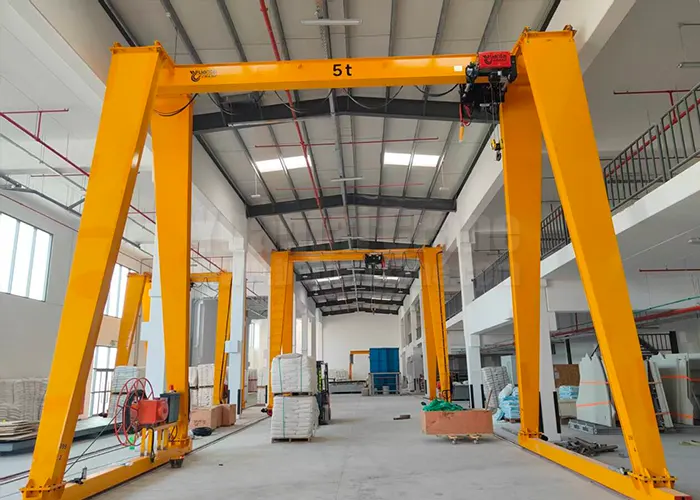

5 ton gantry crane for indoor use - Yuantai Crane Project

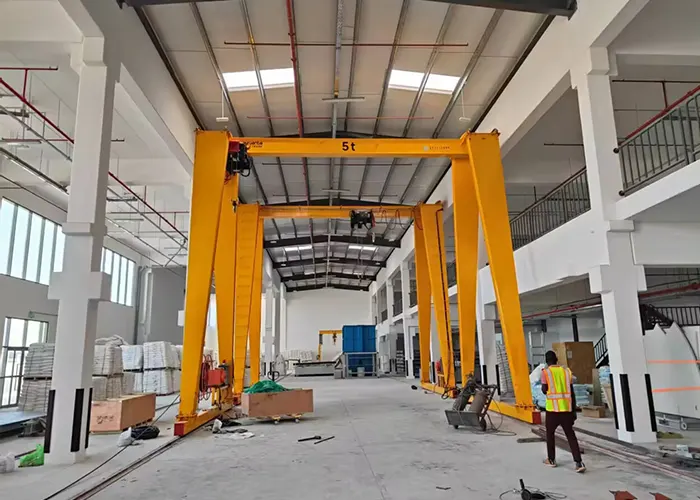

5 ton gantry crane for indoor use- 2 units in the same bay - Yuantai Crane Project

Why a 5 Ton Gantry Crane Was Selected

For this project, a gantry crane offered an important advantage: it provided a free-standing lifting system without requiring a permanent overhead runway structure.

This was suitable for an indoor facility where the customer needed lifting equipment that could be configured around the existing workspace.

The customer also required different lifting heights in different bays. Rather than over-specifying every crane, Yuantai designed each unit around its actual working area.

This approach helped the customer match the crane to the application instead of paying for unnecessary lifting height or capacity.

Low-Headroom Design for Indoor Lifting

Building height is often one of the first limitations when selecting an indoor gantry crane.

For this project, the customer required a 7.1 m lifting height for the two cranes in the tandem-lifting bay, while the available building space had to be considered at the same time.

A compact European-style hoist was therefore used to reduce the space required above the hook.

For buyers, the important point is that lifting height and total crane height are not the same specification.

When requesting a quotation, it is better to provide:

• Required lifting height
• Available building height
• Required crane span
• Required working width
• Load dimensions
• Required hook position

These dimensions allow the crane supplier to check whether the proposed crane can achieve the required hook height without creating unnecessary interference with the building.

Two 5 Ton Gantry Cranes Working in Tandem

The most distinctive part of this project was the use of two 5 ton gantry cranes in the same bay.

Tandem lifting means two cranes cooperate to lift and position the same load.

This arrangement can be useful when:

1. The Load Is Long or Oversized

Long steel structures, fabricated equipment, beams, machinery and other extended loads may require support at two lifting points.

Using two cranes can provide better load support and positioning than attempting to lift the entire load from one point.

Typical Long-Load Examples

• Steel beams and structural sections
• Fabricated pipe spools and ducts
• Long molds and dies
• Precast concrete elements

2. One Crane Is Not Suitable for the Load Arrangement

Two cranes can share the lifting task when the load and lifting plan are properly engineered.

However, buyers should not simply assume that two 5 ton cranes automatically provide a 10 ton lifting capacity. The allowable tandem load depends on load distribution, lifting points, crane design, controls, rigging and the approved lifting procedure.

This should be confirmed during engineering before the cranes are used for tandem lifting.

What Must Be Verified Before Tandem Lifting

• Load weight and center of gravity
• Number and position of lifting points
• Load distribution between the two cranes
• Compatible crane speeds and controls
• Approved lifting procedure and rigging plan

3. The Facility Needs Both Tandem and Independent Operation

Another advantage is flexibility.

When tandem lifting is not required, the two cranes can be used independently for normal material handling, subject to the approved operating arrangement.

This allows the same bay to support different lifting tasks instead of dedicating the equipment to a single type of load.

Independent Operation Benefits

• Higher equipment utilization
• Faster handling of smaller loads
• Better return on investment
• Flexibility across different production tasks

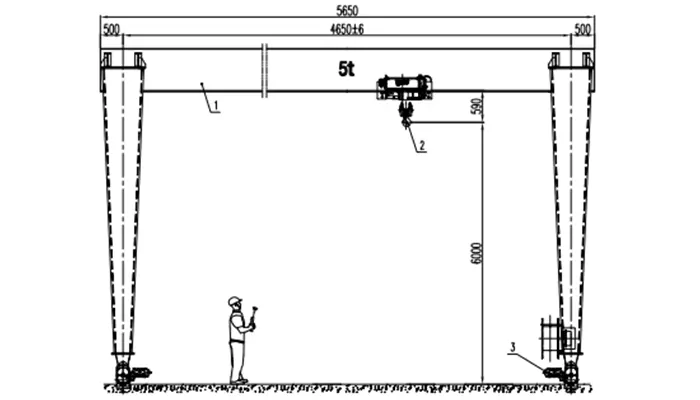

5 ton gantry crane for indoor use - Yuantai Crane Gantry Crane Project Drawing - European Single Girder Gantry Crane 5 Ton - S4.65m - H7m Total Width 5.65m

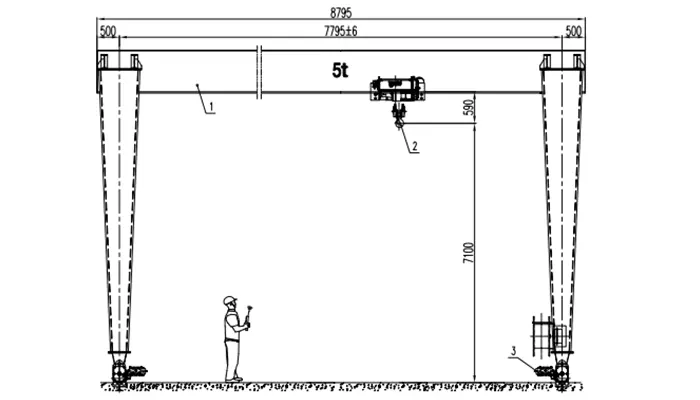

5 ton gantry crane for indoor use - Yuantai Crane Gantry Crane Project Drawing -European Single Girder Gantry Crane 5 Ton - S7.795m - H8.1m | Total Width 8.795m Gantry Crane Drawing, NR Hoist, P22 Rail, M5

Key Features, Applications & Comparison

Key Features of the 5 Ton Gantry Crane Solution

European-Style Wire Rope Hoist

The compact hoist configuration helped the customer achieve the required hook height within the indoor facility.

VFD-Controlled Movement

Variable frequency drive control can provide smoother starting, stopping and load positioning.

For tandem applications, coordinated control and operating procedures are particularly important because both cranes must move in a controlled manner.

Matching Tandem Crane Configuration

The two cranes intended for tandem lifting were designed with matching key specifications so they could operate within the same bay.

Customized Span and Lifting Height

The three cranes were not treated as identical standard units.

Each crane was specified according to its actual bay requirements, including:

• Span
• Lifting height
• Overall dimensions
• Wheel base
• Power supply
• Application

Free-Standing Gantry Structure

The gantry configuration allows the lifting system to operate without a permanent building-supported runway, making it suitable for certain indoor facilities where structural modification is undesirable.

Where Can Two 5 Ton Gantry Cranes Be Used?

The tandem configuration can be considered for applications where loads are long, awkward, oversized or require two-point support.

Typical applications include:

• Industrial equipment installation
• Machinery assembly and maintenance
• Steel fabrication
• Long structural components
• Heavy molds and dies
• Pumps, motors and generators
• Precast concrete components
• Oversized fabricated assemblies
• Warehouse and industrial material handling

The exact tandem lifting arrangement should always be selected according to the actual load weight, center of gravity, lifting points and required lifting procedure.

5 Ton Single Girder Gantry Crane vs. Tandem Gantry Crane

For buyers comparing different configurations, the key question is not simply whether a crane is single girder or double girder. The more important question is how the crane will be used.

A 5 ton single girder gantry crane can be a practical choice for general material handling where one crane is sufficient for the required load.

A tandem configuration becomes more relevant when:

• The load is longer than the normal lifting arrangement
• Two lifting points are required
• Load positioning requires two hooks
• The facility needs two cranes in the same working bay
• Independent crane operation is also required

The correct solution depends on the actual load and working conditions rather than capacity alone.

Quick Comparison

• Single girder gantry crane: best for general lifting, lower cost, simpler operation
• Tandem gantry crane: best for long or heavy loads, two-point support, higher flexibility

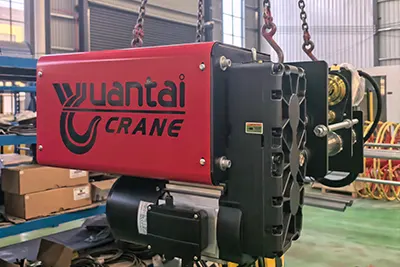

5 ton gantry crane electric hoist  for indoor use - Yuantai Crane Project

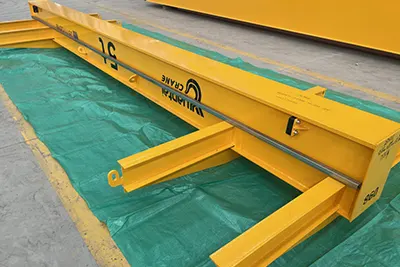

5 ton gantry crane main girder for indoor use - Yuantai Crane Project

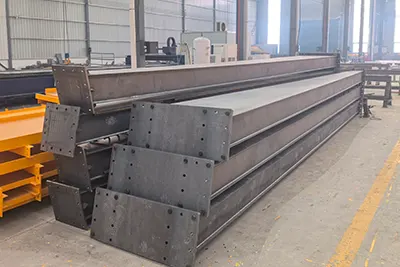

5 ton gantry crane supporting legs under construction for indoor use - Yuantai Crane Project

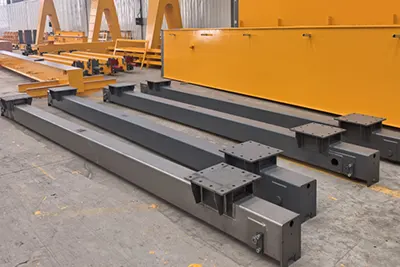

5 ton gantry crane ground beams underconstruciton picture for indoor use - Yuantai Crane Project

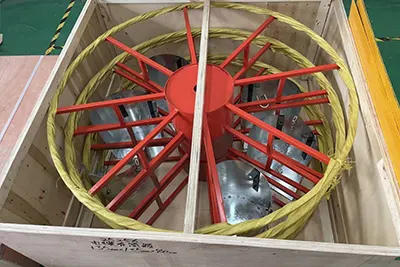

5 ton gantry crane power supply cable drum for indoor use - Yuantai Crane Project

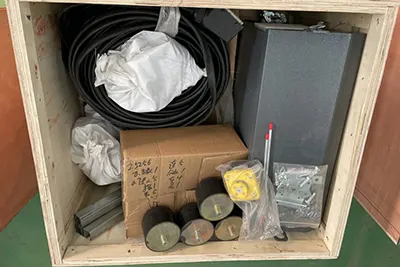

5 ton gantry crane parts and componentns for indoor use - Yuantai Crane Project

Buyer Guidance: Quote Checklist & Takeaways

What Should You Provide When Requesting a 5 Ton Gantry Crane Quote?

A supplier can prepare a much more accurate crane proposal if the inquiry includes the following information:

1. Lifting capacity: 5 ton or other required capacity
2. Crane span: distance between the gantry legs or required working span
3. Lifting height: required hook height
4. Building height: available indoor clearance
5. Load dimensions: especially for long or oversized loads
6. Working area: bay dimensions and operating range
7. Power supply: voltage, frequency and phase
8. Duty class: expected lifting frequency and working intensity
9. Tandem lifting: whether two cranes must lift one load together
10. Application: machinery, steel, warehouse, maintenance, production, etc.

For tandem lifting, also provide the load weight, load length, center of gravity and lifting-point arrangement whenever available.

Information Buyers Often Forget

• Available building height (not just required hook height)
• Load center of gravity
• Number and position of lifting points
• Future plans for heavier or longer loads

Buyer Takeaways

This UAE project shows why a 5 ton gantry crane should be specified around the application rather than capacity alone.

For buyers, the main lessons are:

• Check hook height against building height. A 5 ton crane with the correct capacity may still be unsuitable if the hoist and overall dimensions do not provide the required clearance.
• Consider tandem lifting for long or awkward loads. Two cranes can provide two-point support when properly engineered.
• Do not assume 5 ton + 5 ton = 10 ton automatically. Tandem lifting capacity must be verified according to the complete lifting arrangement.
• Specify each bay separately. Different working areas may require different spans, lifting heights and crane dimensions.
• Consider a 5 ton single girder gantry crane for general lifting. A tandem arrangement is more appropriate when the application requires two coordinated lifting points.
• Plan tandem lifting during the design stage. Matching cranes, compatible controls, VFDs, lifting procedures and operator training should be considered before manufacturing.
• Give the supplier complete site information. Building height, span, hook height and load dimensions directly affect the crane design.

Design-Stage Checklist for Tandem Projects

• Confirm both cranes have matching specifications
• Confirm compatible VFD controls
• Prepare a written tandem lifting procedure
• Train operators on synchronized lifting

Conclusion & Next Steps

Conclusion

This UAE project demonstrates how three 5 ton indoor gantry cranes can be configured for different industrial lifting requirements, including two cranes working together in the same bay for tandem lifting.

The solution combined customized spans and lifting heights with compact European-style hoists and a configuration suited to the customer's indoor working environment.

For buyers comparing a 5 ton gantry crane for sale, a 5 ton single girder gantry crane, or two gantry cranes for tandem lifting, the best starting point is not the crane price alone. The critical factors are capacity, span, hook height, building clearance, load dimensions, duty class and lifting method.

Need a 5 Ton Gantry Crane for Your Facility?

Tell Yuantai your lifting capacity, span, lifting height, building height, power supply and application.

If you need two cranes for tandem lifting, also provide the load weight, load dimensions and lifting-point arrangement.

Yuantai can review the requirements and recommend a suitable 5 ton gantry crane or tandem gantry crane configuration for your project.
