Gantry Crane 5 Ton S4.65m H7m Total Width 5.65m -MHO Indoor Gantry Crane

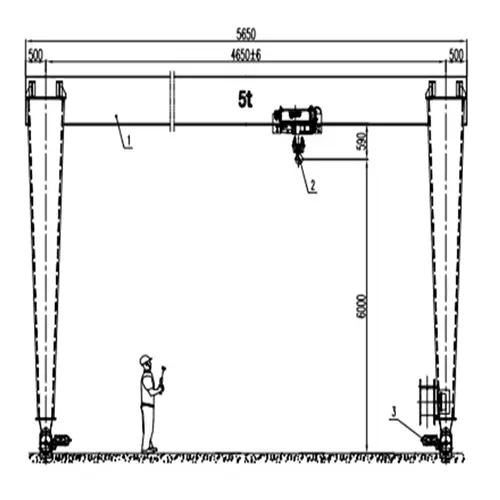

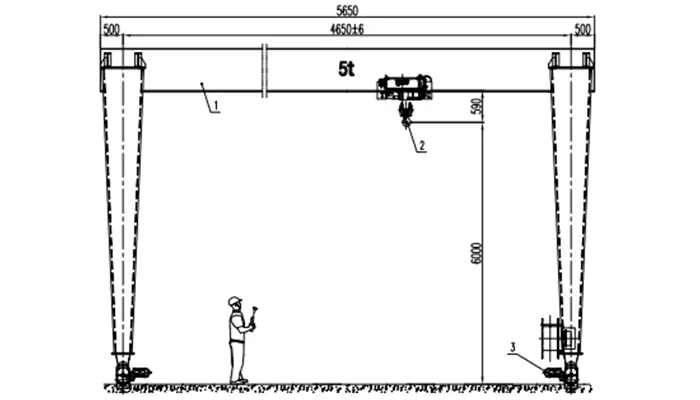

The span (4.65m) and total width (5.65m) are two different measurements on this ultra-compact single girder gantry crane:

• Span: 4.65m — the center-to-center distance between the two ground rails (4650 ± 6 mm)
• Total width: 5.65m — the overall width of the main girder, including 500mm overhangs on each side (4650 + 500 + 500 = 5650mm)

The overhangs are structural extensions on each end of the main girder. They serve two purposes:

• Hook travel beyond the rails: The trolley can travel out onto the overhangs, allowing the hook to reach slightly beyond the rails on each side
• End carriage clearance: The overhangs accommodate the end carriage structure and buffers

When planning your ultra-compact gantry crane installation, use the 4.65m span for rail centerline positioning, and the 5.65m total width for clearance checks against walls, columns, or obstacles.

The 7.0m total height on this ultra-compact single girder gantry crane is matched to workshops or yards with a clearance requirement around 7.4m. The 7.0m height comprises:

• Ground beam: approximately 0.25-0.35m
• A-frame legs: approximately 5.8-6.2m
• Main girder: approximately 0.5-0.7m
• Overhead clearance: remaining height for trolley, hoist, and hook block

The 7.0m total height leaves approximately 0.4m of clearance under a 7.4m ceiling — sufficient for structural deflection, thermal movement, and maintenance access. If your facility has a lower clearance, the total height must be reduced further, which may reduce the lifting height or require a different hoist configuration.

An ultra-compact single girder gantry crane with NR European hoist is chosen for this 5t configuration because:

• Minimal footprint: The ultra-compact A-frame design with 3.5m / 4.5m ground beams takes up minimal floor space
• Light deadweight: The single girder design reduces overall crane weight, allowing lighter rail and foundation
• Low total height: The 7.0m total height fits workshops and yards with ceiling constraints around 7.4m
• NR European hoist: Compact low-headroom hoist maximizes hook lift within the 7.0m total height
• Lower cost: For 5t capacity in a small yard, a compact single girder gantry crane is more economical than larger options
• Easier installation: Lighter components mean faster installation and lower erection cost
• Sufficient for M5 duty: Compact single girder covers 5t capacity at M5 duty for standard small yard operations

For larger yards, higher capacity (above 10t), or more demanding applications, a standard or double girder gantry crane would be required.

Five numbers on this ultra-compact single girder gantry crane drawing must match your yard, or the crane will not fit or operate correctly:

If any of these five differ from your yard, tell Yuantai before ordering — each change affects price and lead time on the ultra-compact single girder gantry crane.

P22 rail is specified for this ultra-compact single girder gantry crane because:

• Light wheel load: The 5t capacity and short 4.65m span produce a very light wheel load — well within P22 rail capacity
• Cost efficiency: P22 rail is more economical than P30 or heavier rail sections
• Ultra-compact span: At only 4.65m span, the wheel load is minimal, allowing the lightest practical rail section
• Standard availability: P22 is a common rail section, easy to source and install
• Very light rail foundation: P22 rail requires a minimal foundation — often just a simple concrete strip

Do not substitute a lighter rail without recalculating the wheel load and dynamic forces. P22 is the minimum recommended rail for this ultra-compact 5t single girder gantry crane.

Yes — this ultra-compact single girder gantry crane is suitable for both indoor and outdoor yard use. The A-frame gantry design with ground rails is inherently suitable for outdoor environments because:

• Ground rail operation: The crane travels on ground rails, which are not affected by building structure limitations
• Open structure: The A-frame design allows air movement and does not trap moisture
• Simple electrical: The electrical components can be specified with outdoor-rated enclosures (IP55+) if required

For high-wind or typhoon-exposed sites, additional anti-wind rail clamps and anchoring devices must be added. Tell Yuantai your wind load requirement at the enquiry stage for the appropriate outdoor protection package.

To avoid surprises at installation, these items are outside the ultra-compact single girder gantry crane supply scope unless you specifically add them:

• P22 ground rail and rail fasteners
• Rail foundation (concrete beams or pads)
• Site power supply up to the crane isolator
• Erection crane and site lifting equipment
• Local electrical connection and permits
• Anti-wind anchoring devices (if outdoor in windy area)

Yuantai can supply rails, anchor sets, and foundation load drawings as optional items — just state this in your enquiry so they appear in the quotation.

Send these nine items and Yuantai will issue a free custom ultra-compact single girder gantry crane CAD drawing, 3D model, and proposal within 24 hours:

1. Required lifting capacity (t) — e.g., 5t
2. Rail gauge / span (m) — e.g., S4.65m
3. Total width constraint (m) — e.g., 5.65m available width
4. Total height constraint (m) — e.g., 7.0m maximum height
5. Required lifting height (m)
6. Rail length / travel distance (m)
7. Power supply (V / Hz / Ph)
8. Indoor or outdoor environment
9. Control preference: pendant, wireless, or both

The more complete the list, the faster and more accurate the ultra-compact single girder gantry crane drawing, 3D model, and quote.

This published ultra-compact single girder gantry crane drawing and 3D rendering are a free technical reference — you may use them to plan your yard and check fit. A project-specific ultra-compact single girder gantry crane GA drawing and 3D model are also free for standard configurations. A design fee may apply only for complex site conditions, non-standard spans, or specialized customization engineering. The ultra-compact single girder gantry crane drawing remains the property of Yuantai Cranes: unauthorized copying, use, or manufacturing without written authorization is strictly prohibited.
