5 Ton Telescoping Gantry Crane for Loading Mold to Truck Kuwait
Adjustable Height for Easy Molds Hoisting & Loading

5 ton gantry crane with telescoping height & adjustable height for easy molds hoisting and loading into trucks. We communicated with the customer to fully understand the customer's needs and confirmed the crane parameters required based on usage and lifting requirements.Check custom 5 ton telescoping gantry crane specification and designs now.

Lifting requirements and background of telescoping gantry crane 5 ton

Recently a 5 ton telescoping gantry crane was supplied to the client in Kuwait, he is from a injection molds manufacturing factory. The client used a telescoping jib crane in last two years, he felt the production efficiency is not well.

The customer needs to lift the injection molds from the ground to the truck in their workshop, then confirmed to the customer the telescoping steel gantry crane he need is 5 tons of lifting capacity, lifting height of 4.8-6.8 meters, and span of 11 meter.

Main specifications of telescoping gantry crane

Lifting capacity of telescoping gantry: 5 ton
Lifting height of telescoping gantry: 4.8-6.8 meters,
span of telescoping gantry: of 11 meter.
Application: Mold handling factory for transport molds from ground to the truck in workshops

Which to choose, manual or electric adjusting of the gantry height?

According to the Kuwait customer's requirements, we suggested an telescoping gantry crane can meet his needs. The customer wants us to give him two quotes for manual and electric adjustments so that he can compare them.

We provided two quotations (manual height adjustment and electric height adjustment), and our customer chose the electric telescoping height one to maximize efficiency and reduce production costs.

Fixed Height Gantry vs Adjustable gantry crane , which is better for you?

Fixed Height Gantry Cranes are an economical way to move items within a business. This gantry has four large casters, two of which have brakes, allowing it to be moved to any location and locked in place for lifting. When not in use, simply unlock the brake and transport it. For places with infrequent lifts, this is a less expensive alternative to a more expensive permanent structure. A fixed height gantry crane is an excellent option for light to heavy labor, multilevel facilities, small warehouses, or other situations where a good foundation is not available.

Fixed Height Gantry Cranes for sale Kuwait

Lifting Capacity: 0.5~20t
Span: 1~12m
Lifting Height: 1~12m (according your needs)
Equipped with manual or motorized universal wheels, we advise motorized one
Hoist can be manual hoist and electric hoist; we advise electric one
Voltage: 220-660V 50/60Hz 3Phase

Telescoping Gantry Cranes are a cost-effective way to lift materials anywhere in a facility. You can adjust the beam height using the two telescoping pullers to meet different load handling and application conditions. Simply unlock the brake and transport when not in use or if needed in another location. For areas with infrequent lifts, this is a more cost-effective solution than a more expensive permanent structure. Telescoping Gantry Cranes are ideal for use in a small warehouse, light labor, multilevel facility, or where a proper foundation is not available.

Steel telescoping Height Gantry Crane for Sale

Capacity up to 10 tons
Max. height up to 12m
Span up to 12m
Equipped with manual or motorized universal wheels, we advise motorized one
Hoist can be manual hoist and electric hoist; we advise electric one

Production and delivery of adjustable gantry crane 5 ton

After receiving the full payment of5 ton crane from our client in one week, and we also began to arrange production for the customer. Our team was successful finished this project and delivered it within the deadline given to us by the client. This telescoping gantry crane and electric chain hoist is a versatile and low-cost lifting alternative to help the client fulfill all lifting requirements.

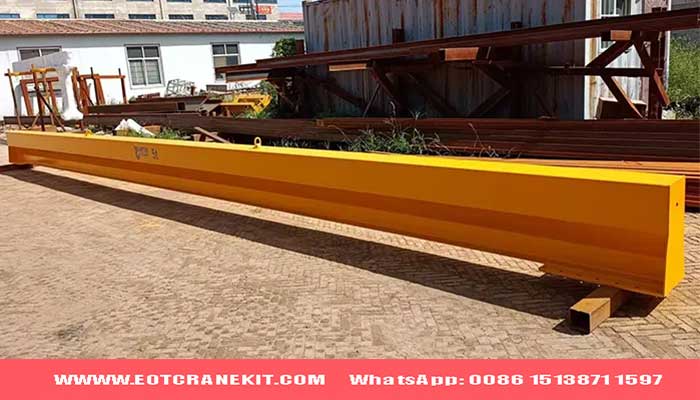

Main girder of the 5 ton telescopic gantry crane for sale Kuwait

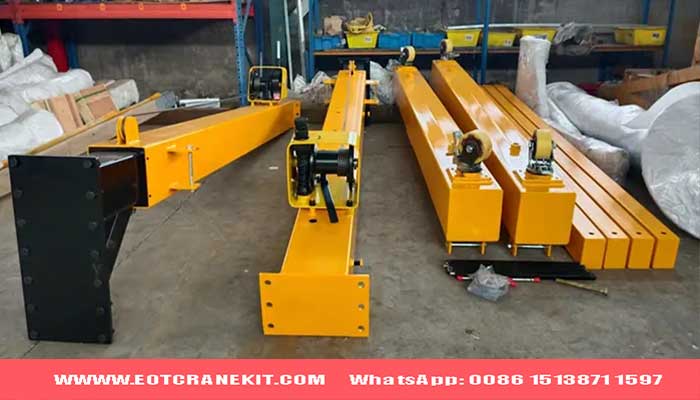

Steel structure and supporting legs of 5 ton gantry crane for sale Kuwait

Features of Telescoping Gantry Crane Design

In normal use, the height and center of gravity can be adjusted to make operation easier.
Raise the main beam in special circumstances to accommodate different lifting materials and usage scenarios.
It is simple to install on any flat hardened floor.
The walking wheels are made of polyurethane, which allows for smooth steering and manual adjustment of the walking direction.
When lifting the goods, step on the brakes on the walking wheels. When parked, apply the brakes to prevent slipping; lifting will be more secure.
The four wheels can be chosen to be universal wheels capable of meeting the rotation of the space in a narrow space and can also be inclined.
Installation time and costs are reduced with lightweight installation.
Operating environment that is secure.
Small size, easy disassembly and transportation.

Types of Telescoping Gantry Crane for Sale to Kuwait

Telescoping gantry cranes is commonly called portable gantry cranes. The telescoping or adjustable gantry crane has a wider range of application and flexibility than the fixed height and span portable gantry crane.

Light in weight, easy to install, disassemble, and transport, these features make telescoping gantry crane very popular. By adjusting the span and height, the telescoping gantry crane can be applied to more complex working conditions without purchasing new gantry crane equipment, which saves the customer's investment cost.

Steel telescoping gantry crane is one of telescoping gantry crane. It is made of steel, which higher strength and loading capacity than that of aluminum gantry crane.

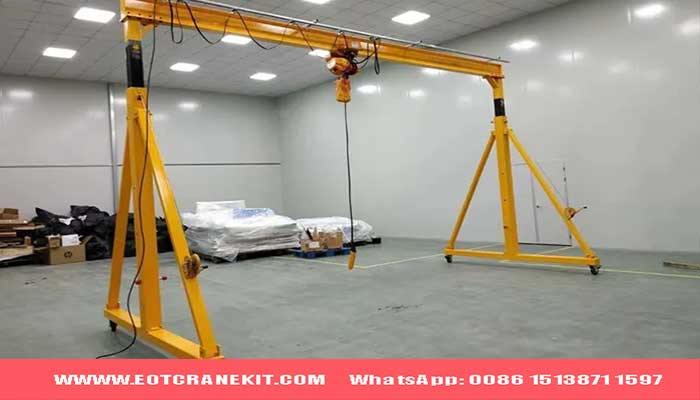

Steel telescoping height gantry crane.

Capacity up to 10 tons
Max. height up to 12m
Span up to 12m
Equipped with manual or motorized universal wheels, we advise motorized one
Hoist can be manual hoist and electric hoist; we advise electric one

Aluminum telescoping gantry crane is a special type of telescoping gantry crane. It is made of aluminum alloy. The products are cleaner and lighter than steel mobile gantry crane. They can be used in lifting sites with high cleanliness requirements. In addition, we can easily move it when using.

Aluminum Gantry Crane with telescoping Span and Height

Capacity up to 3 tons.
Span up to 4 meters.
Max. height up to 6 meters
Equipped with manual or motorized universal wheels, we advise motorized one
Hoist can be manual hoist and electric hoist; we advise electric one

Based on your customized lifting requirements and application conditions, the telescoping gantry cranes can be provided. Contact us to get your customized telescoping gantry crane and adjustable gantry crane.
