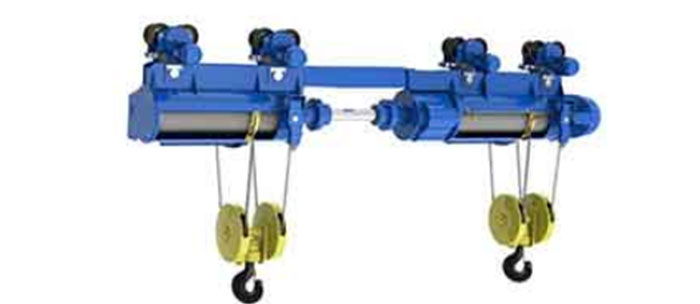

The double hook wire rope hoists are series of customized electric wire rope hoists, which are designed on the basis of basic CD/ MD wire rope hoists developed for long loads handling with the high stability and efficiency. Sharing the same main structure of basic wire rope hoist, the double hook hoists have sharing features and advantages of electric wire ropes hoists, including compact structure,light-weight, smooth operation, greater lifting height, and energy saving, etc.However, the customized double hook hoists can be used in various particular conditions where will be presented in details in the following.

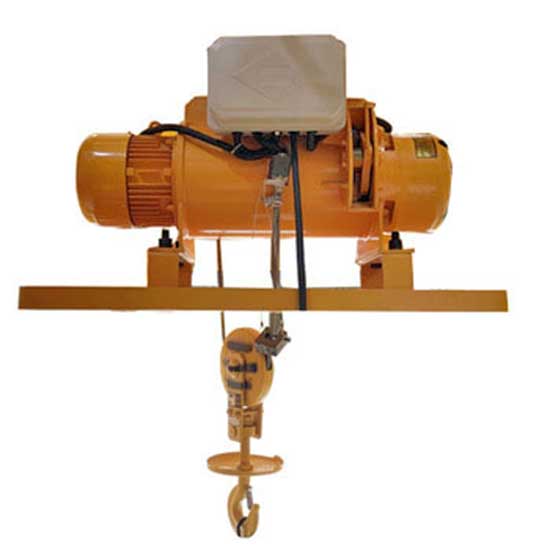

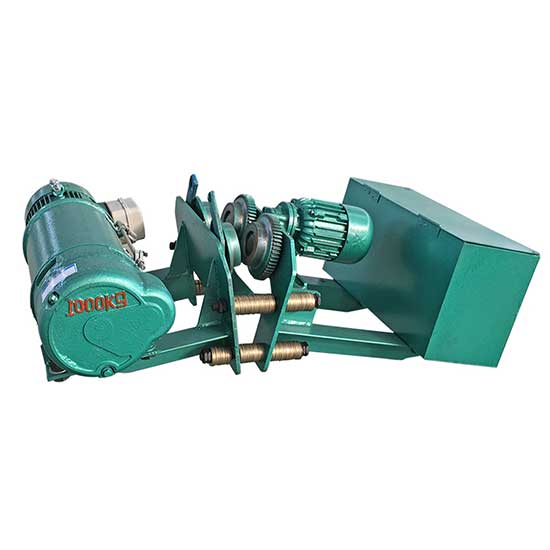

Basic CD/ MD electric cable hoists

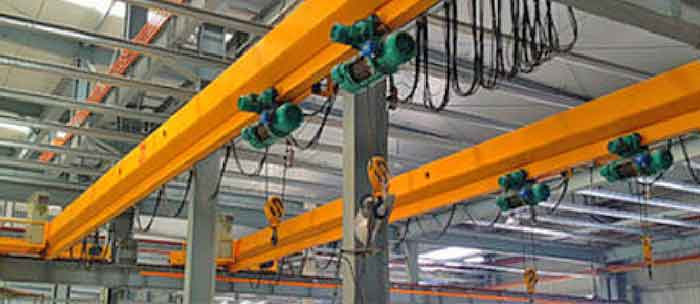

With advanced crane design concept and developed crane & hoist processing tectonics, the electric cable hoist is featured as compact structure,light-weight, smooth operation, greater lifting height, and energy saving, all of which makes the application of electric wire rope hoists able to reduce the crane costs on construction and operation and improve the overall quality and performance of the overhead electric hoist cranes.

Basic electric cable hoists & electric wire rope hoist

The basic parameters of the electric cable hoist are as following for your reference. As for the specifications and parameters of customized electric rope hoists, please feel free to contact us to get free consultation.

• Electric hoist type: Basic CD/ MD electric cable hoist with single or double lifting speed.
• Standard capacity of cable hoist: 0.5 ton to 32 ton- 0.5 ton, 1 ton, 2 ton, 3 ton, 5 ton,10 ton, 16ton, 20ton,
• Lifting height of cable hoist: 6m to 100m - 6m, 9m, 12m, 18m, 24m, 30m, and Max.100m.
• Lifting speed of electric cable hoist: 3.5m/min to 8m/min
• Working class of electric cable hoist: M3, M4
• Ambient temperature of electric cable hoist: -20℃ to 40℃
• Custom designed electric cable hoists are available ahead of standard electric cable hoists.

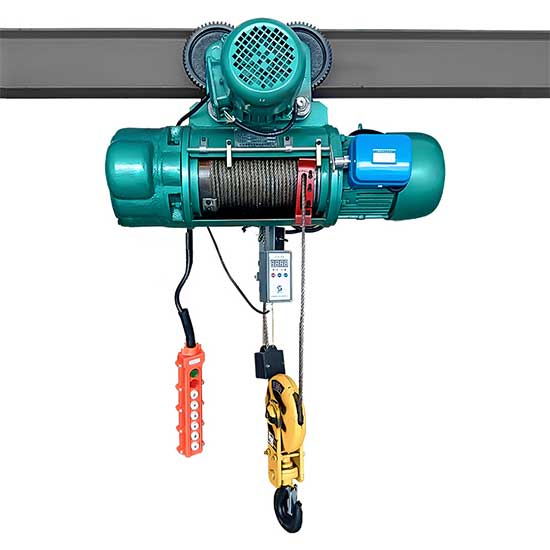

CD/MD electric wire rope hoists

Metallurgic electric rope hoists

Low headroom wire rope hoist

Explosion proof wire rope hoists

Customized electric cable hoists, Type of Double hook hoist designs

To justify different material handling purpose, there are several types of double hook electric cable hoists designs for your reference, including the Conjoined electric cable hoist with two hooks, Shared drum electric cable hoist with two hooks, Coaxial electric cable hoist with two hooks, and Linked axial electric cable hoists, etc. More information about the double hook wire rope hoists, or other electric cable hoists for special applications, please feel free to contact us.

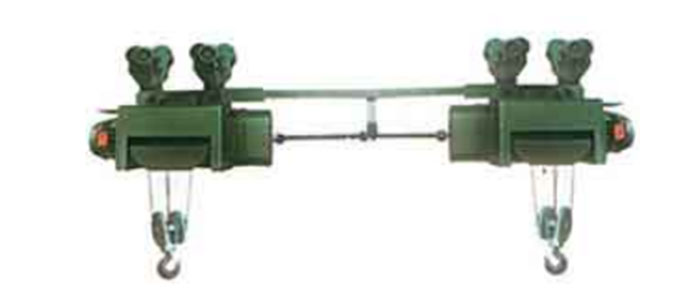

Conjoined wire rope hoists with two hooks

Conjoined electric cable hoists with two hooks makes the simultaneous lifting of two hooks possible and also make the single hook lifting possible.

The conjoined electric cable hoists is often used for the simultaneous lifting of two hooks with a steel bar welded between the two electric cable hoists, which make the distance of the two electric cable hoists and lifting hooks fixed, without the function of power control and transmission.

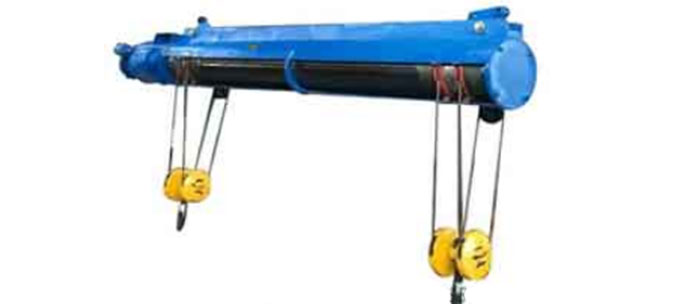

Shared drum electric cable hoists with two hooks

Shared drum electric cable hoists are made of two electric cable hoists which have one end of each rope drum connected and the two hoist hooks of both cable hoists can be used simultaneous or separately. The Shared drum electric cable hoists with two hooks is designed for long objects handling with high lifting speed at more than 10 m/ m which can be customized.

• Capacity of electric cable hoist ：0.5T、1T、2T、3T、5T、10T
• Lifting height of electric cable hoist ：H=6m-24m
• Distance between hooks of electric cable hoist：1.2m≤L≤5m

Noted: The two hooks of the cable hoists can be used separately. When one of the two hooks are used, the other hook has be to lift up to avoid collision and accident. If the distance of two hook of the electric cable hoists is narrow, please pay close attention on the operation fo electric wire hoist to avoid twining.

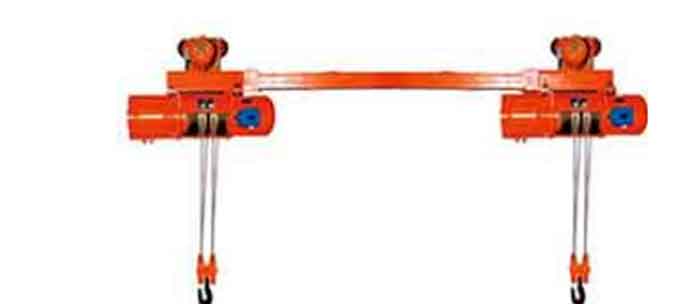

Coaxial electric cable hoists with two hooks

Coaxial electric cable hoists with two hooks is used for long object or loads handling, which is a new modification of two CD wire rope hosts, which is connected by the same axial to make the simultaneous movement of two hooks.

• Capacity of electric cable hoist：2*10T、2*16T、2*32T
• Lifting height of electric cable hoist：H=6m-24m
• Distance between two hooks of electric cable hoist ：1.2m≤L≤7m
• Speed of electric cable hoist：Single speed as your request.

Coaxial electric cable hoists with two hooks is nonstandard design and need to contact us to confirm the details.

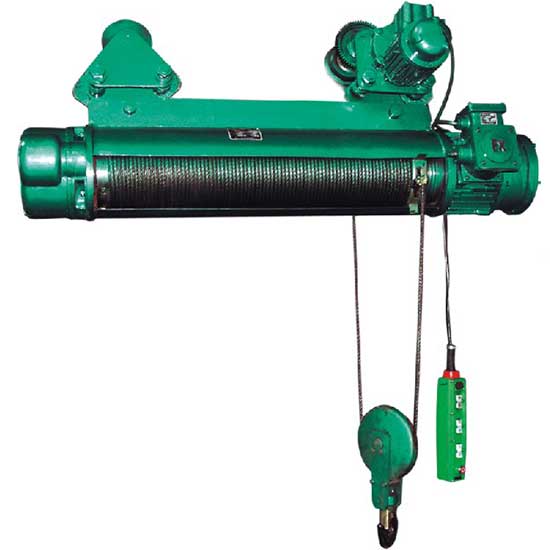

Linked axial electric cable hoists

Linked axial electric cable hoists is used for the simultaneous material handling at dual speeds which is composed of two double speed MD electric cable hoists, connected by the linked axials. The distance of the two hooks is usually around 3000 mm, and widely used for the lifting up and down of small water gates.

• Capacity of electric cable hoist：2*10T、2*16T、2*32T
• Lifting height of electric cable hoist：H=6m-24m
• Distance between two hooks of electric cable hoist ：1.2m≤L≤7m
• Speed of electric cable hoist: Duel speeds is as per your request.

Get you customized electric cable hoist & wire rope hoists

As a specialized hoist and crane manufacturer and supplier, we are devoted to providing customized electric hoists and overhead travelling crane solutions with the best value for clients and customers from different industries and fields all around world, including United Arab Emirates, Australia, Philippines, United States, Singapore, Canada, Malaysia, South Africa, United Kingdom, Indonesia, Thailand, Vietnam, Mexico, Brazil, Comoros, etc.

With years developments and experience in hoist and crane designing and processing, we have offer various customized electric hoists either cable hoist or chain hoists and overhead travelling cranes which have made us ranking top in the field in China. If you need any customized or individualized hoist or crane, please feel free to contact us. Probably, we have a chance to save you money by our electric cable hoist & cranes.
