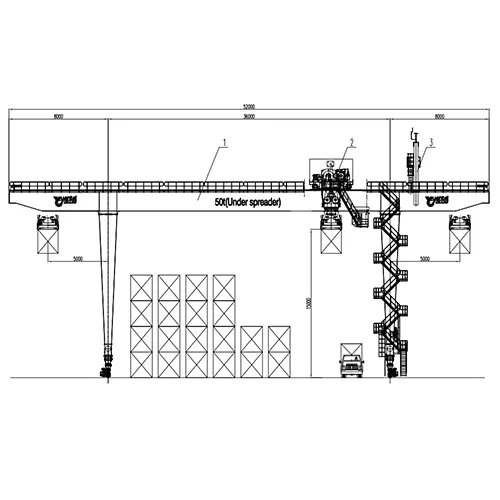

50 Ton RMG Container Crane Drawing | 36m Span A7
50 ton RMG container crane drawing with 36m span, 15m lifting height, dual 5m cantilevers, A7 duty, auto-rotating spreader and traveling cabin.

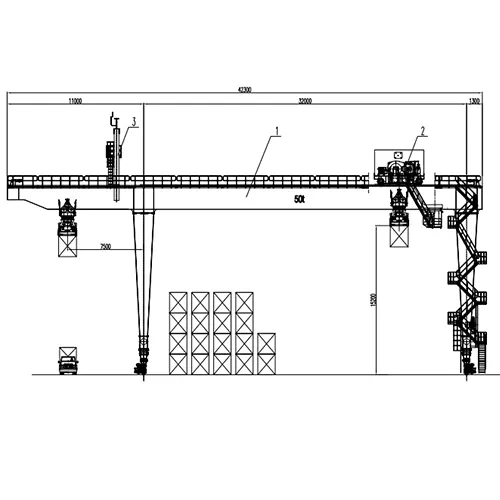

50 Ton RMG Container Crane Drawing | 32m Span A6
50 ton RMG container crane drawing with 32m span, 15.2m lifting height, 11m left cantilever, telescopic spreader, traveling cabin and full VFD.

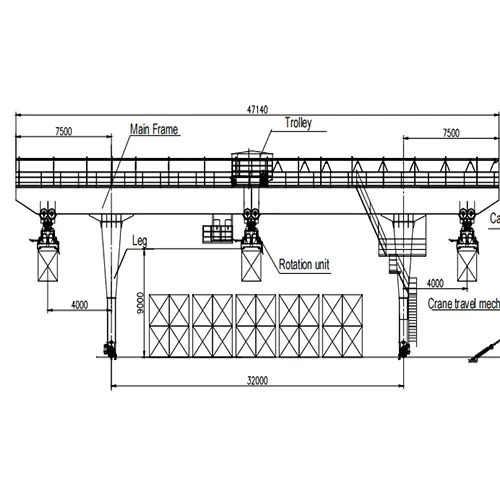

50 Ton RMG Container Crane Drawing | 32m Span M7
50 ton RMG container crane drawing with 32m span, 9m lifting height, rotation unit, cabin control, 7.5m cantilevers and M7 heavy-duty duty class.

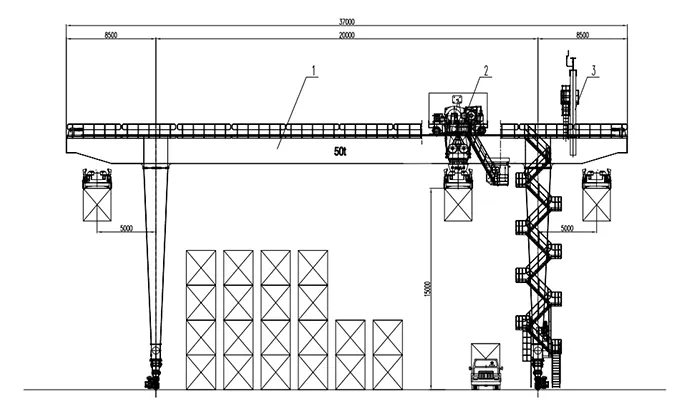

50 Ton RMG Container Crane Drawing | 19m Span A6
50 ton RMG container crane drawing with 19m span, 15m lifting height, 5m cantilevers, telescopic spreader for 20ft and 40ft containers, cabin and remote control.

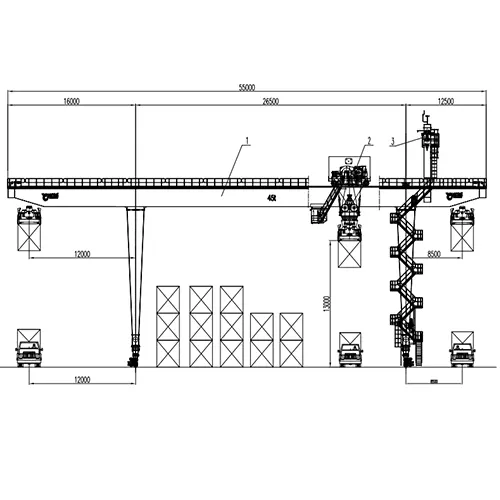

45 Ton RMG Container Crane Drawing | 26.5m Span A7
45 ton RMG container crane drawing for a Russia project, with 26.5m span, 13m lifting height, 16m and 12.5m cantilevers, -45°C design and A7 duty.
45 Ton RMG Container Crane Drawing | 32m Span × 16m Lift
45 ton RMG container crane drawing with 32m span and 16m lifting height, rotating telescopic spreader for 20ft/40ft containers, moving cabin and wind-resistant structure.
Yuantai Cranes
Overhead Crane Manufacturer with CE, ISO, SGS, CNEX Certificates.
- Main Specifications - Capacity: 0.5–550 tons | Span: up to 40m | Speed: 0.8–12 m/min | Duty: A3–A7 | Power: 380–690V, 50/60Hz | Control: pendant/remote/cabin
- Full engineering: FEA/PLC/VFD + in-house build + global delivery + on-site support, for workshops, factories, EPC contractors, industrial projects, etc.
- Support: design, manufacturing, testing, service – end-to-end, customized lifting solutions worldwide.
How to Get an Accurate Crane Price for Your Application?
Tips: Copy the spec list, fill in your details, and paste it into the form on the right/ down-below for a quick price.
- Crane type:_____ . (e.g., overhead crane, gantry crane, jib crane)
- Max weight to lift:_____ tons. (e.g., 2t, 5t, 10t, 20t, 50t)
- Lifting height:_____ m. (How high does the hook need to reach?
- Workshop width (span):_____ m . (Distance between the two crane rails)
- Travel distance:_____ m . (How long does the crane need to move along the runway?)
- Control type:_____. (Pendant / remote / cabin Control)
- Power supply:_____. (Local voltage & frequency – e.g., 380V, 50Hz, 3-phase)
- What will it be used for?_____ (e.g., steel fabrication, concrete products, mold handling, general manufacturing, etc.)
- Any special requirements?_____ (e.g., extreme temperature, dusty or explosive environment, special paint color, etc.)
Just leave a message via the contact form and our hoist and crane engineer will contact you with in 24working hours.
Get Your Custom Quote–Quick & Easy
Fill in what you know. Skip what you don't – we'll help.Any question will be reply with 24 working hours
