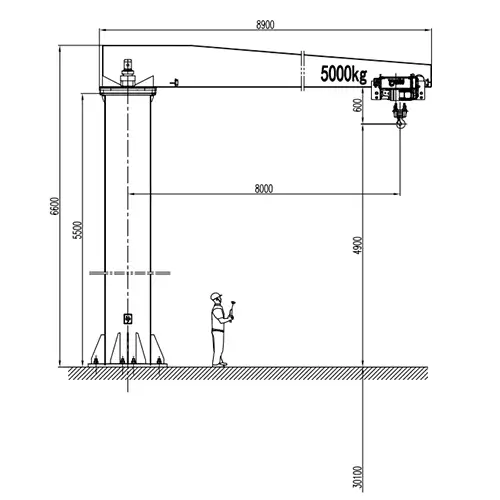

5t Pillar Jib Crane Drawing - BZ5t-8m A5 NR Hoist 360°
Yuantai Crane BZ 5t Pillar Jib Crane Drawing (Valid Radius 8.0m, Total Beam 8.9m, Lifting Height 4.9m+30.1m, A5 Duty, NR European Hoist, 360° Rotation)

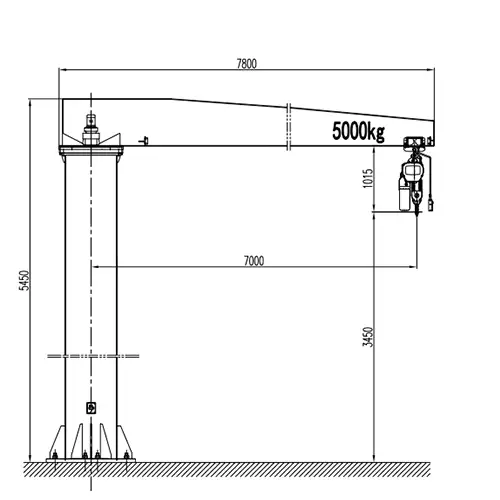

Pillar Jib Crane Drawing - BZ5t-7m A3 Chain Hoist 270° Rotation
5t Pillar Jib Crane Drawing - BZ5t-7m A3 Chain Hoist 270° Rotation

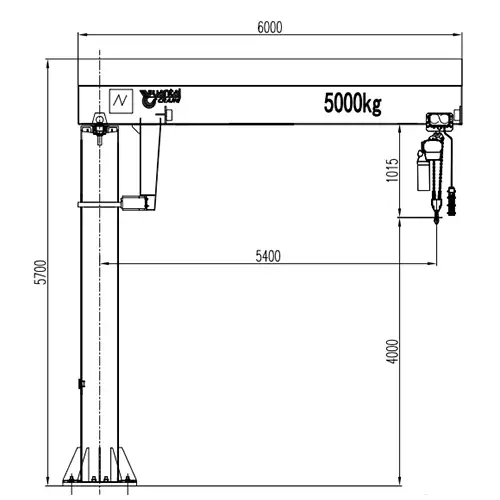

5 Ton Pillar Jib Crane Drawing - BZ5t-6m A3 Chain Hoist Manual Rotation
Yuantai Crane BZ 5t Pillar Jib Crane Drawing (Valid Radius 5.4m, Total Beam 6.0m, Lifting Height 4.0m, A3 Duty, Electric Chain Hoist, Manual Rotation 360°)

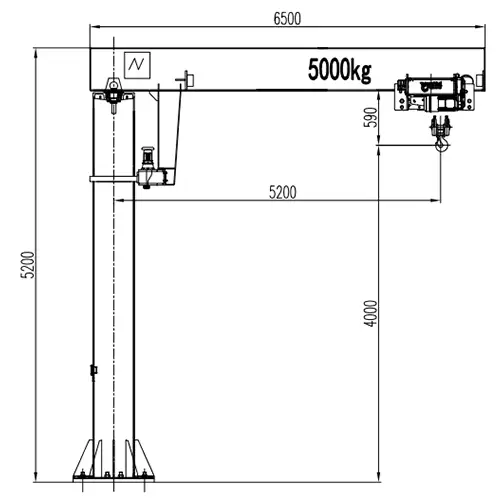

BZ 5t Pillar Jib Crane Drawing - BZ5t-6.5m A5 NR Hoist 270°
Yuantai Crane BZ 5t Pillar Jib Crane Drawing (Valid Radius 5.2m, Total Beam 6.5m, Lifting Height 4.0m, A5 Duty, NR European Hoist, 270° Rotation)

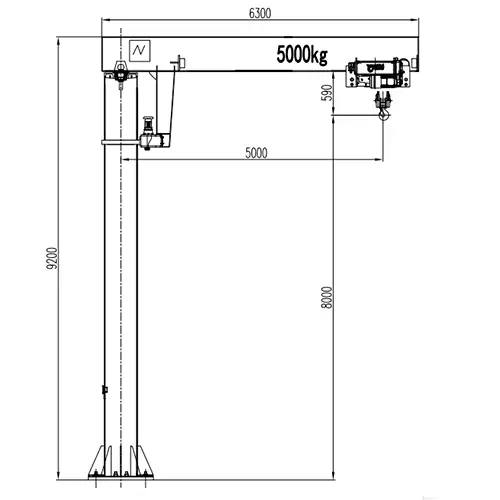

5t Outdoor Pillar Jib Crane M6 r5m h8m, 5 Ton Jib Crane Project
Yuantai Crane BZ 5t Outdoor Pillar Jib Crane Drawing (Valid Radius 5.0m, Total Beam 6.3m, Lifting Height 8.0m, M6 Duty, NR Hoist, SEW Rotation Motor)

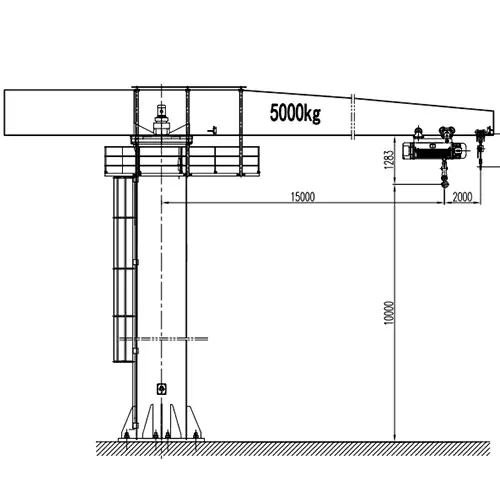

Explosion-Proof Pillar Jib Crane - BZ5/5t-15/17m A3 ExdIICT4
Explosion-proof pillar jib crane for handling 5t process equipment in Zone 1 and Zone 2 hazardous gas environments with 15m/17m reach, 10m height, dual hoist redundancy, 360° rotation and ExdIICT4 certification.

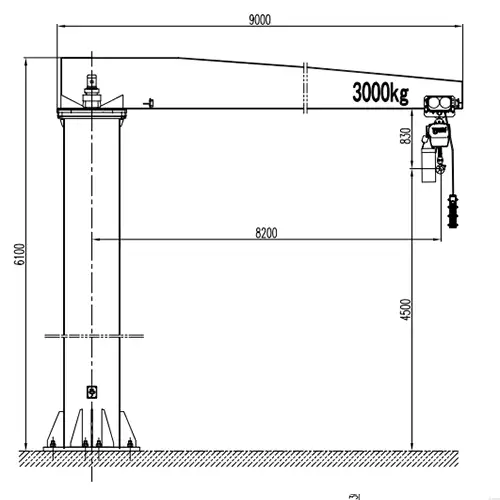

Heavy-Duty Pillar Jib Crane for Large Workshop Lifting 3t r8.2m h4.5m
Heavy-duty pillar jib crane with electric chain hoist for indoor lifting of 3t loads with 8.2m reach, 4.5m height, 360° rotation and A3 light-duty rating.

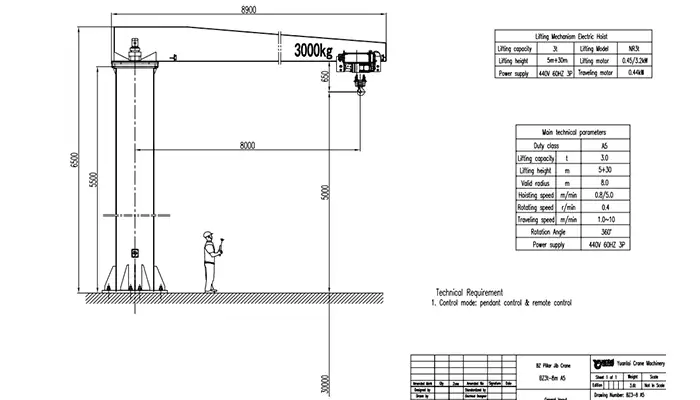

Freestanding Pillar Jib Crane for Heavy Workshop Lifting 3t r8m h5m+30m
Freestanding pillar jib crane with NR European hoist for heavy indoor lifting of 3t loads with 8m reach, 5m main height plus 30m auxiliary, 360° rotation and A5 heavy-duty rating.

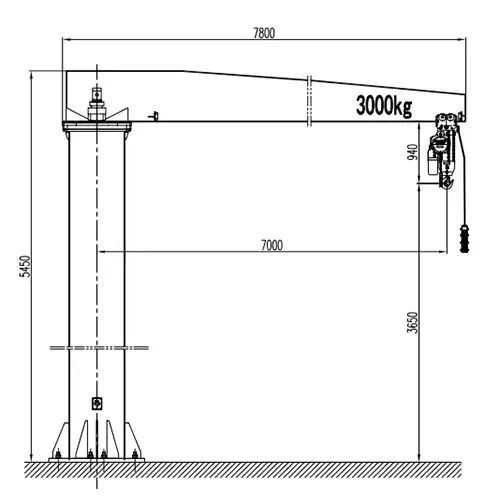

Pillar Jib Crane for Workshop Material Handling 3t r7m h3.65m
Heavy-duty pillar jib crane with electric chain hoist for indoor lifting of 3t loads with 7m reach, 3.65m height, 270° rotation and A3 light-duty rating.

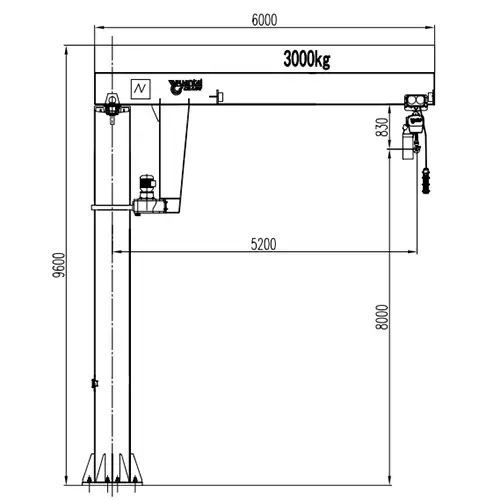

Pillar Jib Crane for Workshop Material Handling 3t r5.2m h8m
Tall pillar jib crane with electric chain hoist for indoor lifting of 3t loads with 5.2m reach, 8m height, 180° rotation and A3 light-duty rating.
Yuantai Cranes
Overhead Crane Manufacturer with CE, ISO, SGS, CNEX Certificates.
- Main Specifications - Capacity: 0.5–550 tons | Span: up to 40m | Speed: 0.8–12 m/min | Duty: A3–A7 | Power: 380–690V, 50/60Hz | Control: pendant/remote/cabin
- Full engineering: FEA/PLC/VFD + in-house build + global delivery + on-site support, for workshops, factories, EPC contractors, industrial projects, etc.
- Support: design, manufacturing, testing, service – end-to-end, customized lifting solutions worldwide.
How to Get an Accurate Crane Price for Your Application?
Tips: Copy the spec list, fill in your details, and paste it into the form on the right/ down-below for a quick price.
- Crane type:_____ . (e.g., overhead crane, gantry crane, jib crane)
- Max weight to lift:_____ tons. (e.g., 2t, 5t, 10t, 20t, 50t)
- Lifting height:_____ m. (How high does the hook need to reach?
- Workshop width (span):_____ m . (Distance between the two crane rails)
- Travel distance:_____ m . (How long does the crane need to move along the runway?)
- Control type:_____. (Pendant / remote / cabin Control)
- Power supply:_____. (Local voltage & frequency – e.g., 380V, 50Hz, 3-phase)
- What will it be used for?_____ (e.g., steel fabrication, concrete products, mold handling, general manufacturing, etc.)
- Any special requirements?_____ (e.g., extreme temperature, dusty or explosive environment, special paint color, etc.)
Just leave a message via the contact form and our hoist and crane engineer will contact you with in 24working hours.
Get Your Custom Quote–Quick & Easy
Fill in what you know. Skip what you don't – we'll help.Any question will be reply with 24 working hours
