15/5 Ton 25m × 12m A6 Double Girder Semi-Gantry Crane
15/5 ton A6 double girder semi-gantry crane drawing with NRT hoist, 25m span, 12m lifting height, air-conditioned cabin, outdoor operation and 150m runway.
Crane Manufacturer: Yuantai Cranes – 30+ Years Professional Crane Manufacturer from China
Category: Semi Gantry Crane Drawing
Tags: semigantrycranedrawing
Overview:
This drawing is for a BMGO double girder semi-gantry crane, model BMGO 15/5t-25m-12m A6.
The crane is a double girder semi-gantry crane fitted with an NRT electric hoist and a cabin with air conditioner. A semi-gantry crane has one leg running on a ground-level rail and one end supported on an existing runway beam or building structure. This design is common for outdoor storage yards where one side of the yard already has a column or beam suitable for crane support, and the other side needs a ground-level leg with a wheel.
The crane is designed for handling gas tanks, oil tanks, and large pipes — typical pressure vessels and large diameter pipes used in the oil, gas, chemical, and energy industries. It has a 15 t main hook and a 5 t auxiliary hook, so it can handle heavy vessels with the main hook and use the auxiliary hook for smaller lifts or for tilting and positioning. The runway length is 150 m, which is a long outdoor storage yard for storing and moving these large items.
The crane uses cabin control with an air-conditioned cabin. In an outdoor yard, weather conditions can range from hot sun to cold wind, and the air conditioner keeps the operator comfortable and focused. Lifting speeds are 0.45/2.7 m/min for the main hook and 0.7/4.0 m/min for the auxiliary hook, with two-speed control for precise positioning of heavy vessels.
K
Project & Drawing Overview
- Equipment Type: BMGO Double Girder Semi-Gantry Crane with NRT electric hoist and air-conditioned cabin, outdoor use
- Product Model: BMGO 15/5t-25m-12m A6
- PD Drawing File: BMGO 15/5t-25m-12m A6 cabin control NRT hoist cabin with air conditioner for gas tank, oil tank and large pipe handling outdoor runway length 150m 1 unit

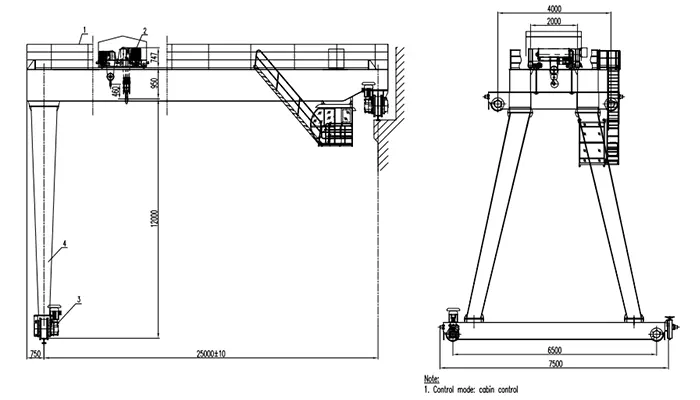

- Drawing Views: Side elevation (showing ground leg, cabin, and upper travel beam support) and cross-section view of trolley and legs
- Key Components: 1. Double girder bridge, 2. Trolley with NRT electric hoist, 3. Ground leg with travel motor, 4. Semi-gantry frame (subassembly, 1 set), 5. Electric system, 6. Air-conditioned cabin
- Design Notes: Upper travel beam supported on existing structure; cabin control with air conditioner; outdoor use; runway length 150 m
Main Technical Parameters
| Technical Parameter | Specification |
|---|---|
| Crane Type | BMGO Double Girder Semi-Gantry Crane |
| Duty Class | M6 (ISO A6) |
| Main Hook Capacity | 15 t (15,000 kg) |
| Auxiliary Hook Capacity | 5 t (5,000 kg) |
| Crane Span | 25 m (25,000 ± 10 mm) |
| Lifting Height (Main / Aux) | 12 m / 12.5 m |
| Main Lifting Speed | 0.45 / 2.7 m/min (two-speed) |
| Auxiliary Lifting Speed | 0.7 / 4.0 m/min (two-speed) |
| Main Hoist Motor Power | 1.5 / 9.5 kW |
| Auxiliary Hoist Motor Power | 0.8 / 4.9 kW |
| Hoist Type | NRT electric hoist |
| Track Gauge (Ground Leg) | 6,500 mm / 7,500 mm (reference) |
| Max. Wheel Load | Per drawing (M6 duty) |
| Rail Type | Square bar 40×40 / P43 (recommended) |
| Runway Length | 150 m |
| Control Mode | Cabin control |
| Cabin | Air-conditioned cabin, mounted on one side of the bridge |
| Application | Outdoor storage yard; gas tank, oil tank, and large pipe handling |
| Upper Travel Beam Support | On existing structure |
| Power Supply | 3-phase, 440 V, 50 Hz |
| Quantity | 1 unit |
Hoist Mechanism Parameters
| Component / Motor Drive | Technical Specification |
|---|---|
| Hoist Type | NRT electric hoist |
| Main Hook Capacity | 15 t |
| Main Lifting Speed | 0.45 / 2.7 m/min (two-speed) |
| Main Hoist Motor Power | 1.5 / 9.5 kW |
| Main Lifting Height | 12 m |
| Auxiliary Hook Capacity | 5 t |
| Auxiliary Lifting Speed | 0.7 / 4.0 m/min (two-speed) |
| Auxiliary Hoist Motor Power | 0.8 / 4.9 kW |
| Auxiliary Lifting Height | 12.5 m |
| Working Duty | M6 |
| Power Supply | 440 V, 50 Hz, 3-phase |
Trolley & Crane Traveling Parameters
| Component / Motor Drive | Technical Specification |
|---|---|
| Trolley Travel Speed | Two-speed or VFD (per drawing) |
| Trolley Working Duty | M6 |
| Long Travel Speed | Two-speed or VFD (per drawing) |
| Long Travel Working Duty | M6 |
| Rail Type | Square bar 40×40 / P43 (recommended) |
| Runway Length | 150 m |
| Power Supply | 440 V, 50 Hz, 3-phase |
Drawing Views & Structure Details
| View / Item | Description |
|---|---|
| Side Elevation (Left) | Shows the double girder bridge with the NRT electric hoist on the trolley, the upper travel beam supported on the existing structure, and the ground-level leg with the travel drive. Span 25,000 ± 10 mm. Lifting height 12,000 mm (reference). Trolley overall width 4,000 mm (reference). Ground leg track gauge 6,500 mm / 7,500 mm (reference). Cabin mounted on one side of the bridge with access ladder and air conditioner. Square bar 40×40 / P43 rail. Outdoor use, runway length 150 m. |
| Cross-Section View (Right) | Shows the trolley with NRT electric hoist, the double girder bridge, and the two legs (one ground leg and one upper travel beam side). Trolley main beam spacing 2,000 mm (reference). Trolley height 747 mm / 950 mm / 460 mm (reference). Ground leg base 750 mm (reference). Cabin with air conditioner and access ladder. Long travel motor visible on the ground leg. |
| Structure Type | BMGO double girder semi-gantry crane. Double girder bridge structure, NRT electric hoist on trolley with main and auxiliary hooks, ground-level leg with long travel motor, upper travel beam supported on existing structure. Air-conditioned cabin on one side. Built for outdoor storage yard handling of gas tanks, oil tanks, and large pipes. |
| Key Components | 1. Double girder bridge, 2. Trolley with NRT electric hoist (main and auxiliary hooks), 3. Ground leg with travel motor, 4. Semi-gantry frame (subassembly, 1 set), 5. Electric system, 6. Air-conditioned cabin |
| Cabin | Air-conditioned cabin mounted on one side of the bridge with access ladder. Cabin control. Keeps the operator comfortable in outdoor weather conditions. |
| Application | Outdoor storage yard for gas tanks, oil tanks, and large pipes. Main hook 15 t for heavy vessels, auxiliary hook 5 t for smaller lifts and positioning. Runway length 150 m. |
Technical Notes
Notes from the drawing sheet:
- Model code: BMGO 15/5t-25m-12m A6. "BMGO" = double girder semi-gantry crane. "15/5t" = 15 t main hook, 5 t auxiliary hook. "25m" = span. "12m" = lifting height. "A6" = duty class.
- Control mode: Cabin control.
- Cabin: Air-conditioned cabin mounted on one side of the bridge with access ladder.
- Hoist type: NRT electric hoist with main and auxiliary hooks.
- Lifting speeds: Main hook 0.45 / 2.7 m/min (two-speed). Auxiliary hook 0.7 / 4.0 m/min (two-speed).
- Upper travel beam support: Supported on existing structure (not a separate runway beam).
- Ground leg: Ground-level leg with travel drive. Track gauge 6,500 mm / 7,500 mm (reference).
- Rail type: Square bar 40×40 / P43 (recommended).
- Runway length: 150 m. Outdoor use.
- Application: Gas tank, oil tank, and large pipe handling in an outdoor storage yard.
- Duty class A6 / M6: medium to heavy duty for outdoor storage yard use.
- Power supply: 3-phase, 440 V, 50 Hz.
- Quantity: 1 unit.
- Drawings and specifications are for reference. For different span, lifting height, speed, motor power, or control configuration, contact us for a free engineering review.
- Do not reproduce, distribute, or manufacture from these drawings without written authorization from Yuantai Crane Machinery. Yuantai is not liable for unauthorized use.
How to Get a Customized Semi-Gantry Crane for Pressure Vessel and Pipe Handling
This drawing shows a 15/5 t BMGO double girder semi-gantry crane with 25 m span, 12 m / 12.5 m lifting height, NRT electric hoist, air-conditioned cabin, cabin control, and 150 m outdoor runway. The crane is designed for gas tank, oil tank, and large pipe handling in an outdoor storage yard. Yuantai Crane builds to your site dimensions and local requirements.
| Step | What Happens |
|---|---|
| Step 1: Send site data | Send main hook capacity (15 t), auxiliary hook capacity (5 t), span (25 m), lifting height (12 m / 12.5 m), runway length (150 m), rail type (square bar 40×40 / P43), building structure information (for upper travel beam support), material type (gas tank, oil tank, large pipe), and control requirements (cabin control with air conditioner). |
| Step 2: Free CAD drawing and engineering review | We prepare general arrangement drawings, wheel load checks, and structural layouts at no cost. For semi-gantry cranes in outdoor yards, we also verify the upper travel beam support on the existing structure, the ground leg foundation requirements, and the cabin location and access. |
| Step 3: Confirm the technical details | Lock in hoist type (NRT electric hoist), main and auxiliary hook speeds, cabin configuration (air conditioner), control mode (cabin), power supply (3-phase 440 V 50 Hz), duty class (A6/M6), and rail type (square bar 40×40 / P43). |
| Step 4: Manufacturing and delivery | Built to international standards. Factory acceptance test (FAT) before dispatch. |
FAQ (BMGO 15/5t-25m-12m A6 Double Girder Semi-Gantry Crane Drawing)
Common questions about semi-gantry cranes, BMGO double girder semi-gantry cranes, NRT electric hoists, 15 t main hook, 5 t auxiliary hook, 25 m span, 12 m lifting height, cabin control with air conditioner, outdoor use, gas tank and oil tank handling, large pipe handling, and P43 rail.
1. What is a BMGO double girder semi-gantry crane?
A BMGO double girder semi-gantry crane is a lifting system with two main girders supported on one side by a ground-level leg that runs on a rail, and on the other side by a travel beam supported on an existing building structure or column. It is different from a full gantry crane (two ground legs) and from an overhead crane (both sides on elevated runway beams). BMGO semi-gantry cranes are used in outdoor storage yards, warehouses, and workshops where one side of the yard already has a beam or column suitable for crane support, and the other side needs a ground leg because the building structure cannot carry the full crane load.
2. Why does this semi-gantry crane have an air-conditioned cabin?
This crane is designed for outdoor use, where the operator is exposed to sun, heat, cold, wind, and rain. An air-conditioned cabin keeps the operator comfortable in all weather conditions, which improves concentration and safety during long shifts. The cabin is mounted on one side of the bridge with an access ladder. Cabin control also gives the operator a clear view of the load, which is important when handling large pressure vessels and pipes that need precise positioning.
3. What is an NRT electric hoist and how does it work on this crane?
NRT electric hoist is a type of wire rope electric hoist used on overhead and gantry cranes. The "NRT" designation refers to the hoist series and its design features, which typically include a compact frame, a two-speed lifting motor, a built-in travel mechanism, and a wire rope drum. On this semi-gantry crane, the NRT hoist is mounted on the trolley and handles the 15 t main hook and the 5 t auxiliary hook. Lifting speeds are 0.45 / 2.7 m/min for the main hook and 0.7 / 4.0 m/min for the auxiliary hook, giving the operator slow speeds for precise positioning and faster speeds for normal lifting.
4. What types of loads can this crane handle — gas tanks, oil tanks, and large pipes?
This crane is designed for handling gas tanks, oil tanks, and large pipes in an outdoor storage yard. These are typically pressure vessels and large diameter pipes used in the oil, gas, chemical, and energy industries. The 15 t main hook handles the heavier vessels, and the 5 t auxiliary hook handles smaller lifts or helps tilt and position the load. The 12 m lifting height and 25 m span give good coverage of the storage yard, and the 150 m runway lets the crane travel the full length of the yard to reach any storage position.
5. What does BMGO 15/5t-25m-12m A6 mean?
BMGO = double girder semi-gantry crane. "15/5t" = 15 t main hook, 5 t auxiliary hook. "25m" = 25 m span. "12m" = 12 m lifting height (12.5 m for the auxiliary hook). "A6" = ISO A6 duty class (M6). A6 is a medium to heavy duty class, suitable for outdoor storage yard use where the crane is working regularly but not continuously at full load.
6. Why are two-speed lifting speeds used on this semi-gantry crane?
The crane uses two-speed lifting — 0.45 / 2.7 m/min for the main hook and 0.7 / 4.0 m/min for the auxiliary hook. The slow speed is used for precise positioning and for the final approach when setting a heavy pressure vessel or a large pipe into place. The fast speed is used for normal lifting and lowering, which saves time over a long lift. This combination is common on cranes that handle heavy, delicate, or high-value loads like gas tanks and oil tanks, where accurate positioning matters.
7. What rail types are used on this semi-gantry crane?
This crane uses square bar 40×40 on the upper travel beam side and P43 rail (recommended) on the ground leg side. Square bar rail is a simple, low-cost rail type used for light and medium duty, while P43 is a standard crane rail profile that handles higher wheel loads and gives better running performance. The combination is chosen to match the wheel loads and the existing structure on each side of the crane. For outdoor use, both rails should be installed with proper drainage and corrosion protection.
8. What power supply does this semi-gantry crane need?
This crane runs on 3-phase, 440 V, 50 Hz. This covers the 1.5 / 9.5 kW main hoist motor, the 0.8 / 4.9 kW auxiliary hoist motor, the trolley travel motors, the long travel motors, the air conditioner, and the control system. If your site uses a different voltage or frequency, Yuantai can supply the crane with a custom power supply to match your local grid.
Need a Drawing and Price for Your Semi-Gantry Crane?
Send your site dimensions, capacity (main and auxiliary hook), span, lifting height, runway length, rail type, building structure information (for upper travel beam support), material type (gas tank, oil tank, large pipe, etc.), and control requirements. If you need a BMGO double girder semi-gantry crane, a semi-gantry crane with NRT electric hoist, or an outdoor semi-gantry crane with air-conditioned cabin for pressure vessel and pipe handling, Yuantai Crane will send a CAD layout drawing and a price within 24 hours.
Yuantai Semi-Gantry Crane & Overhead Crane Solutions
Yuantai Crane builds custom BMGO double girder semi-gantry cranes, single girder semi-gantry cranes, overhead cranes, and gantry cranes for outdoor storage yards, warehouses, workshops, and industrial sites worldwide. Each crane is built to your capacity, span, lifting height, hoist type, control mode, rail type, runway length, cabin configuration, and power supply.
Typical range:
- Lifting capacity: 1–50 t main hook, 1–20 t auxiliary hook (this model: 15 t / 5 t)
- Span: 5.0–35.0 m (this model: 25 m)
- Lifting height: 3.0–20.0 m (this model: 12 m / 12.5 m)
- Duty class: ISO A3–A7 (this model: A6)
- Hoist type: NRT electric hoist, NR electric hoist, wire rope hoist, or open winch (this model: NRT electric hoist)
- Speed control: Two-speed or full VFD (this model: two-speed)
- Control mode: Cabin, pendant, remote, or combination (this model: cabin control)
- Cabin: With or without air conditioner (this model: air-conditioned cabin)
- Rail type: Square bar, P43, P38, or QU70 (this model: square bar 40×40 / P43)
- Use: Indoor or outdoor (this model: outdoor)
- Power supply: 3-phase 220 V / 380 V / 415 V / 440 V / 575 V, 50 Hz or 60 Hz (customizable)
- Applications: Outdoor storage yards, warehouses, workshops, pipe yards, pressure vessel yards
Yuantai handles engineering design, non-standard structural customization, cabin design and installation, factory acceptance testing (FAT), export packing, logistics, and installation guidance.
Engineering and Customization Support
A 15 t main hook and 5 t auxiliary hook on a 25 m span with 12 m / 12.5 m lifting height, NRT electric hoist, air-conditioned cabin, cabin control, 150 m outdoor runway, and gas tank, oil tank, and large pipe handling is a demanding outdoor storage yard project. This drawing shows the structural layout, ground leg design, upper travel beam support, cabin location, and electrical system Yuantai Crane uses for semi-gantry crane projects in outdoor pressure vessel and pipe yards.
| Site Requirement | Yuantai Solution | Drawing Parameters |
|---|---|---|
| Outdoor storage yard for gas tanks, oil tanks, and large pipes Heavy pressure vessels and long pipes need to be stored and moved outdoors. | BMGO double girder semi-gantry crane with upper travel beam on existing structure and ground-level leg. Air-conditioned cabin for outdoor operator comfort. | Main hook 15 t | Aux hook 5 t | Span 25 m | Lifting height 12/12.5 m | Air-conditioned cabin | Outdoor |
| Precise positioning of heavy vessels and pipes Loads need slow, controlled lifting for safe placement. | NRT electric hoist with two-speed lifting. Main hook 0.45 / 2.7 m/min, auxiliary hook 0.7 / 4.0 m/min. Cabin control for clear view. | NRT hoist | Main 0.45/2.7 m/min | Aux 0.7/4.0 m/min | Cabin control | A6 duty |
| Long outdoor runway with existing structure support 150 m runway needs to reach all storage positions. | 150 m runway with square bar 40×40 / P43 rail. Upper travel beam supported on existing structure. Ground leg with travel drive. | Runway 150 m | Square bar 40×40 / P43 rail | Upper travel beam on existing structure | 3P 440V 50Hz |
Does This Semi-Gantry Crane Fit Your Facility?
- 15/5 t BMGO double girder semi-gantry crane: 25 m span, 12 m / 12.5 m lifting height.
- NRT electric hoist: main hook 0.45 / 2.7 m/min, auxiliary hook 0.7 / 4.0 m/min (two-speed).
- Air-conditioned cabin: operator comfort in outdoor weather conditions.
- Cabin control: clear view of the load and the storage yard.
- Gas tank, oil tank, and large pipe handling: matched to pressure vessel and pipe storage yard applications.
- 150 m runway: covers the full length of the storage yard.
- Square bar 40×40 / P43 rail: matched to wheel loads and existing structure.
- A6/M6 duty class: medium to heavy duty for outdoor storage yard use.
- 3-phase 440 V 50 Hz power supply: matched to your local grid.
