What are the types of overhead cranes?

In your mind's eye, a bridge crane is made up of two overhead runways integrated into the building's support structure and connected by a single or double beam configuration known as a "bridge." The bridge is supported on both ends by an end truck, which travels up and down the bay on wheels along a runway or beam.

A bridge crane can have a single girder or a double girder configuration. A bridge girder, also known as a beam, is the structural support that permits the trolley and hoist to travel from side to side along the bridge. Before lifting or lowering a weight, the trolley is utilized to properly place the hoist.



overhead cranes are lifting equipment intended for the workshop or workstation to transport loads or objects which work in the intermittent system. Equipped with mechanisms for lifting up and lowering loads – hoists or winches, the overhead cranes are able to transport loads to a desired place.

Main configuration of overhead cranes

Overhead cranes - perfect lifting solution for your business!

Our standard overhead crane serial include single /double girder overhead crane and suspension crane. And also, the tailored crane solutions based on your special industry needs is what make us differentiate.

0.25 ton to 550 ton overhead cranes for wide industrial applications. Types of overhead cranes with different crane configuration, ie, Top running overhead cranes , Under hung or overhead cranes, and free standing overhead KBK cranes, with various crane bridge girder designs, including single girder, double girder ,box girder, Beam girder, monorails, etc., are manufactured and supplied for industrial material handling in various workshops and workstations, etc.

Contact us to get free overhead crane specifications pdf and competitive custom designed overhead crane price now.

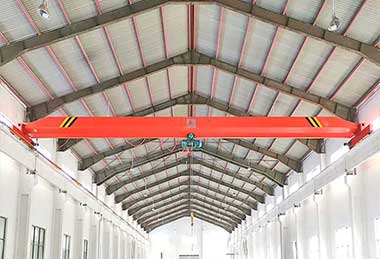

Types of overhead cranes/ Types of eot cranes

Overhead cranes also EOT Cranes are the most widely used lifting equipment in various industries. The bridge travelling cranes consists of parallel runways with a travelling bridge girder , mounted to crane end trucks / end carriages which are equipped with wheels thanks to which the overhead travelling crane moves on the rails. And along with the bridge, there is the rope or chain system, a hoist or a winch for raising the load on the crane hook or another lifting attachments.

The biggest difference between a single girder and a double girder bridge construction is how high your hoist can elevate above the ground.

In your mind's eye, a bridge crane is made up of two above runways integrated into the building's support structure and connected by a single or double beam configuration known as a "bridge." The bridge is supported on both ends by an end truck, which travels up and down the bay on wheels along a runway or beam.

Which type of overhead crane do you need, the single girder overhead cranes or double girder overhead crane?

A single girder or double girder design is available for an overhead bridge crane. A bridge girder, also known as a beam, is the structural support that permits the trolley and hoist to travel from side to side along the bridge. Before lifting or lowering a weight, the trolley is utilized to properly place the hoist.

Both single and double girder cranes are strong and durable to some extent. The biggest difference between the two is hook height, or how high your hoist can elevate above the ground. Because the hoist is located on top of the girders rather than below them, a double girder crane can provide more hook height.

A double girder or single girder configuration may be the best option in various situations. We'll go over a few of these examples below:

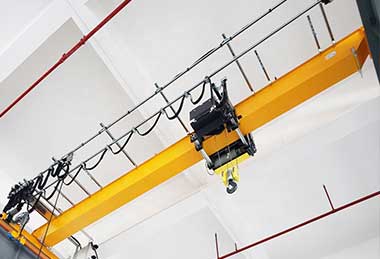

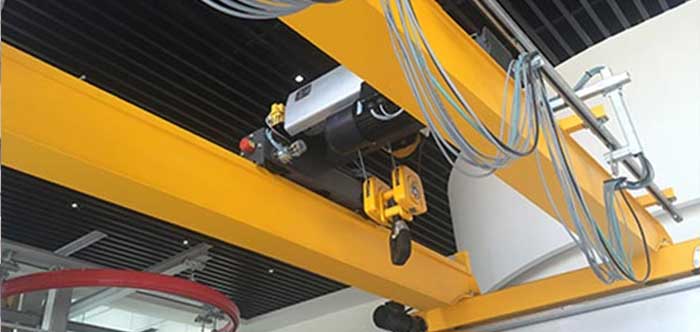

Types of single girder overhead crane

Single Girder types of overhead cranes – The bridge is made out of one girder beam with an end truck on each side. Most trolleys and hoists are underhung, which means they run on the bridge's bottom flange. They are also less expensive as a result of:

For lifts under 20 tons and spans less than 32 meters, a single girder bridge crane is ideal. Because only one girder is required to move the trolley, a one girder overhead crane is more cost effective, saving freight costs and allowing for faster installation. A twin girder structure, on the other hand, may be the preferable option if the crane must handle more than 20 tons or the span is greater than 32 meters.

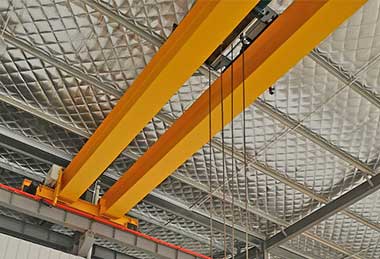

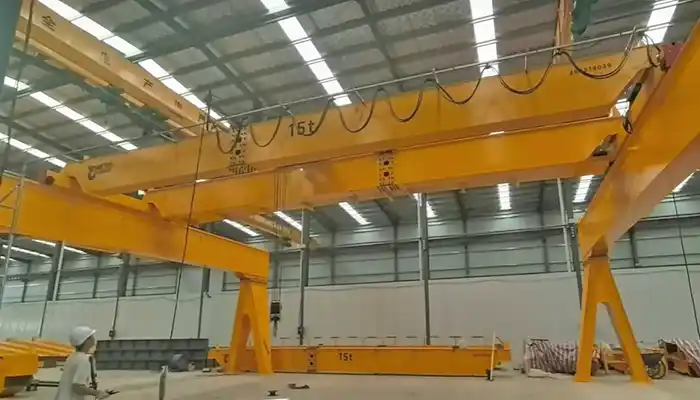

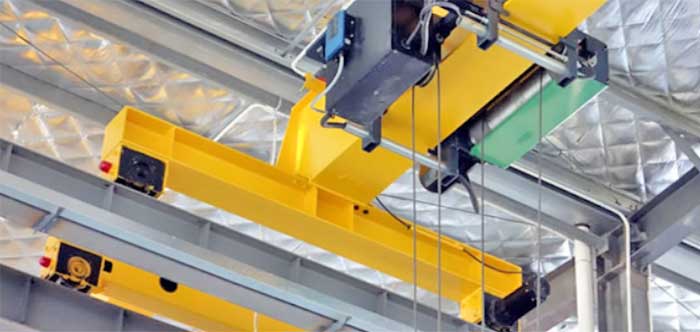

Types of double girder overhead crane

Double Girder types of overhead cranes– The bridge is made up of two girder beams, each of which is supported by an end truck on each side. The trolley and hoist are attached to a rail that runs along the tops of the bridge girders. Double girder cranes are suitable for applications requiring greater than 20 tons of lifting capacity or a span of more than 32 meters.

Walkways, cabs, magnet cable reels, and other specialized equipment can be added to double girder bridge cranes. When the crane needs to be customized with walkways, cabs, magnet cable reels, or other specialist equipment, double girder cranes are the ideal alternative. They can also provide additional lifting height with a top-running design because the hoist isn't dangling underneath the beam.

Which type of overhead crane is right for your application, the top running  overhead crane or  under running overhead cranes?

When it comes to distinguishing between bridge cranes, you should evaluate whether you need a top-running or under-running crane. The bridge runs on tracks along the top of the runway beams on a top running crane.

The wheels travel down the bottom of the lower beam flange on an underrunning, or underhung crane, and the bridges are supported by the bottom of the runway beams.

Types of top running overhead crane

Top running types of overhead cranes– These cranes have no limited capacity, which means they can be built to handle loads ranging from little to very heavy. They have a rail put on top of each runway, and the bridge wheels move along the rail rather than the runway beam's bottom flange. These cranes are suited for transporting exceptionally big loads and are supported by the building structure or runway support columns, or sister columns.

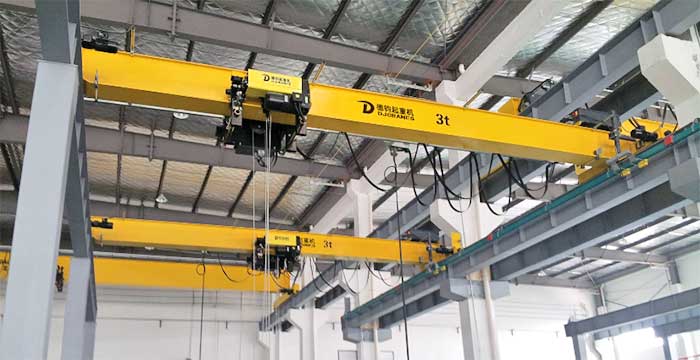

Single girder top running crane

• FEM / DIN Top running Single Girder Overhead Crane European single girder overhead cranes, compact FEM hoist crane design, small & light overhead hoist crane.Good price overhead travelling crane 1-stop service.
• Chinese Style Top Running Single Girder Overhead Crane 1- 20 ton single girder overhead crane, Robust bridge crane girder, Durable single girder crane, Free single girder eot crane drawing pdf, Best value single girder overhead crane for you!
• Explosion Proof Top Running Single Girder Overhead Crane Explosion proof cranes & explosion proof hoists for hazardous dusty & gas workshops. 1- 75 ton single girder & double girder explosion proof overhead crane system for explosion proof & flame proof workshops with high safety and efficiency.
• Partial Hung Low Headroom Top Running Single Girder Overhead Crane 2 ton, 3 ton 5ton, 10 ton 16 ton single girder overhead cranes with low headroom crane design, low profile hoist for low clearance workshop lifting.
• Low headroom Hoist Top Rnning Single Girder Overhead Crane Low headroom overhead cranes - single & double girder low headroom overhead crane, top running & underhung low headroom bridge cranes.
• Ladle handling Top Running Single Girder Overhead Crane Single girder overhead hoist crane system for hot metal & ladle handlingin steel & metallurgic industries. 2 ton, 3 ton, 5 ton & 10 ton ladle hoist crane for sale.

Double girder top running crane

• Chinese type of overhead cranes with hoist trolley as per top running double girder crane designOverhead electric winch crane is China traditional heavy duty double girder overhead crane equipped winch trolley,Robust & Sturdy, Affordable industrial overhead winch cranes.
• Chinese types of overhead cranes with open winch as per top running double girder crane design 5 ton- 63 ton double girder overhead electric crane with rope hoist trolley / chain hoist trolley, competitive hoist trolley crane system, cheaper hoist trolley crane price, good electric overhead crane solution.
• European Style Double Girder Open Winch Top Running Crane European standard double girder overhead crane with open winch trolley, a heavy duty winch crane up to 320 ton, wide specifications hook cranes for wide application. Get FEM / DIN open winch EOT Crane now!
• European Style Double Girder Hoist Trolley Top Running crane Advanced double girder overhead crane based on European DIN/FEM Standard with 5 ton-80 ton electric wire rope hoist trolley for hoisting industrial materials - European advanced wire rope hoist cranes!
• Top Running Ladle crane: 5 ton -74 ton steel mill ladle crane & 5 ton up 320 ton ladle crane Ladle cranes for 5 ton -320 ton ladle or liquid metal lifting, heavy duty ladle crane for steel mill, foundry, furnace, and casting factory. Good priced ladle crane, charging crane, casting crane & foundry crane !
• Electromagnetic Cranes & Electromagnet Top Running Cranes Electromagnetic overhead cranes with types of electromagnetic chucks & magnetic carrier beams for steel scraps, billet, slab,wire, coil, pipe, plate, etc., handling with efficiency and safety.
• Rotary overhead crane with electro- magnet beam spreader Magnetic crane is a double girder overhead crane with rotary crane design & electromagnet beam spreader, lifting long & larger steels, safe & efficient rotary overhead crane.
• Grab crane- Overhead crane with crane grab bucket 5 ton 10 ton 16 ton 20 ton Grab Overhead Cranes with orange peeler grabs or clamshell grab buckets for scattered material handling in power station, steel mill, port, cement plant,storage & waste recycling station, etc

A top running bridge crane is extremely versatile, as it has no limiting capacity and may be built to handle both small and big capacities. Top-running cranes can be built with a single or double-girder structure.

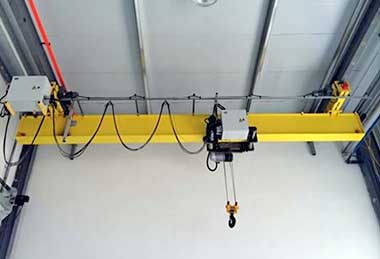

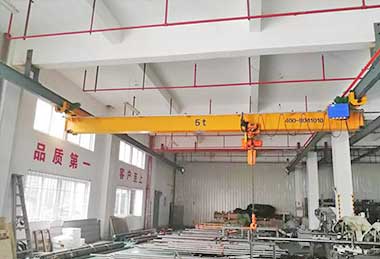

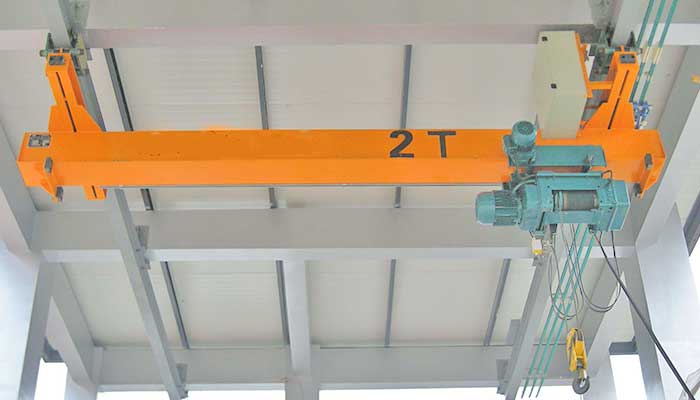

Types of underhung overhead crane

Under running types of overhead cranes– A top running bridge crane is extremely versatile, as it has no limiting capacity and may be built to handle both small and big capacities. Top-running cranes can be built with a single or double-girder structure.

Under running cranes, also known as under hanging cranes, are primarily built for lighter service and smaller capacity applications, and provide good side approach when supported by ceiling or roof structures. When supported by roof or ceiling structures, the underrunning crane is often built for lighter service / lower capacity applications. It provides good side approaches and maximizes exploitation of the building's width and height. However, because the bridge and hoist are suspended beneath the runways, the hook height is lower than top running.

Underrunning Overhead Crane

• European Standard Suspension Single Girder Overhead Crane 1 ton -10 ton underhung bridge crane, light single girder overhead crane design, suspended on overhead roof, free floor space, economical underhung crane.
• Suspension Single Girder Overhead Crane Chinese type Single girder underslung crane design, CD/MD wire rope hoists, 1 ton, 3 ton, 5 ton 10 ton underhung & under running single girder crane , Chinese crane factory.

Process Cranes vs. Modular Cranes

Bridge cranes are classified into two groups based on their purpose, capacity, and operating environment. "Process" cranes and "Modular" cranes are common terminology for the two Types of overhead cranes. Below, we'll go through each of these terms in further depth:

Types of overhead cranes with process crane designs— A process crane is designed to meet a specific demand, and these cranes are heavy-duty and operate continuously or nearly continuously. They're usually a top-running, double-girder design with a lot of engineering built in to execute high-capacity lifts or repeat a very specialized duty. Process cranes can be found in areas like auto assembly facilities, steel mills, container yards, and timber mills, and can lift 10-20 tons per hour at 50-75 percent of their rated capability.

General Use types of overhead cranes- The general use crane, also callled Modular cranes, which are often found in smaller manufacturing facilities, mills, or machine shops, and feature a design that consists of a more basic-level hoist, trolley, and bridge. They're low-cost, low-cost ways to move materials through a plant, and they usually don't come with a lot of extra bells and whistles.

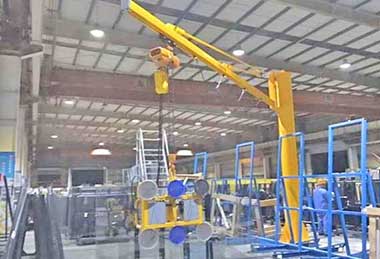

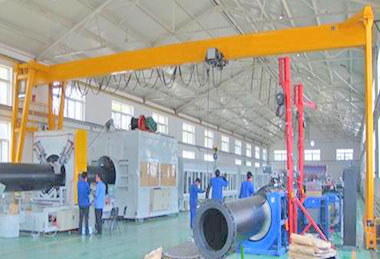

Based on standards or terms, the lifting cranes also can be classified into various types, which are presented for your reference. If the overhead crane you need is not prsend in the following, please feel free to contact us. Customized cranes are available for you. WhatsApp/ WeChat: + 86 151 3871 1597.

If the type of overhead crane you need is not covered in the above , please feel free to contact us. Our process designed overhead crane will be your right type of overhead crane for your application.
