Wall Cantilever Jib Crane for Sale Maldives for Welding Workshop
1 ton wall cantilever jib crane for hoisting steel beam in welding workshop, Maldives. Low headroom I beam cantilever wall mounted jib crane for sale.
The Wall Bracket Cantilever Crane is a type of wall-mounted jib crane that is an inexpensive overhead traveling crane for handling lightweight loads in workshops. The wall mounted cantilever cranes can be fixed on walls, columns, or any other suitable supporting structures in the workshop without causing significant changes to the structure of the building, thereby saving you money. Because of its basic structure and minimal self-weight, the wall bracket cantilever crane does not require any floor space or a concrete floor foundation, making it a cost-effective alternative to free-standing jib cranes.
Lifting requirements of low headroom cantilever jib cranes
Mr. Abdulla, the client, is a Maldivian private construction welding engineering enterprise. He needed a low-cost solution that could be installed with the existing warehouse layout. He has spoken with a number of crane providers in China, but he is still unsatisfied. EOTCRANEKIT promptly produced a professional jib crane solution for the customer's reference after a brief examination of the application situation.
Solution of wall mounted jib crane
Mr. Abdulla wants to buy a wall jib crane for indoor use so that he may lift various steel beams. Our company provides detailed quotation and design drawings for 1 ton BX type wall bracket jib crane, equipped with electric chain hoist, after understanding the customer's operating conditions. The exact wall mounted jib crane drawings are as follows:
1 ton wall bracket cantilever jib crane with low headroom design
Wall bracket cantilever jib crane for sale to Maldives:
- Lifting capacity of cantilever crane: 1 ton
- Total arm length of cantilever crane: 2.5m
- Lifting height of cantilever crane:2.8m
- Cantilever jib hoist:Electric chain hoist
- Lifting speed of cantilever jib : 6.6m/min
- Power supply of cantilever jib : 380V/50Hz/3 Phase

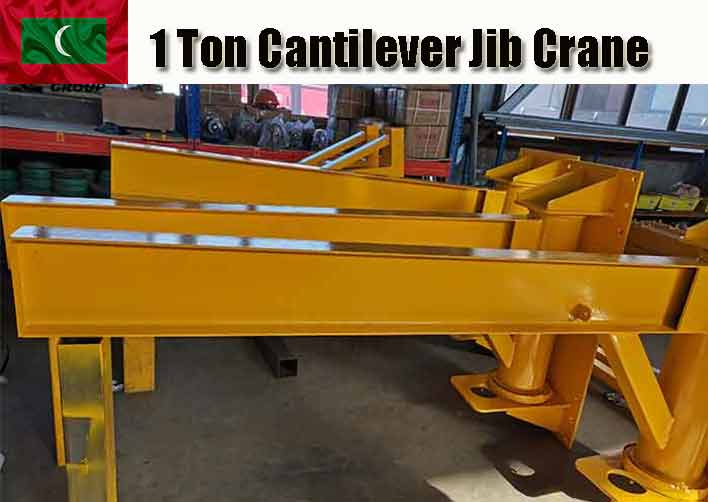

1 ton wall bracket cantilever jib crane with low headroom design

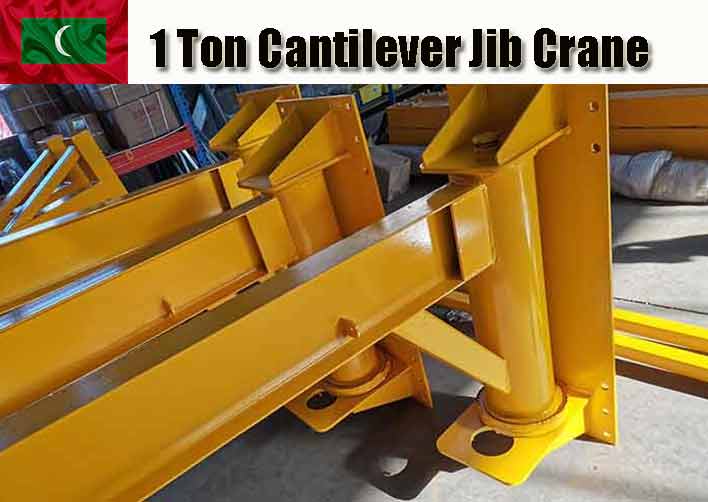

I beam cantilever design - 1 ton wall bracket cantilever jib crane with low headroom design

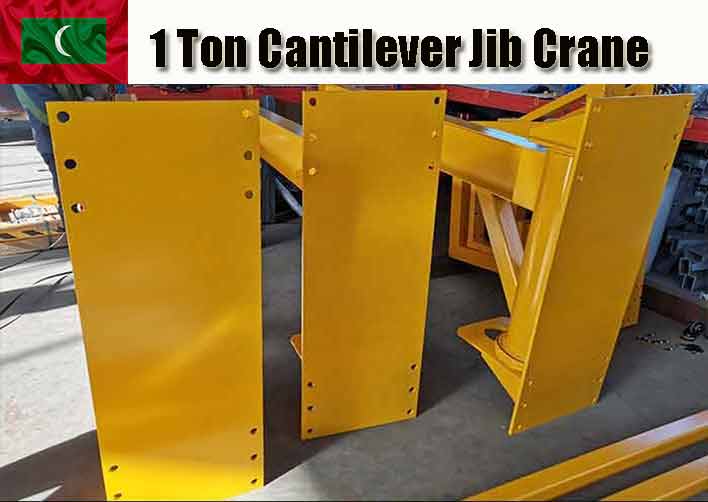

Crane bracket - 1 ton wall bracket cantilever jib crane
Why choose wall jib crane:
- A wall-mounted cantilever jib crane consists of a horizontal boom attached to a vertical mast, which is attached with brackets.
- These cantilever crane systems give maximum clearance in industries with many overhead barriers because the cantilever design uses a partial mast and complete boom.
- For the optimum use of space, a wall-mounted cantilever jib crane can be put in very compact spaces and as close to the ceiling as feasible.
- For busy production floors and facilities with various barriers overhead, wall cantilever jib cranes are an excellent material handling solution.
- Wall-bracket jibs don't take up any floor space and don't require any specific foundations, and they fold out of the way of larger overhead cranes swiftly.
- Wall-bracket jibs provide semi-circular crane coverage, making them ideal for individual workstations or supplementing an existing bridge crane.
These ergonomic systems are both inexpensive and heavy duty, with standard spans up to 5m and capacities up to 5 tons.
Types of jib crane for sale Maldives
Wall Mounted Jib Crane for Sale Maldives
Wall mounted Jib Crane for Sale Maldives & wall bracket Jib Crane for Sale Maldives with I beam & tie rod design for light duty handling with capacity up 2 ton. or less building structure changes. Wall mounted Jib Crane for Sale Maldives.
Wall Travelling Jib Crane for Sale Maldives
Wall travelling Jib Crane for Sale Maldives, a perfect & economical cantilever wall travelling crane for light & long distance lifting. Wall travelling Jib Crane for Sale Maldives, your efficient light duty crane!
Pillar Jib Crane for Sale Maldives
Pillar mounted Jib Crane for Sale Maldives is a free standing Jib Crane for Sale Maldives with pillar jib mounted on floor, for short & crowded lifting, capacity up to 16 ton. Get pillar mounted Jib Crane for Sale Maldives design now!
Portable jib crane- Jib crane with movable & mobile roller for sale Maldives
Portable jib crane on wheels/ rollers, self-supportive jib mobile crane design, no foundation, wide application. Mobile jib crane & Movable jib crane for sale, economical & profitable.
How to choose the right jib crane:
- Jib rotation:Jib cranes, both freestanding and mast-style, can rotate 360 degrees. Wall-mounted cranes may rotate 180 degrees.
- Under Boom Height:The height under boom is measured from the floor to the underside of the jib crane's boom. Consider the size of the hoist and the required lifting height.
- Overall height of the jib crane:Consider any attachments, such as electrical entrance, to ensure that the crane is not obstructed from above.
- Actual working time required:The travel distance of the operating hoist (or hook). Power requirements:Will your jib crane's motor drive, trolley, or hoist require power, or all three? Use it inside or outside?
- Installation:EOTCRANEKIT can assess your application and give expert advice in collaboration with our engineering team.
If you require assistance or wish to request an estimate or purchase, please contact us. We'll be glad to help.
Article by Bella ，who has been in the hoist and crane field since 2016. Bella provides overhead crane & gantry crane consultation services for clients who need a customized overhead travelling crane solution.Contact her to get free consultation.
