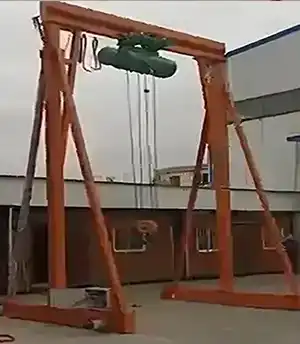

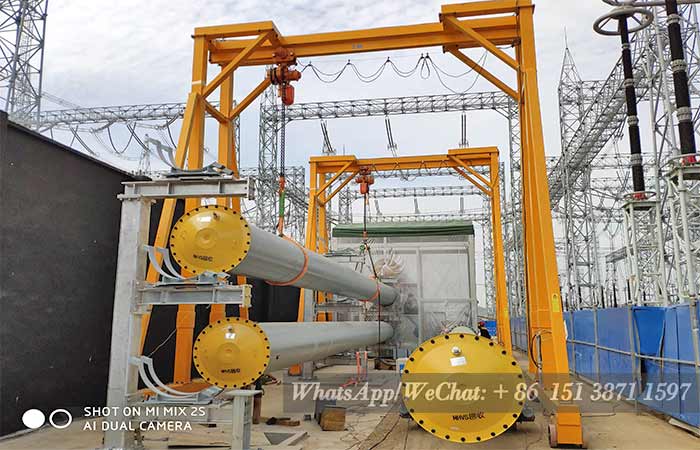

0.25 Ton - 10 Ton Steel Mobile Gantry Crane
Fixed Height & Adjustable Steel Gantry Design for You

Steel gantry cranes, also known as steel mobile gantry cranes, are a type of  portable gantry crane that is small and light in weight, flexible, and efficient. Steel mobile gantry cranes with fixed height steel gantry crane design or adjustable gantry crane designs are widely used in indoor and outdoor applications such as workshop, warehouse, shipyard, freight yard, workstation, garage, and others, etc. Steel gantry cranes are a good choice for many environments where an overhead crane is not possible and a regular gantry crane cannot justify the high cost due to its portability and versatility.

Main specifications of steel gantry crane

As a professional and experienced portable overhead crane supplier, our crane company and crane factory provide one-source service for steel gantry cranes, from steel gantry crane design, fabrication, installation, to solid after-sale service and maintenance, ensuring you have the most enjoyable crane purchasing expediences.

• Gantry Type:Steel mobile gantry crane
• Crane Capacity of Steel Gantry Crane:0.5 ton to 10 ton, customized up to 20 ton
• Crane Span of Steel Gantry Crane:2-12 m
• Lifting Height of Steel Gantry Crane:1m-9m(customized)
• Working Class of Steel Gantry Crane: A3,A4

Then steel gantry crane specification are presented for your reference. For your customized steel mobile gantry crane design, please feel free to contact us.

Types of Steel Gantry Cranes

Based on different standards, the steel gantry cranes can be grouped into various types and crane configurations to meet the various lifting requirements and application conditions. If the following types of steel gantry cranes do not cover the one you need, please feel to cotnact us by leave a message below or contact by WhatsApp： + 86 151 3871 1597. Your tailored steel mobile gantry crane design will be sent to you within 24 working our once the required gantry crane specifications are provided.

Fixed height steel gantry crane

Fixed height steel gantry crane with T frame series

Fixed height steel gantry crane with A frame Series

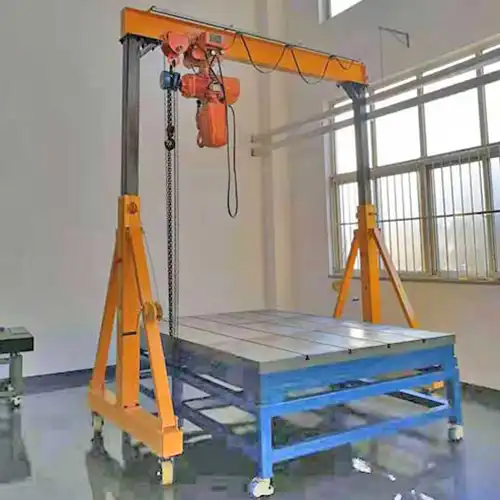

Telescopic steel gantry crane or adjustable steel gantry crane

Height adjustable Steel Gantry Crane

Three way adjustable steel gantry crane

In terms of height adjusting methods, the adjustable steel gantry cranes can be grouped in the the hand winch adjustable steel gantry, hand turbine adjustable gantry and motorized adjustable steel gantry crane,etc.

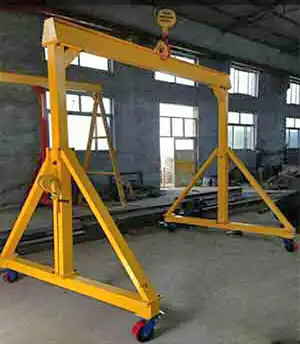

Hand winch steel gantry crane

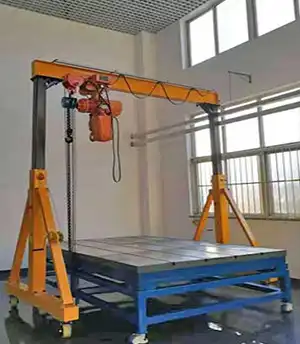

Hand turbine adjustable steel gantry crane

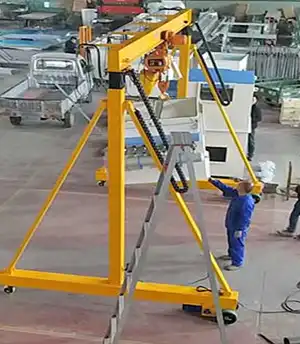

Electric motorized adjustable steel gantry crane

Hand push steel gantry or Motorized travelling steel gantry

In terms of power supply of crane travelling, the steel gantry cranes also can be provided with hand push steel gantry, motorized travellign steel gantry crane and rail travelling steel gantry crane,etc.

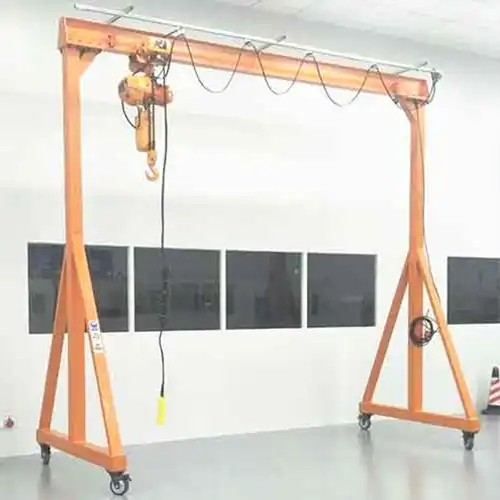

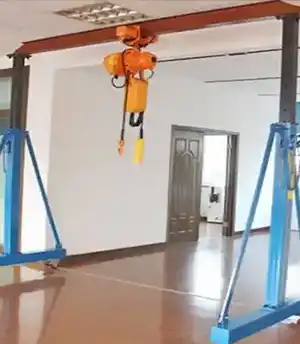

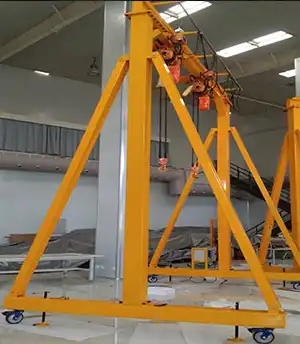

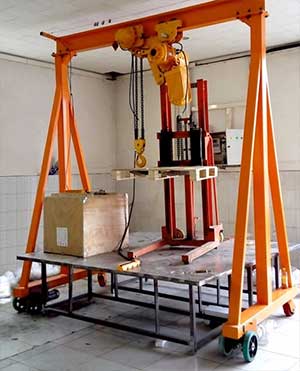

Hand push steel mobile gantry crane

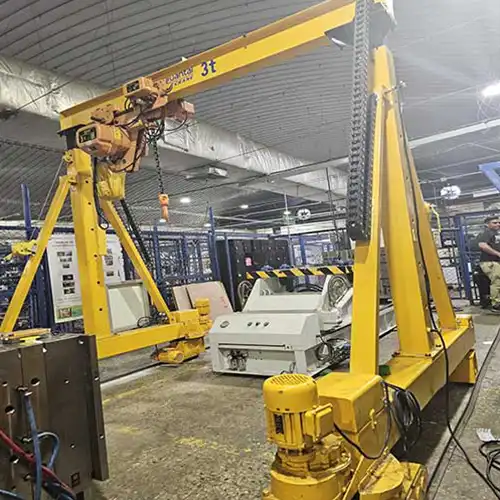

Motorized travelling steel mobile gantry crane

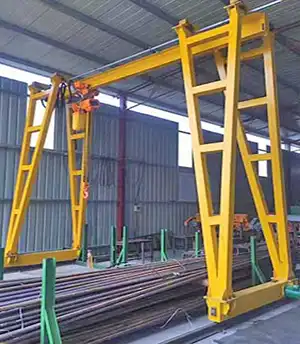

Rail travelling steel gantry crane

Design features of steel gantry cranes

For different steel gantry crane manufacturers, the steel gantry cranes provided have their own features. As an experienced steel gantry crane factory, our steel gantry cranes have theire unique features in the following terms:

Main girder designs of small steel gantry cranes

For different applications, the main girder of the steel gantry cranes can be designed into

• I-beam is used as the main girder, when the small gantry crane is designed with 2-3 meters span.
• I beam with a welded steel square tube as the main girder, when the steel gantry crane is designed with span length larger than 6 meters.
• The truss beam is usually adopted when the steel gantry crane is designed with larger tonnage and large span. All the material added on the beam is aimed to increase the horizontal rigidity.
• Box girder beam which is similar to the main girder of MH type single girder gantry crane is widely adopted, when the small steel gantry crane is used for load handling with weight around 10 tons and span around 5-7 meters;

I-beam, generally used for steel gantry with 2-3 meters span

Reinforced square steel tube is welded on the I-beam, generally used for steel gantry with a span of about 6 meters

Reinforced square steel tube is welded on the I-beam, generally used for steel gantry with a span of about 6 meters

The truss frame is welded on the I beam to increase the horizontal rigidity, which is used on the steel gantry with larger tonnage and large span

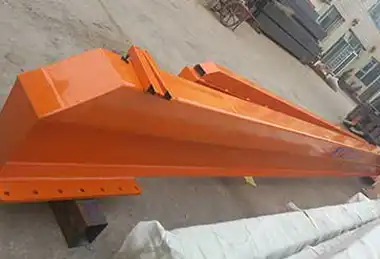

Box girder beam, similar to the main girder of MH single girder gantry crane,is usually adopted for steel gantry crane of 10 tons, span 5-7 meters.

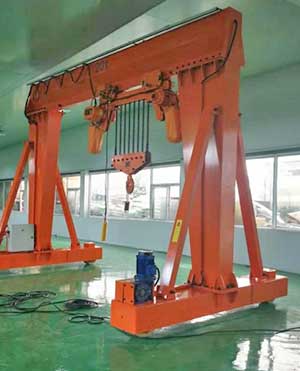

20 ton steel gantry crane with motorized travelling design

Supporting leg designs of steel gantry cranes

• Standard structure - For standard steel gantry crane, the supporting leg is usually adopt A frame structure, that is a supporting column with diagonal braces.
• Box structure supporting leg is used for steel gantry with lager capacity about 10 ton -15 ton.
• Inverted A letter structure supporting legs are used for steel gantry cranes with large height, large span, which usualluy is more than 6 meters to 8 meters.

Column + diagonal brace,the standard supporting leg structure for steel gantry

Box structure gantry legs is used when capacity is about 10 ton -1 5 ton

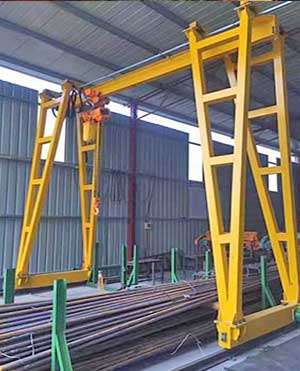

Inverted A structure is used for steel gantry crane with large height & large span, more than 6 meters to 8 meters.

Features of steel gantry crane: Why to select our steel gantry crane?

Among the numerous steel gantry crane manufacturer and supplier in China, what make our steel mobile gantry crane outstanding. Please check the following advantages and features of our steel gantry cranes and then you can make your own decision.

The other portable gantry manufacturer

1: The bolts are blackened with safety grade 4.8.

2: No modular gantry crane parts and components which should be marked before installation.

3: The connecting flange is 8mm steel plate with relatively poor rigidity.

4: The acute angle of the flange is exposed, which is easy to cause damage to the clothes and body.

The portable gantry produced by our factory

1. high-strength bolts with 8.8 safety grade, higher safety .

2. Laser cutting steel plate with precision hole position.

3. The connecting plate is a 10mm standardized connecting plate.

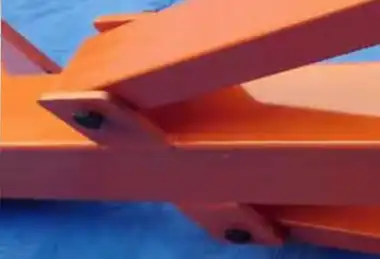

4. Modularization connecting plates are all produced with exact sizes and hole positions which can be dissembled freely with high versatility .

The other portable gantry manufacturer

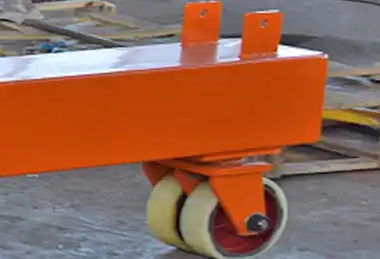

1: The bottom beam is not sealed and welded with poor sealing performance which makes the inner side of steel tube corroded easily by moisture;

2: The connecting flange is exposed to air which is easy to cause bump, and danger.

3: The walking wheels are welded to the bottom beam which make the wheel replacement much difficult when the gantry wheel is damaged.

The portable gantry produced by our factory

1: The bottom beam is sealed with high sealing performance, preventing the entry of sundries and avoiding the corrosion of the inner side of the steel tube.

2: The connection between the bottom beam and the diagonal brace adopts the inner connection of the ear piece, which makes the operation of steel gantry assured with no bump and danger.

3: The walking wheel is fixed with the bottom with bolts, which is detachable and easy to replace.

The mobile steel gantry provided by other gantry manufacturer

1: The connecting flange is an 8mm shear plate with poor rigidity;

2: A few of bolts are used for connection and they are not grade 8.8 high-strength bolts which making the safety factor of steel gantry crane is low;

3: The endside of the beam is not welded with the sealing plate providing poor stability and aesthetics.

The portable gantry produced by our crane factory

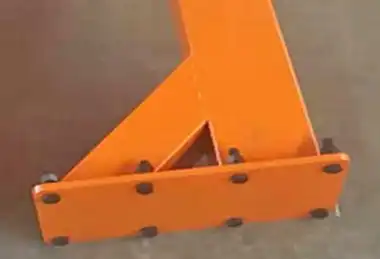

1: The thickness of the flange plate, connected the main column and the gantry beam, should be no less than 14 mm when the capacity of steel gantry is under 3 tons, and it would be 16 mm in thickness when steel gantry crane is with the capacity of 3 ton to 10 ton.

2: The flange bolts are grade 8.8 high-strength bolts, and no less than 8 bolts are used on one side as standard.

3: The end side of the beam is welded with the sealing plate to increase the stability of the main beam and the overall appearance.

The mobile steel gantry provided by other gantry manufacturer

1. Made of waste steel pipes, the surface is seriously rusted and there are potential safety hazards.

2. The single-layer partial stretch film packaging cannot protect the crane well, and it is easy to bump the paint surface during the transportation and transfer process.

The portable gantry produced by our crane factory

1.The steel crane is made of brand new Q235b steel. .

2. Plastic film-nylon woven bag-sealing film three-layer packaging, tight packaging.

FAQs of Small steel gantry cranes

In-situ 360° rotation and Common types 360° rotation, the default or standardized one is common type rotation, which will be presented in the following videos for your reference.

• For different types of turning operation, do the steel gantry cranes adopt different types of remote controls?

The remote controls used for the two types of turning operations are the same, but there are two types of remote controls can be used for the operation of steel gantry crane one is the remote control with combination key and the other is designed with single key control.

• The combination button control means the turning operation is conducted by pressing on two buttons. For example, 1 is to turn left, 2 is to turn right, south+1 is to turn left, and south+2 is to turn right. North +1 is to turn left, and if you only press 1, it is an invalid command.
• Single button control means the turning operation can be controlled by pressing on one button, to turning left or turn right. Single-button control operation is more convenient, but with more complicated electrical appliances and higher control price. And the selection is depends on your lifting requirements and application conditions.

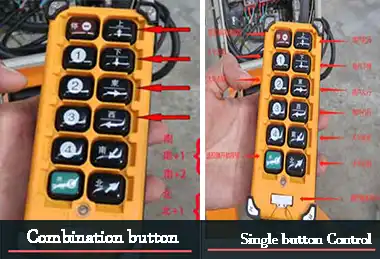

Combined buttons control for steel gantry crane

Single button control for steel gantry crane

• What is the funtion of the struts of the ground beams of hand push steel gantry crane ?

It is designed for steel gantry crane to get higher stability under loading which is standardized for hand-push steel gantry with capacity of 10 tons and above and optional design for steel gantry with small tonnages.

• Can the portable steel gantry crane move about under loading?

The portable steel gantry crane can be moved under loading when it adopts the motorized travelling system. On the other hand, it is not supposed to move when it is with the loads when it adopts the hand push travelling design. It is highly recommended that the steel gantry cranes adopts motorized travelling when the rated capacity is 5 ton or above.

• Can the small steel gantry crane be equipped with a cable reel?

Yes, the small steel gantry crane also can be equipped with cable reel which is largely depends on the customer's requirements. If the workshop space is relatively small, there is no need for the installation of a cable reel,and it is not a standard configuration.

• What is the material of the crane wheel of steel gantry crane ? Are all of four wheels onmi-directional wheels or universal wheels?

Polyurethane, two swivel wheels, two directional wheels, all with brakes.

If the portable gantry crane with trackless design , what does the driving wheel generally look like?

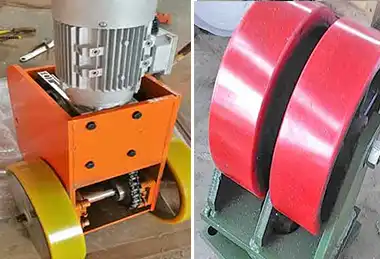

Driving wheels with motor for steel gantry crane construction

Gantry crane wheels for steel mobile gantry crane

• What is the insulation level and protection level of electric motor for travelling of non rail steel gantry crane ?

protection grade IP54, insulation grade F.

• What is the difference between the double-girder small steel gantry crane and MG type double-girder gantry crane except the crane wheels and crane rails, especially in terms of crane structure and configuration?

The structure of the portable steel gantry crane and MH type of double girder gantry crane is completely different. The main body of the small steel gantry crane is welded by steel pipes, which is a light structure compared to the traditional MG. And the standard configuration is totally different but customized design and configurations are available based on requirements.

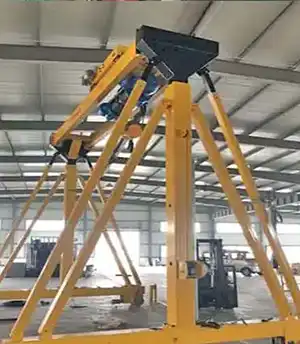

Small steel gantry crane with double beam

Heavy duty double girder gantry crane
