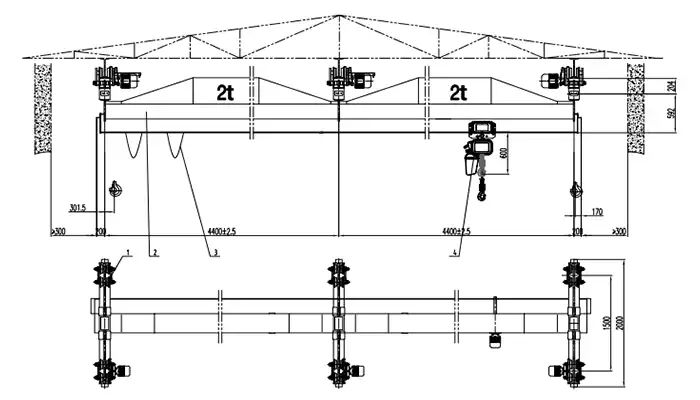

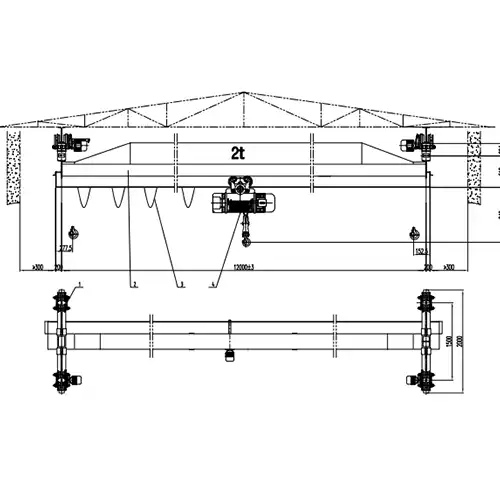

Crane End Carriage 2 Ton S12m A3 × 4 Sets | End Beam, End Truck Drawing

The crane end carriage — also called an overhead crane end beam or end truck — is the wheel-mounted assembly at each end of the crane bridge. Its key functions include:

• Supports the bridge: The end carriage carries the weight of the bridge girder and transmits it to the runway rail
• Supports the live load: When the hoist lifts a load, the load is transmitted through the bridge to the end carriages and then to the runway rail
• Provides crane travel: The end carriage wheels roll along the runway rail, allowing the crane to travel along the runway
• Connects to the travel drive: The crane travel motors (SZW-050 in this model) are mounted on the end carriage and drive the wheels
• Absorbs buffer impact: The 30mm buffer stroke at each end carriage protects the crane and runway when the crane reaches the end of travel
• Maintains wheel alignment: The end carriage holds the wheels in precise alignment to prevent skewing and rail wear

The end carriage is a critical structural component of the crane — its design, materials, and manufacturing quality directly affect the crane's safety, reliability, and service life. For crane builders, buying a well-engineered end carriage is essential for the overall crane performance.

4 sets of crane end carriages are supplied for one of several reasons:

• Spare sets: One or two complete spare sets of end carriages for maintenance or replacement, so the crane can be put back in service quickly
• Two cranes: Two complete underhung bridge cranes each requiring 2 end carriages (1 per crane = 2 sets; 2 cranes = 4 sets)
• Multi-crane runway: Multiple cranes running on the same runway system, each needing its own end carriages
• Crane builder stock: Crane builders often buy end carriages in batches to use across multiple projects
• Different configurations: Some sets may be configured for left-side travel and others for right-side travel, depending on the drive arrangement

For a single underhung bridge crane, only 2 sets of end carriages are needed — one set at each end of the bridge. The remaining 2 sets are either spares or intended for a second crane or runway system. Contact Yuantai if you need a specific number of end carriages for your project.

The 12m span is the distance between the two runway rails — measured from the centerline of one rail to the centerline of the opposite rail. Key points:

• Span (12m): The center-to-center distance between the two runway rails is 12m (12000 ± 3mm)
• End carriage position: The two end carriages are positioned at the two ends of the crane bridge, and the spacing between them is the span (12m)
• Wheel position: The wheels on each end carriage sit on the top of the runway rail (or the bottom flange, for underhung cranes)
• Bridge length: The bridge girder is slightly longer than the span — the additional length is the overhang that accommodates the end carriages
• Wheel load: The 12m span contributes to the wheel load calculation — a longer span means a larger bending moment on the bridge and a larger load on the end carriages

The 12m span requires a bridge girder of appropriate section and an end carriage rated for the resulting wheel load (15.2 kN in this model). If the span changes, the end carriage design must be re-evaluated — contact Yuantai with your specific span.

The CD2t electric wire rope hoist is specified for this crane end carriage because:

• Matched capacity: The 2t capacity of the CD2t hoist matches the 2t capacity of the end carriage and crane
• Proven design: The CD-type hoist is a widely used, reliable electric wire rope hoist with a long track record in workshops and factories
• 8 m/min hoisting speed: The hoist lifts at 8 m/min — a practical speed for general workshop handling
• 6m lifting height: The 6m lifting height is standard for most workshop buildings with moderate clear height
• ZD31-4 3.0kW lifting motor: A proven hoist motor for the 2t capacity
• ZDY12-4 0.4kW hoist travel motor: Provides 20 m/min hoist travel along the bridge
• Parts availability: The CD hoist has widely available spare parts — important for long-term maintenance

For heavier capacities, higher duty cycles, or different hoisting speeds, a different hoist type (such as the European-style hoist) can be specified. Contact Yuantai for hoist selection guidance.

The 15.2 kN max wheel load and I 20m-45c rail type are chosen through a careful engineering calculation:

• Wheel load calculation: The wheel load is determined by the crane's own weight, the hoist and trolley weight, and the rated load (2t), distributed across the wheels of the end carriage based on the crane's center of gravity
• 15.2 kN per end carriage: This is the maximum load that any single end carriage must support during normal operation, including dynamic forces from lifting and travel
• Rail type selection: The rail must have sufficient head width and web thickness to support the 15.2 kN wheel load without excessive wear or deformation — the I 20m-45c rail is selected to match this requirement
• Wheel diameter Ø130mm: The wheel diameter is matched to the rail type and the wheel load — a larger wheel reduces rolling resistance and increases rail contact area
• Buffer stroke 30mm: The buffer absorbs the kinetic energy of the crane when it reaches the end of travel

Do not substitute a smaller rail or different wheel diameter without a full engineering recalculation. The wheel load and rail type are safety-critical parameters.

The SZW-050 crane travel motor is used on this end carriage because:

• 0.4 kW power per motor: The motor provides 0.4 kW of power, adequate for the crane travel speed of 20 m/min on this 2t crane
• 2 motors per end carriage: Two SZW-050 motors per end carriage provide balanced drive and redundancy
• 1400 r/min speed: The motor runs at 1400 r/min, with the reduction gearing inside the end carriage bringing the travel speed down to 20 m/min
• Proven reliability: SZW-050 is a widely used crane travel motor model with proven reliability in workshop conditions
• Parts availability: Widely available spare parts — important for long-term maintenance
• Standard mounting: The motor mounts to the end carriage using standard mounting interface, simplifying assembly and replacement

If a different travel speed or duty cycle is required, a different motor can be specified — contact Yuantai with your specific requirements.

To avoid surprises at installation, these items are outside the crane end carriage supply scope unless you specifically add them:

• Bridge girder — separate item from the end carriage
• Hoist and trolley — separate item
• Runway rail (I 20m-45c) and rail fasteners
• Runway beam and building column reinforcement
• Building structural support for the 15.2 kN wheel load at each end carriage
• Site power supply up to the crane isolator
• Electrical panel and cable routing
• Erection crane and site lifting equipment for assembly
• Local electrical connection and permits

Because the crane end carriage is a structural component, the bridge girder design, runway beam, and building structure must be engineered as a system — the end carriage must be matched to the bridge and runway for safe operation. Yuantai can provide the complete crane system engineering (bridge + end carriage + runway) as a package — contact us for a full solution.

Send these ten items and Yuantai will issue a free custom crane end carriage CAD drawing and proposal within 24 hours:

1. Required lifting capacity (t) — e.g., 2t
2. Crane span (m) — e.g., 12m
3. Hoist type — e.g., CD2t
4. Rail type — e.g., I 20m-45c
5. Wheel diameter (mm) — e.g., Ø130mm
6. Number of end carriages required (e.g., 4 sets)
7. Crane travel speed (m/min) — e.g., 20 m/min
8. Power supply (V / Hz / Ph) — e.g., 3P 380V 50Hz
9. Duty class — e.g., A3 / M5
10. Any special requirements (e.g., different rail type, customized dimensions, material certificates)

The more complete the list, the faster and more accurate the crane end carriage drawing and quote.

This published crane end carriage drawing and 3D rendering are a free technical reference — you may use them to plan your crane and check fit. A project-specific crane end carriage GA drawing and 3D model are also free for standard configurations. A design fee may apply only for complex crane systems, non-standard spans, specialized rail types, or customized end carriage designs. The crane end carriage drawing remains the property of Yuantai Cranes: unauthorized copying, use, or manufacturing without written authorization is strictly prohibited.
