Oil Depot Underhung Crane 1 Ton S6m H7m with CDH Hoist & 4 Lights

This crane is configured for the Uzbekistan oil depot because of several key factors:

• 1t light load: Oil depot handling typically involves valves, pumps, filters, and light equipment — 1t capacity is suitable for these tasks
• 6m span: The 6m span covers the typical width of an oil depot pump room or handling area
• 7m lifting height: The 7m hook travel reaches the working levels of oil depot equipment and tanks
• 4 lighting fixtures: Oil depots require good illumination for safe handling — the 4 fixtures provide this, and explosion-proof fixtures are available for hazardous areas
• Compact design: The 660mm total height and 1000mm total width fit oil depot buildings with limited headroom
• 3P 400V 50Hz power: The crane is configured for the standard power grid in Uzbekistan and Central Asia (400V 50Hz 3-phase)
• CDH hoist: The CDH electric wire rope hoist is a proven design for light-duty oil depot applications
• A3 duty: Light duty, intermittent use matches the occasional lifting requirements of an oil depot
• Explosion-proof option: An explosion-proof version is available for hazardous areas, making this crane suitable for classified oil depot zones

If the oil depot area requires explosion-proof equipment, the crane can be configured with explosion-proof motors, hoist, and lighting fixtures for the specific hazardous area classification — contact Yuantai for details.

Yes — the oil depot underhung crane can be configured in an explosion-proof version for hazardous area use. Explosion-proof features for oil depot applications include:

• Explosion-proof hoist: The CDH hoist can be replaced with an explosion-proof hoist rated for the specific gas group and temperature class
• Explosion-proof motors: Crane travel motors and hoist travel motors with flameproof enclosures
• Explosion-proof electrical panels: Control panels and junction boxes rated for the hazardous area
• Explosion-proof lighting fixtures: The 4 lighting fixtures rated for the hazardous area (Zone 1, Zone 2, or Div 1, Div 2)
• Spark-resistant materials: Bronze, brass, or stainless steel components on wheels, rail sweeps, and chain guides
• Certification: ATEX, IECEx, or CNEX certification matching the local requirements in Uzbekistan

For an oil depot in Uzbekistan, the exact explosion protection class (e.g., IIA-T2, IIB-T3) will depend on the specific product stored and the hazardous area classification. Contact Yuantai with your area classification for an explosion-proof oil depot underhung crane quote.

The 4 lighting fixtures are included on this oil depot underhung crane for working area illumination. Key details:

• Working area illumination: The 4 fixtures provide balanced illumination along the working area of the oil depot
• Mounted on the crane: The fixtures are mounted on the crane girder so they move with the crane, illuminating the working area wherever the crane is positioned
• Explosion-proof option: If the oil depot area requires it, the 4 fixtures can be supplied as explosion-proof rated units matching the hazardous area classification
• 4-fixture coverage: The 4 fixtures distribute light along the 7.8m girder for both the trolley travel and crane travel paths
• Safe maintenance: Good lighting is essential for safe maintenance of oil depot equipment (pumps, valves, filters)
• Improved safety: In an oil depot, adequate lighting reduces the risk of handling errors and improves operator safety

If additional lighting fixtures are needed, or if the fixtures should be mounted differently, this can be customized — contact Yuantai with your lighting requirements.

The 7.8m total girder length and 6m span work together as follows:

• 6m span: The center-to-center distance between the two runway rails is 6.0m — this is the working span of the crane
• 7.8m total girder length: The girder is 7.8m long — 6.0m of span plus 0.9m overhang on each side
• 0.9m overhang: The overhang on each side accommodates the end carriages, which sit on the runway rails and carry the wheels
• Hook approach: The overhang also determines how close the hook can get to the runway rail (hook approach) — in this case, close to the rail
• Wheel load: The 0.9m overhang affects the wheel load distribution — the 8.0 kN max wheel load accounts for this overhang and the 1t live load

This is a standard crane layout for an oil depot pump room or handling area — the 6m span fits the oil depot bay while the 7.8m girder provides adequate end carriage support.

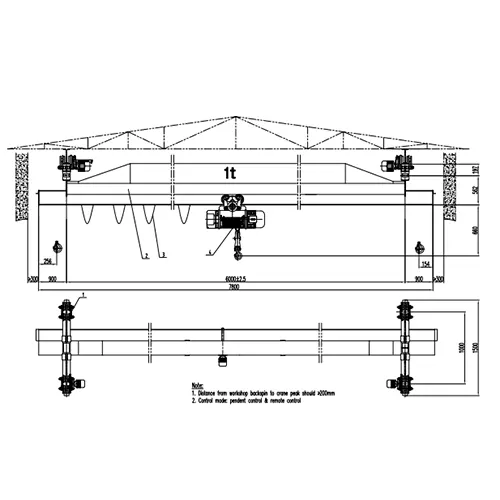

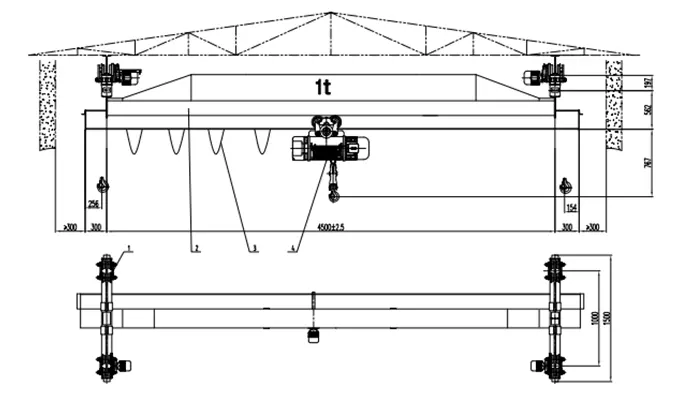

Nine numbers on this oil depot underhung crane drawing must match your oil depot, or the crane will not fit or operate correctly:

If any of these differ from your oil depot, tell Yuantai before ordering — each change affects price and lead time on the oil depot underhung crane.

This type of 1t underhung crane with CDH hoist and 4 lighting fixtures is suitable for many industries beyond oil depots:

• Petrochemical facilities: Fuel storage, LPG facilities, and chemical processing plants
• Chemical plants: Handling drums, filters, and equipment in chemical processing areas
• Fuel depots and terminals: Aviation fuel, diesel, and gasoline storage facilities
• Lubricant and grease plants: Handling drums and packaged products in lubricant manufacturing
• Bitumen and asphalt plants: Handling pumps, valves, and equipment in bitumen handling areas
• Power plants: Auxiliary equipment handling in power generation facilities
• Water treatment plants: Lifting pumps, valves, and equipment in utility buildings
• Pharmaceutical plants: Handling equipment and materials in clean or controlled areas
• Food processing: Lifting ingredients and packaged products in hygienic environments
• General manufacturing: Any light-load lifting task in workshops with limited headroom

If your facility requires specific modifications — such as stainless steel construction for corrosion resistance, food-grade lubricants for hygienic environments, or special paint for a specific industry — contact Yuantai with your requirements.

To avoid surprises at installation, these items are outside the oil depot underhung crane supply scope unless you specifically add them:

• Runway rail (I 20m-45c) and rail fasteners
• Runway beam and oil depot building column reinforcement
• Building structural support for the 8.0 kN wheel load
• Site power supply up to the crane isolator — including 400V 50Hz power for Uzbekistan
• Explosion-proof electrical wiring and junction boxes for hazardous areas
• Hazardous area classification verification by a qualified engineer
• Local electrical connection and permits — including any Uzbek regulatory approvals
• Erection crane and site lifting equipment for installation

Because the oil depot underhung crane may operate in a hazardous area, the hazardous area classification, explosion-proof electrical wiring, and certification are critical — the area must be properly classified, all electrical components (including the 4 lighting fixtures) must be appropriately rated, and local regulations must be met. Yuantai can provide explosion-proof certification documents and installation guidance as optional items.

Send these eleven items and Yuantai will issue a free custom oil depot underhung crane CAD drawing and proposal within 24 hours:

1. Required lifting capacity (t) — e.g., 1t
2. Crane span (m) — e.g., 6m
3. Required lifting height (m) — e.g., 7m
4. Hazardous area classification — Zone 1, Zone 2, or non-hazardous
5. Gas group and temperature class (if hazardous)
6. Lighting fixture requirements — e.g., 4 units
7. Rail type (e.g., I 20m-45c)
8. Number of cranes required (e.g., 1 unit)
9. Power supply (V / Hz / Ph) — e.g., 3P 400V 50Hz
10. Duty class — e.g., A3
11. Any special requirements (e.g., explosion-proof certification, material certificates)

The more complete the list, the faster and more accurate the oil depot underhung crane drawing and quote.

This published oil depot underhung crane drawing and 3D rendering are a free technical reference — you may use them to plan your oil depot and check fit. A project-specific oil depot underhung crane GA drawing and 3D model are also free for standard configurations. A design fee may apply only for complex hazardous area classifications, non-standard spans, specialized explosion-proof materials, or customized lighting and certification requirements. The oil depot underhung crane drawing remains the property of Yuantai Cranes: unauthorized copying, use, or manufacturing without written authorization is strictly prohibited.
