Electric Chain Block & Motorized Chain Block Supplier
Types of Motorized Chain Hoists Mounted on Trolley, Hook or Lug for
Eot crane, Gantry crane & Jib Crane
General Use electric chain blocks, cost-effective chain hoist crane solutions.
What is the definition of an electric chain block? Electric chain blocks are a sort of smallbut powerful hoisting equipment,which are widely used in general load handling from warehouse to building site The electric chain blocks can be built to be hook mounted, lug mounted, or hoist trolley mounted, including motorized hoist trolley and motorized motorized hoist trolley, to suit the demands of varied applications.
Main types of general use electric chain blocks
Main specifications of general use electric chain blocks
0.5 ton HHBB type electric chain block
1 ton HHBB type electric chain block
2 ton HHBB type electric chain block
3 ton HHBB type electric chain block

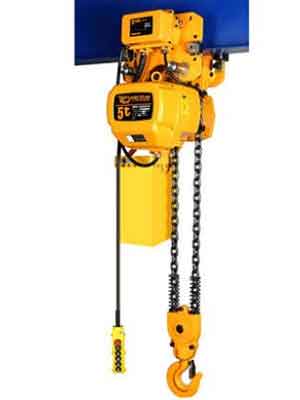

5 ton HHBB type electric chain block
7.5 ton HHBB type electric chain block
10 ton HHBB type electric chain block
15 ton HHBB type electric chain block
20 ton HHBB type electric chain block1
25 ton HHBB type electric chain block
30 ton HHBB type electric chain block
Motorized chain hoist 75 ton
Main parts and components of general use electric chain blocks
Motorized chain block blocks are a type of light andsmalllifting equipment that includes an electric motor, transmission mechanism, chains, hooks, and safety devices, among other things. The motorized chain block's general characteristics are flexibility and power, compactedstructure, small size, and light weight, ease of installation and operation, and a long working life. Furthermore, we prepare all of our motorized chain blocksin accordance with international standards.
Lightweight shell for electric chain block
Electric chain block parts - motor
Electric chain block parts - chain and chain bag
Electric chain block parts - hook
Electric chain block parts - electric motor
Electric chain block parts - manual trolley
Electric chain block parts - pendant control

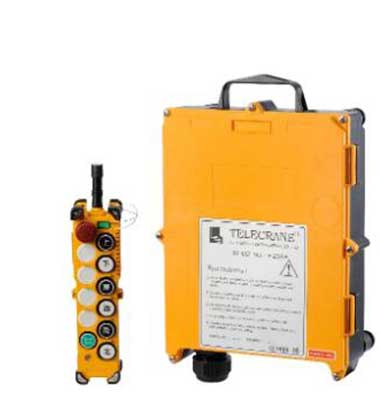

Electric chain block parts - remoto control
Applications & Videos of electric chain hoist cranes
Electric chain hoist crane - Pillar jib hoist crane design
Electric chain hoist crane - Wall travelling jib hoist crane design
Electric chain hoist crane - Gantry hoist crane design
Single girder kbk chain hoist crane
Double girder kbk chain hoist crane
75 ton electric chain hoists
light duty electric chain hoist jib crane
Explosion proof electric chainh hoist
Explosion Proof motorized chain block
Explosion-proof motorized chain block is a type of "explosion-proof" electric chain block that may be separated into two types based on the application environment: gas explosion-proof hoist and dust explosion-proof hoist.
The explosion proof motorized chain block can be divided into two types based on the mounting style: trolley type explosion proof hoist and hook mounted explosion proof chain hoist.
The trolley type explosion proof motorized hoist is used to transfer loads from left to right using a motorized or manual trolley on a H beam or I beamand a hoist hook to lift up and down . The hook suspension explosion proof chain hoist, on the other hand, is a stationary type electric chain block that is anchored by a hook in a position with the lifting hook to raise weights up and down.
Types of Exproof Hoists
Electric Motorized trolley chain block
Hook mouted electric chain block with explosion proof feature
Low headroom explosion proof electric chain block
Heavy duty explosion proof electric chain hoist
Applications conditions
The motorized hoist should be guaranteed to work under the following working conditions:
- The altitude does not exceed 2000m
- The ambient relative humidity is not more than 95% (+25℃)
- The surrounding medium temperature: -5℃--+40℃
- In the In the mine with vigor and vitality
- In the place of five significant shaking and shock vibration
- Pollution level: Class 3 Safety category: Class II
Uses of Exproof chain hoist
- It's ideal for low-speedand light duty loads handling. It is cost-effective, high-quality, safe, and dependable in material handling, equipment installation, mines, and engineering building. It's commonly utilized in the petroleum, petrochemical, petrol stations, oil depots, gas production, chemical industry, military industry, electric power, mining, electronics, railways, and other potentially explosive settings.
- In environments with ignitable gases, vapor, or combustible dust, an explosion-proof motorized chain block is frequently utilized.
- Locations designated as Class 1, Division 1.
- Under typical operating conditions, an area where ignitable concentrations of flammable gases, vapors, or liquids can exist all of the time or some of the time.
European style motorized chain block
A low headroom motorized hoist with low headroom hoist design is a specific type of hoist that is designed to carry objects to a higher height. The greater the lifting height under the same conditions, the smaller the size from the hook center to the top of the hoist. This type of motorized hoist is typically utilized in workplaces with precise lifting height requirements and restricted higher space.
On the basis of standard motorized hoists, the low headroom chain hoist is optimized and improved. By advancedthe design plan of the traditional CD and MD electric wire rope hoists, the low headroom electric wire rope hoist is created.
Types of FEM Chain Block
European style electric chain hoist with motorized trolley
European style electric chain hoist with hook mounted design
European style electric chain hoist with low headroom hoist design
European style electric chain hoist with dual hook design
Chain BLock Parts & Components
YTOC European electric chain hoist or electric chain block has been certified by the relevant national authority, protection class of hoist motor, electric chain hoist and travelling motor device are all IP55, push button control is with excellent moisture proof and dustproof, IP65.
- Gearbox -Maintenance-free. YTOC European electric chain hoist, working class M6, having a rated service life of 1990 full load hours. In practice, this means that the service life is prolonged by about 20%. The gearbox's helical gearing also decreases operational noise and ensures smooth operation.
- Brake -Maintenance-free. Repair is not required due to minimal wear. The brake is housed in the electrical panel, giving it double protection from the weather.
- Slip clutch -Maintenance-free. The power drive is integrated behind the brake. It provides dependable overload prevention. The slip clutch is protected from irreparable damage with integrated slip clutch monitoring.
- Control pendant wire - It can be adjusted in height -As a result, for a hook path range of 2-5 m and 5-8 m, the control pendant's suspension height can be infinitely changed. The additional control cable is hidden below the service cover.
- Control -Operating limit switches (upper/lower), 24V contactor control
- Steel Chain -A particular high-strength chain. Age-resistant substance that has been hardened. To defend against specific hostile situations, galvanized and other surface treatments are offered.
- Suspension bracket -YTOC motor hoists are supplied with short and long suspension brackets as standard and can always be attached to the super-structure with the optimal connection.
- Aluninum shell light weighted -Robust and lightweight die-cast aluminum shell, with the features of compact and modern industrial use design. Automotive level paint, to provide more long-term protection.
- Hoist motor -Hoist motor keeps high-performance and hight safetyeven underhigh ambient temperatures. 1:4 hoist speed ratio and frequency controlare available to meet the multi-speed requirements.
Advantages of European style motorized chain block
- Faster & Better Performance - European electric motorized chain hoist with high performance, high safety, and high reliability benefits, by adopting a humanized design idea to improve productivity and make work more efficient.
- Flexible and accurate operation. European motorized chain block with flexible operation and positioning accuracy. Loads can be lifted up rapidly with high precision.
- Increased efficiency anda longer service life— In practice, the service life of European motorized chain blocks is extended by around 20% when compared to the traditional electric chain hoist with duty classification of 2M. As a result, the duration between service intervals and general overhauls is greatly extended.
- Durable and maintenancefree. - European electric chain block, all key drive components such as gear box, brake, and clutchare allo fabricated with specialized procedures which enable the fem standard motorized electric chain hoist durable, and thebrakes is maintenance free for 5 years. Our motorized hoists havea long working life even underheavy duty applications.
Factors for you to consider to buy motorized chain block
- Determine the maximum weight you'll be able to lift. (The weight of device for lifting, supporting, and positioning is included.)
- What is the nominal voltage (ten percent of the rated voltage) in your facility? (single phase 115 or 230V; three phase 208, 230, or 460V)
- What is the load's desired lifting speed? For 1/8 to 1 ton, the industry standard is 16 feet per minute (fpm); for 2 tons, the standard is 8 feet per minute (fpm) .For even more adaptability, consider a variable-speed lift.
- Take a measurement from the mount to the floor. to decide the chain fall length.
