10 Ton Grab Bucket Overhead Crane for Gypsum & Cement
10 ton grab bucket overhead crane with 22m span, 12m lifting height and A6 duty for gypsum, cement additives and bulk material handling.
Crane Manufacturer: Yuantai Cranes – 30+ Years Professional Crane Manufacturer from China
Category: Grab Bucket Overhead Crane
Tags: GrabBucketOverheadCraneDrawing
Overview:
This drawing covers a 10-ton Double Girder Grab Crane (QZ type) — model QZ 10t-22m-12m A6, file name 6. QZ10t-22m-12m A6 cabin control full VFD outdoor shed handling gypsum and cement additive materials ambient temperature 0 to 55°C 70% grab fill considered as 5 tons travel length 72m 1 unit.pdf. It is a double girder, bridge-type crane with a U50 four-rope grab bucket and full VFD (variable frequency drive) on all motions. Key dimensions: 22m span, 12m max lifting height, 2.0m trolley gauge, 72m travel length. The grab is a U50 four-rope grab bucket, 3m³ capacity, unit weight 4273 kg, handling gypsum and cement additives with a material density of ~1.7 t/m³. At 70% grab fill, the effective load is considered as 5 tons. Designed for outdoor shed operation with ambient temperature from 0 to 55°C. Control is via cabin. Power is 3-phase 415V 50Hz, duty class M6/A6. Note: crane gross weight does not include grab weight; lifting weight includes grab weight.
Project & Technical Overview
- Equipment Type: Double Girder Grab Crane (QZ Type)
- Product Model: QZ 10t-22m-12m A6
- Drawing File: 10t-22m-12m A6 cabin control full VFD outdoor shed handling gypsum and cement additive materials ambient temperature 0 to 55°C 70% grab fill considered as 5 tons travel length 72m
- Application: Gypsum and Cement Additive Material Handling
- Site: Outdoor Shed, Ambient Temperature 0 to 55°C
- Duty Class: M6 (ISO A6)
- Lifting Capacity: 10.0 t (10,000 kg) — excluding grab weight; lifting weight includes grab weight
- Effective Load: 5.0 t at 70% grab fill
- Crane Span: 22.0 m (22,000 ± 4 mm)
- Max. Lifting Height: 12.0 m (12,000 mm)
- Trolley Gauge: 2.0 m (2,000 mm)
- Travel Length: 72 m
- Grab Model: U50 Four Rope Grab Bucket
- Grab Capacity: 3.0 m³
- Grab Unit Weight: 4273 kg
- Material Density: ~1.7 t/m³ (Gypsum and Cement Additives)
- Control Mode: Cabin Control
- Control System: Full VFD (Variable Frequency Drive)
- Power Supply: 3P 415V 50Hz
Main Technical Parameters
| Technical Parameter | Specification |
|---|---|
| Duty Class | M6 (ISO A6) |
| Lifting Capacity | 10.0 t (10,000 kg) — excluding grab weight; lifting weight includes grab weight |
| Effective Load at 70% Fill | 5.0 t |
| Crane Span | 22.0 m (22,000 ± 4 mm) |
| Max. Lifting Height | 12.0 m (12,000 mm) |
| Trolley Gauge | 2.0 m (2,000 mm) |
| Travel Length | 72 m |
| Grab Model | U50 Four Rope Grab Bucket |
| Grab Capacity | 3.0 m³ |
| Grab Unit Weight | 4273 kg |
| Material Density | ~1.7 t/m³ (Gypsum and Cement Additives) |
| Control Method | Cabin Control |
| Control System | Full VFD (Variable Frequency Drive) |
| Power Supply & Voltage | 3P 415V 50Hz |
| Site Condition | Outdoor Shed, Ambient Temperature 0 to 55°C |
Lifting & Switching Mechanism Parameters
| Component / Motor Drive | Technical Specification |
|---|---|
| Lifting Capacity | 10 t |
| Working Duty | M6 |
| Lifting Speed | 40.1 m/min |
| Lifting Motor Power | 2 × 22 kW |
| Max. Lifting Height | 12 m |
| Switching Mechanism | Four-rope grab switching |
| Control System | Full VFD |
| Power Supply | 415V 50Hz 3P |
Trolley & Crane Traveling Technical Parameters
| Component / Motor Drive | Technical Specification |
|---|---|
| Trolley Traveling Speed | 29.3 m/min |
| Trolley Traveling Motor Power | 1.5 kW |
| Trolley Working Duty | M6 |
| Trolley Rail Type | P24 |
| Crane Traveling Speed | 29.3 m/min |
| Crane Traveling Motor Power | 2 × 2.2 kW |
| Crane Working Duty | M6 |
| Crane Rail Type | P43 |
| Travel Length | 72 m |
| Control System | Full VFD |
| Power Supply | 415V 50Hz 3P |
Summary of Key Parameters
| Parameter | Value |
|---|---|
| Rated Lifting Capacity | 10 t (excluding grab weight) |
| Effective Load at 70% Fill | 5 t |
| Span | 22 m |
| Max. Lifting Height | 12 m |
| Trolley Gauge | 2.0 m |
| Travel Length | 72 m |
| Lifting Speed | 40.1 m/min |
| Trolley Traveling Speed | 29.3 m/min |
| Crane Traveling Speed | 29.3 m/min |
| Lifting Motor Power | 2 × 22 kW |
| Trolley Traveling Motor Power | 1.5 kW |
| Crane Traveling Motor Power | 2 × 2.2 kW |
| Grab Model | U50 Four Rope Grab |
| Grab Capacity | 3.0 m³ |
| Grab Unit Weight | 4273 kg |
| Material Density | ~1.7 t/m³ (Gypsum and Cement Additives) |
| Control System | Full VFD |
| Power Supply | 3-Phase, 415 V, 50 Hz |
| Site Condition | Outdoor Shed, 0 to 55°C |

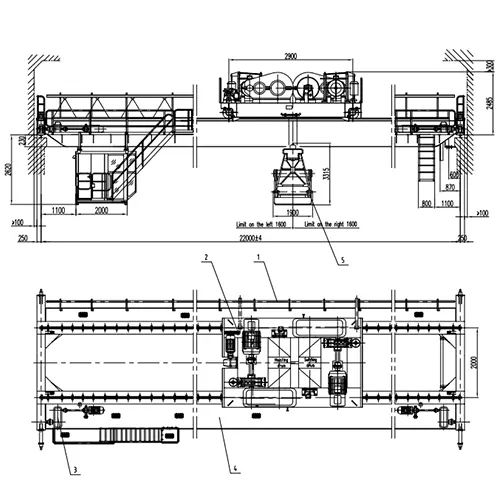

Drawing Views & Structural Information
| View / Item | Description |
|---|---|

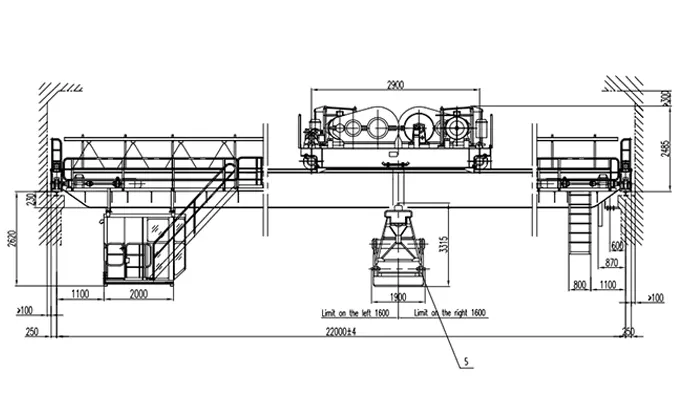

| Main View (Left) | Span: 22000 ± 4 mm; Max. lifting height: 12000 mm (12 m); Trolley gauge: 2000 mm; Trolley overall width: 2900 mm; Grab width: 1900 mm; Limit on left: 1600 mm; Limit on right: 1600 mm; Distance from workshop backspin to crane peak: >300 mm |
| Side View (Right) | Double girder, bridge-type; trolley overall width: 2900 mm; trolley wheel base: 5500 mm; cabin control with platform and ladder; outdoor shed with 0-55°C ambient temperature |
| Structure Type | QZ Double Girder Grab Crane; bridge structure; trolley with lifting & switching mechanism and four-rope grab; long travel mechanism; electric system; full VFD control; cabin control with access platform |
| Parts List | 1. Electric system; 2. Trolley; 3. Long travel mechanism; 4. Bridge structure; 5. U50 Four rope grab bucket 3m³ (material density 1.0~2.0 t/m³, qty 1, weight 4273 kg) |
Technical Requirements & Notes
Important Notes:
- Model Designation: The drawing file name is 6. QZ10t-22m-12m A6 cabin control full VFD outdoor shed handling gypsum and cement additive materials ambient temperature 0 to 55°C 70% grab fill considered as 5 tons travel length 72m 1 unit.pdf, where "10t" is the lifting capacity, "22m" is the span, "12m" is the max lifting height, and "A6" is the duty class.
- Manufactured to GB/T14405: The crane is manufactured according to relevant regulations of GB/T14405.
- Workshop Clearance: Distance from workshop backspin to crane peak should be greater than 300 mm.
- Control Mode: Cabin control.
- Weight Definition: Crane gross weight does not include grab weight; lifting weight including grab weight.
- Effective Load: At 70% grab fill, the effective load is considered as 5 tons for gypsum and cement additives with material density ~1.7 t/m³.
- Outdoor Shed Operation: Designed for outdoor shed installation with ambient temperature from 0 to 55°C.
- Travel Length: 72 m.
- Grab: U50 four-rope grab bucket, 3m³ capacity, unit weight 4273 kg, material density 1.0~2.0 t/m³ (actual ~1.7 t/m³).
- Full VFD: All motions — hoisting, trolley travel, and crane travel — use variable frequency drive for smooth, precise control.
- ISO M6/A6 Duty Class: Suited to medium-heavy duty handling in demanding industrial environments.
- Drawings and specifications above are for reference. For customized span, height, speed, or power ratings, contact us for a free engineering evaluation.
- Unauthorized reproduction, distribution, or manufacturing from these drawings without written authorization from Yuantai Crane Machinery is prohibited. Yuantai assumes no liability for unauthorized applications.
How to Get Your Customized Grab Crane
This drawing shows a 10-ton QZ double girder grab crane with 22m span, 12m max lifting height, U50 four-rope grab, full VFD, cabin control, and 72m travel length, designed for outdoor shed handling of gypsum and cement additives. Yuantai Crane builds to your exact structural and regional requirements.
| Customization Step | Detailed Description |
|---|---|
| Step 1: Provide Site Parameters | Share your yard dimensions — lifting capacity (10t), span (22m), max lifting height (12m), grab capacity and material density, travel length (72m), and required travel speeds. |
| Step 2: Free CAD Drawing & Engineering Review | Our engineering team prepares customized general arrangement drawings, wheel load verification, and structural safety layouts at no cost. |
| Step 3: Technical Confirmation | Work with your consultants to lock in grab selection (U50), power supply (3P 415V 50Hz), duty class (M6/A6), and control mode (cabin + full VFD). |
| Step 4: Precision Manufacturing & Global Delivery | Built to GB/T14405 and international standards, with Factory Acceptance Testing (FAT) before dispatch to your site. |
Frequently Asked Questions (QZ 10t-22m-12m A6 Grab Bucket Overhead Crane Drawing Analysis)
Common technical questions on the 10t capacity, 22m span, 12m lifting height, U50 four-rope grab 3m³, full VFD, cabin control, and outdoor shed operation.
1. What are the advantages of full VFD control on this grab crane?
Full VFD (Variable Frequency Drive) on all motions — hoisting, trolley travel, and crane travel — provides smooth acceleration and deceleration, precise grab positioning, reduced mechanical wear, and energy efficiency. This is especially valuable for handling gypsum and cement additives where precise control and reliable operation are critical.
2. What is the significance of the 70% grab fill and 5-ton effective load?
The U50 grab bucket has a 3m³ capacity with a material density of ~1.7 t/m³. At 70% fill, the effective load is approximately 5 tons (3m³ × 1.7 t/m³ × 0.7 ≈ 3.57 t material + 4.273 t grab weight ≈ 7.8 t total, but the effective load is considered as 5 tons for design purposes). This provides a safety margin while ensuring efficient material handling.
3. What is the function of the 72m travel length?
The 72m travel length allows the crane to cover a long runway in an outdoor shed, making it suitable for large storage yards where gypsum and cement additives need to be transported over significant distances.
4. What are the power requirements for this grab crane?
3-phase, 415V, 50Hz. The lifting motors (2 × 22 kW), trolley motor (1.5 kW), and crane travel motors (2 × 2.2 kW) all run on this configuration, with full VFD control on all motions.
5. What does the model designation "QZ 10t-22m-12m A6" mean?
QZ = Double Girder Grab Crane; "10t" = 10-ton capacity; "22m" = 22-meter span; "12m" = 12-meter max lifting height; "A6" = ISO A6 duty class.
6. What is the U50 grab bucket suitable for?
The U50 four-rope grab bucket with 3m³ capacity and 1.0~2.0 t/m³ material density is suitable for handling bulk materials such as gypsum, cement additives, coal, ore, sand, and gravel. For this application, it is used for gypsum and cement additives with a density of ~1.7 t/m³.
7. Why is this crane designed for 0 to 55°C ambient temperature?
The crane is designed for outdoor shed installation where ambient temperatures can range from 0°C in winter to 55°C in summer. All components, including motors, VFDs, and hydraulic systems, are selected and configured to operate reliably across this temperature range.
Need Customized Drawings & Pricing for Your Project?
Send your yard dimensions, capacity requirements, span, lifting height, grab specifications, material density, travel length, and power supply specs. Yuantai Crane consultants will provide a complimentary CAD layout drawing and quote within 24 hours.
Yuantai Overhead Crane with Grab Bucket Solutions
Yuantai Crane supplies custom QZ Double Girder Grab Crane solutions worldwide — gypsum handling, cement additive handling, bulk material handling, port terminals, and industrial yards. Each system is tailored to your capacity, span, lifting height, grab type, material density, travel speed, and power supply.
Typical Technical Specifications:
- Lifting Capacity: 5.0–20.0 Tons (This Model: 10.0 t)
- Span: 10.0–40.0 Meters (This Model: 22.0 m)
- Max. Lifting Height: 10.0–30.0 Meters (This Model: 12.0 m)
- Duty Class: ISO A5–A8 (This Model: M6/A6)
- Grab Type: Four Rope Grab Bucket (This Model: U50, 3m³)
- Material Density: ~1.7 t/m³ (This Model: Gypsum and Cement Additives)
- Control Mode: Cabin Control
- Control System: Full VFD (Variable Frequency Drive)
- Structure: Double girder, bridge-type
- Travel Length: 72 m (This Model)
- Site Condition: Outdoor Shed, 0 to 55°C (This Model)
- Power Supply: 3P 415V 50Hz (Customizable)
- Applications: Gypsum Handling, Cement Additive Handling, Bulk Material Handling, Port Terminals, Industrial Yards, Storage Facilities
Yuantai provides global buyers with engineering design, non-standard structural customization, Factory Acceptance Testing (FAT), export packaging, logistics delivery, and installation guidance.
Engineering Support & Grab Bucket Overhead Crane Customization
Handling a 10-ton load across a 22m span with 12m max lifting height and a U50 four-rope grab for gypsum and cement additive handling takes solid mechanical and electrical engineering. This drawing reflects Yuantai Crane's work in custom grab crane structural design, four-rope grab systems, full VFD control, and reliable power delivery for demanding outdoor shed environments.
| Customer Challenge & Site Requirement | Yuantai Custom Solution | Reference Parameters (Based on Drawing) |
|---|---|---|
| Gypsum and Cement Additive Handling Requires a crane capable of handling bulk materials with moderate density in an outdoor shed. | QZ double girder grab crane with 22m span, 12m lifting height, and U50 four-rope grab for efficient material handling. | Span: 22.0 m | Lift: 12.0 m | Grab: U50 3m³ | Material Density: ~1.7 t/m³ |
| Outdoor Shed Operation with Temperature Variations Needs to operate reliably from 0 to 55°C in an outdoor shed environment. | All components selected and configured for 0 to 55°C operation, with full VFD control for smooth motion. | Site: Outdoor Shed | Temp: 0 to 55°C | Control: Full VFD |
| Precise Grab Control with Cabin Operation Needs a clear view of the grab and working area for precise control. | Cabin control with platform and ladder for operator comfort and precise grab operation. | Control: Cabin | Grab: U50 3m³ | Travel Length: 72 m |
How to Evaluate If This Solution Fits Your Facility?
- 10T QZ Grab Crane Design: 22m span, 12m max lifting height, 2.0m trolley gauge — designed for gypsum and cement additive handling in outdoor sheds.
- U50 Four-Rope Grab: 3m³ capacity with ~1.7 t/m³ material density and 4273 kg unit weight — suited to gypsum, cement additives, and other loose materials.
- Full VFD Control: Smooth, precise motion control on all motions for efficient material handling.
- Cabin Control: Clear view and comfortable operation for precise grab handling.
- M6/A6 Duty Class: Built for medium-heavy duty cycles in demanding industrial environments.
- Outdoor Shed 0-55°C: Designed to operate reliably across a wide temperature range.
- 72m Travel Length: Covers long runways in outdoor sheds and storage yards.
