10 Ton Grab Bucket Overhead Crane for Finished Coal
10 ton double girder grab bucket overhead crane with 25.5m span and 25m lift for finished coal handling, featuring a 1.5m³ four-rope grab and cabin control.
Crane Manufacturer: Yuantai Cranes – 30+ Years Professional Crane Manufacturer from China
Category: Grab Bucket Overhead Crane
Tags: GrabBucketOverheadCraneDrawing,grabcrane
Overview:
This drawing covers a 10-ton Double Girder Grab Crane (QZ type) — model QZ 10t-25.5m-25m A5, file name 7. QZ10t-25.5m-25m A5 cabin control equipped with four-rope grab grab volume 1.5 cubic meters material is finished coal 4.5 tons/cubic meter 1 unit.pdf. It is a double girder, bridge-type crane with a four-rope grab bucket and cabin control. Key dimensions: 25.5m span, 25m lifting height, 2.5m trolley gauge, 7074mm trolley overall width, 5150mm trolley wheel base. The grab is a four-rope grab bucket, 1.5m³ capacity, handling finished coal with a material density of ~4.5 t/m³. Lifting speed is 40.7 m/min with dual 37 kW motors; trolley travel runs at 45.6 m/min with a 5.5 kW motor; crane travel runs at 89.1 m/min with dual 11 kW motors. Power is 3-phase 400V 50Hz, duty class M5/A5. Ambient temperature range is 0°C to +40°C. Note: crane gross weight does not include grab weight; lifting weight includes grab weight.
Project & Technical Overview
- Equipment Type: Double Girder Grab Crane (QZ Type)
- Product Model: QZ 10t-25.5m-25m A5
- PDF Drawing File:QZ 10t-25.5m-25m A5 Double Girder Grab Crane Drawing 10t Capacity 25.5m Span 25m Lift Four Rope Grab 1.5m³ Finished Coal 4.5t/m³ Cabin Control 3P 400V 50Hz
- Application: Finished Coal Handling
- Site: Ambient Temperature 0°C to +40°C
- Duty Class: M5 (ISO A5)
- Lifting Capacity: 10.0 t (10,000 kg) — excluding grab weight; lifting weight includes grab weight
- Crane Span: 25.5 m (25,500 ± 4.5 mm)
- Lifting Height: 25.0 m (25,000 mm)
- Trolley Gauge: 2.5 m (2,500 mm)
- Trolley Overall Width: 7074 mm
- Trolley Wheel Base: 5150 mm
- Grab Model: Four Rope Grab Bucket
- Grab Capacity: 1.5 m³
- Material Density: ~4.5 t/m³ (Finished Coal)
- Lifting Speed: 40.7 m/min
- Trolley Traveling Speed: 45.6 m/min
- Crane Traveling Speed: 89.1 m/min
- Control Mode: Cabin Control
- Power Supply: 3P 400V 50Hz
Main Technical Parameters
| Technical Parameter | Specification |
|---|---|
| Duty Class | M5 (ISO A5) |
| Lifting Capacity | 10.0 t (10,000 kg) — excluding grab weight; lifting weight includes grab weight |
| Crane Span | 25.5 m (25,500 ± 4.5 mm) |
| Lifting Height | 25.0 m (25,000 mm) |
| Trolley Gauge | 2.5 m (2,500 mm) |
| Trolley Overall Width | 7074 mm |
| Trolley Wheel Base | 5150 mm |
| Lifting Speed | 40.7 m/min |
| Trolley Traveling Speed | 45.6 m/min |
| Crane Traveling Speed | 89.1 m/min |
| Lifting Motor Power | 2 × 37 kW (YZR280S-10) |
| Trolley Traveling Motor Power | 5.5 kW (YZR160M1-6) |
| Crane Traveling Motor Power | 2 × 11 kW (YZR160L-6) |
| Type of Rail | Trolley: P24 / Crane: P43 |
| Max. Wheel Load | 173.8 kN |
| Grab Model | Four Rope Grab Bucket |
| Grab Capacity | 1.5 m³ |
| Material Density | ~4.5 t/m³ (Finished Coal) |
| Control Method | Cabin Control |
| Power Supply & Voltage | 3P 400V 50Hz |
| Ambient Temperature | 0°C to +40°C |
Lifting & Switching Mechanism Parameters
| Component / Motor Drive | Technical Specification |
|---|---|
| Lifting Capacity | 10 t |
| Working Duty | M5 |
| Lifting Speed | 40.7 m/min |
| Lifting Motor Power | 2 × 37 kW (YZR280S-10) |
| Lifting Height | 25 m |
| Switching Mechanism | Four-rope grab switching |
| Power Supply | 400V 50Hz 3P |
Trolley & Crane Traveling Technical Parameters
| Component / Motor Drive | Technical Specification |
|---|---|
| Trolley Traveling Speed | 45.6 m/min |
| Trolley Traveling Motor Power | 5.5 kW (YZR160M1-6) |
| Trolley Working Duty | M5 |
| Trolley Rail Type | P24 |
| Crane Traveling Speed | 89.1 m/min |
| Crane Traveling Motor Power | 2 × 11 kW (YZR160L-6) |
| Crane Working Duty | M5 |
| Crane Rail Type | P43 |
| Max. Wheel Load | 173.8 kN |
| Power Supply | 400V 50Hz 3P |
Summary of Key Parameters
| Parameter | Value |
|---|---|
| Rated Lifting Capacity | 10 t (excluding grab weight) |
| Span | 25.5 m |
| Lifting Height | 25 m |
| Trolley Gauge | 2.5 m |
| Trolley Overall Width | 7074 mm |
| Trolley Wheel Base | 5150 mm |
| Lifting Speed | 40.7 m/min |
| Trolley Traveling Speed | 45.6 m/min |
| Crane Traveling Speed | 89.1 m/min |
| Lifting Motor Power | 2 × 37 kW |
| Trolley Traveling Motor Power | 5.5 kW |
| Crane Traveling Motor Power | 2 × 11 kW |
| Grab Model | Four Rope Grab |
| Grab Capacity | 1.5 m³ |
| Material Density | ~4.5 t/m³ (Finished Coal) |
| Max. Wheel Load | 173.8 kN |
| Power Supply | 3-Phase, 400 V, 50 Hz |
| Ambient Temperature | 0°C to +40°C |

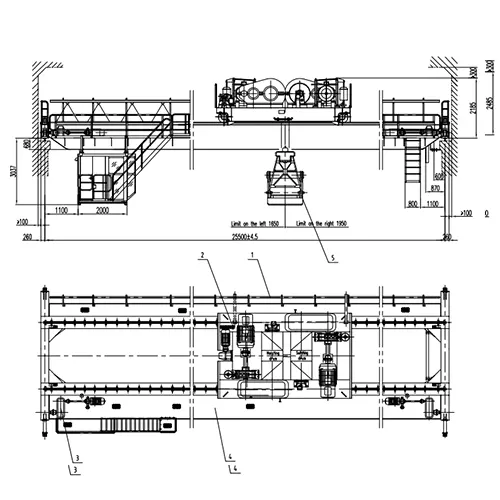

Drawing Views & Structural Information
| View / Item | Description |
|---|---|
| Main View (Left) | Span: 25500 ± 4.5 mm; Lifting height: 25000 mm (25 m); Trolley gauge: 2500 mm; Trolley overall width: 7074 mm; Trolley wheel base: 5150 mm; Grab width: 1900 mm; Limit on left: 1650 mm; Limit on right: 1950 mm; Distance from workshop backspin to crane peak: >300 mm |
| Side View (Right) | Double girder, bridge-type; trolley overall width: 7074 mm; trolley wheel base: 5150 mm; grab opening: 3200 mm; cabin control with platform and ladder; ambient temperature 0°C to +40°C |
| Structure Type | QZ Double Girder Grab Crane; bridge structure; trolley with lifting & switching mechanism and four-rope grab; long travel mechanism; electric system; cabin control with access platform |
| Parts List | 1. Electric system; 2. Trolley; 3. Long travel mechanism; 4. Bridge structure; 5. Four rope grab bucket 1.5m³ (qty 1, weight 4700 kg) |

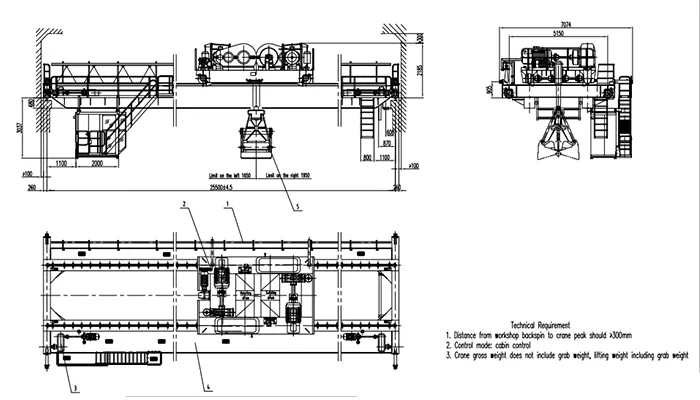

Technical Requirements & Notes
Important Notes:
- Model Designation: The drawing file name is 7. QZ10t-25.5m-25m A5 cabin control equipped with four-rope grab grab volume 1.5 cubic meters material is finished coal 4.5 tons/cubic meter 1 unit.pdf, where "10t" is the lifting capacity, "25.5m" is the span, "25m" is the lifting height, and "A5" is the duty class.
- Workshop Clearance: Distance from workshop backspin to crane peak should be greater than 300 mm.
- Control Mode: Cabin control.
- Weight Definition: Crane gross weight does not include grab weight; lifting weight including grab weight.
- Grab: Four-rope grab bucket, 1.5m³ capacity, unit weight 4700 kg, material density ~4.5 t/m³ (finished coal).
- Ambient Temperature: Designed for operation from 0°C to +40°C.
- ISO M5/A5 Duty Class: Suited to medium-duty handling in general industrial environments.
- Drawings and specifications above are for reference. For customized span, height, speed, or power ratings, contact us for a free engineering evaluation.
- Unauthorized reproduction, distribution, or manufacturing from these drawings without written authorization from Yuantai Crane Machinery is prohibited. Yuantai assumes no liability for unauthorized applications.
How to Get Your Customized Grab Crane
This drawing shows a 10-ton QZ double girder grab crane with 25.5m span, 25m lifting height, four-rope grab, cabin control, and 1.5m³ capacity for finished coal handling. Yuantai Crane builds to your exact structural and regional requirements.
| Customization Step | Detailed Description |
|---|---|
| Step 1: Provide Site Parameters | Share your yard dimensions — lifting capacity (10t), span (25.5m), lifting height (25m), grab capacity and material density, and required travel speeds. |
| Step 2: Free CAD Drawing & Engineering Review | Our engineering team prepares customized general arrangement drawings, wheel load verification, and structural safety layouts at no cost. |
| Step 3: Technical Confirmation | Work with your consultants to lock in grab selection (four-rope), power supply (3P 400V 50Hz), duty class (M5/A5), and control mode (cabin). |
| Step 4: Precision Manufacturing & Global Delivery | Built to ISO and international standards, with Factory Acceptance Testing (FAT) before dispatch to your site. |
