10t-22.5m-30m A6 Double Girder Grab Crane 3m³ Grab

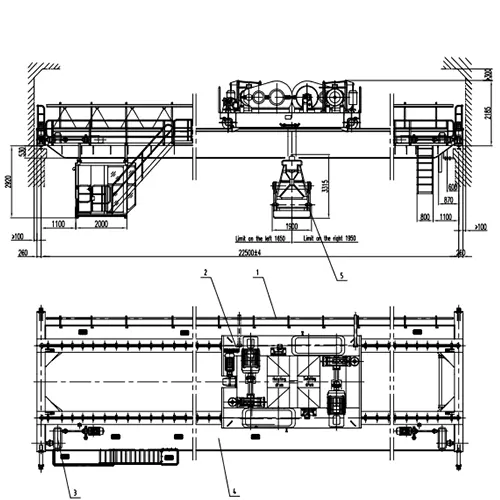

QZ 10t-22.5m-30m A6 double girder grab crane drawing. 10t capacity, 22.5m span, 30m lift, four rope grab 3m³, material density 1.0~2.0t/m³, cabin control, 3P 400V 50Hz. Full specs inside.
Crane Manufacturer: Yuantai Cranes – 30+ Years Professional Crane Manufacturer from China
Category: Grab Bucket Overhead Crane
Tags: GrabBucketOverheadCraneDrawing
Overview:
This drawing covers a 10-ton Double Girder Grab Crane (QZ type) — model QZ 10t-22.5m-30m A6, file name 5. QZ10t-22.5m-30m A6.pdf. It is a double girder, bridge-type crane with a four-rope grab bucket and cabin control. Key dimensions: 22.5m span, 30m max lifting height, 2.0m trolley gauge, 7504mm trolley overall width, 5500mm trolley wheel base. The grab is a U50 four-rope grab bucket, 3m³ capacity, handling material with a density of 1.0~2.0 t/m³. The crane is designed for heavy-duty grab operation with cabin control for precise positioning. Power is 3-phase 400V 50Hz, duty class M6/A6. Note: crane gross weight does not include grab weight; lifting weight includes grab weight.
Project & Technical Overview
- Equipment Type: Double Girder Grab Crane (QZ Type)
- Product Model: QZ 10t-22.5m-30m A6
- PDF Drawing File: QZ 10t-22.5m-30m A6 Double Girder Grab Crane Drawing | Cabin Control, 3m³ Grab
- Duty Class: M6 (ISO A6)
- Lifting Capacity: 10.0 t (10,000 kg) — excluding grab weight; lifting weight includes grab weight
- Crane Span: 22.5 m (22,500 ± 4 mm)
- Max. Lifting Height: 30.0 m (30,000 mm)
- Grab Model: U50 Four Rope Grab Bucket
- Grab Capacity: 3.0 m³
Main Technical Parameters
| Technical Parameter | Specification |
|---|---|
| Duty Class | M6 (ISO A6) |
| Lifting Capacity | 10.0 t (10,000 kg) — excluding grab weight; lifting weight includes grab weight |
| Crane Span | 22.5 m (22,500 ± 4 mm) |
| Max. Lifting Height | 30.0 m (30,000 mm) |
| Trolley Gauge | 2.0 m (2,000 mm) |
| Trolley Overall Width | 7504 mm |
| Trolley Wheel Base | 5500 mm |
| Grab Model | U50 Four Rope Grab Bucket |
| Grab Capacity | 3.0 m³ |
| Material Density | 1.0~2.0 t/m³ |
| Control Method | Cabin Control |
| Power Supply & Voltage | 3P 400V 50Hz |
Lifting & Switching Mechanism Parameters
| Component / Motor Drive | Technical Specification |
|---|---|
| Lifting Capacity | 10 t |
| Working Duty | M6 |
| Lifting Speed | 40.1 m/min |
| Lifting Motor Power | 2 × 22 kW |
| Max. Lifting Height | 30 m |
| Switching Mechanism | Four-rope grab switching |
| Power Supply | 400V 50Hz 3P |
Trolley & Crane Traveling Technical Parameters
| Component / Motor Drive | Technical Specification |
|---|---|
| Trolley Traveling Speed | 29.3 m/min |
| Trolley Traveling Motor Power | 1.5 kW |
| Trolley Working Duty | M6 |
| Trolley Rail Type | P24 |
| Crane Traveling Speed | 29.3 m/min |
| Crane Traveling Motor Power | 2 × 2.2 kW |
| Crane Working Duty | M6 |
| Crane Rail Type | P43 |
| Power Supply | 400V 50Hz 3P |
Summary of Key Parameters
| Parameter | Value |
|---|---|
| Rated Lifting Capacity | 10 t (excluding grab weight) |
| Span | 22.5 m |
| Max. Lifting Height | 30 m |
| Trolley Gauge | 2.0 m |
| Trolley Overall Width | 7504 mm |
| Trolley Wheel Base | 5500 mm |
| Lifting Speed | 40.1 m/min |
| Trolley Traveling Speed | 29.3 m/min |
| Crane Traveling Speed | 29.3 m/min |
| Lifting Motor Power | 2 × 22 kW |
| Trolley Traveling Motor Power | 1.5 kW |
| Crane Traveling Motor Power | 2 × 2.2 kW |
| Grab Model | U50 Four Rope Grab |
| Grab Capacity | 3.0 m³ |
| Material Density | 1.0~2.0 t/m³ |
| Power Supply | 3-Phase, 400 V, 50 Hz |
Drawing Views & Structural Information
| View / Item | Description |
|---|---|

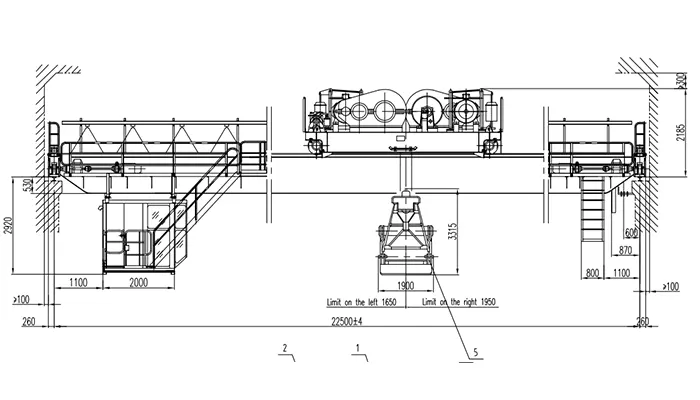

| Main View (Left) | Span: 22500 ± 4 mm; Max. lifting height: 30000 mm (30 m); Trolley gauge: 2000 mm; Trolley overall width: 7504 mm; Trolley wheel base: 5500 mm; Grab width: 1900 mm; Limit on left: 1650 mm; Limit on right: 1950 mm; Distance from workshop backspin to crane peak: >300 mm |
| Side View (Right) | Double girder, bridge-type; trolley overall width: 7504 mm; trolley wheel base: 5500 mm; grab opening: 3200 mm; grab width: 2500 mm; cabin control with platform and ladder |
| Structure Type | QZ Double Girder Grab Crane; bridge structure; trolley with lifting & switching mechanism and four-rope grab; long travel mechanism; electric system; cabin control with access platform |
| Parts List | 1. Electric system; 2. Trolley; 3. Long travel mechanism; 4. Bridge structure; 5. U50 Four rope grab bucket 3m³ (material density 1.0~2.0 t/m³, qty 1, weight 4273 kg) |
Technical Requirements & Notes
Important Notes:
- Model Designation: The drawing file name is 5. QZ10t-22.5m-30m A6.pdf, where "10t" is the lifting capacity, "22.5m" is the span, "30m" is the max lifting height, and "A6" is the duty class.
- Workshop Clearance: Distance from workshop backspin to crane peak should be greater than 300 mm.
- Control Mode: Cabin control.
- Weight Definition: Crane gross weight does not include grab weight; lifting weight including grab weight.
- Grab: U50 four-rope grab bucket, 3m³ capacity, material density 1.0~2.0 t/m³, unit weight 4273 kg.
- ISO M6/A6 Duty Class: Suited to medium-heavy duty handling in demanding industrial environments.
- Drawings and specifications above are for reference. For customized span, height, speed, or power ratings, contact us for a free engineering evaluation.
- Unauthorized reproduction, distribution, or manufacturing from these drawings without written authorization from Yuantai Crane Machinery is prohibited. Yuantai assumes no liability for unauthorized applications.
How to Get Your Customized Grab Crane
This drawing shows a 10-ton QZ double girder grab crane with 22.5m span, 30m max lifting height, U50 four-rope grab, cabin control, and 3m³ capacity. Yuantai Crane builds to your exact structural and regional requirements.
| Customization Step | Detailed Description |
|---|---|
| Step 1: Provide Site Parameters | Share your yard dimensions — lifting capacity (10t), span (22.5m), max lifting height (30m), grab capacity and material density, and required travel speeds. |
| Step 2: Free CAD Drawing & Engineering Review | Our engineering team prepares customized general arrangement drawings, wheel load verification, and structural safety layouts at no cost. |
| Step 3: Technical Confirmation | Work with your consultants to lock in grab selection (U50), power supply (3P 400V 50Hz), duty class (M6/A6), and control mode (cabin). |
| Step 4: Precision Manufacturing & Global Delivery | Built to ISO and international standards, with Factory Acceptance Testing (FAT) before dispatch to your site. |
Frequently Asked Questions (QZ 10t-22.5m-30m A6 Grab Crane Drawing Analysis)
Common technical questions on the 10t capacity, 22.5m span, 30m lifting height, U50 four-rope grab 3m³, material density 1.0~2.0t/m³, and cabin control.
1. What are the advantages of cabin control on this grab crane?
Cabin control provides the operator with a clear view of the grab and the working area, allowing precise control during grab operation. It also protects the operator from harsh outdoor environments and offers a comfortable working position for long shifts.
2. What is the difference between crane gross weight and lifting weight?
Crane gross weight does not include the grab weight — it is the weight of the crane structure itself. Lifting weight includes the grab weight plus the material being lifted. For this crane, the grab unit weight is 4273 kg, and the material density is 1.0~2.0 t/m³.
3. What is the function of the 30m max lifting height?
The 30m max lifting height allows the crane to handle material at significant depths, making it suitable for deep storage pits, large industrial yards, and applications where material needs to be lifted from below ground level or from tall stockpiles.
4. What are the power requirements for this grab crane?
3-phase, 400V, 50Hz. The lifting motors (2 × 22 kW), trolley motor (1.5 kW), and crane travel motors (2 × 2.2 kW) all run on this configuration.
5. What does the model designation "QZ 10t-22.5m-30m A6" mean?
QZ = Double Girder Grab Crane; "10t" = 10-ton capacity; "22.5m" = 22.5-meter span; "30m" = 30-meter max lifting height; "A6" = ISO A6 duty class.
6. What is the U50 grab bucket suitable for?
The U50 four-rope grab bucket with 3m³ capacity and 1.0~2.0 t/m³ material density is suitable for handling bulk materials such as coal, ore, sand, gravel, and other loose materials in industrial yards, ports, and storage facilities. The 4273 kg self-weight provides sufficient penetration force for dense materials.
