Pillar Jib Crane for Workshop Material Handling 3t r7m h3.65m
Heavy-duty pillar jib crane with electric chain hoist for indoor lifting of 3t loads with 7m reach, 3.65m height, 270° rotation and A3 light-duty rating.
Crane Manufacturer: Yuantai Cranes – 30+ Years Professional Crane Manufacturer from China
Category: Pillar Jib Crane Drawings
Tags: 3TonJibCraneDrawing
Overview: 3 Ton Heavy-Duty Pillar Jib Crane for Wide-Reach Indoor Applications

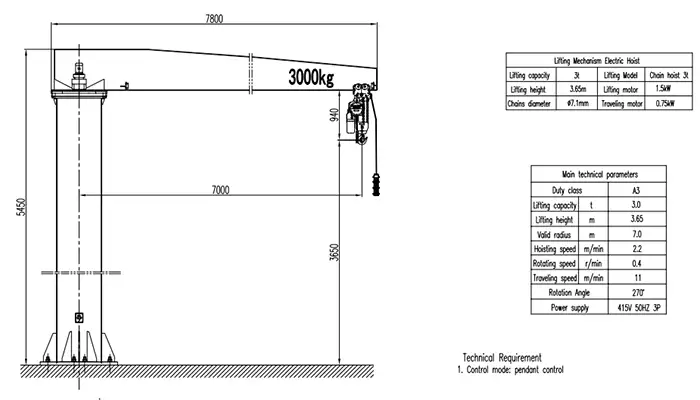

Yuantai Crane BZ 3t Heavy-Duty Pillar Jib Crane Drawing (Valid Radius 7.0m, Total Beam 7.8m, Lifting Height 3.65m, A3 Duty, Electric Chain Hoist, 270° Motorized Rotation)
Engineered and manufactured by Yuantai Cranes, this heavy-duty 3 Ton BZ Pillar Jib Crane (Model: BZ3t-7m) is designed for indoor material handling requiring extended reach—such as covering multiple workstations, loading and unloading across large work areas, and handling components in wide workshops. Built to A3 light-duty standards, it offers an impressive 7.0m valid radius (7.8m total beam length), a practical 3.65m lifting height, low-headroom 3t electric chain hoist, motorized trolley travel, and 270° motorized rotation.
Who is this crane for? Ideal for:
- Wide workshops requiring coverage of multiple workstations
- Loading and unloading across large work areas
- Facilities needing 3t capacity with extended horizontal reach
- Applications requiring 270° rotation for comprehensive coverage
- Maintenance bays with multiple service positions
Project & Technical Overview
- Equipment Type: Heavy-Duty Pillar Jib Crane (Electric Chain Hoist)
- Model Number: BZ3t-7m A3
- Drawing PDF File: 3t Heavy-Duty Pillar Jib Crane Drawing (Valid Radius 7.0m, Total Beam 7.8m, Lifting Height 3.65m, A3 Duty, Electric Chain Hoist, 270° Motorized Rotation)
- Crane Manufacturer: Yuantai Cranes
- Duty Class: A3 (Light Duty / FEM 1Bm / ISO M3)
- Control Method: Pendant control
- Lifting Mechanism: 3t Electric Chain Hoist (Chain Diameter Ø7.1mm)
- Application Target: Indoor wide-reach handling of 3t loads across multiple workstations
- Key Dimensions: Total Height 5.45m, Lifting Height 3.65m, Valid Radius 7.0m, Total Beam Length 7.8m, Hoist Headroom 940mm
- Rotation Angle: 270° (Motorized Electric Rotation)
Buyer Note: This crane is specifically designed for workshops where extended reach is required. With 7.0m valid radius and 270° rotation, it covers a large circular work area, making it ideal for wide workshops with multiple service positions.
Main Technical Parameters
| Technical Parameter | Specification |
|---|---|
| Duty Class | A3 (Light Duty) |
| Lifting Capacity | 3.0 t (3000 kg) |
| Total Crane Height | 5450 mm (5.45 m) |
| Lifting Height | 3.65 m (3650 mm) |
| Valid Radius (Center to Hook) | 7.0 m (7000 mm) |
| Total Beam Length | 7800 mm (7.8 m) |
| Hoisting Speed | 2.2 m/min |
| Rotating Speed | 0.4 r/min |
| Trolley Traveling Speed | 11 m/min |
| Rotation Angle | 270° (Motorized Electric Rotation) |
| Power Supply | 415V / 50Hz / 3P |
| Hoist Headroom / Clearance | 940 mm |
Lifting Mechanism & Motor Parameters
| Component / Parameter | Specification |
|---|---|
| Lifting Mechanism | Electric Chain Hoist (Model: 3t Chain Hoist) |
| Chain Diameter | Ø7.1 mm |
| Lifting Motor Power | As per configuration |
| Traveling Motor Power | As per configuration |
| Control Voltage | 24V / 36V Safety Voltage |
Technical Requirement
Note:
- Control Mode: Pendant control with 24V/36V safety voltage.
- Extended Reach Note: With 7.0m valid radius, this crane is ideal for wide workshops. Ensure the jib arm is properly balanced and the rotation mechanism is regularly inspected.
- Foundation Requirement: Due to the long 7.8m beam and 3t capacity at 7.0m radius, a heavily reinforced concrete foundation (min. C30) with high-strength anchor bolts is strictly required.
- Rotation Limit: Designed for 270° rotation. For 120°/180°/360° coverage, contact us for a customized configuration.
- The drawing and technical data shown above are for reference only. For particular projects or customized dimensions, please contact us for a free consultation.
- Depending on complex site conditions or specialized customization engineering, a design fee/price may apply. Contact the Yuantai Crane engineering team for detailed technical proposals.
- Unauthorized use, copying, or manufacturing based on this drawing without formal authorization from Yuantai Crane Machinery is strictly prohibited. Yuantai Crane assumes no liability or legal responsibility for any consequences arising from unauthorized usage.
Key Facts About BZ3t-7m Heavy-Duty Pillar Jib Crane
The six most valuable FAQs for buyers — covering what this crane is, how to read its model number, its key lifting specifications, duty class, power & control options, and why it is ideal for wide-reach indoor material handling.
1. What is this crane and what is it designed for?
This is a BZ3t-7m Heavy-Duty Pillar Jib Crane with a 3-ton lifting capacity, designed for indoor wide-reach material handling in large workshops. It is specifically configured for covering multiple workstations, loading and unloading across large work areas, and handling components with extended horizontal reach.
Ideal applications: wide workshops, multiple service positions, large work area coverage, and facilities needing 3t capacity with extended reach.
2. What does "BZ3t-7m" mean in the model number?
- BZ = BZ series jib crane (column-mounted slewing jib)
- 3t = Maximum lifting capacity of 3.0 metric tons
- 7m = Valid working radius of 7,000 mm (7 meters)
The total beam length is 7.8 meters (7800 mm), with a valid working radius of 7.0 meters (7000 mm) from the pivot center to the hoist hook. This means the crane can lift 3 tons at a maximum distance of 7.0 meters from the column center.
3. What are the key lifting specifications?
| Lifting Capacity | 3.0 t |
| Lifting Height | 3.65 m |
| Valid Radius | 7.0 m |
| Total Beam Length | 7.8 m |
| Hoisting Speed | 2.2 m/min |
| Rotation Angle | 270° |
| Rotation Speed | 0.4 r/min |
| Traveling Speed | 11 m/min |
| Duty Class | A3 |
| Hoist Model | 3t Chain Hoist (Ø7.1mm chain) |
| Total Height | 5.45 m |
| Hoist Headroom | 940 mm |
Buyer Tip: If your lifting height exceeds 3.65m or you need a larger working radius, Yuantai can customize the column height and beam length to suit your specific workshop layout.
4. What is the duty class A3 and what does it mean for my application?
The duty class is A3 (FEM/ISO classification), which means:
- Light duty cycle — suitable for occasional use
- Rated for up to 500–1,000 hours of operation per year
- Ideal for workshops, wide-bay facilities, and occasional lifting applications
- Perfectly matched to the occasional nature of wide-reach material handling
What does this mean for you? If your workshop requires occasional lifting with low frequency, A3 is the right duty class. For regular daily operations, consider A4 or A5 duty cranes.
5. What power supply and control options does this crane require?
Power Supply:
- Crane: 415V / 50Hz / 3-Phase
- Lifting Motor: As per configuration
- Traveling Motor: As per configuration
Control Modes:
- Pendant control — wired handheld controller with 24V/36V safety voltage
Buyer Note: Pre-configured for 415V/50Hz 3-phase power. If your facility uses a different voltage (e.g., 220V, 380V, 440V, 480V, or 60Hz), please inform us during inquiry for customization.
6. Why is this crane suitable for wide-reach indoor material handling?
- 3t capacity — handles heavy workshop components
- 7.0m working radius — exceptional horizontal reach for wide workshops
- 270° rotation — comprehensive coverage of work area
- Motorized trolley travel — enables efficient movement along the jib arm
- A3 duty class — matches the occasional nature of wide-reach work
- Pendant control — simple, reliable operation with good visibility
- Single chain hoist — reliable and easy to maintain
- Compact height design — only 5.45m total height, ideal for standard workshops
- Indoor use — protected from harsh environments
Why buyers choose this model: It offers the perfect balance of lifting capacity, extended horizontal reach, and comprehensive rotation for wide workshops where multiple workstations need to be covered from a single column.
How to Get Your Customized Yuantai Jib Crane
This drawing serves as a standard technical reference. Since every workshop layout and lifting requirement is unique, Yuantai Crane customizes every system to fit your exact building specifications.
| Process Step | Details |
|---|---|
| Step 1: Share Your Site Parameters | Provide us with your required capacity, valid radius / arm length, lifting height, rotation angle, and power supply. |
| Step 2: Free CAD Drawing & Proposal | Our engineering team will design a tailored general layout drawing and precise technical proposal for free. |
| Step 3: Commercial & Technical Confirmation | We fine-tune the motor power, rotation speed, control methods, and foundation specs based on your operational environment. |
| Step 4: Manufacturing & Worldwide Delivery | Your crane will be manufactured under strict quality control, with full FAT inspection and delivery to your site. |
Need a Customized Drawing & Quote for Your Plant?
Send us your workshop dimensions today. Yuantai technical consultants will provide a free CAD drawing and tailored price quote within 24 hours.
Yuantai Heavy-Duty Pillar Jib Crane Solution
Yuantai Cranes provides customized BZ-Series of heavy-duty pillar jib crane solutions for wide workshops, multiple workstations, and large work area coverage. Each jib crane is configured according to the required capacity, valid radius, lifting height, rotation angle, duty class, building conditions, and operating environment.
Typical Technical Specifications:
- Capacity: 0.5–10 ton (This Model: 3.0 t)
- Valid Radius / Arm Length: 2–12 m (This Model: 7.0 m valid radius / 7.8 m total beam)
- Lifting Height: Customized according to application (This Model: 3.65 m / 5.45 m total height)
- Rotation Angle: 120° / 180° / 270° / 360° (This Model: 270° Motorized)
- Duty Class: A3–A5 (This Model: A3 Light Duty)
- Hoist Type: Electric Chain Hoist (This Model: 3t Chain Hoist, Ø7.1mm chain, 940mm headroom)
- Hoisting Speed: 2.2 m/min
- Rotating Speed: 0.4 r/min
- Traveling Speed: 11 m/min
- Control Method: Pendant Control
- Power Supply: 380/415V, 50/60Hz, 3Ph (This Model: 415V 50Hz 3P)
- Applications: Wide workshop material handling, multiple workstation coverage, large work area lifting, and general indoor material handling
Yuantai provides engineering, manufacturing, inspection and testing, delivery, installation and after-sales support for complete pillar jib crane projects.
Engineering Support & Workshop Adaptability
Handling 3-ton loads across a 7-meter radius with 270° rotation? This technical drawing illustrates how Yuantai Crane customizes A3 light-duty heavy pillar jib cranes with electric chain hoists to optimize wide workshop productivity.
| Customer Challenge & Working Condition | Yuantai Customized Engineering Solution | Reference Parameters (Based on Drawing) |
|---|---|---|
| Extended horizontal reach required Covering multiple workstations across a wide workshop. | Long jib arm with 7.0m valid radius and 270° rotation covers a large circular work area from a single column. | Valid Radius: 7.0m | Total Beam: 7.8m | Rotation: 270° |
| Occasional wide-reach operations Intermittent lifting across large work areas. | A3 light-duty structural design optimized for occasional use with reliable 3-ton capacity at 7-meter radius. | Capacity: 3.0t | Valid Radius: 7.0m | Duty Class: A3 |
| Standard workshop height Fitting a wide-reach crane in a standard-height workshop. | Compact height design with 5.45m total height and 940mm hoist headroom fits standard workshops while providing 3.65m lifting height. | Total Height: 5.45m | Lifting Height: 3.65m | Hoist Headroom: 940mm |
How to Evaluate If This Solution Fits Your Facility
- Height & Overhead Clearance: Ensure workshop clear height is at least 5.65 meters (total crane height is 5.45m).
- Radius Coverage Check: Offers a 270° coverage area across a 14-meter diameter working sector, serving multiple workstations.
- Foundation Rigidity: Due to the long 7.8m beam and 3t capacity at 7.0m radius, a heavily reinforced concrete foundation (min. C30) with high-strength anchor bolts is strictly required.
- Power Supply Compatibility: Pre-configured for 415V / 50Hz / 3P electrical supply (customizable to match your local plant voltage).
- Rotation Requirement: This model offers 270° rotation. If you need 120°, 180°, or 360° coverage, please specify during inquiry.
Unsure If This Layout Fits Your Plant?
Send us your site dimensions (Available Height, Rotation Radius, and Capacity requirements). Yuantai technical consultants will provide a FREE custom CAD layout drawing and proposal within 24 hours.
