Pillar Jib Crane for Workshop Material Handling 3t r5.2m h8m
Tall pillar jib crane with electric chain hoist for indoor lifting of 3t loads with 5.2m reach, 8m height, 180° rotation and A3 light-duty rating.
Crane Manufacturer: Yuantai Cranes – 30+ Years Professional Crane Manufacturer from China
Category: Pillar Jib Crane Drawings
Tags: 3TonJibCraneDrawing
Overview: 3 Ton Tall Pillar Jib Crane for High-Lift Indoor Applications

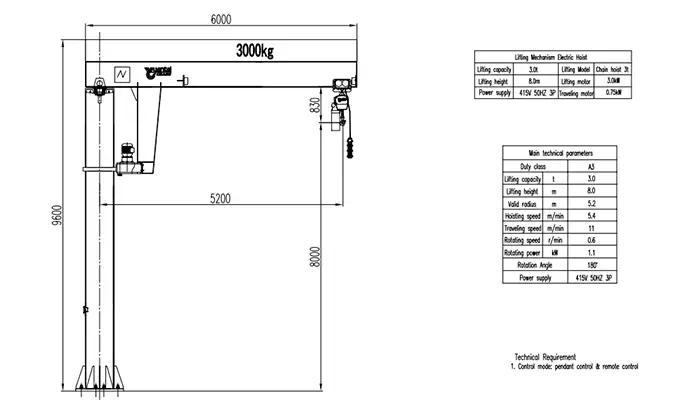

Yuantai Crane BZ 3t Tall Pillar Jib Crane Drawing (Valid Radius 5.2m, Total Beam 6.0m, Lifting Height 8.0m, A3 Duty, Electric Chain Hoist, 180° Motorized Rotation)
Engineered and manufactured by Yuantai Cranes, this tall 3 Ton BZ Pillar Jib Crane (Model: BZ3t-6m) is designed for indoor material handling requiring high lifting height—such as loading tall machinery, servicing elevated equipment, and handling components in high-bay workshops. Built to A3 light-duty standards, it offers a practical 5.2m valid radius (6.0m total beam length), an impressive 8.0m lifting height, low-headroom 3t electric chain hoist, motorized trolley travel, and 180° motorized rotation.
Who is this crane for? Ideal for:
- High-bay workshops requiring lifting to 8 meters
- Loading and unloading tall machinery and equipment
- Maintenance of elevated equipment and overhead installations
- Facilities with tall ceilings but limited floor space
- Applications needing 3t capacity with extended vertical reach
Project & Technical Overview
- Equipment Type: Tall Pillar Jib Crane (Electric Chain Hoist)
- Model Number: BZ3t-6m A3
- Drawing PDF File: 3t Tall Pillar Jib Crane Drawing (Valid Radius 5.2m, Total Beam 6.0m, Lifting Height 8.0m, A3 Duty, Electric Chain Hoist, 180° Motorized Rotation)
- Crane Manufacturer: Yuantai Cranes
- Duty Class: A3 (Light Duty / FEM 1Bm / ISO M3)
- Control Method: Pendant control & remote control
- Lifting Mechanism: 3t Electric Chain Hoist (Single Chain)
- Application Target: Indoor high-lift handling of 3t loads in tall workshops
- Key Dimensions: Total Height 9.6m, Lifting Height 8.0m, Valid Radius 5.2m, Total Beam Length 6.0m, Hoist Headroom 830mm
- Rotation Angle: 180° (Motorized Electric Rotation)
- Rotation Motor Power: 1.1 kW (factory actual)
Buyer Note: This crane is specifically designed for workshops with tall ceilings and a need for high lifting. With 8.0m lifting height and 9.6m total height, it provides exceptional vertical reach while maintaining a compact 5.2m working radius.
Main Technical Parameters
| Technical Parameter | Specification |
|---|---|
| Duty Class | A3 (Light Duty) |
| Lifting Capacity | 3.0 t (3000 kg) |
| Total Crane Height | 9600 mm (9.6 m) |
| Lifting Height | 8.0 m (8000 mm) |
| Valid Radius (Center to Hook) | 5.2 m (5200 mm) |
| Total Beam Length | 6000 mm (6.0 m) |
| Hoisting Speed | As per configuration |
| Trolley Traveling Speed | As per configuration |
| Rotating Speed | As per configuration |
| Rotation Angle | 180° (Motorized Electric Rotation) |
| Rotation Motor Power | 1.1 kW (Factory Actual) |
| Power Supply | 415V / 50Hz / 3P |
| Hoist Headroom / Clearance | 830 mm |
Lifting Mechanism & Motor Parameters
| Component / Parameter | Specification |
|---|---|
| Lifting Mechanism | Electric Chain Hoist (Model: 3t Chain Hoist, Single Chain) |
| Lifting Motor Power | 3.0 kW |
| Traveling Motor Power | 0.75 kW |
| Rotation Motor Power | 1.1 kW |
| Control Voltage | 24V / 36V Safety Voltage |
Technical Requirement
Note:
- Control Mode: Pendant control & remote control.
- High-Lift Note: With 8.0m lifting height, this crane is ideal for high-bay workshops. Ensure the hoist chain is properly maintained and inspected regularly for safe operation at extended heights.
- Foundation Requirement: Due to the tall 9.6m column and 3t capacity at 5.2m radius, a heavily reinforced concrete foundation (min. C30) with high-strength anchor bolts is strictly required.
- Rotation Limit: Designed for 180° rotation. For 120°/270°/360° coverage, contact us for a customized configuration.
- Rotation Motor Note: Factory actual rotation motor power is 1.1 kW.
- The drawing and technical data shown above are for reference only. For particular projects or customized dimensions, please contact us for a free consultation.
- Depending on complex site conditions or specialized customization engineering, a design fee/price may apply. Contact the Yuantai Crane engineering team for detailed technical proposals.
- Unauthorized use, copying, or manufacturing based on this drawing without formal authorization from Yuantai Crane Machinery is strictly prohibited. Yuantai Crane assumes no liability or legal responsibility for any consequences arising from unauthorized usage.
Key Facts About BZ3t-6m Tall Pillar Jib Crane
The six most valuable FAQs for buyers — covering what this crane is, how to read its model number, its key lifting specifications, duty class, power & control options, and why it is ideal for high-lift indoor material handling.
1. What is this crane and what is it designed for?
This is a BZ3t-6m Tall Pillar Jib Crane with a 3-ton lifting capacity, designed for indoor high-lift material handling in tall workshops. It is specifically configured for applications requiring lifting to 8 meters, such as loading tall machinery, servicing elevated equipment, and handling components in high-bay facilities.
Ideal applications: high-bay workshops, tall machinery loading, elevated equipment maintenance, and facilities needing 3t capacity with extended vertical reach.
2. What does "BZ3t-6m" mean in the model number?
- BZ = BZ series jib crane (column-mounted slewing jib)
- 3t = Maximum lifting capacity of 3.0 metric tons
- 6m = Total beam length of 6,000 mm (6 meters)
The valid working radius is 5.2 meters (5200 mm) from the pivot center to the hoist hook. This means the crane can lift 3 tons at a maximum distance of 5.2 meters from the column center.
3. What are the key lifting specifications?
| Lifting Capacity | 3.0 t |
| Lifting Height | 8.0 m |
| Valid Radius | 5.2 m |
| Total Beam Length | 6.0 m |
| Rotation Angle | 180° |
| Rotation Motor Power | 1.1 kW |
| Duty Class | A3 |
| Hoist Model | 3t Chain Hoist (Single Chain) |
| Total Height | 9.6 m |
| Hoist Headroom | 830 mm |
Buyer Tip: If your lifting height exceeds 8.0m or you need a larger working radius, Yuantai can customize the column height and beam length to suit your specific workshop layout.
4. What is the duty class A3 and what does it mean for my application?
The duty class is A3 (FEM/ISO classification), which means:
- Light duty cycle — suitable for occasional use
- Rated for up to 500–1,000 hours of operation per year
- Ideal for workshops, high-bay facilities, and occasional lifting applications
- Perfectly matched to the occasional nature of high-lift material handling
What does this mean for you? If your workshop requires occasional lifting with low frequency, A3 is the right duty class. For regular daily operations, consider A4 or A5 duty cranes.
5. What power supply and control options does this crane require?
Power Supply:
- Crane: 415V / 50Hz / 3-Phase
- Lifting Motor: 3.0 kW
- Traveling Motor: 0.75 kW
- Rotation Motor: 1.1 kW
Control Modes:
- Pendant control — wired handheld controller
- Remote control — wireless operation
Buyer Note: Pre-configured for 415V/50Hz 3-phase power. If your facility uses a different voltage (e.g., 220V, 380V, 440V, 480V, or 60Hz), please inform us during inquiry for customization.
6. Why is this crane suitable for high-lift indoor material handling?
- 3t capacity — handles heavy workshop components
- 8.0m lifting height — exceptional vertical reach for high-bay workshops
- 180° rotation — positions loads over work areas and assembly stations
- 5.2m working radius — practical coverage from a single column
- A3 duty class — matches the occasional nature of high-lift work
- Pendant + remote control — operator can work from safe distance with good visibility
- Single chain hoist — reliable and easy to maintain
- Tall column design — 9.6m total height for maximum vertical reach
- Indoor use — protected from harsh environments
Why buyers choose this model: It offers the perfect balance of lifting capacity, extended vertical reach, and compact radius for tall workshops where high lifting is required but floor space is limited.
How to Get Your Customized Yuantai Jib Crane
This drawing serves as a standard technical reference. Since every workshop layout and lifting requirement is unique, Yuantai Crane customizes every system to fit your exact building specifications.
| Process Step | Details |
|---|---|
| Step 1: Share Your Site Parameters | Provide us with your required capacity, valid radius / arm length, lifting height, rotation angle, and power supply. |
| Step 2: Free CAD Drawing & Proposal | Our engineering team will design a tailored general layout drawing and precise technical proposal for free. |
| Step 3: Commercial & Technical Confirmation | We fine-tune the motor power, rotation speed, control methods, and foundation specs based on your operational environment. |
| Step 4: Manufacturing & Worldwide Delivery | Your crane will be manufactured under strict quality control, with full FAT inspection and delivery to your site. |
Need a Customized Drawing & Quote for Your Plant?
Send us your workshop dimensions today. Yuantai technical consultants will provide a free CAD drawing and tailored price quote within 24 hours.
Yuantai Tall Pillar Jib Crane Solution
Yuantai Cranes provides customized BZ-Series of tall pillar jib crane solutions for high-bay workshops, tall machinery loading, and elevated equipment maintenance. Each jib crane is configured according to the required capacity, valid radius, lifting height, rotation angle, duty class, building conditions, and operating environment.
Typical Technical Specifications:
- Capacity: 0.5–10 ton (This Model: 3.0 t)
- Valid Radius / Arm Length: 2–8 m (This Model: 5.2 m valid radius / 6.0 m total beam)
- Lifting Height: Customized according to application (This Model: 8.0 m / 9.6 m total height)
- Rotation Angle: 120° / 180° / 270° / 360° (This Model: 180° Motorized)
- Duty Class: A3–A5 (This Model: A3 Light Duty)
- Hoist Type: Electric Chain Hoist (This Model: 3t Chain Hoist, Single Chain, 830mm headroom)
- Rotation Motor Power: 1.1 kW
- Control Method: Pendant Control & Remote Control
- Power Supply: 380/415V, 50/60Hz, 3Ph (This Model: 415V 50Hz 3P)
- Lifting Motor Power: 3.0 kW
- Applications: High-bay material handling, tall machinery loading, elevated equipment maintenance, and general indoor lifting
Yuantai provides engineering, manufacturing, inspection and testing, delivery, installation and after-sales support for complete pillar jib crane projects.
Engineering Support & Workshop Adaptability
Handling 3-ton loads to 8 meters height across a practical 5.2-meter radius? This technical drawing illustrates how Yuantai Crane customizes A3 light-duty tall pillar jib cranes with electric chain hoists to optimize indoor high-bay workshop productivity.
| Customer Challenge & Working Condition | Yuantai Customized Engineering Solution | Reference Parameters (Based on Drawing) |
|---|---|---|
| High lifting height requirement Needing to lift 3t loads to 8 meters in a tall workshop. | Tall pillar design with 9.6m total height and 8.0m lifting height, providing exceptional vertical reach. | Total Height: 9.6m | Lifting Height: 8.0m | Hoist Headroom: 830mm |
| Occasional high-lift operations Intermittent lifting of tall machinery and elevated equipment. | A3 light-duty structural design optimized for occasional use with reliable 3-ton capacity at 5.2-meter radius. | Capacity: 3.0t | Valid Radius: 5.2m | Duty Class: A3 |
| Compact radius in tall workshop Covering work area without occupying excessive floor space. | 6.0m total beam with 5.2m valid radius provides practical coverage while maintaining compact footprint. | Total Beam: 6.0m | Valid Radius: 5.2m | Rotation: 180° |
How to Evaluate If This Solution Fits Your Facility
- Height & Overhead Clearance: Ensure workshop clear height is at least 9.8 meters (total crane height is 9.6m).
- Radius Coverage Check: Offers a 180° coverage area across a 10.4-meter diameter working sector, serving high-bay workstations.
- Foundation Rigidity: Due to the tall 9.6m column and 3t capacity at 5.2m radius, a heavily reinforced concrete foundation (min. C30) with high-strength anchor bolts is strictly required.
- Power Supply Compatibility: Pre-configured for 415V / 50Hz / 3P electrical supply (customizable to match your local plant voltage).
- Rotation Requirement: This model offers 180° rotation. If you need 120°, 270°, or 360° coverage, please specify during inquiry.
Unsure If This Layout Fits Your Plant?
Send us your site dimensions (Available Height, Rotation Radius, and Capacity requirements). Yuantai technical consultants will provide a FREE custom CAD layout drawing and proposal within 24 hours.
