5t-32m-16m Double Girder Grab Crane | Full VFD, 2.5m³ Grab
QZ 5t-32m-16m A8 double girder grab crane drawing. 5t capacity, 32m span, 16m lift, four rope grab 2.5m³, bulk material density 1.1t/m³, full VFD, remote control, 2 units. Full specs inside.
Crane Manufacturer: Yuantai Cranes – 30+ Years Professional Crane Manufacturer from China
Category: Grab Bucket Overhead Crane
Tags: GrabBucketOverheadCraneDrawing,grabcrane
Overview:
This drawing covers a 5-ton Double Girder Grab Crane (QZ type) — model QZ 5t-32m-16m A8, file name 3. QZ5t-32m-16m A8 cabin control full VFD equipped with 2.5m³ four-rope double flap grab for bulk material handling material density 1.1t/m³ 2 units.pdf. It is a double girder, bridge-type crane with a four-rope double flap grab bucket and full VFD (variable frequency drive) on all motions. This order covers 2 units. Key dimensions: 32m span, 16m max lifting height, 2.0m trolley gauge. The grab is a four-rope double flap grab, 2.5m³ capacity, handling bulk material with a density of ~1.1 t/m³. Power is 3-phase 400V 50Hz, duty class M8/A8. Control is via remote. Note: crane gross weight does not include grab weight; lifting weight includes grab weight.
Project & Technical Overview
- Equipment Type: Double Girder Grab Crane (QZ Type)
- Product Model: QZ 5t-32m-16m A8
- Drawing File: QZ5t-32m-16m A8 cabin control full VFD equipped with 2.5m³ four-rope double flap grab for bulk material handling material density 1.1t/m³
- Quantity: 2 Units
- Duty Class: M8 (ISO A8)
- Lifting Capacity: 5.0 t (5,000 kg) — excluding grab weight; lifting weight includes grab weight
- Crane Span: 32.0 m (32,000 ± 5 mm)
- Max. Lifting Height: 16.0 m (16,000 mm)
- Grab Model: Four Rope Double Flap Grab Bucket
- Grab Capacity: 2.5 m³
Main Technical Parameters
| Technical Parameter | Specification |
|---|---|
| Duty Class | M8 (ISO A8) |
| Lifting Capacity | 5.0 t (5,000 kg) — excluding grab weight; lifting weight includes grab weight |
| Crane Span | 32.0 m (32,000 ± 5 mm) |
| Max. Lifting Height | 16.0 m (16,000 mm) |
| Trolley Gauge | 2.0 m (2,000 mm) |
| Grab Model | Four Rope Double Flap Grab Bucket |
| Grab Capacity | 2.5 m³ |
| Material Density | ~1.1 t/m³ (bulk material) |
| Control Method | Remote Control |
| Control System | Full VFD (Variable Frequency Drive) |
| Power Supply & Voltage | 3P 400V 50Hz |
| Quantity | 2 Units |
Lifting & Switching Mechanism Parameters
| Component / Motor Drive | Technical Specification |
|---|---|
| Lifting Capacity | 5 t |
| Working Duty | M8 |
| Lifting Speed | 40.1 m/min |
| Lifting Motor Power | 2 × 22 kW |
| Max. Lifting Height | 16 m |
| Switching Mechanism | Four-rope grab switching |
| Control System | Full VFD |
| Power Supply | 400V 50Hz 3P |
Trolley & Crane Traveling Technical Parameters
| Component / Motor Drive | Technical Specification |
|---|---|
| Trolley Traveling Speed | 29.3 m/min |
| Trolley Traveling Motor Power | 1.5 kW |
| Trolley Working Duty | M8 |
| Trolley Rail Type | P18 |
| Crane Traveling Speed | 29.3 m/min |
| Crane Traveling Motor Power | 2 × 2.2 kW |
| Crane Working Duty | M8 |
| Control System | Full VFD |
| Power Supply | 400V 50Hz 3P |
Summary of Key Parameters
| Parameter | Value |
|---|---|
| Rated Lifting Capacity | 5 t (excluding grab weight) |
| Span | 32 m |
| Max. Lifting Height | 16 m |
| Trolley Gauge | 2.0 m |
| Lifting & Switching Speed | 40.1 m/min |
| Trolley Traveling Speed | 29.3 m/min |
| Crane Traveling Speed | 29.3 m/min |
| Lifting Motor Power | 2 × 22 kW |
| Trolley Traveling Motor Power | 1.5 kW |
| Crane Traveling Motor Power | 2 × 2.2 kW |
| Grab Model | Four Rope Double Flap Grab |
| Grab Capacity | 2.5 m³ |
| Material Density | ~1.1 t/m³ (bulk material) |
| Control System | Full VFD |
| Power Supply | 3-Phase, 400 V, 50 Hz |
| Quantity | 2 Units |

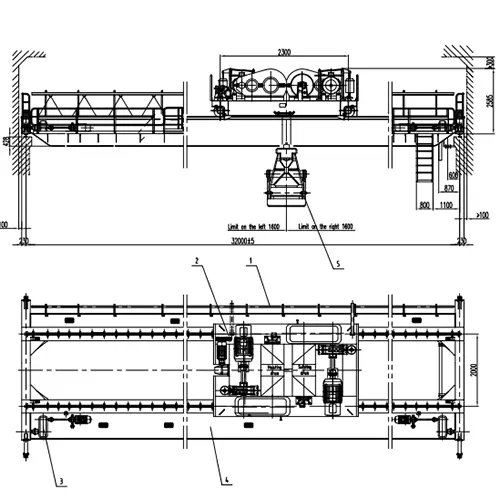

Drawing Views & Structural Information
| View / Item | Description |
|---|---|

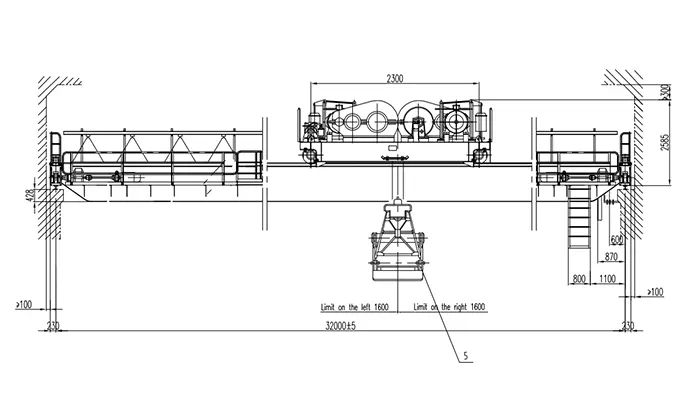

| Main View (Left) | Span: 32000 ± 5 mm; Max. lifting height: 16000 mm (16 m); Trolley gauge: 2000 mm; Trolley overall width: 2300 mm; Limit on left: 1600 mm; Limit on right: 1600 mm; Distance from workshop backspin to crane peak: >300 mm |
| Side View (Right) | Double girder, bridge-type; trolley overall width: 2300 mm; full VFD control; remote control; access platform and ladder |
| Structure Type | QZ Double Girder Grab Crane; bridge structure; trolley with lifting & switching mechanism and four-rope double flap grab; long travel mechanism; electric system; full VFD control; remote control |
| Parts List | 1. Electric system; 2. Trolley; 3. Long travel mechanism; 4. Bridge structure; 5. Four rope grab bucket 2.5m³ (qty 1) |
Technical Requirements & Notes
Important Notes:
- Model Designation: The drawing file name is 3. QZ5t-32m-16m A8 cabin control full VFD equipped with 2.5m³ four-rope double flap grab for bulk material handling material density 1.1t/m³ 2 units.pdf, where "5t" is the lifting capacity, "32m" is the span, "16m" is the max lifting height, "A8" is the duty class, and "2 units" means 2 units.
- Manufactured to GB/T14405: The crane is manufactured according to relevant regulations of GB/T14405.
- Workshop Clearance: Distance from workshop backspin to crane peak should be greater than 300 mm.
- Control Mode: Remote control.
- Weight Definition: Crane gross weight does not include grab weight; lifting weight including grab weight.
- Grab: Four-rope double flap grab bucket, 2.5m³ capacity, bulk material density ~1.1 t/m³.
- Full VFD: All motions — hoisting, trolley travel, and crane travel — use variable frequency drive for smooth, precise control.
- ISO M8/A8 Duty Class: Suited to heavy-duty continuous handling in demanding industrial environments.
- Drawings and specifications above are for reference. For customized span, height, speed, or power ratings, contact us for a free engineering evaluation.
- Unauthorized reproduction, distribution, or manufacturing from these drawings without written authorization from Yuantai Crane Machinery is prohibited. Yuantai assumes no liability for unauthorized applications.
How to Get Your Customized Grab Crane
This drawing shows a 5-ton QZ double girder grab crane with 32m span, 16m max lifting height, 2.5m³ four-rope double flap grab, full VFD, and remote control, designed for bulk material handling. Yuantai Crane builds to your exact structural and regional requirements.
| Customization Step | Detailed Description |
|---|---|
| Step 1: Provide Site Parameters | Share your yard dimensions — lifting capacity (5t), span (32m), max lifting height (16m), grab capacity and material density, and required travel speeds. |
| Step 2: Free CAD Drawing & Engineering Review | Our engineering team prepares customized general arrangement drawings, wheel load verification, and structural safety layouts at no cost. |
| Step 3: Technical Confirmation | Work with your consultants to lock in grab selection (four-rope double flap), power supply (3P 400V 50Hz), duty class (M8/A8), and control mode (remote + full VFD). |
| Step 4: Precision Manufacturing & Global Delivery | Built to GB/T14405 and international standards, with Factory Acceptance Testing (FAT) before dispatch to your site. |
Frequently Asked Questions (QZ 5t-32m-16m A8 Grab Crane Drawing Analysis)
Common technical questions on the 5t capacity, 32m span, 16m lifting height, four-rope double flap grab 2.5m³, full VFD, remote control, and 2-unit order.
1. What are the advantages of full VFD control on this grab crane?
Full VFD (Variable Frequency Drive) on all motions — hoisting, trolley travel, and crane travel — provides smooth acceleration and deceleration, precise grab positioning, reduced mechanical wear, and energy efficiency. This is especially valuable for bulk material handling where precise control and reliability are critical.
2. What is the difference between crane gross weight and lifting weight?
Crane gross weight does not include the grab weight — it is the weight of the crane structure itself. Lifting weight includes the grab weight plus the material being lifted. For this crane, the grab is a 2.5m³ four-rope double flap bucket, and the bulk material density is ~1.1 t/m³.
3. What is the significance of the M8/A8 duty class?
M8 (ISO A8) is a heavy-duty class, suitable for continuous operation with heavy loads and high frequency. This is appropriate for bulk material handling applications where the crane operates intensively throughout the workday.
4. What are the power requirements for this grab crane?
3-phase, 400V, 50Hz. The lifting motors (2 × 22 kW), trolley motor (1.5 kW), and crane travel motors (2 × 2.2 kW) all run on this configuration, with full VFD control on all motions.
5. What does the model designation "QZ 5t-32m-16m A8" mean?
QZ = Double Girder Grab Crane; "5t" = 5-ton capacity; "32m" = 32-meter span; "16m" = 16-meter max lifting height; "A8" = ISO A8 duty class.
6. What is the four-rope double flap grab suitable for?
The four-rope double flap grab bucket with 2.5m³ capacity and ~1.1 t/m³ material density is suitable for handling bulk materials such as coal, grain, sand, gravel, and other loose materials in industrial yards, ports, and storage facilities.
