30 Ton Foundry Crane | 19m Span, 16m Lift, Molten Metal
Review a 30 ton foundry crane for molten metal handling, with 19m span, 16m lift, cabin and remote control, air-conditioned cabin and 130m travel length.
Crane Manufacturer: Yuantai Cranes – 30+ Years Professional Crane Manufacturer from China
Category: Ladle & Foundry Overhead Crane
Tags: ladlecrane,LadleOverheadCraneDrawing
Overview:
This drawing covers a QDY Foundry Crane (Ladle Crane / Metallurgical Crane) — model QDY 30t-19m-16m A7, file name 3. QDY30t-19m-16m A7 cabin control + remote control cabin with air conditioning molten metal handling no main girder travel length 130m 1 unit.pdf. It is a double girder, bridge-type foundry crane designed for molten metal handling. Key features: cabin control + remote control, air-conditioned cabin, and a 130m travel length. Key dimensions: 19m span, 16m lifting height, 2.5m trolley gauge. The crane is designed with a special configuration where the main girder is not required (per customer requirement). Note: distance from workshop backspin to crane peak should be ≥400mm.
Project & Technical Overview
- Equipment Type: Foundry Crane (Ladle Crane / Metallurgical Crane, QDY Type)
- Product Model: QDY 30t-19m-16m A7
- Drawing File: QDY30t-19m-16m A7 cabin control + remote control cabin with air conditioning molten metal handling no main girder travel length 130m
- Application: Molten Metal Handling
- Duty Class: M7 (ISO A7)
- Lifting Capacity: 30.0 t (30,000 kg)
- Crane Span: 19.0 m (19,000 ± 3.5 mm)
- Lifting Height: 16.0 m (16,000 mm)
- Trolley Gauge: 2.5 m (2,500 mm)
- Travel Length: 130 m
- Control Mode: Cabin Control + Remote Control
- Cabin Feature: Air-Conditioned Cabin
- Special Requirement: No Main Girder (per customer requirement)
- Power Supply: 3P 380V 50Hz
- Quantity: 1 Unit
Main Technical Parameters
| Technical Parameter | Specification |
|---|---|
| Duty Class | M7 (ISO A7) |
| Lifting Capacity | 30.0 t (30,000 kg) |
| Crane Span | 19.0 m (19,000 ± 3.5 mm) |
| Lifting Height | 16.0 m (16,000 mm) |
| Trolley Gauge | 2.5 m (2,500 mm) |
| Travel Length | 130 m |
| Control Mode | Cabin Control + Remote Control |
| Cabin Feature | Air-Conditioned Cabin |
| Special Requirement | No Main Girder (per customer requirement) |
| Power Supply & Voltage | 3P 380V 50Hz |
| Quantity | 1 Unit |
Hoist Mechanism Parameters
| Component / Motor Drive | Technical Specification |
|---|---|
| Lifting Capacity | 30 t |
| Working Duty | M7 |
| Lifting Height | 16 m |
| Trolley Gauge | 2500 mm |
| Trolley Type | Open Winch Trolley |
| Power Supply | 380V 50Hz 3P |
Trolley & Crane Traveling Technical Parameters
| Component / Motor Drive | Technical Specification |
|---|---|
| Trolley Traveling Speed | Standard (VFD) |
| Trolley Working Duty | M7 |
| Crane Traveling Speed | Standard (VFD) |
| Crane Working Duty | M7 |
| Travel Length | 130 m |
| Power Supply | 380V 50Hz 3P |
Summary of Key Parameters
| Parameter | Value |
|---|---|
| Rated Lifting Capacity | 30 t |
| Span | 19 m |
| Lifting Height | 16 m |
| Trolley Gauge | 2.5 m |
| Travel Length | 130 m |
| Control Mode | Cabin Control + Remote Control |
| Cabin Feature | Air-Conditioned Cabin |
| Special Requirement | No Main Girder |
| Power Supply | 3-Phase, 380 V, 50 Hz |
| Quantity | 1 Unit |

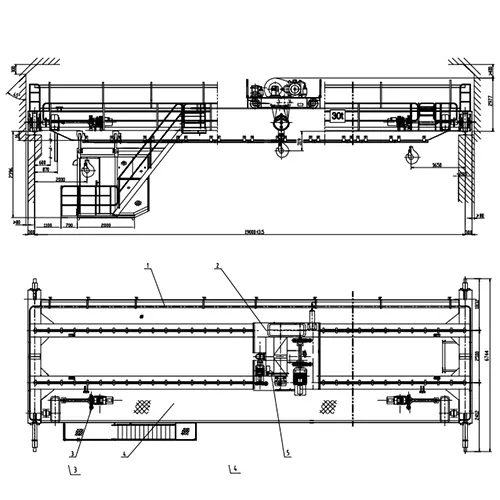

Drawing Views & Structural Information
| View / Item | Description |
|---|---|

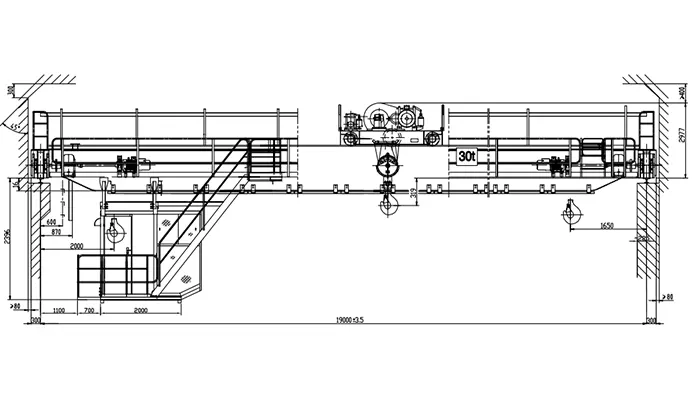

| Main View (Left) | Span: 19000 ± 3.5 mm; Trolley gauge: 2500 mm; Trolley overall width: 4700 mm; Lifting height: 16000 mm (16 m); Main hook limit: 1650 mm; Distance from workshop backspin to crane peak: ≥400 mm; Cabin with air conditioning; Travel length: 130 m |
| Top View (Middle) | Double girder, bridge-type; trolley with open winch hoisting mechanism; long travel mechanism; cabin control + remote control; overall dimensions 6744 mm × 2500 mm |
| Section View (Right) | Open winch trolley with 30t hook; trolley overall width: 4700 mm; wheel base: 1070 mm; long travel mechanism; air-conditioned cabin with access platform and ladder |
| Structure Type | QDY Foundry Crane (Ladle Crane); double girder bridge structure; open winch trolley with 30t hook; long travel mechanism; electric system; cabin control + remote control; air-conditioned cabin; no main girder (per customer requirement) |
| Key Components | 1. Electric system; 2. Trolley (open winch); 3. Long travel mechanism; 4. Bridge structure; 5. Emergency brake |
Technical Requirements & Notes
Important Notes:
- Model Designation: The drawing file name is 3. QDY30t-19m-16m A7 cabin control + remote control cabin with air conditioning molten metal handling no main girder travel length 130m 1 unit.pdf, where "30t" is the lifting capacity, "19m" is the span, "16m" is the lifting height, and "A7" is the duty class.
- Workshop Clearance: Distance from workshop backspin to crane peak should be ≥400 mm.
- Control Mode: Cabin control + remote control.
- Air-Conditioned Cabin: The operator cabin is equipped with air conditioning for comfort in high-temperature foundry environments.
- Special Requirement: No main girder (per customer requirement) — the crane is designed without a traditional main girder configuration.
- Travel Length: 130 m.
- Application: Molten metal handling.
- ISO M7/A7 Duty Class: Suited to heavy-duty handling in demanding foundry environments.
- Quantity: 1 unit.
- Drawings and specifications above are for reference. For customized span, height, speed, or power ratings, contact us for a free engineering evaluation.
- Unauthorized reproduction, distribution, or manufacturing from these drawings without written authorization from Yuantai Crane Machinery is prohibited. Yuantai assumes no liability for unauthorized applications.
How to Get Your Customized Foundry Crane
This drawing shows a 30-ton QDY foundry crane with 19m span, 16m lifting height, cabin control + remote control, air-conditioned cabin, molten metal handling, and 130m travel length. Yuantai Crane builds to your exact structural and regional requirements.
| Customization Step | Detailed Description |
|---|---|
| Step 1: Provide Site Parameters | Share your facility dimensions — lifting capacity (30t), span (19m), lifting height (16m), trolley gauge (2.5m), travel length (130m), and control requirements. |
| Step 2: Free CAD Drawing & Engineering Review | Our engineering team prepares customized general arrangement drawings, wheel load verification, and structural safety layouts at no cost. |
| Step 3: Technical Confirmation | Work with your consultants to lock in trolley type (open winch), control mode (cabin + remote), cabin features (air conditioning), power supply (3P 380V 50Hz), and duty class (M7/A7). |
| Step 4: Precision Manufacturing & Global Delivery | Built to international standards, with Factory Acceptance Testing (FAT) before dispatch to your site. |
Frequently Asked Questions (QDY 30t-19m-16m A7 Foundry Crane Drawing Analysis)
Common technical questions on the 30t capacity, 19m span, 16m lifting height, cabin + remote control, air-conditioned cabin, molten metal handling, and 130m travel length.
1. What is the application of this QDY foundry crane?
This QDY foundry crane is designed for molten metal handling in foundry operations. It is used in steel mills, foundries, and smelting plants where molten metal needs to be transported safely and efficiently. The air-conditioned cabin and dual control mode (cabin + remote) provide flexibility and operator comfort in demanding high-temperature environments.
2. Why is the cabin equipped with air conditioning?
The air-conditioned cabin provides a comfortable working environment for the operator in the extreme heat of molten metal handling. It protects the operator from high ambient temperatures and ensures alertness and safety during long shifts.
3. What does "no main girder" mean in this context?
"No main girder" means the crane is designed without a traditional main girder configuration, as per the customer's specific requirement. This could be due to the facility's structural constraints or a special design approach. The crane still functions as a double girder bridge crane with the trolley and hoisting mechanisms supported by the end carriages and legs.
4. What are the advantages of cabin + remote control?
Cabin control provides the operator with a clear view of the working area and a comfortable working position, while remote control allows the operator to move freely and control the crane from a safe distance. This dual control mode offers maximum flexibility for different operational needs in foundry environments.
5. What does the model designation "QDY 30t-19m-16m A7" mean?
QDY = Foundry Crane (Ladle Crane); "30t" = 30-ton capacity; "19m" = 19-meter span; "16m" = 16-meter lifting height; "A7" = ISO A7 duty class.
6. What is the travel length of this crane?
The travel length is 130 meters, allowing the crane to cover a long runway in large metallurgical facilities. This is suitable for steel mills and foundries where the crane needs to travel significant distances between different processing stations.
7. What are the power requirements for this foundry crane?
3-phase, 380V, 50Hz. All motions (hoisting, trolley travel, crane travel) are controlled by VFD for smooth, precise operation in demanding foundry conditions.
Need Customized Drawings & Pricing for Your Project?
Send your facility dimensions, capacity requirements, span, lifting height, travel length, control requirements, and temperature conditions. Yuantai Crane consultants will provide a complimentary CAD layout drawing and quote within 24 hours.
Yuantai Foundry Crane Solutions
Yuantai Crane supplies custom QDY Foundry Crane (Ladle Crane) solutions worldwide — steel mills, foundries, smelting plants, and heavy industrial facilities. Each system is tailored to your capacity, span, lifting height, trolley type, travel length, control mode, and power supply.
Typical Technical Specifications:
- Lifting Capacity: 5–500 Tons (This Model: 30 t)
- Span: 10.0–40.0 Meters (This Model: 19.0 m)
- Lifting Height: 10.0–30.0 Meters (This Model: 16.0 m)
- Travel Length: 50–300 Meters (This Model: 130 m)
- Trolley Type: Open Winch Trolley (This Model)
- Duty Class: ISO A5–A8 (This Model: M7/A7)
- Control Mode: Cabin Control + Remote Control (This Model)
- Cabin Feature: Air-Conditioned Cabin (This Model)
- Structure: Double girder, bridge-type
- Power Supply: 3P 380V 50Hz (Customizable)
- Applications: Steel Mills, Foundries, Smelting Plants, Molten Metal Handling, Heavy Industrial Facilities
Yuantai provides global buyers with engineering design, non-standard structural customization, Factory Acceptance Testing (FAT), export packaging, logistics delivery, and installation guidance.
Engineering Support & Crane Customization
Handling a 30-ton molten metal load across a 19m span with 16m lifting height, cabin + remote control, air-conditioned cabin, and 130m travel length for foundry operations takes solid mechanical and electrical engineering. This drawing reflects Yuantai Crane's work in custom foundry crane structural design, open winch trolley systems, and reliable power delivery for demanding metallurgical environments.
| Customer Challenge & Site Requirement | Yuantai Custom Solution | Reference Parameters (Based on Drawing) |
|---|---|---|
| Molten Metal Handling with Operator Comfort Requires a crane capable of handling molten metal with a comfortable cabin for the operator. | QDY foundry crane with air-conditioned cabin, cabin + remote control, and open winch trolley for safe molten metal handling. | Capacity: 30 t | Span: 19 m | Lift: 16 m | Cabin: Air-Conditioned |
| Dual Control Mode for Flexibility Needs both cabin control for clear view and remote control for safe distance operation. | Cabin control + remote control for maximum operational flexibility in foundry environments. | Control: Cabin + Remote | Duty: M7/A7 | Travel: 130 m |
| No Main Girder Special Requirement Customer requires a crane design without traditional main girder configuration. | Designed without a traditional main girder as per customer requirement, while maintaining full lifting and travel functionality. | Special: No Main Girder | Power: 3P 380V 50Hz | Quantity: 1 Unit |
How to Evaluate If This Solution Fits Your Facility?
- 30T QDY Foundry Crane Design: 19m span, 16m lifting height, 2.5m trolley gauge — designed for molten metal handling.
- Air-Conditioned Cabin: Comfortable working environment for the operator in high-temperature foundry conditions.
- Cabin + Remote Control: Dual control mode for maximum operational flexibility.
- Open Winch Trolley: Better heat dissipation and easier maintenance for high-temperature foundry environments.
- M7/A7 Duty Class: Built for heavy-duty continuous operation in demanding foundry environments.
- 130m Travel Length: Covers long runways in large metallurgical facilities.
- Special Design (No Main Girder): Custom configuration to meet specific facility requirements.
