5t Pillar Jib Crane Drawing - BZ5t-8m A5 NR Hoist 360°

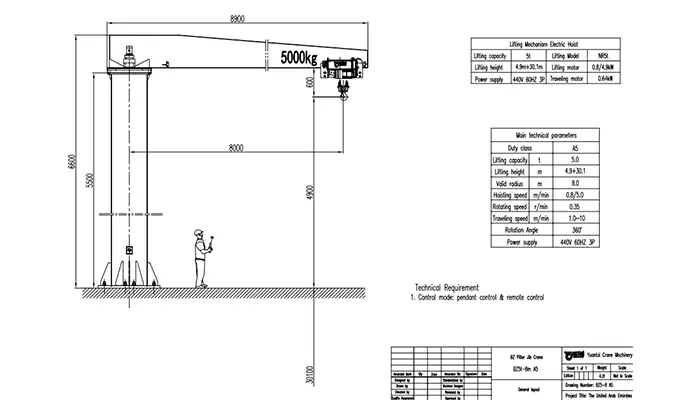

Yuantai Crane BZ 5t Pillar Jib Crane Drawing (Valid Radius 8.0m, Total Beam 8.9m, Lifting Height 4.9m+30.1m, A5 Duty, NR European Hoist, 360° Rotation)
Crane Manufacturer: Yuantai Cranes – 30+ Years Professional Crane Manufacturer from China
Category: Pillar Jib Crane Drawings
Tags: 5TonJibCraneDrawing
Overview: 5 Ton Pillar Jib Crane with A5 Heavy-Duty Rating, NR Hoist and 8m Reach
Engineered and manufactured by Yuantai Crane Machinery, this technical drawing package specifies a heavy-duty 5 Ton BZ Pillar Jib Crane (Model: BZ5t-8m A5). Designed for indoor heavy material handling with extended reach and dual lifting heights, this crane is built to A5 heavy-duty standards with reliable performance. It features an impressive 8.0m valid radius (8.9m total beam length), a 4.9m main lifting height plus 30.1m auxiliary, low-headroom NR European wire rope hoist, dual-speed hoisting, and 360° motorized rotation.
Who is this pillar jib crane for? Ideal for:
- Large workshops requiring extended reach and heavy-duty lifting
- Manufacturing plants with multiple workstations
- Maintenance bays needing reliable 5t capacity at 8m radius
- Steel fabrication and heavy metalworking facilities
- Facilities requiring dual lifting heights (main + auxiliary)
- Any facility requiring A5 rated 5t lifting with maximum coverage
Project & Technical Overview
- Equipment Type: Heavy-Duty Pillar Jib Crane (NR European Hoist)
- Alternative Names: 8m jib crane, extended reach pillar crane, A5 jib crane, 360 degree jib crane
- Model Number: BZ5t-8m A5
- Drawing PDF File: BZ 5t Pillar Jib Crane Drawing - BZ5t-8m A5 NR Hoist 360°
- Crane Manufacturer: Yuantai Cranes
- Duty Class: A5 (Heavy Duty / FEM 2m / ISO M5)
- Control Method: Pendant control & remote control
- Lifting Mechanism: NR5t European Electric Wire Rope Hoist (Low Headroom, Dual Speed)
- Application Target: Indoor heavy-duty handling of 5t loads with extended reach and dual lifting heights
- Key Dimensions: Total Height 6.6m, Column Height 5.5m, Lifting Height 4.9m + 30.1m, Valid Radius 8.0m, Total Beam Length 8.9m, Hoist Headroom 600mm
- Rotation Angle: 360° (Motorized Electric Rotation)
- Quantity: 1 unit
Buyer Note: This heavy-duty crane is specifically designed for extended reach applications where coverage of multiple workstations from a single column is required. The 8.0m valid radius and 360° rotation provide maximum coverage while A5 rating ensures reliable daily operation.
Main Technical Parameters
| Technical Parameter | Specification |
|---|---|
| Duty Class | A5 (Heavy Duty) |
| Lifting Capacity | 5.0 t (5000 kg) |
| Total Crane Height | 6600 mm (6.6 m) |
| Column Height | 5500 mm (5.5 m) |
| Lifting Height | 4.9 m + 30.1 m (Main + Auxiliary) |
| Valid Radius (Center to Hook) | 8.0 m (8000 mm) |
| Total Beam Length | 8900 mm (8.9 m) |
| Hoisting Speed | Dual Speed (0.8/5.0 m/min) |
| Rotating Speed | 0.35 r/min |
| Trolley Traveling Speed | 1.0 ~ 10 m/min |
| Rotation Angle | 360° (Motorized Electric Rotation) |
| Power Supply | 440V / 60Hz / 3P |
| Hoist Headroom / Clearance | 600 mm (Low Headroom) |
| Quantity | 1 unit |
Lifting Mechanism & Motor Parameters
| Component / Parameter | Specification |
|---|---|
| Lifting Mechanism | NR European Electric Wire Rope Hoist (Model: NR5t) |
| Lifting Motor Power | 0.8 / 4.9 kW (Dual Speed) |
| Traveling Motor Power | 0.64 kW |
| Control Voltage | 24V / 36V Safety Voltage |
Technical Requirement
Note:
- Control Mode: Pendant control & remote control.
- Extended Reach Note: With 8.0m valid radius and 8.9m total beam, this crane is ideal for large workshops. Ensure the jib arm is properly balanced and the rotation mechanism is regularly inspected.
- Heavy-Duty Note: A5 duty class is suitable for regular daily operations with moderate to heavy loading. Ideal for manufacturing plants and heavy maintenance facilities.
- Dual Lifting Heights: Main lifting height of 4.9m plus 30.1m auxiliary provides exceptional vertical reach for specialized applications.
- Foundation Requirement: Due to the long 8.9m beam and 5t capacity at 8.0m radius, a heavily reinforced concrete foundation (min. C30) with high-strength anchor bolts is strictly required.
- The drawing and technical data shown above are for reference only. For particular projects or customized dimensions, please contact us for a free consultation.
- Depending on complex site conditions or specialized customization engineering, a design fee/price may apply. Contact the Yuantai Crane engineering team for detailed technical proposals.
- Unauthorized use, copying, or manufacturing based on this drawing without formal authorization from Yuantai Crane Machinery is strictly prohibited. Yuantai Crane assumes no liability or legal responsibility for any consequences arising from unauthorized usage.
Key Facts About BZ5t-8m Pillar Jib Crane
The six most valuable FAQs for buyers — covering what this crane is, how to read its model number, its key lifting specifications, duty class, power & control options, and why it is ideal for heavy-duty extended-reach indoor material handling.
1. What is this pillar jib crane and what is it designed for?
This is a BZ5t-8m Pillar Jib Crane with a 5-ton lifting capacity, designed for indoor heavy-duty material handling with extended reach in large workshops, manufacturing plants, and heavy maintenance facilities. It is specifically configured with A5 heavy-duty rating and NR European hoist for reliable daily operation.
Ideal applications: large workshops, manufacturing plants, heavy maintenance bays, steel fabrication facilities, and facilities requiring dual lifting heights.
Alternative names for this crane: 8m jib crane, extended reach pillar crane, A5 jib crane, 360 degree jib crane, heavy-duty pillar crane.
2. What does "BZ5t-8m" mean in the model number?
- BZ = BZ series jib crane (column-mounted slewing jib)
- 5t = Maximum lifting capacity of 5.0 metric tons
- 8m = Valid working radius of 8,000 mm (8 meters)
The total beam length is 8.9 meters (8900 mm), with a valid working radius of 8.0 meters (8000 mm) from the pivot center to the hoist hook. This means the crane can lift 5 tons at a maximum distance of 8.0 meters from the column center.
Column height: 5.5 meters. Total crane height: 6.6 meters. Lifting height: 4.9m main plus 30.1m auxiliary. Hoist headroom: 600mm.
3. What are the key lifting specifications?
| Lifting Capacity | 5.0 t |
| Lifting Height | 4.9 m + 30.1 m (Main + Auxiliary) |
| Valid Radius | 8.0 m |
| Total Beam Length | 8.9 m |
| Hoisting Speed | 0.8 / 5.0 m/min (Dual Speed) |
| Rotation Angle | 360° |
| Rotation Speed | 0.35 r/min |
| Traveling Speed | 1.0 ~ 10 m/min |
| Duty Class | A5 |
| Hoist Model | NR5t European Wire Rope Hoist |
| Total Height | 6.6 m |
| Column Height | 5.5 m |
| Hoist Headroom | 600 mm |
| Quantity | 1 unit |
Buyer Tip: If your lifting height exceeds 4.9m or you need a different working radius, Yuantai can customize the column height and beam length to suit your specific workshop layout.
4. What is the duty class A5 and what does it mean for my application?
The duty class is A5 (FEM/ISO classification), which means:
- Heavy duty cycle — suitable for regular daily use
- Rated for up to 2,000–4,000 hours of operation per year
- Ideal for manufacturing plants, heavy maintenance facilities, and steel fabrication
- Perfectly matched to the demanding nature of heavy-duty material handling
What does this mean for you? If your facility operates multiple shifts per day with regular lifting, A5 is the right duty class. For occasional use, consider A3 or A4 duty cranes.
Duty class comparison: A3 = light duty (occasional use), A4 = medium duty (regular intermittent), A5 = heavy duty (regular daily), A6 = extra heavy duty (continuous).
5. What power supply and control options does this crane require?
Power Supply:
- Crane: 440V / 60Hz / 3-Phase
- Lifting Motor: 0.8 / 4.9 kW (Dual Speed)
- Traveling Motor: 0.64 kW
Control Modes:
- Pendant control — wired handheld controller with 24V/36V safety voltage
- Remote control — wireless operation for flexible positioning
Buyer Note: Pre-configured for 440V/60Hz 3-phase power. If your facility uses a different voltage (e.g., 220V, 380V, 415V, or 50Hz), please inform us during inquiry for customization.
6. Why is this crane suitable for heavy-duty extended-reach indoor material handling?
- 5t capacity — handles heavy workshop components
- 8.0m working radius — exceptional horizontal reach for large workshops
- 360° rotation — complete circular coverage from a single column
- Dual lifting heights — 4.9m main plus 30.1m auxiliary for specialized applications
- NR European hoist — reliable, low-headroom lifting with dual-speed precision
- A5 duty class — matches the demanding nature of heavy-duty work
- Pendant + remote control — operator can work from safe distance with good visibility
- Low headroom hoist — 600mm compact design maximizes available lifting height
- Indoor use — protected from harsh environments
Why buyers choose this model: It offers the perfect balance of lifting capacity, extended horizontal reach, comprehensive rotation, and heavy-duty rating for large workshops where reliable 5-ton lifting with 360° coverage is required.
How to Get Your Customized Pillar Jib Crane
This drawing serves as a standard technical reference. Since every workshop layout and lifting requirement is unique, Yuantai Crane customizes every system to fit your exact building specifications.
| Process Step | Details |
|---|---|
| Step 1: Share Your Site Parameters | Provide us with your required capacity, valid radius / arm length, lifting height, rotation angle, and power supply. |
| Step 2: Free CAD Drawing & Proposal | Our engineering team will design a tailored general layout drawing and precise technical proposal for free. |
| Step 3: Commercial & Technical Confirmation | We fine-tune the motor power, rotation speed, control methods, and foundation specs based on your operational environment. |
| Step 4: Manufacturing & Worldwide Delivery | Your crane will be manufactured under strict quality control, with full FAT inspection and delivery to your site. |
