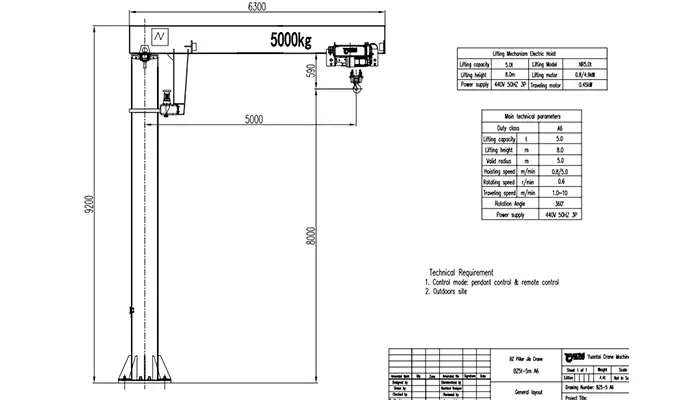

BZ 5t Pillar Jib Crane Drawing - BZ5t-6.5m A5 NR Hoist 270°
Yuantai Crane BZ 5t Pillar Jib Crane Drawing (Valid Radius 5.2m, Total Beam 6.5m, Lifting Height 4.0m, A5 Duty, NR European Hoist, 270° Rotation)
Crane Manufacturer: Yuantai Cranes – 30+ Years Professional Crane Manufacturer from China
Category: Pillar Jib Crane Drawings
Tags: 5TonJibCraneDrawing
Overview: 5 Ton Pillar Jib Crane with A5 Heavy-Duty Rating and NR European Hoist
Engineered and manufactured by Yuantai Crane Machinery, this technical drawing package specifies a heavy-duty 5 Ton BZ Pillar Jib Crane (Model: BZ5t-6.5m A5). Designed for indoor heavy material handling in manufacturing plants, assembly workshops, and maintenance bays, this crane is built to A5 heavy-duty standards with reliable performance. It features a 5.2m valid radius (6.5m total beam length), a practical 4.0m lifting height, low-headroom NR European wire rope hoist, dual-speed hoisting, and 270° motorized rotation.
Who is this pillar jib crane for? Ideal for:
- Manufacturing plants requiring heavy-duty lifting
- Assembly workshops with multiple workstations
- Maintenance bays needing reliable 5t capacity
- Steel fabrication and metalworking facilities
- Machine shops with heavy component handling
- Any facility requiring A5 rated 5t lifting with extended reach
Common search terms for this crane: 5 ton pillar jib crane, A5 duty jib crane, NR hoist pillar crane, 270 degree rotating jib crane, heavy-duty pillar crane, 6.5m jib crane, European hoist jib crane, workshop pillar crane, 5t capacity jib crane, industrial pillar jib crane.
Project & Technical Overview
- Equipment Type: Heavy-Duty Pillar Jib Crane (NR European Hoist)
- Alternative Names: 5t pillar crane, A5 jib crane, European hoist pillar crane, 270 degree jib crane
- Model Number: BZ5t-6.5m A5
- Drawing PDF File: 5t pillar crane, A5 jib crane, European hoist pillar crane, 270 degree jib crane
- Crane Manufacturer: Yuantai Cranes
- Duty Class: A5 (Heavy Duty / FEM 2m / ISO M5)
- Control Method: Pendant control & remote control
- Lifting Mechanism: NR5.0t European Electric Wire Rope Hoist (Low Headroom, Dual Speed)
- Application Target: Indoor heavy-duty handling of 5t loads with 270° rotation
- Key Dimensions: Total Height 5.2m, Lifting Height 4.0m, Valid Radius 5.2m, Total Beam Length 6.5m, Hoist Headroom 590mm
- Rotation Angle: 270° (Motorized Electric Rotation)
- Quantity: 2 units
Buyer Note: This heavy-duty crane is specifically designed for regular daily operations with A5 rating. The NR European hoist provides reliable, low-headroom lifting with dual-speed precision for accurate load positioning.
Main Technical Parameters
| Technical Parameter | Specification |
|---|---|
| Duty Class | A5 (Heavy Duty) |
| Lifting Capacity | 5.0 t (5000 kg) |
| Total Crane Height | 5200 mm (5.2 m) |
| Lifting Height | 4.0 m (4000 mm) |
| Valid Radius (Center to Hook) | 5.2 m (5200 mm) |
| Total Beam Length | 6500 mm (6.5 m) |
| Hoisting Speed | Dual Speed (0.8/4.9 kW motor) |
| Rotating Speed | As per configuration |
| Trolley Traveling Speed | As per configuration |
| Rotation Angle | 270° (Motorized Electric Rotation) |
| Power Supply | 380V / 60Hz / 3P |
| Hoist Headroom / Clearance | 590 mm (Low Headroom) |
| Quantity | 2 units |
Lifting Mechanism & Motor Parameters
| Component / Parameter | Specification |
|---|---|
| Lifting Mechanism | NR European Electric Wire Rope Hoist (Model: NR5.0t) |
| Lifting Motor Power | 0.8 / 4.9 kW (Dual Speed) |
| Traveling Motor Power | 0.45 kW |
| Control Voltage | 24V / 36V Safety Voltage |
Technical Requirement
Note:
- Control Mode: Pendant control & remote control.
- Heavy-Duty Note: A5 duty class is suitable for regular daily operations with moderate to heavy loading. Ideal for manufacturing plants and assembly workshops.
- Foundation Requirement: Due to the 5.2m total height, 5t capacity at 5.2m radius, a heavily reinforced concrete foundation (min. C30) with high-strength anchor bolts is strictly required.
- Rotation Capability: 270° motorized rotation provides extensive coverage while maintaining structural efficiency.
- Quantity Note: This drawing covers 2 units of BZ5t-6.5m A5 pillar jib cranes.
- The drawing and technical data shown above are for reference only. For particular projects or customized dimensions, please contact us for a free consultation.
- Depending on complex site conditions or specialized customization engineering, a design fee/price may apply. Contact the Yuantai Crane engineering team for detailed technical proposals.
- Unauthorized use, copying, or manufacturing based on this drawing without formal authorization from Yuantai Crane Machinery is strictly prohibited. Yuantai Crane assumes no liability or legal responsibility for any consequences arising from unauthorized usage.
Key Facts About BZ5t-6.5m Pillar Jib Crane
The six most valuable FAQs for buyers — covering what this crane is, how to read its model number, its key lifting specifications, duty class, power & control options, and why it is ideal for heavy-duty indoor material handling.
1. What is this pillar jib crane and what is it designed for?
This is a BZ5t-6.5m Pillar Jib Crane with a 5-ton lifting capacity, designed for indoor heavy material handling in manufacturing plants, assembly workshops, and maintenance bays. It is specifically configured with A5 heavy-duty rating and NR European hoist for reliable daily operation.
Ideal applications: manufacturing plants, assembly workshops, maintenance bays, steel fabrication facilities, and machine shops with heavy component handling.
Alternative names for this crane: 5t pillar crane, A5 jib crane, European hoist pillar crane, 270 degree jib crane, heavy-duty pillar crane.
2. What does "BZ5t-6.5m" mean in the model number?
- BZ = BZ series jib crane (column-mounted slewing jib)
- 5t = Maximum lifting capacity of 5.0 metric tons
- 6.5m = Total beam length of 6,500 mm (6.5 meters)
The valid working radius is 5.2 meters (5200 mm) from the pivot center to the hoist hook. This means the crane can lift 5 tons at a maximum distance of 5.2 meters from the column center.
Column height: 5.2 meters total height. Lifting height: 4.0 meters. Hoist headroom: 590mm.
3. What are the key lifting specifications?
| Lifting Capacity | 5.0 t |
| Lifting Height | 4.0 m |
| Valid Radius | 5.2 m |
| Total Beam Length | 6.5 m |
| Hoisting Speed | Dual Speed (0.8/4.9 kW) |
| Rotation Angle | 270° |
| Duty Class | A5 |
| Hoist Model | NR5.0t European Wire Rope Hoist |
| Total Height | 5.2 m |
| Hoist Headroom | 590 mm |
| Quantity | 2 units |
Buyer Tip: If your lifting height exceeds 4m or you need a different working radius, Yuantai can customize the column height and beam length to suit your specific workshop layout.
4. What is the duty class A5 and what does it mean for my application?
The duty class is A5 (FEM/ISO classification), which means:
- Heavy duty cycle — suitable for regular daily use
- Rated for up to 2,000–4,000 hours of operation per year
- Ideal for manufacturing plants, assembly workshops, and heavy maintenance facilities
- Perfectly matched to the demanding nature of heavy-duty material handling
What does this mean for you? If your workshop operates multiple shifts per day with regular lifting, A5 is the right duty class. For occasional use, consider A3 or A4 duty cranes.
Duty class comparison: A3 = light duty (occasional use), A4 = medium duty (regular intermittent), A5 = heavy duty (regular daily), A6 = extra heavy duty (continuous).
5. What power supply and control options does this crane require?
Power Supply:
- Crane: 380V / 60Hz / 3-Phase
- Lifting Motor: 0.8 / 4.9 kW (Dual Speed)
- Traveling Motor: 0.45 kW
Control Modes:
- Pendant control — wired handheld controller with 24V/36V safety voltage
- Remote control — wireless operation for flexible positioning
Buyer Note: Pre-configured for 380V/60Hz 3-phase power. If your facility uses a different voltage (e.g., 220V, 415V, 440V, or 50Hz), please inform us during inquiry for customization.
6. Why is this crane suitable for heavy-duty indoor material handling?
- 5t capacity — handles heavy workshop components
- 5.2m working radius — practical horizontal reach for workshops
- 270° rotation — extensive coverage from a single column
- Motorized trolley travel — enables efficient movement along the jib arm
- NR European hoist — reliable, low-headroom lifting with dual-speed precision
- A5 duty class — matches the demanding nature of heavy-duty work
- Pendant + remote control — operator can work from safe distance with good visibility
- Compact height design — only 5.2m total height, ideal for standard workshops
- Low headroom hoist — 590mm compact design maximizes available lifting height
- Indoor use — protected from harsh environments
Why buyers choose this model: It offers the perfect balance of lifting capacity, practical reach, and heavy-duty rating for workshops where reliable 5-ton lifting with 270° coverage is required.
How to Get Your Customized Pillar Jib Crane
This drawing serves as a standard technical reference. Since every workshop layout and lifting requirement is unique, Yuantai Crane customizes every system to fit your exact building specifications.
| Process Step | Details |
|---|---|
| Step 1: Share Your Site Parameters | Provide us with your required capacity, valid radius / arm length, lifting height, rotation angle, and power supply. |
| Step 2: Free CAD Drawing & Proposal | Our engineering team will design a tailored general layout drawing and precise technical proposal for free. |
| Step 3: Commercial & Technical Confirmation | We fine-tune the motor power, rotation speed, control methods, and foundation specs based on your operational environment. |
| Step 4: Manufacturing & Worldwide Delivery | Your crane will be manufactured under strict quality control, with full FAT inspection and delivery to your site. |
Need a Customized Drawing & Quote for Your Plant?
Send us your workshop dimensions today. Yuantai technical consultants will provide a free CAD drawing and tailored price quote within 24 hours.
Yuantai Pillar Jib Crane Solution
Yuantai Cranes provides customized BZ-Series of pillar jib crane solutions for manufacturing plants, assembly workshops, and maintenance bays. Each jib crane is configured according to the required capacity, valid radius, lifting height, rotation angle, duty class, building conditions, and operating environment.
Typical Technical Specifications:
- Capacity: 0.5–10 ton (This Model: 5.0 t)
- Valid Radius / Arm Length: 2–12 m (This Model: 5.2 m valid radius / 6.5 m total beam)
- Lifting Height: Customized according to application (This Model: 4.0 m / 5.2 m total height)
- Rotation Angle: 180° / 270° / 360° (This Model: 270° Motorized)
- Duty Class: A3–A6 (This Model: A5 Heavy Duty)
- Hoist Type: NR European Electric Wire Rope Hoist (This Model: NR5.0t, 590mm headroom, Dual Speed)
- Hoisting Speed: Dual Speed 0.8/4.9 kW motor
- Control Method: Pendant Control & Remote Control
- Power Supply: 380/415/440V, 50/60Hz, 3Ph (This Model: 380V 60Hz 3P)
- Lifting Motor Power: 0.8 / 4.9 kW
- Applications: Manufacturing plants, assembly workshops, maintenance bays, steel fabrication, and machine shops
Yuantai provides engineering, manufacturing, inspection and testing, delivery, installation and after-sales support for complete pillar jib crane projects.
Engineering Support & Workshop Adaptability
Handling 5-ton loads across a 5.2-meter radius with 270° rotation? This technical drawing illustrates how Yuantai Crane customizes A5 heavy-duty pillar jib cranes with NR European hoists to optimize workshop productivity.
| Customer Challenge & Working Condition | Yuantai Customized Engineering Solution | Reference Parameters (Based on Drawing) |
|---|---|---|
| Heavy-duty daily operations Regular lifting with moderate to heavy loading cycles. | A5 heavy-duty structural design with NR European hoist handles regular daily operations with reliable 5-ton capacity at 5.2-meter radius. | Capacity: 5.0t | Valid Radius: 5.2m | Duty Class: A5 (Model: BZ5t-6.5m A5) |
| Practical reach for workshop coverage Covering workstations across a 5.2-meter radius. | 6.5m total beam with 5.2m valid radius and 270° rotation provides extensive coverage while maintaining structural efficiency. | Valid Radius: 5.2m | Total Beam: 6.5m | Rotation: 270° |
| Low headroom requirement Maximizing lifting height in standard workshops. | NR European hoist with 590mm headroom maximizes available lifting height to 4.0m while maintaining compact design. | Lifting Height: 4.0m | Hoist Headroom: 590mm | Total Height: 5.2m |
| Multiple crane requirement Two cranes for separate workstations or production lines. | Drawing package covers 2 units of BZ5t-6.5m A5 pillar jib cranes for coordinated workshop operations. | Quantity: 2 units | Model: BZ5t-6.5m A5 |
How to Evaluate If This Solution Fits Your Facility
- Height & Overhead Clearance: Ensure workshop clear height is at least 5.4 meters (total crane height is 5.2m).
