5 Ton Pillar Jib Crane Drawing - BZ5t-6m A3 Chain Hoist Manual Rotation
Yuantai Crane BZ 5t Pillar Jib Crane Drawing (Valid Radius 5.4m, Total Beam 6.0m, Lifting Height 4.0m, A3 Duty, Electric Chain Hoist, Manual Rotation 360°)
Crane Manufacturer: Yuantai Cranes – 30+ Years Professional Crane Manufacturer from China
Category: Pillar Jib Crane Drawings
Tags: 5TonJibCraneDrawing
Overview: 5 Ton Pillar Jib Crane with Electric Chain Hoist and Manual Rotation
Engineered and manufactured by Yuantai Crane Machinery, this technical drawing package specifies a cost-effective 5 Ton BZ Pillar Jib Crane (Model: BZ5t-6m A3). Designed for indoor light-duty material handling in workshops, warehouses, and light assembly areas, this crane is built to A3 light-duty standards with simple, reliable operation. It features a 5.4m valid radius (6.0m total beam length), a practical 4.0m lifting height, 5t electric chain hoist with motorized trolley travel, and manual 360° rotation for cost-effective operation.
Who is this pillar jib crane for? Ideal for:
- Light manufacturing and assembly workshops
- Warehouses requiring occasional 5t lifting
- Maintenance areas with intermittent lifting needs
- Facilities with 220V single-phase power supply
- Budget-conscious operations requiring reliable 5t capacity
- Workstations where manual rotation is sufficient
Common search terms for this crane: 5 ton pillar jib crane, manual rotation jib crane, chain hoist pillar crane, A3 duty jib crane, 5t capacity jib crane, electric chain hoist crane, 6m jib crane, cost-effective pillar crane, single phase jib crane, warehouse pillar crane.
Project & Technical Overview
- Equipment Type: Pillar Jib Crane (Electric Chain Hoist, Manual Rotation)
- Alternative Names: Manual rotation jib crane, chain hoist pillar crane, A3 jib crane, single phase pillar crane
- Model Number: BZ5t-6m A3

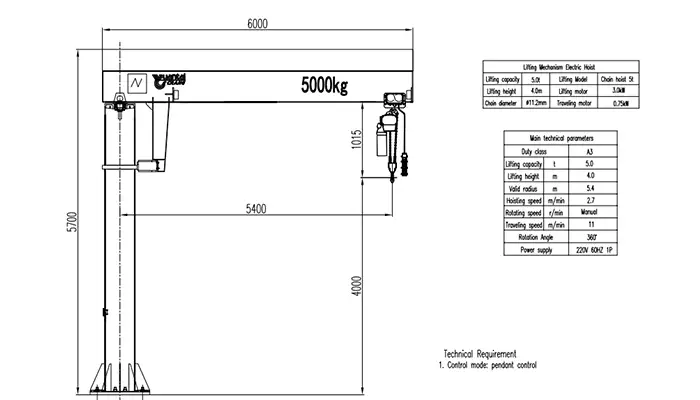

- Drawing PDF File: BZ Pillar Jib Crane Drawing 5 Ton (5.4m Radius, 4m Lifting Height, A3 Duty, Manual Rotation)
- Crane Manufacturer: Yuantai Cranes
- Duty Class: A3 (Light Duty / FEM 1Bm / ISO M3)
- Control Method: Pendant control
- Lifting Mechanism: 5t Electric Chain Hoist (Chain Diameter Ø11.2mm)
- Rotation Type: Manual 360° rotation (no motor required)
- Application Target: Indoor light-duty handling of 5t loads
- Key Dimensions: Total Height 5.7m, Lifting Height 4.0m, Valid Radius 5.4m, Total Beam Length 6.0m, Hoist Headroom 1015mm
- Rotation Angle: 360° (Manual Push Rotation)
- Quantity: 1 unit
Buyer Note: This cost-effective crane is specifically designed for occasional lifting where manual rotation is sufficient. The electric chain hoist provides reliable lifting while eliminating the cost and complexity of a motorized rotation system.
Main Technical Parameters
| Technical Parameter | Specification |
|---|---|
| Duty Class | A3 (Light Duty) |
| Lifting Capacity | 5.0 t (5000 kg) |
| Total Crane Height | 5700 mm (5.7 m) |
| Lifting Height | 4.0 m (4000 mm) |
| Valid Radius (Center to Hook) | 5.4 m (5400 mm) |
| Total Beam Length | 6000 mm (6.0 m) |
| Hoisting Speed | As per configuration |
| Rotating Speed | Manual (No motor) |
| Trolley Traveling Speed | As per configuration |
| Rotation Angle | 360° (Manual Push Rotation) |
| Power Supply | 220V / 60Hz / 1P (Single Phase) |
| Hoist Headroom / Clearance | 1015 mm |
| Quantity | 1 unit |
Lifting Mechanism & Motor Parameters
| Component / Parameter | Specification |
|---|---|
| Lifting Mechanism | Electric Chain Hoist (Model: 5t Chain Hoist) |
| Chain Diameter | Ø11.2 mm |
| Lifting Motor Power | 3.0 kW |
| Traveling Motor Power | 0.75 kW |
| Rotation Motor | None (Manual rotation) |
| Control Voltage | 24V / 36V Safety Voltage |
Technical Requirement
Note:
- Control Mode: Pendant control.
- Manual Rotation Note: This crane features manual push rotation for 360° coverage. The operator manually rotates the jib arm to position loads, eliminating the need for a rotation motor and reducing cost.
- Light-Duty Note: A3 duty class is suitable for occasional lifting with low frequency. Ideal for workshops and warehouses with intermittent 5t lifting needs.
- Foundation Requirement: Due to the 5t capacity at 5.4m radius, a reinforced concrete foundation (min. C25/C30) with anchor bolts is required.
- Power Supply Note: This crane is configured for 220V / 60Hz / 1-Phase power supply. Please confirm your facility voltage matches before ordering.
- The drawing and technical data shown above are for reference only. For particular projects or customized dimensions, please contact us for a free consultation.
- Depending on complex site conditions or specialized customization engineering, a design fee/price may apply. Contact the Yuantai Crane engineering team for detailed technical proposals.
- Unauthorized use, copying, or manufacturing based on this drawing without formal authorization from Yuantai Crane Machinery is strictly prohibited. Yuantai Crane assumes no liability or legal responsibility for any consequences arising from unauthorized usage.
Key Facts About BZ5t-6m Pillar Jib Crane
The six most valuable FAQs for buyers — covering what this crane is, how to read its model number, its key lifting specifications, duty class, power & control options, and why it is ideal for cost-effective indoor material handling.
1. What is this pillar jib crane and what is it designed for?
This is a BZ5t-6m Pillar Jib Crane with a 5-ton lifting capacity, designed for indoor light-duty material handling in workshops, warehouses, and light assembly areas. It is specifically configured with a 5t electric chain hoist and manual 360° rotation for cost-effective operation.
Ideal applications: light manufacturing, assembly workshops, warehouses, maintenance areas, and facilities with intermittent 5t lifting needs.
Alternative names for this crane: manual rotation jib crane, chain hoist pillar crane, A3 jib crane, single phase pillar crane, cost-effective pillar crane.
2. What does "BZ5t-6m" mean in the model number?
- BZ = BZ series jib crane (column-mounted slewing jib)
- 5t = Maximum lifting capacity of 5.0 metric tons
- 6m = Total beam length of 6,000 mm (6 meters)
The valid working radius is 5.4 meters (5400 mm) from the pivot center to the hoist hook. This means the crane can lift 5 tons at a maximum distance of 5.4 meters from the column center.
Column height: 5.7 meters total height. Lifting height: 4.0 meters. Hoist headroom: 1015mm.
3. What are the key lifting specifications?
| Lifting Capacity | 5.0 t |
| Lifting Height | 4.0 m |
| Valid Radius | 5.4 m |
| Total Beam Length | 6.0 m |
| Rotation Angle | 360° (Manual) |
| Duty Class | A3 |
| Hoist Model | 5t Electric Chain Hoist (Ø11.2mm chain) |
| Total Height | 5.7 m |
| Hoist Headroom | 1015 mm |
| Power Supply | 220V / 60Hz / 1P |
| Quantity | 1 unit |
Buyer Tip: If your lifting height exceeds 4m or you need a larger working radius, Yuantai can customize the column height and beam length to suit your specific workshop layout.
4. What is the duty class A3 and what does it mean for my application?
The duty class is A3 (FEM/ISO classification), which means:
- Light duty cycle — suitable for occasional use
- Rated for up to 500–1,000 hours of operation per year
- Ideal for workshops, warehouses, and light assembly facilities
- Perfectly matched to the occasional nature of intermittent lifting work
What does this mean for you? If your facility requires occasional lifting with low frequency, A3 is the right duty class. For regular daily operations, consider A4 or A5 duty cranes.
Duty class comparison: A3 = light duty (occasional use), A4 = medium duty (regular intermittent), A5 = heavy duty (regular daily), A6 = extra heavy duty (continuous).
5. What power supply and control options does this crane require?
Power Supply:
- Crane: 220V / 60Hz / 1-Phase (Single Phase)
- Lifting Motor: 3.0 kW
- Traveling Motor: 0.75 kW
- Rotation Motor: None (Manual rotation)
Control Modes:
- Pendant control — wired handheld controller with 24V/36V safety voltage
Buyer Note: This crane is configured for 220V/60Hz single-phase power. If your facility uses a different voltage (e.g., 380V, 415V, 440V, or 50Hz), please inform us during inquiry for customization.
Manual Rotation Advantage: No rotation motor means lower initial cost, simpler maintenance, and no additional power consumption for rotation.
6. Why is this crane suitable for cost-effective indoor material handling?
- 5t capacity — handles heavy workshop components
- 5.4m working radius — practical horizontal reach for workshops
- Manual 360° rotation — eliminates rotation motor cost and complexity
- Electric chain hoist — reliable lifting with motorized trolley travel
- A3 duty class — matches the occasional nature of light-duty work
- Single-phase power — suitable for facilities without 3-phase supply
- Pendant control — simple, reliable operation with good visibility
- Compact height design — only 5.7m total height, ideal for standard workshops
- Cost-effective — manual rotation reduces initial investment and maintenance
- Indoor use — protected from harsh environments
Why buyers choose this model: It offers the perfect balance of lifting capacity, practical reach, and cost-effectiveness for workshops where occasional 5-ton lifting with manual rotation is sufficient.
How to Get Your Customized Pillar Jib Crane
This drawing serves as a standard technical reference. Since every workshop layout and lifting requirement is unique, Yuantai Crane customizes every system to fit your exact building specifications.
| Process Step | Details |
|---|---|
| Step 1: Share Your Site Parameters | Provide us with your required capacity, valid radius / arm length, lifting height, rotation angle, and power supply. |
| Step 2: Free CAD Drawing & Proposal | Our engineering team will design a tailored general layout drawing and precise technical proposal for free. |
| Step 3: Commercial & Technical Confirmation | We fine-tune the motor power, rotation speed, control methods, and foundation specs based on your operational environment. |
| Step 4: Manufacturing & Worldwide Delivery | Your crane will be manufactured under strict quality control, with full FAT inspection and delivery to your site. |
Need a Customized Drawing & Quote for Your Plant?
Send us your workshop dimensions today. Yuantai technical consultants will provide a free CAD drawing and tailored price quote within 24 hours.
Yuantai Pillar Jib Crane Solution
Yuantai Cranes provides customized BZ-Series of pillar jib crane solutions for workshops, warehouses, and light assembly facilities. Each jib crane is configured according to the required capacity, valid radius, lifting height, rotation angle, duty class, power supply, and operating environment.
Typical Technical Specifications:
- Capacity: 0.5–10 ton (This Model: 5.0 t)
- Valid Radius / Arm Length: 2–12 m (This Model: 5.4 m valid radius / 6.0 m total beam)
- Lifting Height: Customized according to application (This Model: 4.0 m / 5.7 m total height)
- Rotation Type: Manual / Motorized (This Model: Manual 360°)
- Duty Class: A3–A6 (This Model: A3 Light Duty)
- Hoist Type: Electric Chain Hoist (This Model: 5t Chain Hoist, Ø11.2mm chain, 1015mm headroom)
- Control Method: Pendant Control
- Power Supply: 220V/380V/415V/440V, 50/60Hz, 1Ph/3Ph (This Model: 220V 60Hz 1P)
- Lifting Motor Power: 3.0 kW
- Applications: Light manufacturing, assembly workshops, warehouses, maintenance areas, and intermittent lifting operations
Yuantai provides engineering, manufacturing, inspection and testing, delivery, installation and after-sales support for complete pillar jib crane projects.
Engineering Support & Workshop Adaptability
Handling 5-ton loads across a 5.4-meter radius with manual 360° rotation? This technical drawing illustrates how Yuantai Crane customizes A3 light-duty pillar jib cranes with electric chain hoists for cost-effective workshop operations.
| Customer Challenge & Working Condition | Yuantai Customized Engineering Solution | Reference Parameters (Based on Drawing) |
|---|---|---|
| Occasional light-duty operations Intermittent lifting with low frequency. | A3 light-duty structural design with electric chain hoist handles occasional lifting with reliable 5-ton capacity at 5.4-meter radius. | Capacity: 5.0t | Valid Radius: 5.4m | Duty Class: A3 (Model: BZ5t-6m A3) |
| Cost-effective solution required Budget constraints with need for reliable 5t lifting. | Manual 360° rotation eliminates rotation motor cost, reducing initial investment and maintenance requirements. | Rotation: Manual 360° | No Rotation Motor | Lower Initial Cost |
| Single-phase power supply available Facility without 3-phase electrical supply. | Configured for 220V / 60Hz / 1-Phase power supply, suitable for facilities without 3-phase power. | Power Supply: 220V 60Hz 1P | Lifting Motor: 3.0 kW |
| Practical reach for workshop coverage Covering workstations across a 5.4-meter radius. | 6.0m total beam with 5.4m valid radius provides practical coverage for workshop operations. | Valid Radius: 5.4m | Total Beam: 6.0m | Lifting Height: 4.0m |
How to Evaluate If This Solution Fits Your Facility
- Height & Overhead Clearance: Ensure workshop clear height is at least 5.9 meters (total crane height is 5.7m).
- Radius Coverage Check: Offers a 360° manual rotation coverage across a 10.8-meter diameter working circle, serving workstations.
- Foundation Rigidity: Due to the 5t capacity at 5.4m radius, a reinforced concrete foundation (min. C25/C30) with anchor bolts is required.
- Power Supply Compatibility: Pre-configured for 220V / 60Hz / 1P electrical supply (customizable to match your local plant voltage).
- Rotation Requirement: This model offers manual 360° rotation. If you need motorized rotation, please specify during inquiry.
- Duty Cycle Check: A3 light-duty is suitable for occasional use. For regular daily operations, consider upgrading to A4 or A5 duty.
Unsure If This Layout Fits Your Plant?
Send us your site dimensions (Available Height, Rotation Radius, and Capacity requirements). Yuantai technical consultants will provide a FREE custom CAD layout drawing and proposal within 24 hours.
