Explosion-Proof Pillar Jib Crane - BZ5/5t-15/17m A3 ExdIICT4
Explosion-proof pillar jib crane for handling 5t process equipment in Zone 1 and Zone 2 hazardous gas environments with 15m/17m reach, 10m height, dual hoist redundancy, 360° rotation and ExdIICT4 certification.
Crane Manufacturer: Yuantai Cranes – 30+ Years Professional Crane Manufacturer from China
Category: Pillar Jib Crane Drawings
Tags: 5TonJibCraneDrawing
Overview: 5 Ton Explosion-Proof Dual Hoist Pillar Jib Crane for Hazardous Environments
Engineered and manufactured by Yuantai Crane Machinery, this technical drawing package specifies a heavy-duty, customized 5t/5t BZ Explosion-Proof Pillar Jib Crane (Model: BZ5/5t-15/17m A3 ExdIICT4). Tailored for hazardous chemical plants, oil refineries, gas processing facilities, and offshore platforms, this crane is certified to ExdIICT4 explosion-proof standards. It features an extra-long 15.0m valid radius for the primary BCD electric wire rope hoist and an extended 17.0m reach for the secondary backup manual/chain hoist. Built to ISO A3 standards with a 10.0m lifting height, it comes complete with a top maintenance platform, safety access ladder, 360° motorized rotation, and dual explosion-proof pendant/remote controls.
Who is this explosion-proof pillar jib crane for? Ideal for:
- Chemical plants and petrochemical facilities (Zone 1 & Zone 2)
- Oil refineries and gas processing plants
- Offshore platforms and hazardous material warehouses
- Paint spray booths and coating facilities
- Pharmaceutical processing with explosive gas environments
- Gas cylinder storage and hydrogen handling areas
- Any facility requiring ExdIICT4 certified lifting equipment
Common search terms for this crane: explosion-proof pillar jib crane, ExdIICT4 jib crane, hazardous area jib crane, chemical plant crane, oil refinery jib crane, dual hoist pillar crane, BCD explosion-proof hoist, flameproof pillar crane, Zone 1 jib crane, gas group IIC crane, explosion-proof crane with platform, offshore pillar jib crane, petrochemical lifting equipment.
Project & Technical Overview
- Equipment Type: Explosion-Proof Heavy-Duty Pillar Jib Crane
- Alternative Names: Flameproof jib crane, hazardous area pillar crane, ExdIICT4 crane, chemical plant jib crane
- Model Number: BZ5/5t-15/17m A3 ExdIICT4

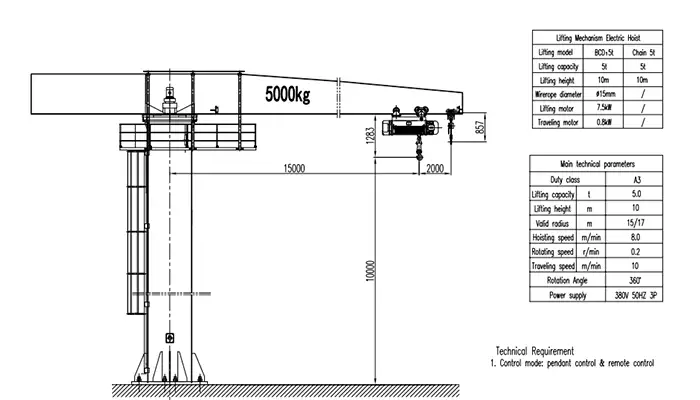

- Drawing Pdf File: BZ Explosion-Proof Pillar Jib Crane Drawing 5t/5t (ExdIICT4, 15m/17m Radius, Maintenance Platform)
- Crane Manufacturer: Yuantai Crane Machinery
- Explosion-Proof Rating: ExdIICT4 (Gas Group IIC, Temperature Class T4)
- Duty Class: ISO A3
- Control Method: Explosion-proof pendant control & wireless remote control
- Dual Lifting Mechanism: Primary BCD1 5t Explosion-Proof Wire Rope Hoist + Secondary 5t Backup Manual Chain Hoist
- Safety & Maintenance Structures: Integrated top maintenance walkway platform and vertical safety ladder with cage
- Key Dimensions: Lifting Height 10.0m, Primary Valid Radius 15.0m, Secondary Reach 17.0m, Total Weight ~22.3 t
- Rotation Angle: 360° (Motorized Electric Rotation)
- Foundation Type: Heavy reinforced concrete foundation with high-tensile anchor bolts
Buyer Note: This explosion-proof crane is specifically designed for hazardous gas environments where standard cranes cannot operate. The ExdIICT4 rating covers Hydrogen, Acetylene, and other IIC gases with T4 temperature class. The dual hoist configuration ensures zero downtime during maintenance or power loss.
Main Technical Parameters
| Technical Parameter | Specification |
|---|---|
| Explosion-Proof Rating | ExdIICT4 |
| Duty Class | ISO A3 |
| Lifting Capacity | Primary Hoist: 5.0 t (5000 kg) | Secondary Hoist: 5.0 t (5000 kg) |
| Lifting Height | 10.0 m (10000 mm) |
| Valid Radius (Primary BCD Hoist) | 15.0 m (15000 mm) |
| Extended Reach (Secondary Hoist) | 17.0 m (15000 mm + 2000 mm cantilever) |
| Hoisting Speed (Electric Hoist) | 8.0 m/min |
| Rotating Speed | 0.2 r/min |
| Trolley Traveling Speed | 10 m/min |
| Rotation Angle | 360° (Motorized Electric Rotation) |
| Power Supply | 380V / 50Hz / 3P |
| BCD Hoist Headroom | 1283 mm |
| Backup Chain Hoist Headroom | 857 mm |
| Total Crane Structural Weight | 22.3 t (approx.) |
Lifting Mechanism & Motor Parameters
| Component / Parameter | Specification |
|---|---|
| Primary Lifting Mechanism | BCD1 Explosion-Proof Electric Wire Rope Hoist 5t |
| Secondary Lifting Mechanism | Backup Explosion-Proof Manual Chain Hoist 5t |
| Wire Rope Specification | Φ 15 mm Flame-Resistant High-Strength Wire Rope |
| Lifting Motor Power (Primary) | 7.5 kW (Flameproof Motor) |
| Trolley Traveling Motor Power | 0.8 kW (Flameproof Motor) |
| Control Voltage | 24V / 36V Low Safety Voltage |
Technical Requirement
Note:
- Explosion-Proof Safety Standards: All electrical components, motors, junction boxes, limit switches, and pendants are flameproof ExdIICT4 certified, suitable for Zone 1 and Zone 2 explosive gas environments.
- Dual Hoist Redundancy: Equipped with a primary 5t BCD electric wire rope hoist for daily operations and a secondary 5t backup chain hoist stationed on the 2m cantilever extension to ensure zero downtime during hazardous plant maintenance.
- Maintenance Access: Includes a full steel walkway maintenance platform with guardrails and a vertical safety ladder around the pillar head for safe inspection of the rotating mechanism and slip ring.
- Foundation Requirement: Given the massive 22.3t dead weight and high overturning moment under 5t load at 15m/17m radius, a heavy reinforced concrete foundation with high-tensile anchor bolt arrays is mandatory.
- The drawing and technical data shown above are for reference only. For particular projects or customized dimensions, please contact us for a free consultation.
- Depending on complex site conditions or specialized customization engineering, a design fee/price may apply. Contact the Yuantai Crane engineering team for detailed technical proposals.
- Unauthorized use, copying, or manufacturing based on this drawing without formal authorization from Yuantai Crane Machinery is strictly prohibited. Yuantai Crane assumes no liability or legal responsibility for any consequences arising from unauthorized usage.
Key Facts About BZ5/5t-15/17m Explosion-Proof Pillar Jib Crane
The six most valuable FAQs for buyers — covering what this crane is, how to read its model number, its key lifting specifications, explosion-proof rating, power & control options, and why it is essential for hazardous area material handling.
1. What is this explosion-proof pillar jib crane and what is it designed for?
This is a BZ5/5t-15/17m Explosion-Proof Pillar Jib Crane with a dual 5-ton lifting capacity, designed for hazardous area material handling in chemical plants, oil refineries, and gas processing facilities. It is specifically configured with ExdIICT4 explosion-proof certification for safe operation in Zone 1 and Zone 2 explosive gas environments.
Ideal applications: chemical reactors, oil refinery maintenance, gas cylinder storage, pharmaceutical processing, paint spray booths, and offshore platforms.
Alternative names for this crane: flameproof jib crane, hazardous area pillar crane, ExdIICT4 crane, chemical plant jib crane, Zone 1 jib crane, dual hoist explosion-proof crane.
2. What does "BZ5/5t-15/17m" mean in the model number?
- BZ = BZ series jib crane (column-mounted slewing jib)
- 5/5t = Dual 5-ton lifting capacity (Primary + Secondary hoist)
- 15/17m = Primary valid radius 15.0m / Secondary reach 17.0m
- A3 = ISO A3 duty class
- ExdIICT4 = Explosion-proof rating (Gas Group IIC, Temperature Class T4)
The primary BCD electric hoist operates at 15.0m valid radius, while the secondary backup chain hoist extends to 17.0m reach on a 2m cantilever. This dual-hoist design ensures zero downtime during maintenance or power loss.
3. What are the key lifting specifications?
| Primary Capacity | 5.0 t |
| Secondary Capacity | 5.0 t |
| Lifting Height | 10.0 m |
| Primary Valid Radius | 15.0 m |
| Secondary Reach | 17.0 m |
| Hoisting Speed | 8.0 m/min |
| Rotation Angle | 360° |
| Rotation Speed | 0.2 r/min |
| Traveling Speed | 10 m/min |
| Explosion-Proof Rating | ExdIICT4 |
| Duty Class | ISO A3 |
| Primary Hoist Model | BCD1 5t Explosion-Proof Wire Rope Hoist |
| Secondary Hoist Model | 5t Explosion-Proof Manual Chain Hoist |
| BCD Hoist Headroom | 1283 mm |
| Chain Hoist Headroom | 857 mm |
| Total Weight | 22.3 t (approx.) |
Buyer Tip: If your lifting height exceeds 10m or you need a different working radius, Yuantai can customize the column height and beam length to suit your specific hazardous area layout.
4. What is the ExdIICT4 explosion-proof rating and what does it mean for my application?
The explosion-proof rating is ExdIICT4, which means:
- Ex = Explosion-proof equipment
- d = Flameproof enclosure (contains internal explosion without spreading)
- II = Equipment group II (surface industries, not mining)
- C = Gas group IIC (covers Hydrogen, Acetylene, and other most easily ignited gases)
- T4 = Temperature class T4 (maximum surface temperature ≤ 135°C)
What does this mean for you? This crane is suitable for Zone 1 and Zone 2 hazardous areas where explosive gas mixtures may be present. It is certified for the most demanding gas groups (IIC) including hydrogen and acetylene.
Explosion-proof rating comparison: ExdIIBT4 = covers common industrial gases (propane, ethylene), ExdIICT4 = covers hydrogen, acetylene, and all lower gas groups — the highest level of protection.
5. What power supply and control options does this crane require?
Power Supply:
- Crane: 380V / 50Hz / 3-Phase
- Lifting Motor (Primary): 7.5 kW (Flameproof Exd)
- Trolley Traveling Motor: 0.8 kW (Flameproof Exd)
- Control Voltage: 24V / 36V Low Safety Voltage
Control Modes:
- Explosion-proof pendant control — wired handheld controller with flameproof enclosure
- Explosion-proof wireless remote control — wireless operation for flexible positioning
Buyer Note: Pre-configured for 380V/50Hz 3-phase power. If your facility uses a different voltage (e.g., 220V, 415V, 440V, or 60Hz), please inform us during inquiry for customization to your local explosion-proof standards.
6. Why is this explosion-proof crane essential for hazardous area material handling?
- ExdIICT4 certification — safe operation in Zone 1 and Zone 2 explosive gas environments
- Dual 5t hoists — primary BCD electric hoist + secondary manual backup for zero downtime
- 15m/17m extended reach — covers large chemical reactors and storage tanks
- 360° rotation — complete circular coverage from a single column
- 10m lifting height — handles tall process equipment and vessels
- Flameproof motors and controls — all electrical components rated ExdIICT4
- Maintenance platform & ladder — safe access for inspection at height
- Non-sparking components — copper-coated hook and non-sparking trolley wheels
- Explosion-proof pendant + remote — operator can work from safe distance
- Heavy-duty construction — 22.3t structural weight for stability and durability
Why buyers choose this model: It provides the highest level of explosion protection (IIC, T4) combined with dual hoist redundancy and extended reach, making it essential for critical hazardous area operations where safety and uptime are paramount.
How to Get Your Customized Explosion-Proof Pillar Jib Crane
This drawing serves as a standard technical reference. Since every hazardous area layout and lifting requirement is unique, Yuantai Crane customizes every system to fit your exact building specifications and explosion-proof classification.
| Process Step | Details |
|---|---|
| Step 1: Share Your Site Parameters | Provide us with your required capacity, valid radius / arm length, lifting height, explosion-proof grade, rotation angle, and power supply. |
| Step 2: Free CAD Drawing & Proposal | Our engineering team will design a tailored general layout drawing and precise technical proposal for free. |
| Step 3: Commercial & Technical Confirmation | We fine-tune the motor power, rotation speed, control methods, and foundation specs based on your operational environment. |
| Step 4: Manufacturing & Worldwide Delivery | Your crane will be manufactured under strict quality control, with full FAT inspection and delivery to your site. |
Need a Customized Drawing & Quote for Your Plant?
Send us your workshop dimensions today. Yuantai technical consultants will provide a free CAD drawing and tailored price quote within 24 hours.
Yuantai Explosion-Proof Pillar Jib Crane Solution
Yuantai Cranes provides customized BZ-Series of explosion-proof pillar jib crane solutions for oil refineries, chemical plants, gas storage facilities, paint spray booths, and hazardous material warehouses. Each jib crane is configured according to the required capacity, valid radius, lifting height, explosion-proof rating, rotation angle, duty class, building conditions, and operating environment.
Typical Technical Specifications:
- Capacity: 0.5–10 ton (This Model: 5.0 t / 5.0 t Dual Hoist)
- Valid Radius / Arm Length: 3–20 m (This Model: 15.0 m primary / 17.0 m secondary)
- Lifting Height: Customized according to application (This Model: 10.0 m)
- Explosion-Proof Level: ExdIIBT4 / ExdIICT4 (This Model: ExdIICT4)
- Rotation Angle: 180° / 270° / 360° (This Model: 360° Motorized)
- Duty Class: ISO A3–A5 (This Model: ISO A3)
- Hoist Type: BCD Explosion-Proof Electric Wire Rope Hoist & Manual Backup Hoist
- Hoisting Speed: 8.0 m/min
- Rotating Speed: 0.2 r/min
- Traveling Speed: 10 m/min
- Control Method: Flameproof Pendant Control & Wireless Remote Control
- Power Supply: 220/380/400/415V, 50/60Hz, 3Ph (This Model: 380V 50Hz 3P)
- Lifting Motor Power: 7.5 kW (Exd)
- Applications: Chemical reactors, oil refinery maintenance, gas cylinder storage, pharmaceutical processing, and offshore platforms
Yuantai provides engineering, manufacturing, inspection and testing, delivery, installation and after-sales support for complete pillar jib crane projects.
Engineering Support & Workshop Adaptability
Lifting heavy 5-ton process equipment across a wide 15-to-17-meter radius in hazardous gas environments? This technical drawing illustrates how Yuantai Crane customizes ExdIICT4 explosion-proof pillar jib cranes with dual hoists and full service platforms to guarantee maximum safety and operational uptime.
| Customer Challenge & Working Condition | Yuantai Customized Engineering Solution | Reference Parameters (Based on Drawing) |
|---|---|---|
| Hazardous Zone 1 / Zone 2 gas environment Preventing electrical sparks and mechanical friction ignition during lifting. | Full ExdIICT4 flameproof motor, control box, limit switches, copper-coated hook, and non-sparking trolley wheels. | Rating: ExdIICT4 | Main Motor: 7.5kW Exd | Trolley: 0.8kW Exd (Model: BZ5/5t-15/17m A3 ExdIICT4) |
| Extreme 15m to 17m reach requirement Covering chemical reactors and outdoor storage tanks over a long span. | Heavy-duty tapered box girder arm providing 15m primary radius and 17m extended reach for auxiliary servicing. | Primary Radius: 15.0m | Secondary Reach: 17.0m | Total Weight: 22.3t |
| Zero-downtime redundancy requirement Preventing process stoppage during main hoist electrical maintenance or power loss. | Dual hoist configuration featuring a primary BCD electric wire rope hoist (15m radius) and a secondary 5t manual backup hoist (17m reach). | Primary: BCD 5t Electric | Secondary: 5t Manual Backup | Height: 10m |
| Safe routine inspection at height Providing safe access for maintenance technicians servicing slewing drives. | Integrated upper steel walkway platform with protective handrails and vertical safety ladder with anti-fall enclosure. | Structure: Maintenance Platform & Access Safety Ladder |
How to Evaluate If This Explosion-Proof Solution Fits Your Facility
- Explosion-Proof Environment Verification: Ensure ExdIICT4 matches your plant's hazardous gas classification (suitable for Hydrogen, Acetylene, and IIC gases, T1-T4 temp class).
- Structural Weight & Foundation Loading: Structural weight is approximately 22.3 tons. A massive, deep reinforced concrete foundation pad is essential to handle the huge overturning moment.
- Radius & Clearance Coverage: Delivers 360° circular coverage over a massive 30-meter diameter primary working circle (34-meter secondary coverage).
- Power Supply Compatibility: Pre-configured for 380V / 50Hz / 3P electrical supply (customizable for global explosion-proof standards).
- Duty Cycle Check: ISO A3 light-duty is suitable for occasional use. For regular daily operations in hazardous areas, consider upgrading to A4 or A5 duty.
